Silver desktop network switch with eight RJ45 ports and two SFP slots

Netgear Inc.

Netgear Inc. GS110TP-300NAS 10-port Gigabit PoE+ smart network switch

SKU CH-YZJF-G823F MPN GS110TP-300NAS

An 8-port Gigabit PoE+ smart switch with two SFP uplinks, 55 W PoE budget, VLAN, QoS and optional cloud management

  • FormatDesktop Wall Mountable
  • StandardsIEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 100
  • Network Management TypeSmart
  • Primary Ports8 x RJ45 + 2 x SFP
  • Primary Port Speed10/100/1000Mbps
  • VLAN SupportYes

Class 8-Port Gigabit PoE

Model GS110TP

Le versioni barrate esistono, ma non sono disponibili qui.

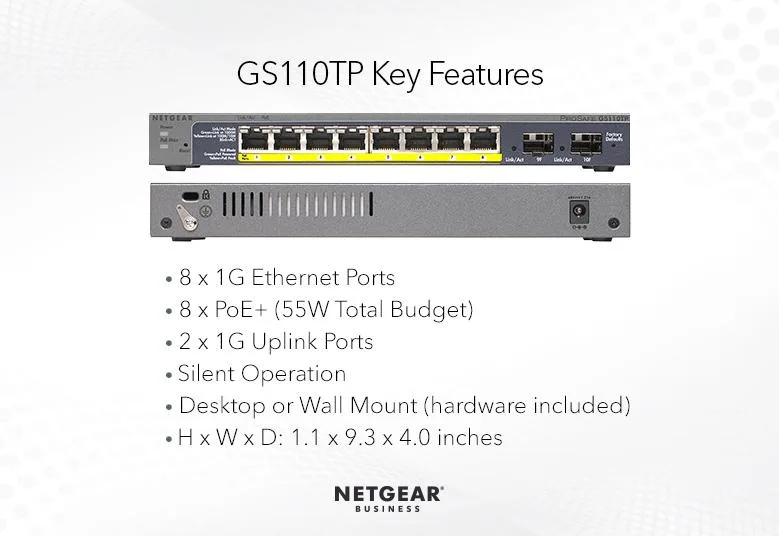

  • 8 RJ45 ports plus 2 SFP uplinks for flexible connectivity
  • 55 W PoE+ budget powers access points cameras and VoIP phones
  • Smart L2 and L3 Lite features with VLAN QoS LACP and port mirroring
  • Optional Insight cloud management for remote setup monitoring and control
  • Energy Efficient Ethernet IEEE 802.3az reduces power draw during low traffic

10-port Gigabit PoE+ smart switch

The Netgear GS110TP-300NAS provides eight RJ45 ports and two SFP uplinks, all running at 10/100/1000 Mbps. It delivers up to 55 W of PoE+ power across the copper ports for access points, cameras or VoIP phones. The desktop form factor also supports wall mounting for flexible placement. Smart management features include VLAN, QoS, LACP and Layer 3 static routing.

Sustained load with 59.3 W maximum draw

Under continuous traffic the switch consumes up to 59.3 W while maintaining wire-speed forwarding on every port. The 512 KB buffer absorbs bursty flows without head-of-line blocking. Energy Efficient Ethernet reduces power during quiet periods. Per-port PoE scheduling lets administrators cut power to idle devices, keeping thermal output stable over long runs.

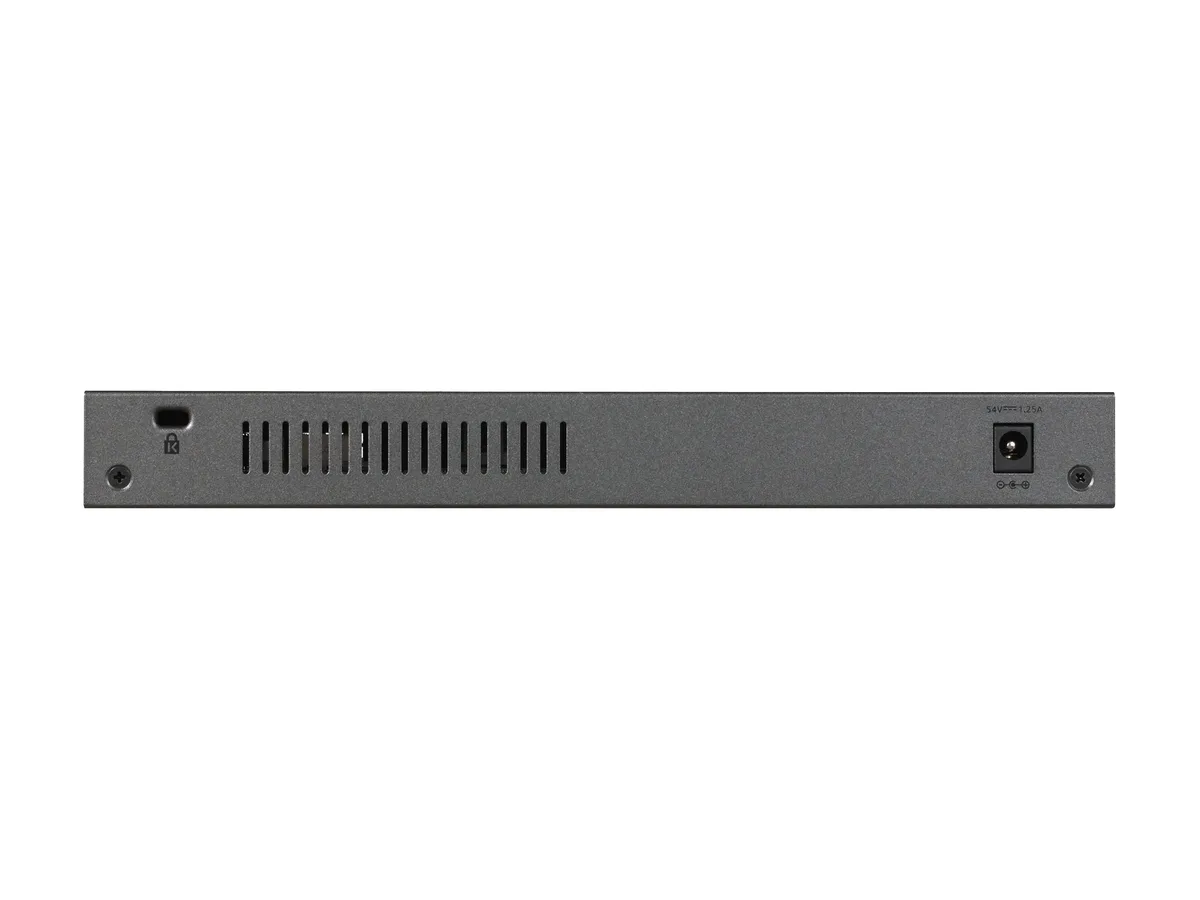

Desktop metal chassis with wall-mount option

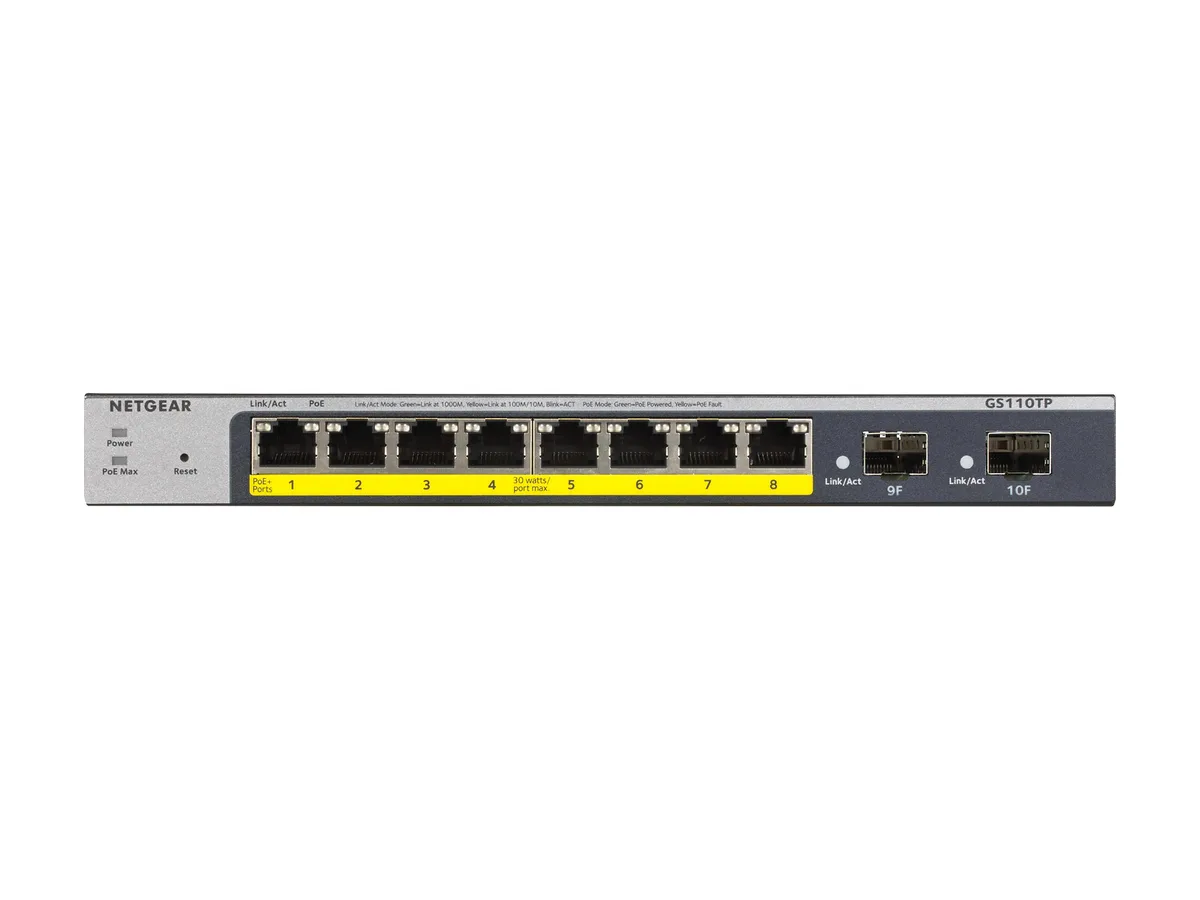

The metal enclosure acts as a heatsink, so the unit runs fanless and silent in office or wiring-closet environments. Front-panel LEDs show link, speed and PoE status for each RJ45 port plus link speed for the SFP slots. A device-level PoE Max LED warns when the 55 W budget is exhausted. Two SFP cages accept standard transceivers for fibre uplinks.

Punti di forza

  • 8 RJ45 ports plus 2 SFP uplinks for flexible connectivity
  • 55 W PoE+ budget powers access points cameras and VoIP phones
  • Smart L2 and L3 Lite features with VLAN QoS LACP and port mirroring
  • Optional Insight cloud management for remote setup monitoring and control
  • Energy Efficient Ethernet IEEE 802.3az reduces power draw during low traffic

Caratteristiche tecniche

BrandNETGEAR
SeriesProSafe
Part NumberGS110TP-300NAS
FormatDesktop
Wall Mountable
StandardsIEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3x full-duplex flow control
IEEE 802.3af (DTE Power Via MDI)
Network Management TypeSmart
Primary Ports8 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps
VLAN SupportYes
Jumbo FramesYes
Buffer Memory512KB
ProtocolsTCP/IP
PoEYes
SNMPYes
QoSYes
LACPYes
Layer3
Port MirroringYes
LEDsPer RJ45 port: Link/activity, speed, PoE status
Per SFP port: Link/speed
Per device: Power, PoE Max
PowerPower consumption: 59.3W maximum
CertificationEnvironmentally Friendly: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
FeaturesThe NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks.
Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W.
Each PoE port can provide up to 30 watts to power up the connected devices.
Fanless, the GS110TPv3 supports perfectly silent desktop operation or wallmounting.

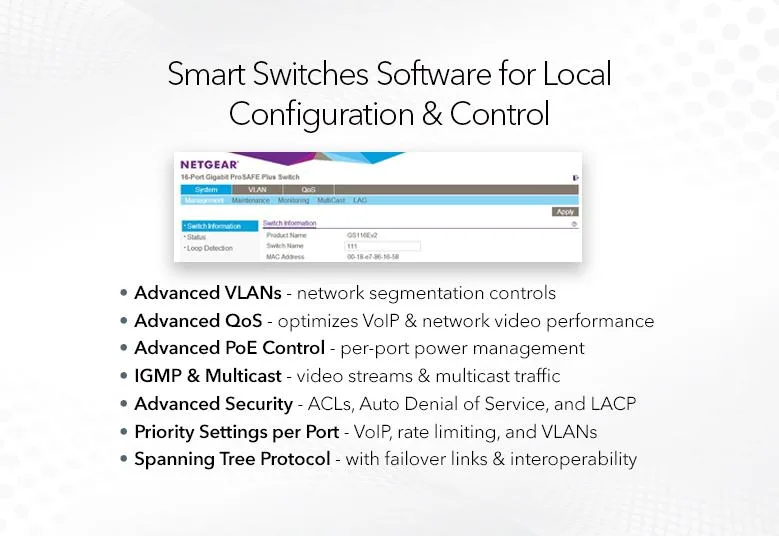

The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allo
Package ContentsProSafe GS110TP Ethernet Switch
AC Adapter
Rubber Footpads
Wall-Mount Kit
Resource CD
Installation Guide
Peso di spedizione1.23 kg
Dimensioni del pacco264 × 165 × 86 mm

Altre versioni di questo modello

altri 3 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

How much heat and power draw does the 59.3 W maximum consumption create when the GS110TP runs continuously?

The switch draws up to 59.3 W at the wall; Energy Efficient Ethernet (IEEE 802.3az) reduces power on idle links, and the desktop metal chassis passively dissipates heat without a fan.

What cabling and SFP modules must I already have to use the eight RJ45 ports and two SFP uplinks?

Cat 5e or better copper for the 10/100/1000 Mbps RJ45 ports, and any IEEE 802.3z compatible 1000BASE-X SFP transceivers for the two fibre uplinks.

Will the GS110TP negotiate 100 Mbps or 10 Mbps speeds on older devices connected to its RJ45 ports?

Yes, each RJ45 port supports IEEE 802.3i, 802.3u and 802.3ab, so legacy 10/100 Mbps gear links at its rated speed while PoE+ delivers up to 55 W total budget.
