Compact metal desktop switch with five RJ45 ports and PoE+ LEDs

Netgear Inc.

Netgear Inc. GS305EPP-100NAS 5-Port Gigabit PoE+ Smart Switch

SKU CH-6ZAD-NPABQ MPN GS305EPP-100NAS

A 5-port Gigabit desktop switch with four PoE+ ports delivering a 63 W power budget and smart management features

  • FormatDesktop
  • StandardsIEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3u 100B
  • Network Management TypeSmart
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table4K

Model GS305EPP

  • Four PoE+ ports deliver 120 W total for cameras and access points
  • Five Gigabit RJ45 ports provide 1000 Mbps non-blocking bandwidth per port
  • Smart management adds VLAN, QoS and port mirroring beyond plug-and-play
  • Fanless metal enclosure operates silently from 0 °C to 40 °C
  • Uninterrupted PoE keeps devices powered during firmware updates or reboots

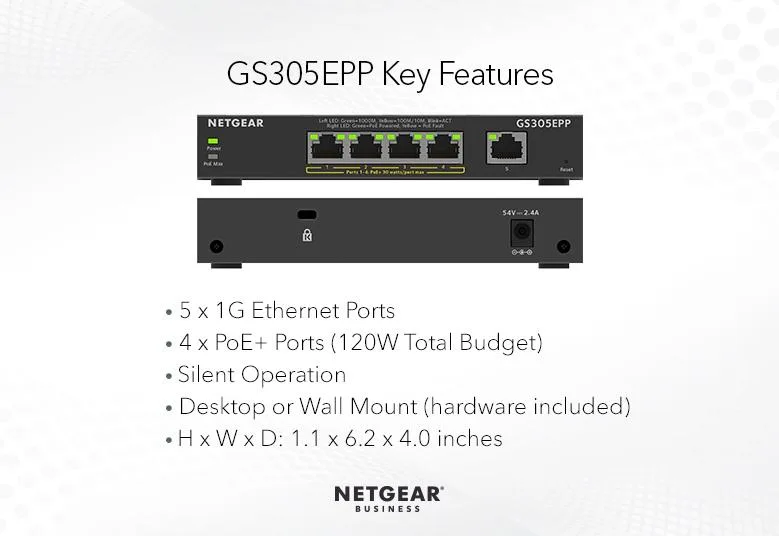

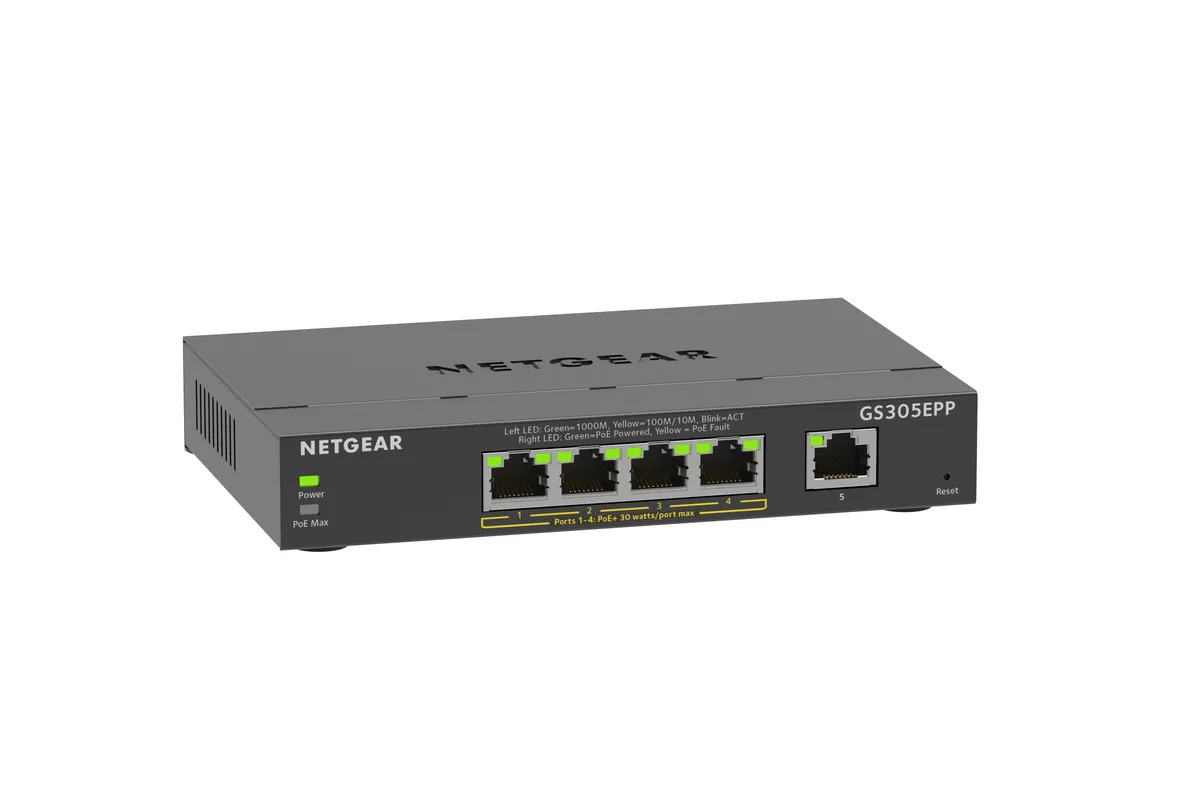

Five-port PoE+ smart switch

The Netgear GS305EPP-100NAS is a desktop Layer 2 switch with five Gigabit RJ45 ports. Four ports deliver PoE+ power with a 120 W budget, supporting devices such as access points, cameras and VoIP phones. A web-based GUI adds VLAN, QoS, port mirroring and loop prevention on top of plug-and-play operation. Fanless metal construction allows silent desktop or wall mounting.

Suits small offices and branch deployments

This switch fits networks that need basic management and PoE+ on a few ports without the cost of a fully managed chassis. It supports 802.1Q VLANs, 802.1p Class of Service and jumbo frames up to 9216 bytes for efficient traffic segmentation. Buyers who need more than four powered ports, higher PoE budgets, Layer 3 routing or SFP uplinks should look at larger models.

Sustained load behaviour

The 192 KB buffer and non-blocking 1000 Mbps per port handle continuous Gigabit streams across all five ports. Fanless convection cooling is rated for ambient temperatures up to 40 °C, with storage tolerance to 70 °C. Uninterrupted PoE keeps endpoints powered during firmware updates or software reboots. Rate limiting and broadcast storm controls prevent congestion from degrading long-running voice or video traffic.

Punti di forza

  • Four PoE+ ports deliver 120 W total for cameras and access points
  • Five Gigabit RJ45 ports provide 1000 Mbps non-blocking bandwidth per port
  • Smart management adds VLAN, QoS and port mirroring beyond plug-and-play
  • Fanless metal enclosure operates silently from 0 °C to 40 °C
  • Uninterrupted PoE keeps devices powered during firmware updates or reboots

Caratteristiche tecniche

BrandNETGEAR
Part NumberGS305EPP-100NAS
FormatDesktop
StandardsIEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
EEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full-duplex Flow Control
Network Management TypeSmart
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table4K
VLAN SupportYes
Jumbo Frames9216 bytes
Buffer Memory192KB
PoE4 (PoE+) 120W Budget
QoSYes
Layer2
Port MirroringYes
LEDsPer port: Speed, Link, Activity, PoE
Per device: Power, system, PoE Max
TemperatureOperating temperature: 32° to 104°F (0° to 40°C)
Storage temperature: -4° to 158°F (-20° to 70°C)
HumidityOperating Humidity (relative): 90% maximum relative (RH), non-condensing
Storage Humidity (relative): 95% maximum relative humidity (RH), non-condensing
Package ContentsNETGEAR Smart Managed Plus Switch
Power adapter (power cable varies by region)
Wall installation kit
Rubber feet
Installation guide
Peso di spedizione1.38 kg
Dimensioni del pacco264 × 173 × 89 mm

Altre versioni di questo modello

altri 3 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

Do I need a separate power adapter to run this switch?

The package includes a power adapter with a region-specific cable, so no extra power supply is required.

Will my 100 Mbps IP cameras work on the 1 Gbps PoE+ ports?

Each RJ45 port auto-negotiates 10/100/1000 Mbps, so 100 Mbps devices connect at their rated speed while still receiving PoE+ power.

How can I verify the 63 W PoE budget is actually powering my devices?

Per-port PoE LEDs and the device-level PoE Max LED show real-time power status, and the web GUI reports actual consumption per port.
