Orico
Orico 3549RU3-US-SV-BP 4-bay RAID drive enclosure 64TB 150W
A four-bay RAID enclosure with built-in 150 W power, USB 3.0 host link and a cooling fan, accepting 2.5″ or 3.5″ SATA drives up to 16 TB each for 64 TB total
- ColorSilver
- Size2.5" & 3.5"
- TypeDock
- AC AdapterPower Supply Adapter inside
- MaterialAluminum
- Internal InterfaceSATA
# of Bay 4 Bay
- 4 Bay
- 5 Bay
- Four-bay RAID enclosure stores up to 64 TB across four drives

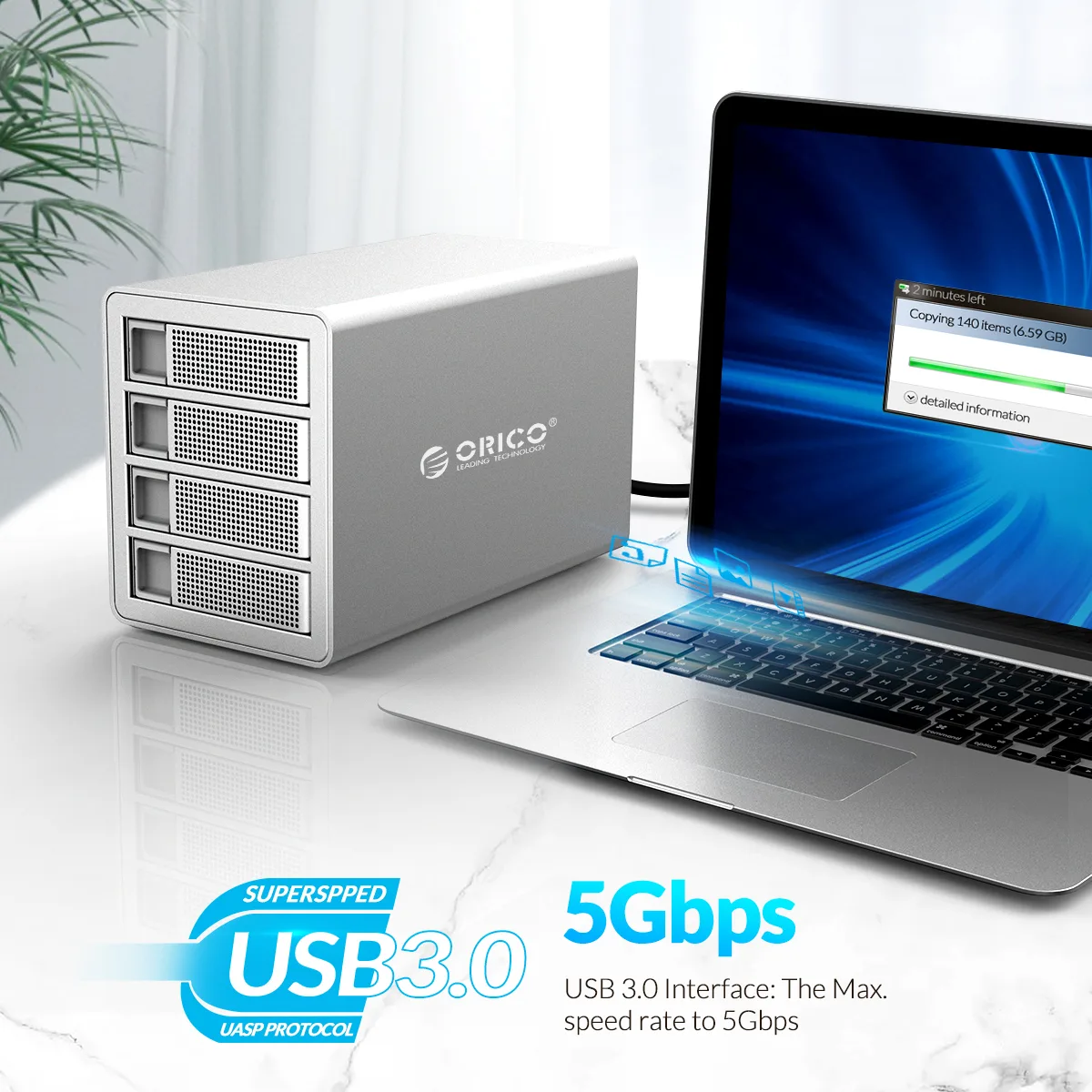

- USB 3.0 link delivers up to 5 Gbps transfer speed

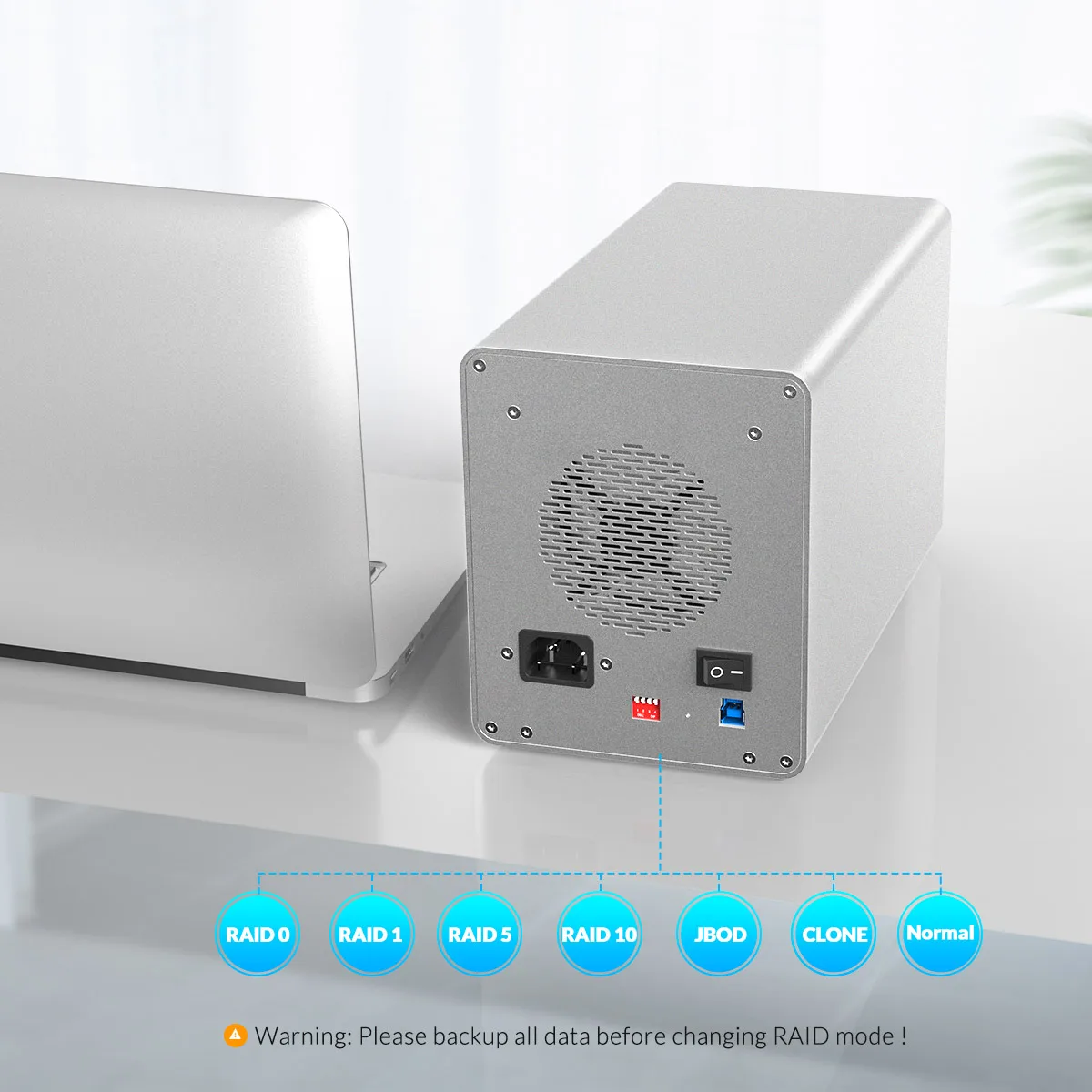

- Seven RAID modes plus JBOD, Clone and Normal cover every workload

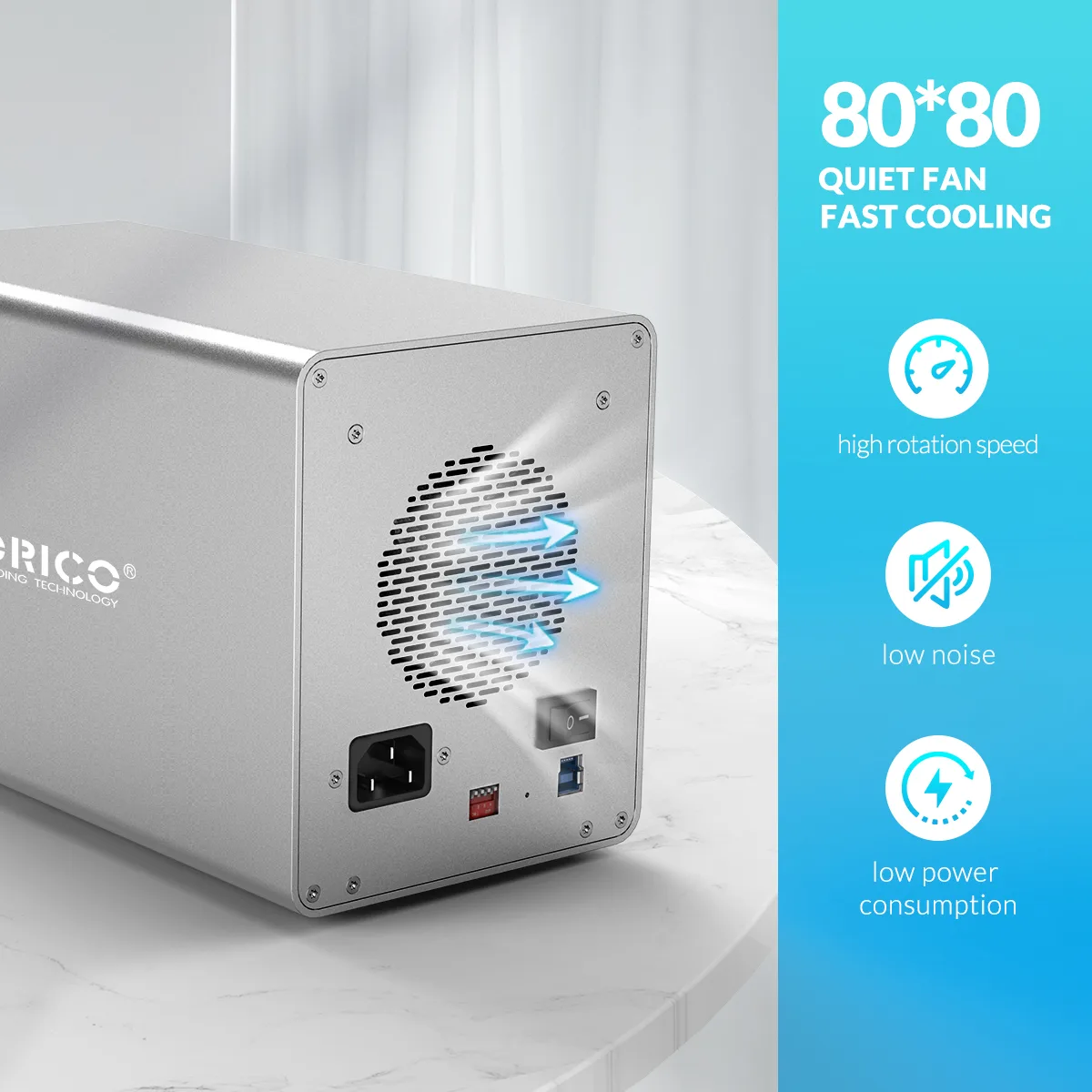

- Aluminium chassis with built-in fan keeps drives cool during heavy use

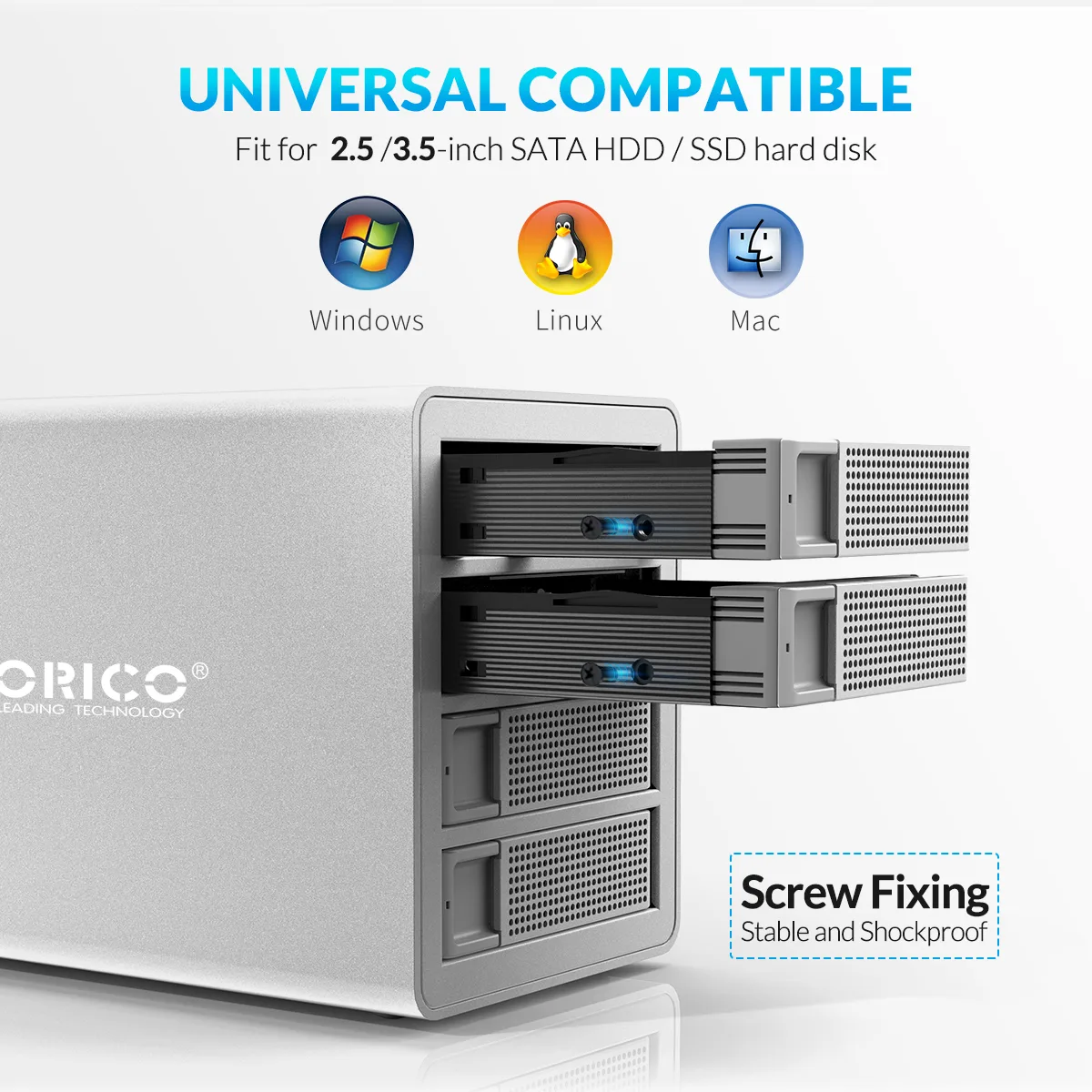

- Tool-free trays let you swap 2.5" or 3.5" SATA drives in seconds
Four-Bay RAID Enclosure with 64TB Capacity

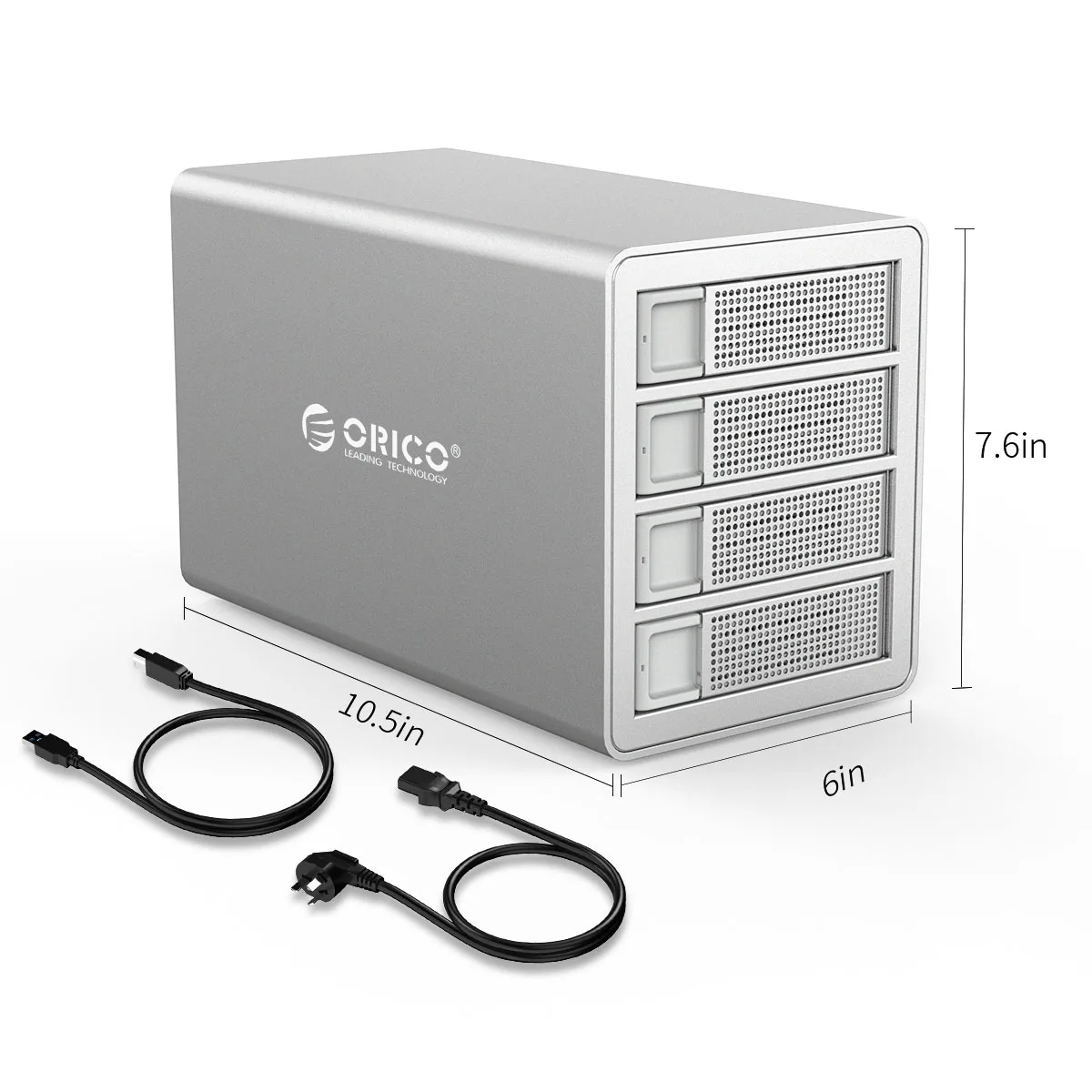

The Orico 3549RU3-US-SV-BP is a desktop enclosure that holds four SATA hard drives or SSDs in 2.5" or 3.5" form factors. It connects to a host via USB 3.0 and includes a built-in 150W power supply and cooling fan. The aluminium chassis supports tool-free drive installation and hot-swap operation.
Suits RAID Arrays up to 64TB
This unit serves users who want hardware RAID 0, 1, 5, 10, JBOD, Clone or Normal modes across four drives with a single USB 3.0 link. It is not for buyers who need more than four drive bays, who require an external interface faster than USB 3.0, or who must operate without an internal power supply.
USB 3.0 Host Interface Decides Compatibility
The enclosure communicates with the computer over a single USB 3.0 connection rated at 5Gbps. If the host lacks a USB 3.0 port or the workflow demands a different host interface, this enclosure will not meet the requirement.
Punti di forza
- Four-bay RAID enclosure stores up to 64 TB across four drives
- USB 3.0 link delivers up to 5 Gbps transfer speed
- Seven RAID modes plus JBOD, Clone and Normal cover every workload
- Aluminium chassis with built-in fan keeps drives cool during heavy use
- Tool-free trays let you swap 2.5" or 3.5" SATA drives in seconds
Caratteristiche tecniche
| Brand | ORICO |
|---|---|
| Color | Silver |
| Size | 2.5" & 3.5" |
| Type | Dock |
| AC Adapter | Power Supply Adapter inside |
| Material | Aluminum |
| Internal Interface | SATA |
| External Interface | USB 3.0 |
| HDD Count Supported | With RAID |
| Number of Bay | 4 Bay |
| Maximum Capacity (per Bay) | Single hard drive support 16TB capacity, four hard drive supports 64TB; |
| Fan | Yes |
| Peso di spedizione | 4.15 kg |
| Dimensioni del pacco | 361 × 310 × 229 mm |
Altre versioni di questo modello
altri 1 nella stessa gamma
Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.
Domande su questo articolo
How do I install drives in the 3549RU3 and what step is often missed?
Slide each 2.5 or 3.5 inch drive into its independent bracket, secure it with the supplied screws, then insert the bracket into the bay; the step often missed is tightening the bracket screws before hot-swapping.
What maintenance will the 3549RU3 enclosure need over time?
Clean the internal fan and ventilation openings periodically to maintain the double heat-dissipation design; the 150 W built-in power supply and dual-core chip are not user-serviceable.
What limit appears first when the 3549RU3 runs sustained transfers?
The USB 3.0 link caps sustained throughput at 5 Gbps, so total array speed hits that ceiling before the SATA 3.0 6 Gb/s bridge or the 64 TB capacity limit.
