Silver 12.1 inch industrial panel PC with resistive touchscreen and fanless aluminum housing

partaker

Partaker A2-PA-121TPC-CE5B(I56) 12.1" All-in-One PC i5 6th Gen 2.0GHz 4GB DDR3 64GB SSD

SKU CH-68GN-JEP2K

12.1" industrial panel PC with IP65 front protection, Intel Core i5 6th Gen at 2.0GHz, 4GB DDR3, 64GB SSD, resistive touchscreen, fanless aluminium chassis

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel Iris Graphics 540

GPU Intel Iris Graphics 540

Memory 4GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 64GB

  • 64GB
  • 256GB
  • 512GB

HDD None

  • None
  • 1TB

Le versioni barrate esistono, ma non sono disponibili qui.

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • 5-wire resistive touchscreen rated for 200 million touches
  • Intel Core i5 6th Gen 2.0 GHz with Intel Iris Graphics 540
  • 4 GB DDR3L and 64 GB SSD, expandable to 8 GB RAM

Industrial 12.1" Panel PC

The Partaker A2-PA-121TPC-CE5B(I56) is a compact all-in-one computer built for industrial environments. It integrates a 12.1 inch TFT LED display with a high-temperature five-wire resistive touchscreen inside an IP65-rated aluminium front panel. An Intel Core i5 6th Gen processor running at 2.00GHz with Intel Iris Graphics 540 handles control and visualisation tasks. The unit ships with Windows 10 Pro installed on a 64GB SSD and 4GB of DDR3L memory.

Fanless Build with Expansion

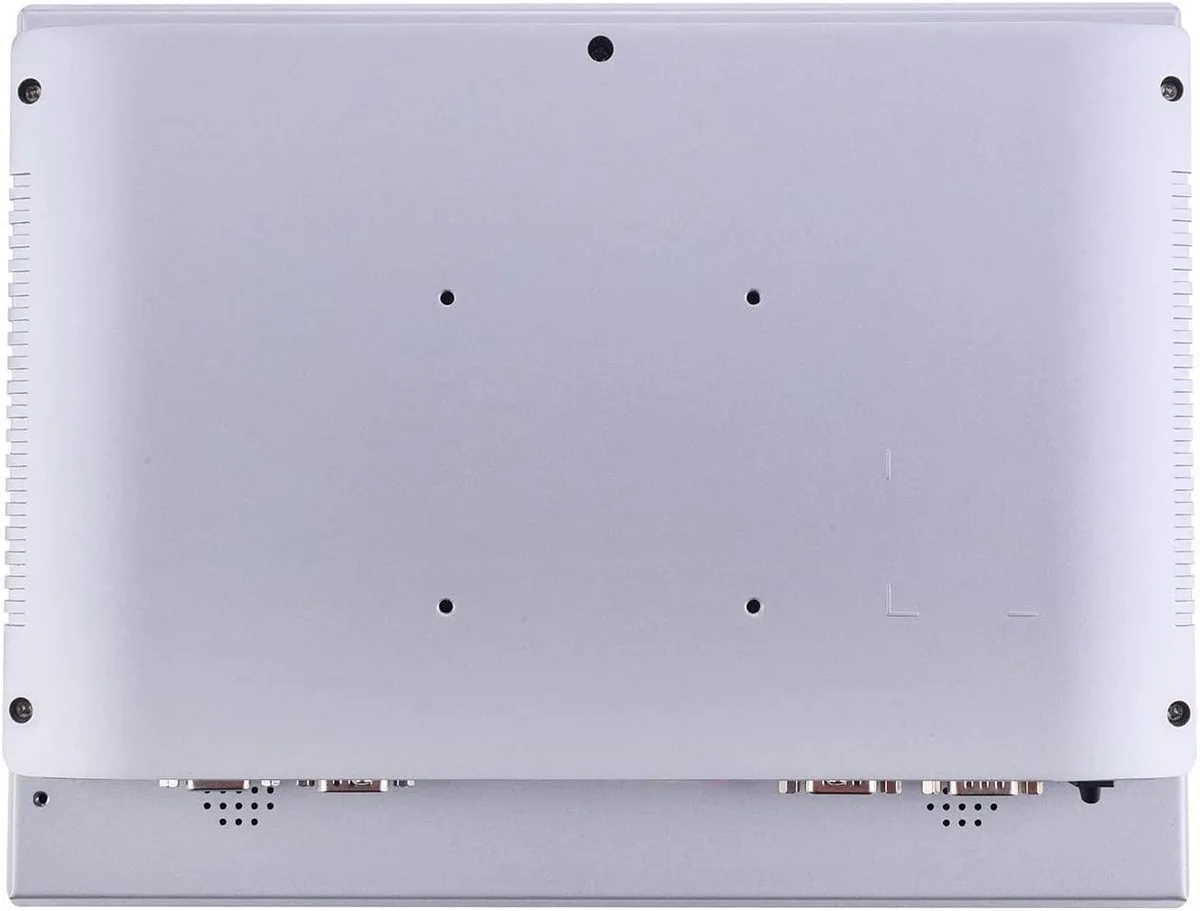

A fanless aluminium chassis dissipates heat silently, suiting noise-sensitive or dust-prone settings. The system offers one SODIMM slot supporting DDR3L 1333/1600 up to 8GB, one mSATA slot, and one 2.5 inch SATA bay for additional storage. Connectivity includes HDMI, VGA, two USB 3.0, two USB 2.0, LAN, audio in and out, two COM ports, and a full-size Mini PCIe slot with a SIM holder for wireless modules. VESA 75 mounting and embedded buckle kits enable panel, wall, desktop or cantilever installation.

Sustained Operation Range

The fanless design maintains stable performance within an operating range of 0 to 50°C when equipped with an SSD, or 0 to 40°C with a hard drive. The resistive touchscreen is rated for 200 million touches and 86±5% transmittance at 550 nm. A hardware watchdog timer with 255 levels provides automatic recovery if the system hangs. The display backlight offers a minimum life of 30000 hours at 350 cd/m² brightness and 1000:1 contrast.

Punti di forza

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • 5-wire resistive touchscreen rated for 200 million touches
  • Intel Core i5 6th Gen 2.0 GHz with Intel Iris Graphics 540
  • 4 GB DDR3L and 64 GB SSD, expandable to 8 GB RAM

Caratteristiche tecniche

ModelA2-PA-121TPC-CE5B(I56)-4G64G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU Name2.00GHz
GPU/VGA TypeIntel Iris Graphics 540
Memory Capacity4GB DDR3
SSD64GB
HDDNo
Screen Size12.1"
TouchscreenYes

Altre versioni di questo modello

altri 5 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

How long will the 12.1" panel backlight last at 350 cd/m² brightness?

The LED backlight is rated for a minimum of 30,000 hours at 350 cd/m² brightness.

What is the maximum operating temperature for the fanless aluminium chassis?

The system operates from 0 to 50 °C with the installed SSD, or 0 to 40 °C if a 2.5" HDD is added.

Which memory module must I already have to reach the 8 GB maximum?

A single DDR3L SODIMM running at 1333 or 1600 MT/s is required to upgrade the 4 GB factory memory to 8 GB.
