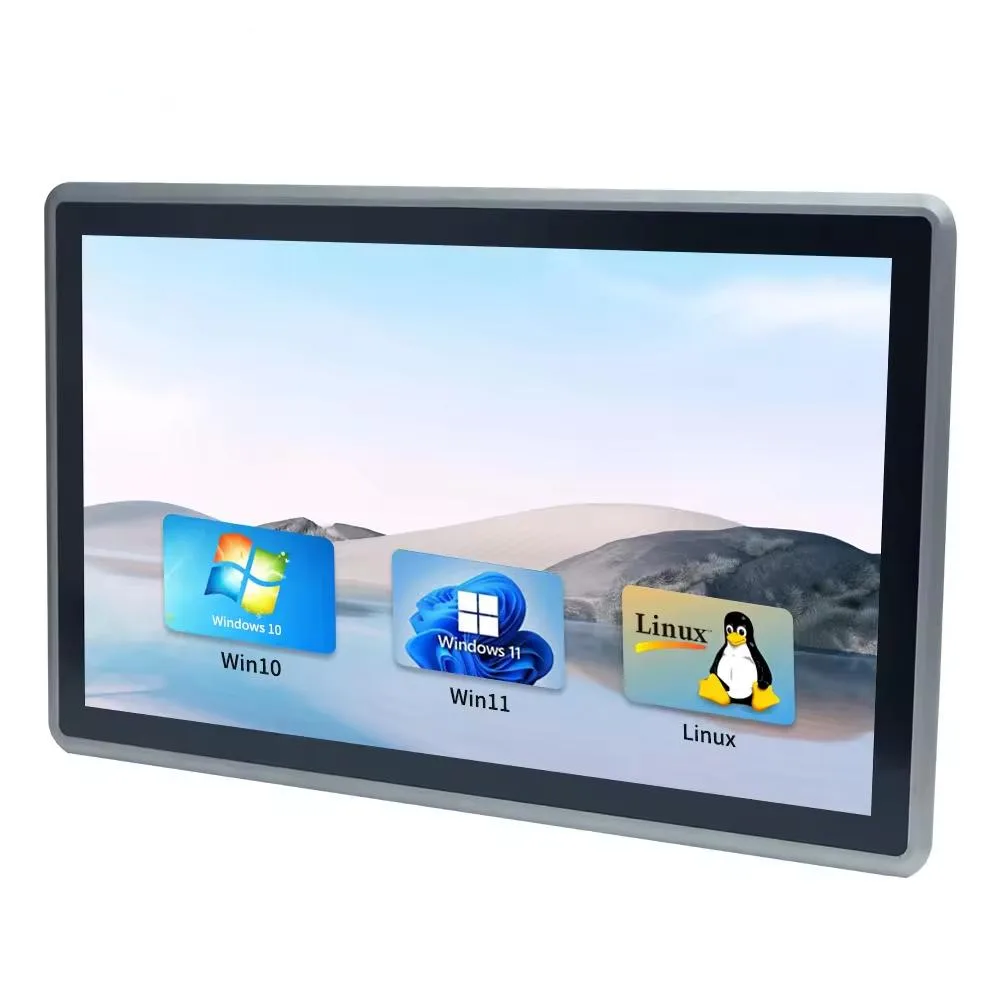

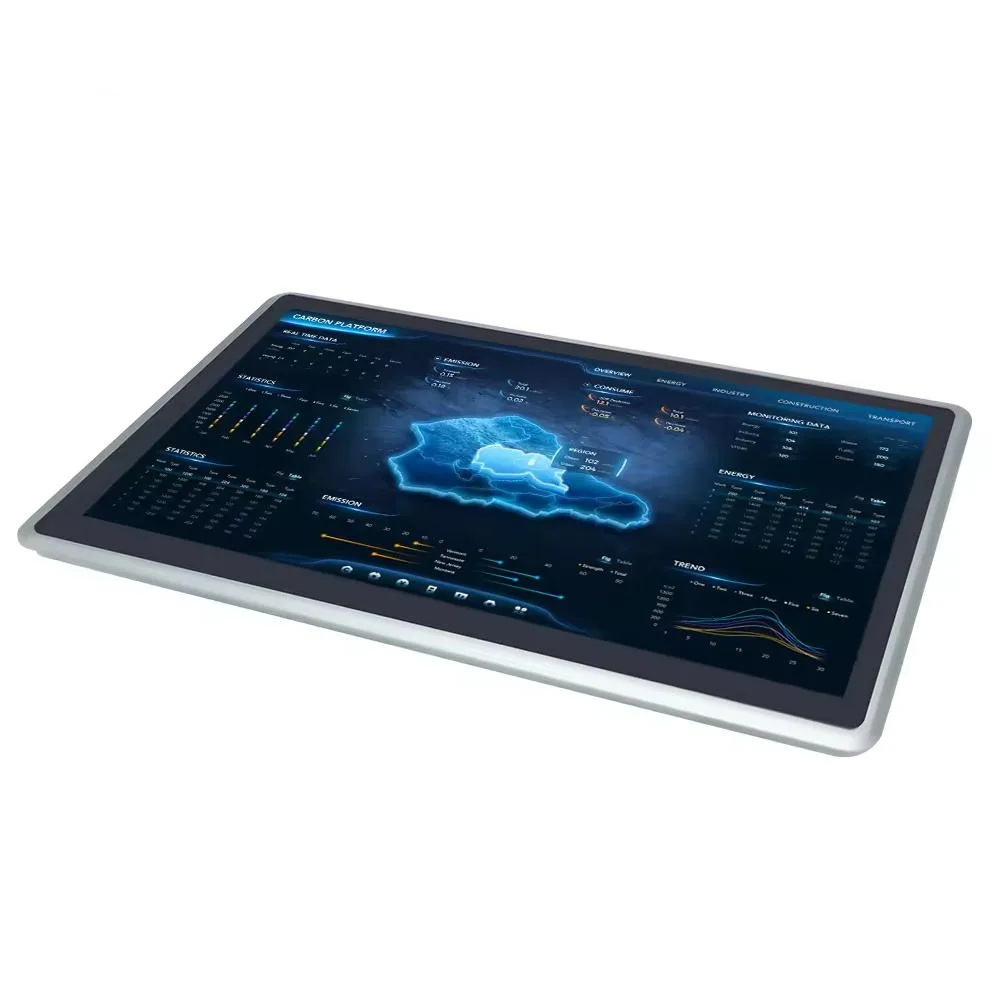

Flat 21.5 inch industrial all-in-one with resistive touchscreen and aluminium fanless chassis

partaker

Partaker A22 all-in-one PC 21.5" i7-10510U 32GB DDR4 1TB SSD

SKU CH-BQBV-5FGWB

21.5" IP65-rated industrial all-in-one with resistive touchscreen, Intel Core i7-10510U, 32GB DDR4, 1TB SSD, Windows 11 Pro, dual LAN, dual COM, HDMI, fanless aluminium chassis, 9-36V wide-range power

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i7 10th Gen

Memory Capacity 32GB DDR4

SSD 1TB

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis runs silently 24/7
  • 9–36 V DC Phoenix input suits industrial power
  • Resistive touchscreen rated for 50 million touches
  • Dual Intel LAN and two COM ports for automation

Industrial touch panel PC

The Partaker A22 is a 21.5-inch all-in-one computer built for industrial environments. It integrates an Intel Core i7 10510U processor with 32GB of DDR4 memory and a 1TB SATA SSD. The IP65-rated front panel and resistive touchscreen withstand dust and water jets. Windows 11 Pro comes pre-installed for immediate deployment.

Fanless cooling and wide voltage input

An aluminium alloy chassis dissipates heat without fans, enabling silent 24/7 operation between 0 and 50 °C. The DC 9–36 V Phoenix connector accepts unstable power sources common on factory floors. Dual Intel 1000M LAN ports, two COM ports with RS232/422/485 options, HDMI, four USB 3.0 ports and audio provide extensive legacy and modern connectivity. A Mini PCIe slot with a SIM holder allows optional 4G or Wi-Fi expansion.

Resistive touchscreen limits multi-touch gestures

The 1920 x 1080 TFT LED display uses a high-sensitivity resistive layer rated for over 50 million touches. It responds to gloved hands or styluses but does not support multi-touch gestures such as pinch-to-zoom. Buyers who need capacitive multi-touch for modern HMI interfaces should consider a different panel type.

Punti di forza

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis runs silently 24/7
  • 9–36 V DC Phoenix input suits industrial power
  • Resistive touchscreen rated for 50 million touches
  • Dual Intel LAN and two COM ports for automation

Caratteristiche tecniche

ModelA22-New-I7-10810U-32G1TBSSD
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD1TB
HDDNo
Screen Size21.5"
TouchscreenYes

Altre versioni di questo modello

altri 5 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

How do I decide between the single 32 GB DDR4-2666 SODIMM and the 1 TB M.2 2280 SATA SSD when the system already lists both?

The 32 GB DDR4-2666 SODIMM is the installed memory; the 1 TB M.2 2280 SATA SSD is the boot drive. Both are included, so no choice is required.

What does the Intel Core i7-10510U at up to 4.90 GHz deliver inside this fanless 21.5" panel PC?

Four cores and eight threads with a 4.90 GHz turbo provide responsive Windows 11 Pro performance while the aluminium alloy chassis dissipates heat silently.

How does the 9-36 V DC Phoenix connector limit power options compared with standard AC input?

The wide 9-36 V DC range accepts industrial supplies directly; the bundled 12 V 5 A adapter covers ordinary AC outlets when needed.
