21.5 inch gray all-in-one industrial panel PC with flat resistive touchscreen

partaker

Partaker A22-I5 8260U-N-8G128G 21.5" IP65 all-in-one PC

SKU CH-MV1W-6X7R5

21.5″ IP65 front-panel all-in-one PC with resistive touchscreen, Core i5-8265U, 8 GB DDR4, 128 GB SSD, dual LAN, dual COM, HDMI and 9–36 V Phoenix power

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics 620

Memory Capacity 8GB DDR4

SSD 128GB

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5-8265U with 8GB DDR4 handles industrial workloads
  • 128GB M.2 SATA SSD plus 2.5" bay for storage expansion
  • Wide 9-36V Phoenix input suits unstable power environments

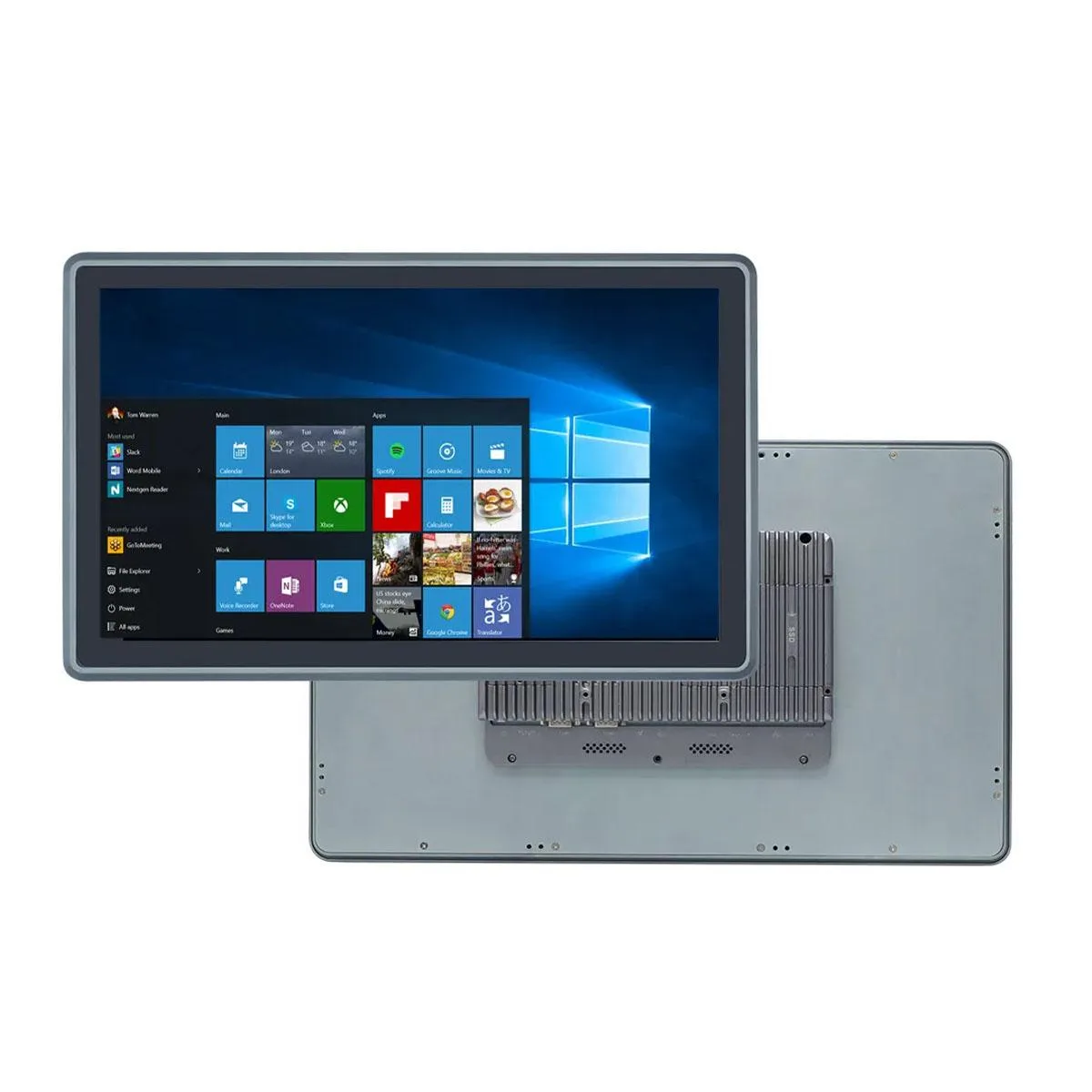

21.5" IP65 industrial all-in-one PC

The Partaker A22 integrates a 21.5-inch full HD resistive touchscreen with an Intel Core i5-8265U processor, eight gigabytes of DDR4 memory and a 128-gigabyte SATA SSD. Its fanless aluminium chassis carries an IP65-rated front panel and accepts a wide 9-to-36-volt DC input through a Phoenix connector. Windows 11 Pro comes pre-installed for immediate deployment in harsh environments.

Suited for embedded control and monitoring.

This unit fits machine builders, kiosk integrators and factory-floor operators who need a sealed, fanless panel mount with legacy serial ports and dual gigabit Ethernet. It is not suited for buyers who need discrete graphics performance or M.2 SATA storage expansion beyond the single 2280 slot. The resistive touch layer also differs from the projected-capacitive screens common on consumer tablets.

9-to-36-volt Phoenix power input

The defining specification is the wide-range DC supply delivered through a two-pin Phoenix connector, allowing direct connection to industrial power buses without an external adapter. This voltage span, combined with the IP65 front seal and fanless cooling, determines whether the A22 can replace a traditional box PC plus separate monitor in a cabinet or on a machine frame.

Punti di forza

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5-8265U with 8GB DDR4 handles industrial workloads
  • 128GB M.2 SATA SSD plus 2.5" bay for storage expansion
  • Wide 9-36V Phoenix input suits unstable power environments

Caratteristiche tecniche

ModelA22-I5 8260U-N-8G128G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity8GB DDR4
SSD128GB
HDDNo
Screen Size21.5"
TouchscreenYes

Altre versioni di questo modello

altri 5 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

How is the 21.5" IP65 panel PC mounted into a 528 x 320mm cut-out, and which step do installers often miss?

The unit uses embedded mounting kits that fit a 528 x 320mm opening; the step often missed is tightening the sealing gasket evenly so the IP65 front rating is maintained.

Which memory module will be needed when the 8GB DDR4-2400 SODIMM reaches the 32GB limit?

A single DDR4-2400 SODIMM up to 32GB replaces the existing stick; the board has one slot and supports SATA SSDs only.

At what ambient temperature does the fanless aluminium chassis hit its thermal limit during continuous 24/7 operation?

The commercial range tops out at 50°C; with an industrial SSD the system is rated to 60°C before throttling occurs.
