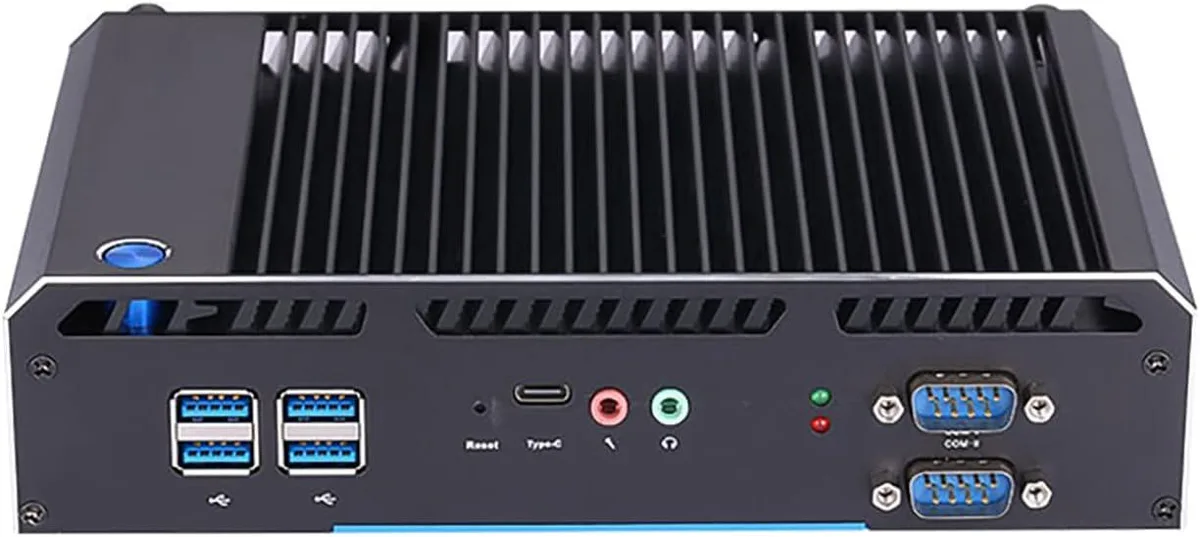

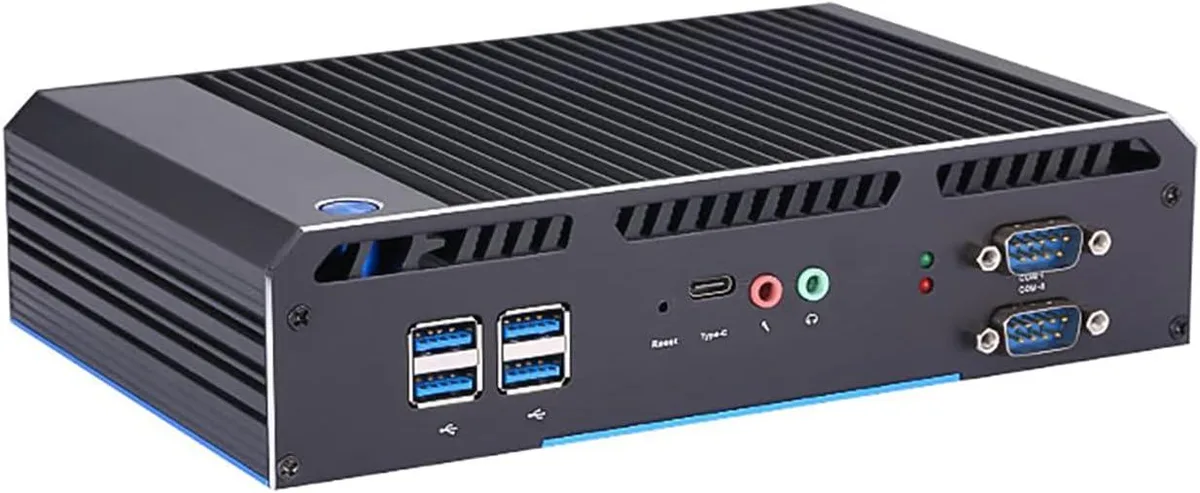

Black aluminium fanless mini PC, compact rectangular shape, VESA mount visible

partaker

Partaker GF2 barebone mini PC i7 5500U/5600U 16GB 256GB

SKU CH-SQ23-AERNH

Fanless mini PC with an Intel Core i7 5500U/5600U, 16GB DDR3L RAM, 256GB sata SSD, triple-display support and industrial I/O including dual LAN, COM and Type-C

  • ColorBlack
  • CPU TypeIntel Core i7 5th Gen

CPU Type Intel Core i7-5500U

Group 16GB RAM / 256GB SSD

  • Fanless cooling enables silent operation in noise-sensitive spaces
  • 15 W TDP keeps power draw low for continuous industrial use
  • Triple display support via two HDMI and one VGA port
  • Wide 100–240 V AC input suits global deployments
  • VESA mount included for space-saving behind-monitor installation

Industrial fanless mini PC with dual i7 option

The Partaker GF2 is a compact barebone system built around an Intel Core i7 5th Gen processor, offered with either the i7 5500U or i7 5600U. It arrives with 16 GB of DDR3L memory and a 256 GB SSD pre-installed, running Windows 11 Pro out of the box. Passive cooling removes all moving parts for silent, maintenance-free operation in noise-sensitive or dusty environments.

Suited for embedded, signage

Dual LAN, dual COM RS232, VGA and dual HDMI make it a drop-in fit for industrial automation, kiosks and multi-display digital signage. The 100-240 V AC input with an optional 19-36 V DC range supports unstable power grids or vehicle installs. Buyers who need more than 16 GB of RAM or a second 2.5-inch drive bay should look elsewhere, as the board provides only one SATA connector and two SO-DIMM slots.

Single mSATA plus one 2.5-inch SATA slot for storage

The platform includes one mSATA SSD slot and one 2.5-inch SATA bay, allowing a second drive to be added alongside the factory 256 GB unit. Both drives share the SATA interface, so sequential throughput is limited to the SATA 3.0 ceiling. If an application demands a PCIe-based drive or more than two storage devices, this chassis cannot accommodate it.

Punti di forza

  • Fanless cooling enables silent operation in noise-sensitive spaces
  • 15 W TDP keeps power draw low for continuous industrial use
  • Triple display support via two HDMI and one VGA port
  • Wide 100–240 V AC input suits global deployments
  • VESA mount included for space-saving behind-monitor installation

Caratteristiche tecniche

ColorBlack
CPU TypeIntel Core i7 5th Gen

Altre versioni di questo modello

altri 5 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

Is the fanless passive cooling on the 15W TDP i7 5500U/5600U completely silent under continuous load?

Yes, the passive design has no moving parts so it runs silently even during all-day operation at its 15W thermal envelope.

Does the barebone ship with the 16GB DDR3L-1333/1600 RAM and 256GB mSATA SSD already installed?

The unit arrives with 16GB of DDR3L memory and a 256GB mSATA SSD fitted, plus a second 2.5-inch SATA bay left free for extra storage.

Can the two HDMI ports and VGA run three independent 1920 x 1080 monitors alongside my legacy serial devices?

Triple display is supported in extend mode; each HDMI handles up to 2560 x 1600 at 60Hz while VGA reaches 1920 x 1080 at 60Hz, and the two COM ports remain available for legacy gear.
