Gray aluminium mini PC with external USB fan, wall-mount brackets and industrial ports

partaker

Partaker I8 i3-12300T Fan 32GB 512GB barebone mini PC

SKU CH-5AB1-KCH2W

Fan-cooled industrial mini PC with Core i3 12th Gen, 32 GB DDR4, 512 GB NVMe, dual HDMI, VGA, dual LAN, four RS485 COM ports, GPIO, CAN expansion and wide-temperature aluminium chassis

  • ColorGray
  • CPU TypeIntel Core i3 12th Gen

I8 H610 I3 12300T FAN 32GB RAM / 512GB SSD

  • External USB fan enables 24/7 operation from -20°C to 60°C
  • Intel Core i3 12th Gen quad-core up to 4.2 GHz with 32 GB DDR4 3200 MT/s
  • Triple independent 4K displays via two HDMI and one VGA
  • Industrial I/O: dual LAN, four RS485 COM, six USB, GPIO, CAN expansion
  • Wide 12 V-19 V DC input with watchdog, TPM 2.0, wake-on-LAN

Industrial barebone for 24/7 edge workloads

The Partaker I8 is a fanless-chassis mini PC that ships with a quad-core Intel Core i3 12th Gen processor, 32 GB of DDR4 3200 MT/s memory and a 512 GB NVMe SSD. An external USB fan kit provides active cooling without internal moving parts, enabling continuous operation from -20 °C to 60 °C in dust-prone environments. It targets automation, medical imaging and logistics deployments that demand rugged reliability.

Dual-display 4K60 plus legacy VGA

Two HDMI ports drive independent 4K displays at 60 Hz while a VGA output adds a 1080p60 option for older monitors or industrial HMIs. This triple-head capability lets a single unit replace multiple thin clients in surveillance rooms or multi-screen control stations without discrete graphics.

Wide-voltage DC input and industrial I/O

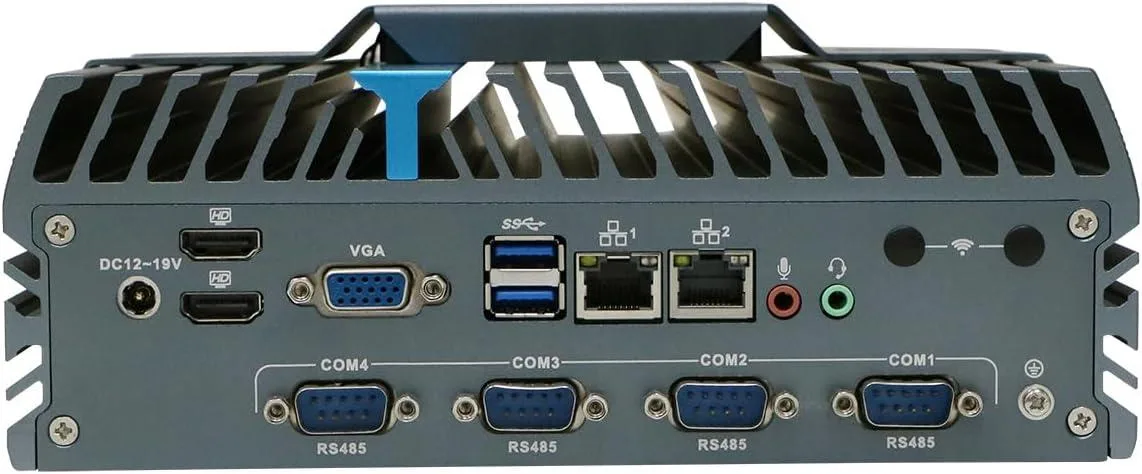

The system accepts 12 V to 19 V DC through a barrel jack and includes dual Gigabit LAN, four RS485 COM ports, six USB ports and a full-size Mini PCIe slot with a Nano SIM holder for 4G or Wi-Fi expansion. A 2.5-inch SATA bay and a second M.2 2280 slot remain open for additional storage, while TPM 2.0, watchdog timer and wake-on-LAN support remote fleet management.

Punti di forza

  • External USB fan enables 24/7 operation from -20°C to 60°C
  • Intel Core i3 12th Gen quad-core up to 4.2 GHz with 32 GB DDR4 3200 MT/s
  • Triple independent 4K displays via two HDMI and one VGA
  • Industrial I/O: dual LAN, four RS485 COM, six USB, GPIO, CAN expansion
  • Wide 12 V-19 V DC input with watchdog, TPM 2.0, wake-on-LAN

Caratteristiche tecniche

ColorGray
CPU TypeIntel Core i3 12th Gen

Altre versioni di questo modello

altri 5 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

How does the 4.2 GHz turbo frequency behave when the unit is running inside a sealed cabinet?

The 35–69 W TDP is handled by an external USB fan kit rather than internal fans, so the aluminium chassis stays dust-free and the processor maintains its 4.2 GHz boost as long as the cabinet ambient stays within the −20 °C to 60 °C industrial range.

What bandwidth does the M.2 2280 slot actually deliver for an NVMe drive?

The slot is wired as PCIe 3.0 x4, so an NVMe SSD can reach full Gen3 x4 speeds without sharing lanes with the Mini PCIe expansion slot.

Will the 215 × 210 × 75 mm chassis fit on a standard 75 mm VESA mount?

The box ships with wall-mount ears; the 75 mm height matches common VESA spacing, so it can be bolted directly to a monitor arm or rack rail without an extra bracket.
