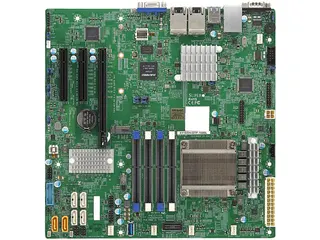

Green rectangular Micro ATX server motherboard with embedded processor, four black SODIMM slots, dual Gigabit LAN ports

Supermicro

Supermicro MBD-X11SSH-GF-1585-O server motherboard, Xeon E3-1585 v5, 64 GB DDR4

SKU CH-Z6M7-GBCKD MPN MBD-X11SSH-GF-1585-O

Micro-ATX server board with an onboard Xeon E3-1585 v5, 64 GB DDR4 ECC SO-DIMM capacity, dual Intel I350 gigabit LAN, six SATA 6.0 Gb/s ports with RAID, and IPMI via Aspeed AST2400 BMC

  • CPU Socket TypeFCBGA1440
  • CPU TypeSupports Intel Xeon processor E3-1585 v5 Socket FCBGA1440 su
  • North BridgeIntel C236
  • DDR4 StandardDDR4 2133 / 1866 / 1600 MHz ECC DDR4 SODIMMs
  • Maximum Memory Supported64GB Unbuffered ECC SO-DIMM, DDR4-2133 MHz, in 4 x DIMM slot
  • PCI Express x81 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8
  • Embedded Xeon E3-1585 v5 simplifies deployment
  • 64 GB DDR4 ECC SO-DIMM capacity for data integrity
  • Dual Intel I350 1 GbE ports for redundancy
  • Six SATA 6.0 Gb/s with RAID 0/1/5/10
  • IPMI via Aspeed AST2400 for remote management

Socket FCBGA1440 Xeon server board

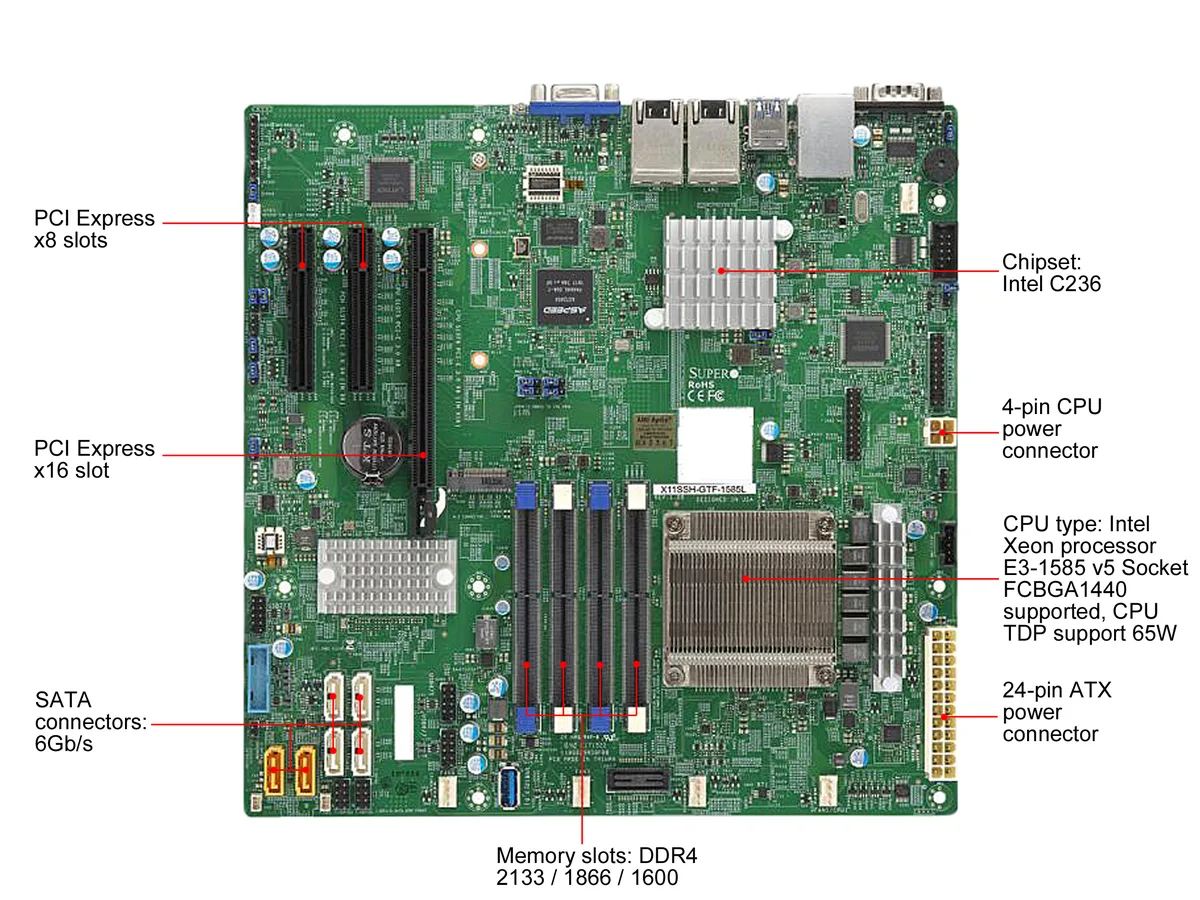

The Supermicro MBD-X11SSH-GF-1585-O is a Micro ATX server motherboard with an onboard Intel Xeon E3-1585 v5 processor in an FCBGA1440 package. It integrates the Intel C236 chipset and supports up to 64 GB of unbuffered ECC DDR4 SO-DIMM memory across four slots running at 2133 MHz. The board provides dual Intel I350 Gigabit LAN ports and an Aspeed AST2400 BMC for remote management.

Suits compact 1U or 2U server builds

This board fits builders deploying space-constrained 1U or 2U Supermicro SuperChassis systems that need integrated graphics and IPMI. It is not suited for users who need full-length PCIe x16 expansion cards or more than two dedicated expansion slots. Buyers requiring higher core counts or multi-socket capability should look at larger platform motherboards.

65 W TDP Xeon E3-1585 v5 onboard CPU

The soldered quad-core Xeon E3-1585 v5 operates at a 65 W TDP and includes GT4e Iris Pro graphics with 128 MB eDRAM for 4K output. This fixed processor choice determines the thermal envelope and performance ceiling for the entire platform.

Punti di forza

  • Embedded Xeon E3-1585 v5 simplifies deployment
  • 64 GB DDR4 ECC SO-DIMM capacity for data integrity
  • Dual Intel I350 1 GbE ports for redundancy
  • Six SATA 6.0 Gb/s with RAID 0/1/5/10
  • IPMI via Aspeed AST2400 for remote management

Caratteristiche tecniche

BrandSUPERMICRO
ModelMBD-X11SSH-GF-1585-O
CPU Socket TypeFCBGA1440
CPU TypeSupports Intel Xeon processor E3-1585 v5
Socket FCBGA1440 supported, CPU TDP support 65W
North BridgeIntel C236
DDR4 StandardDDR4 2133 / 1866 / 1600 MHz ECC DDR4 SODIMMs
Maximum Memory Supported64GB Unbuffered ECC SO-DIMM, DDR4-2133 MHz, in 4 x DIMM slots
PCI Express x81 x PCI-E 3.0 x8 (in x16 slot)
1 x PCI-E 3.0 x8
PCI Express x41 x PCI-E 3.0 x4 (in x8 slot)
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10

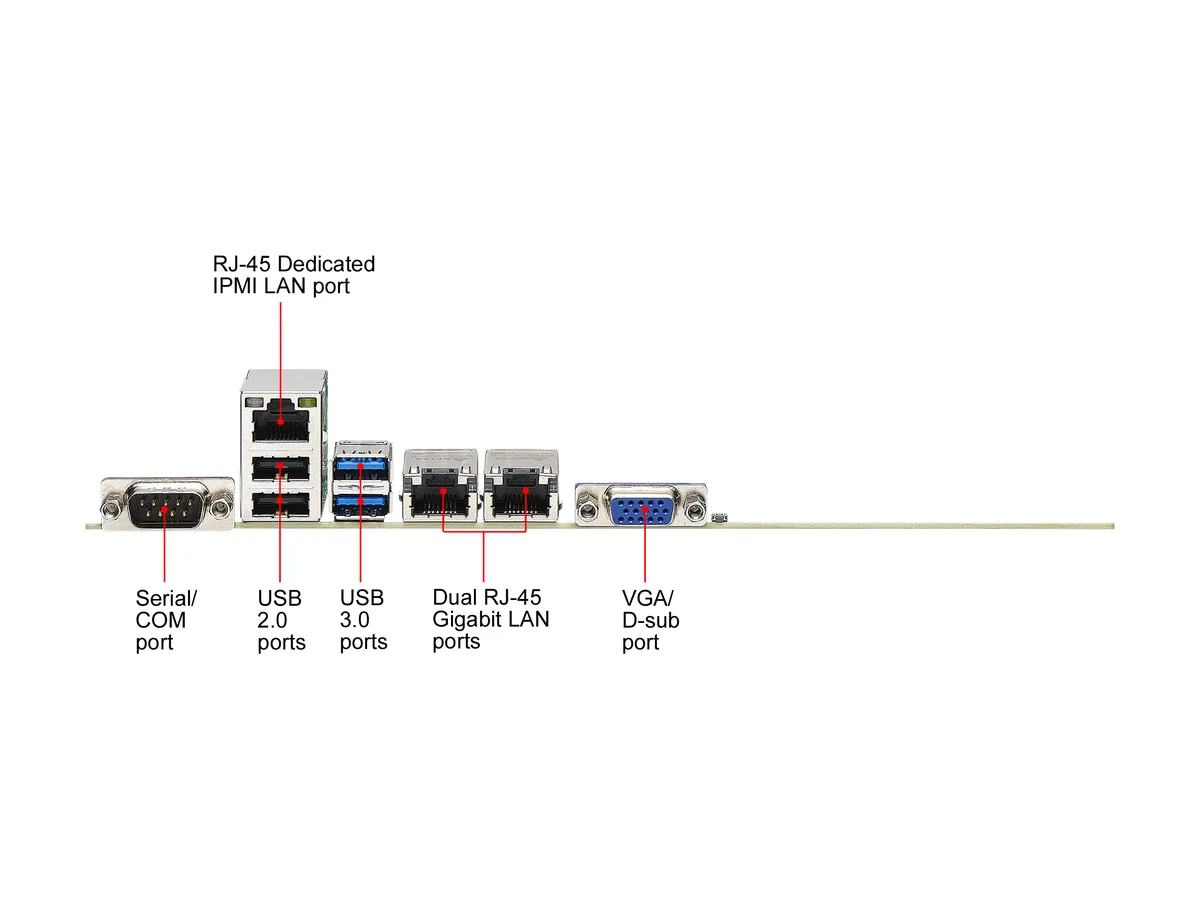

Onboard Video ChipsetAspeed AST2400 BMC
LAN ChipsetIntel I350
LAN Speed10/100/1000Mbps
Second LAN ChipsetIntel I350
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps
COM1
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesIntel Xeon processor E3-1585 v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 65W
Intel C236 chipset
Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133 MHz; 4 x DIMM slots
Support Intel Iris Pro Graphics P580 (GT4e), for VHD and Quick Sync Video
Expansion slots:
1 x PCI-E 3.0 x8 (in x16)
1 x PCI-E 3.0 x8
1 x PCI-E 3.0 x4 (in x8)
6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
2 x SuperDOM with built-in power
5 x USB 3.0 (2 x rear, 1 x Type A, 2 x internal)
M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
Double Height Connector
Form FactorMicro ATX

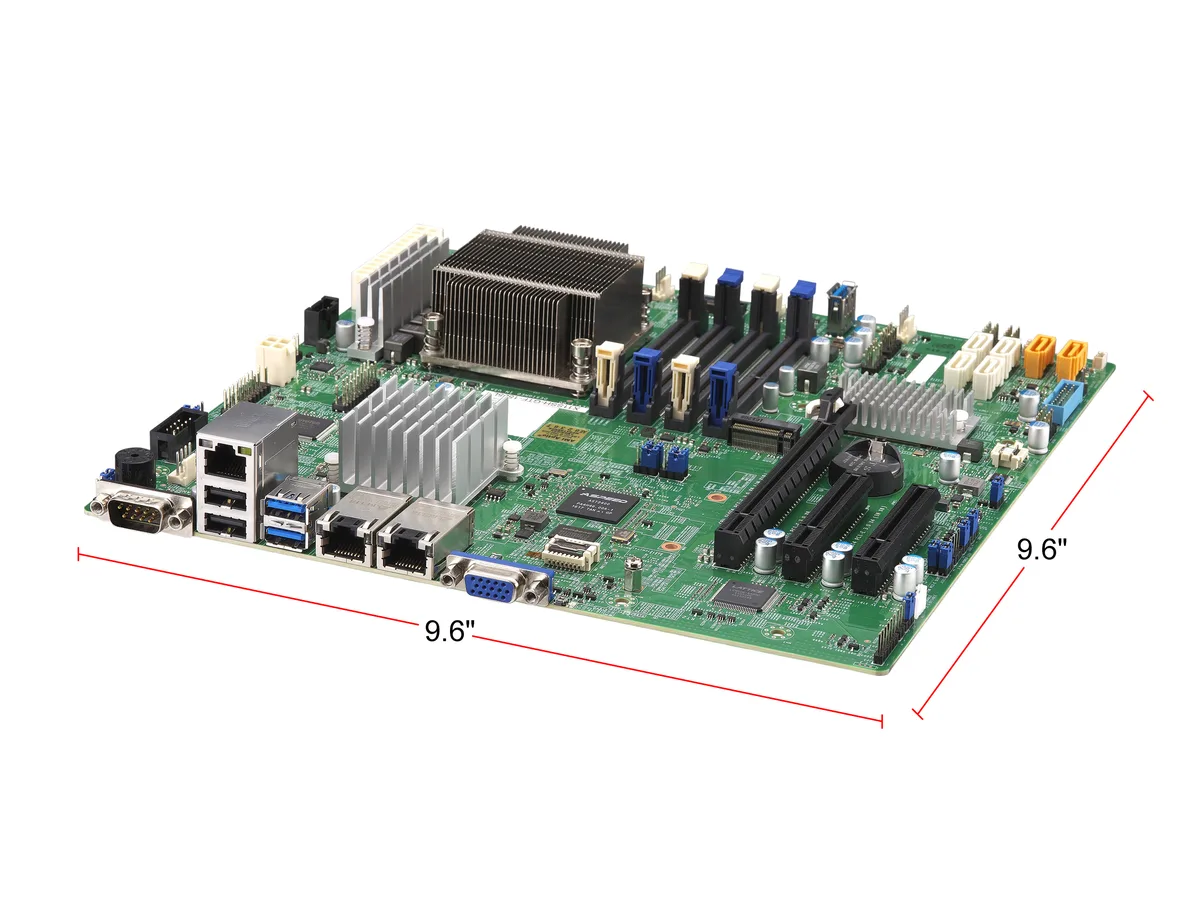

Dimensions (W x L)9.6" x 9.6"
Peso di spedizione1.15 kg
Dimensioni del pacco279 × 277 × 61 mm

Domande su questo articolo

What Micro ATX server chassis models are listed as compatible with this motherboard?

Compatible 1U chassis include the SC813MFTQC-350CB, SC813MFTQC-R407CB, SC113MFAC2-605CB, SC113MFAC2-R606CB, SC512F-350B, and SC813MTQ-350CB. 2U options are the SC823TQ-653LPB and SC213LT-563LPB. The SC833T-653B fits 3U, while SC731i-300B and SC732I-500B suit mid-tower builds. The SC842i-500B supports 4U or tower configurations.

How is the Intel Xeon E3-1585 v5 processor attached to this board, and what is the common installation error?

The processor is permanently soldered to the FCBGA1440 socket; there is no separate CPU installation step. The common error is attempting to remove or replace the BGA processor, which cannot be done without specialised rework equipment.

What memory modules are required to reach the 64 GB maximum capacity?

Four unbuffered ECC DDR4 SO-DIMMs rated at 2133 MHz are needed to populate all four slots and achieve the 64 GB limit.
