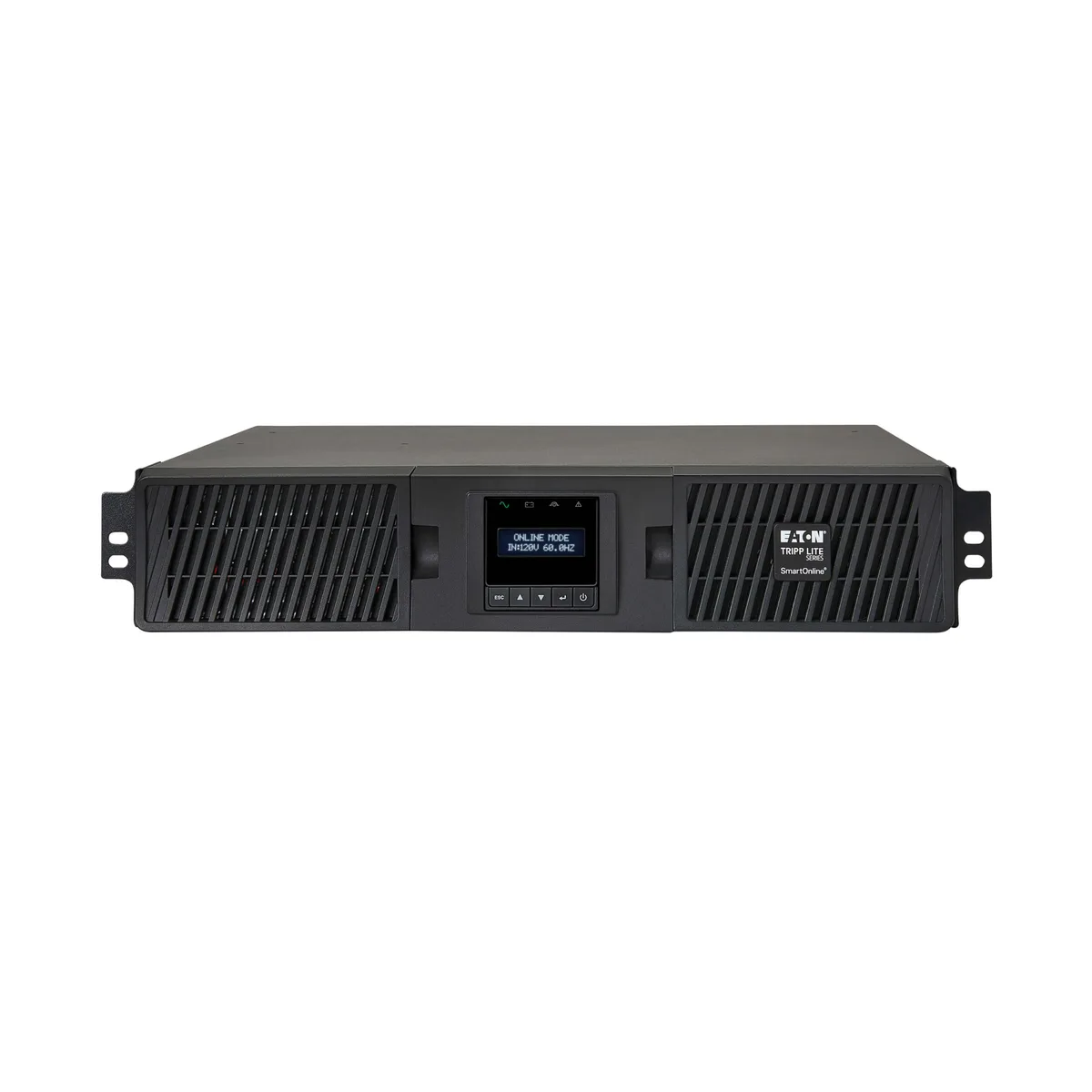

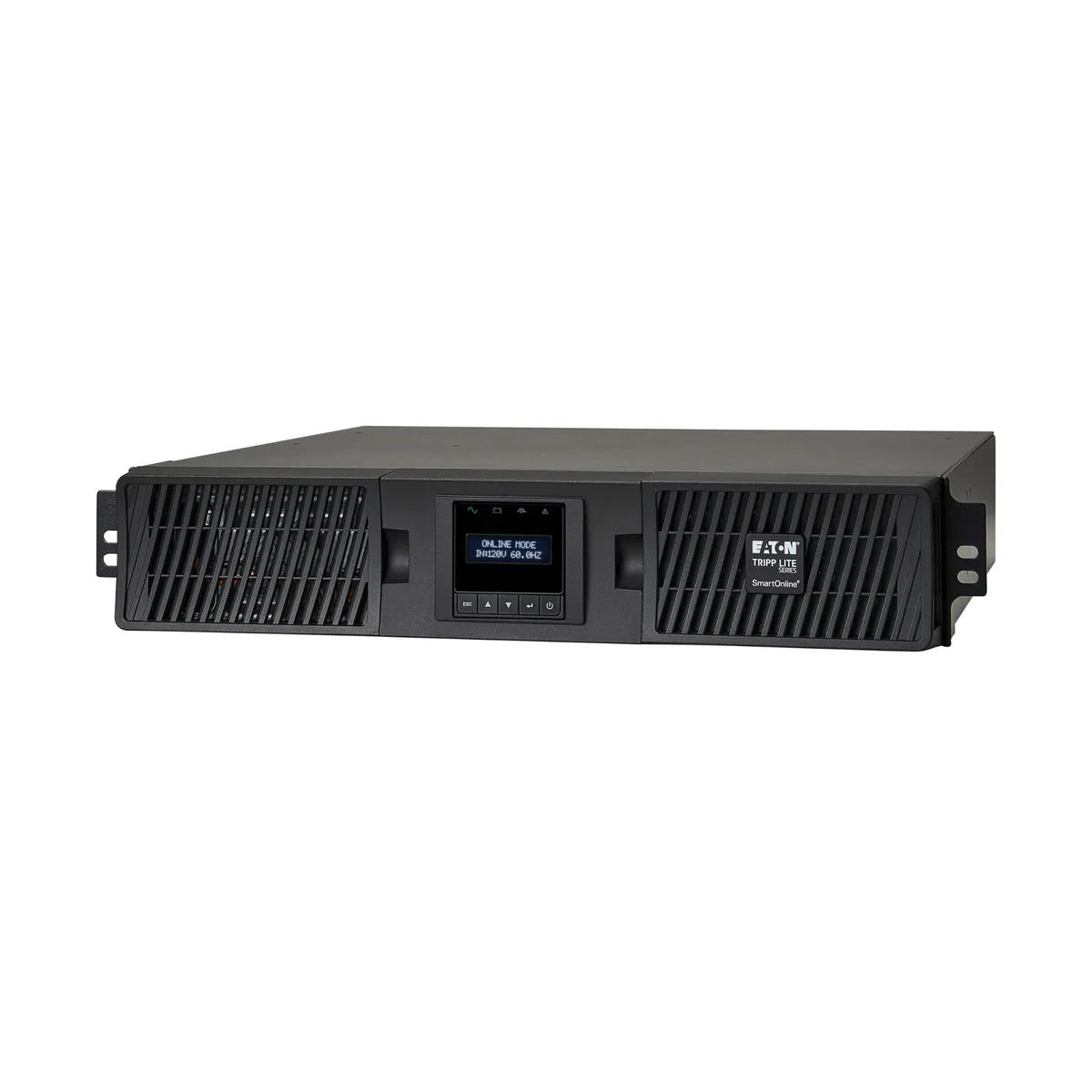

Rectangular 2U metal chassis with LCD screen, status LEDs, seven outlets and network card slot

Tripp Lite

Tripp Lite SU2200RTXLCDN UPS 2000VA 1800W 120V 7 Outlets 2U Rack/Tower

SKU CH-1AAJ-PRAAG MPN SU2200RTXLCDN

Double-conversion UPS delivers 2000 VA and 1800 W with seven NEMA outlets, hot-swappable batteries, LCD status, USB and DB-9 management, and a 2U rack/tower form factor

  • International Version120V
  • Input ConnectionNEMA 5-20P
  • VA Rating2000 VA
  • Watts1800 Watts
  • Output Voltage120V
  • Output Frequency50 / 60 Hz

VA 2200 VA w/ WEBCARDLX

Le versioni barrate esistono, ma non sono disponibili qui.

  • Double-conversion topology delivers clean 120V power at 2000VA 1800W
  • Hot-swappable VRLA batteries replace without downtime

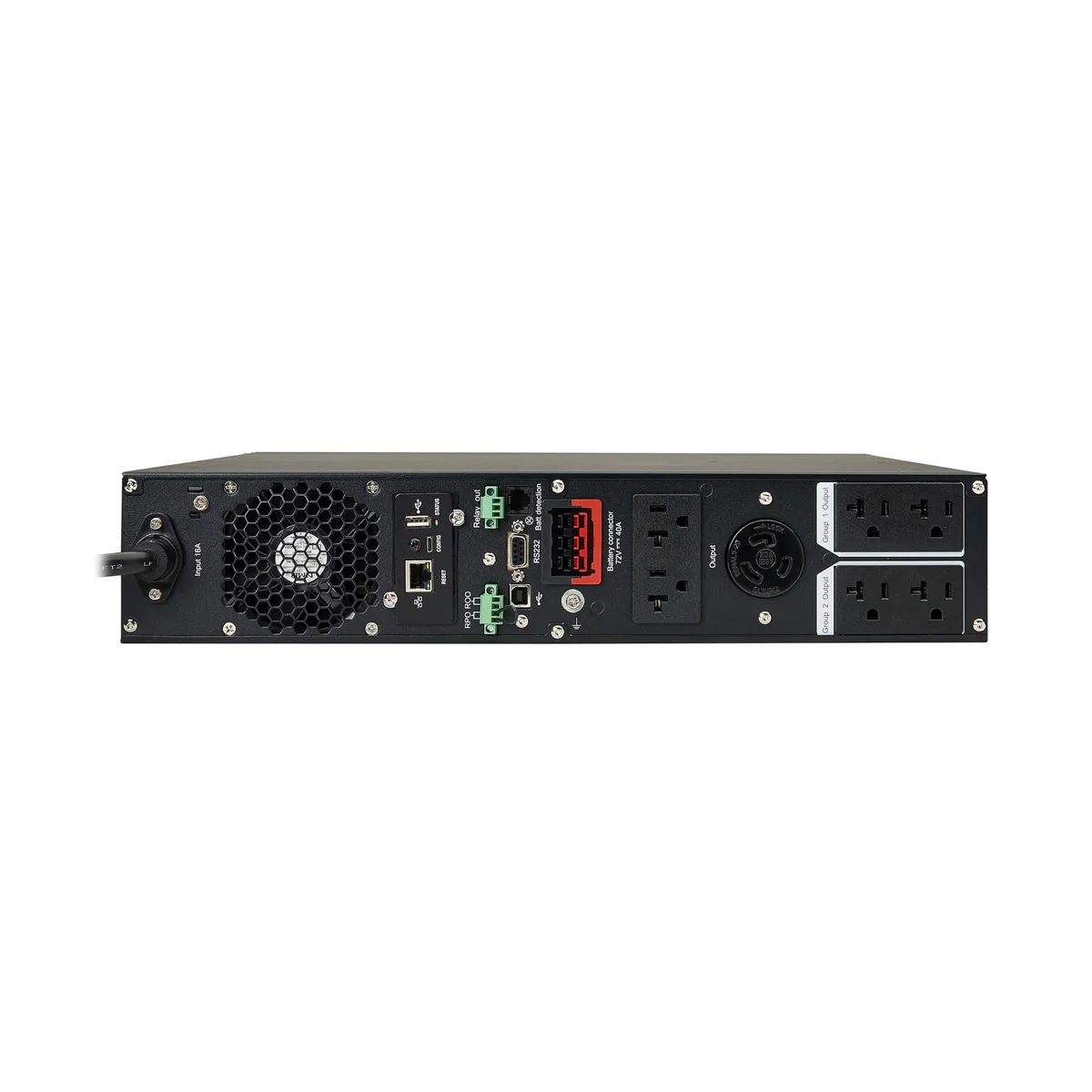

  • 7 outlets include 6 NEMA 5-20R and 1 NEMA L5-20R
  • LCD panel shows real-time status and diagnostics
  • USB and DB-9 ports enable network management via included card

Double-Conversion UPS for Critical Loads

The Tripp Lite SU2200RTXLCDN is a 2000 VA double-conversion UPS delivering 1800 watts of continuous 120 V power. It suits server rooms, network closets and edge deployments where clean sine-wave output and zero transfer time protect sensitive equipment from any utility anomaly.

Verify Input Plug and Outlet Mix

Confirm the facility can supply a NEMA 5-20P input circuit rated for the load. The unit provides six NEMA 5-20R outlets and one NEMA L5-20R locking outlet; match these to your device cords or plan for adapter cables before installation.

Replaces Line-Interactive Units When Transfer Time

This UPS upgrades from line-interactive models that introduce a brief switchover gap during outages. The jump is justified when connected gear cannot tolerate any interruption, such as hypervisors, storage arrays or VoIP infrastructure requiring pure sine-wave output at all times.

Punti di forza

  • Double-conversion topology delivers clean 120V power at 2000VA 1800W
  • Hot-swappable VRLA batteries replace without downtime
  • 7 outlets include 6 NEMA 5-20R and 1 NEMA L5-20R
  • LCD panel shows real-time status and diagnostics
  • USB and DB-9 ports enable network management via included card

Caratteristiche tecniche

BrandTRIPP LITE
SeriesSmartOnline
ModelSU2200RTXLCDN
International Version120V
Input ConnectionNEMA 5-20P
VA Rating2000 VA
Watts1800 Watts
Output Voltage120V
Output Frequency50 / 60 Hz
Outlets7
Outlet Type(6) NEMA 5-20R; (1) NEMA L5-20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeHalf load: 7.7 min. (1800W)
Full load: 20.2 min. (900W)
Battery Recharge Time3 hours recharge to 90%
Battery ReplaceableHot-swappable, user replaceable batteries
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Interface PortDB-9, USB
Management SoftwarePOWERALERT12
ApprovalsMeets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA)
RackmountableYes
Surge Energy Rating190 Joules
TemperatureOperating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: With battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Dimensions3.41" x 17.33" x 23.82"
Weight61.51 lbs.
Package Contents2000VA 1800W 120V Double-Conversion UPS
WEBCARDLXE network management card
USB cable
DB9 RS232 cable
Rack-mounting hardware

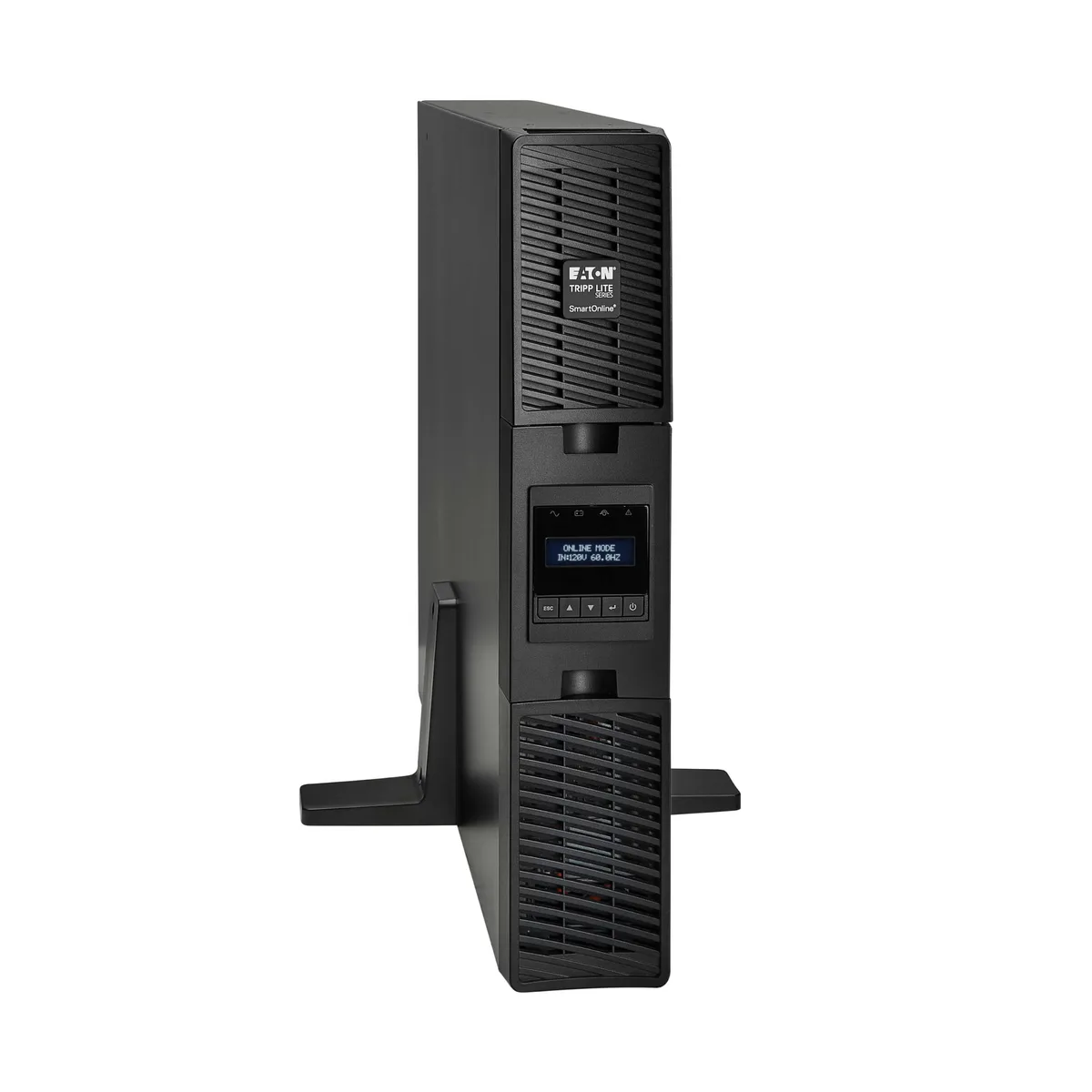

Tower support stands
Safety instructions
Quick start guide
Peso di spedizione29.03 kg
Dimensioni del pacco610 × 533 × 234 mm

Altre versioni di questo modello

altri 3 nella stessa gamma

Stessa famiglia, con memoria, dissipatore o frequenza diversi — confronti prima di decidere.

Domande su questo articolo

What comes in the box with the SU2200RTXLCDN and what must I purchase separately?

The unit ships with the UPS, an installed network management card, LCD display, USB and DB-9 cables, and mounting hardware for 2U rack or tower use. Input cord and output cables for connected equipment are not included.

How do I decide between the 2000 VA rating and the 1800 W rating when sizing my load?

Use the 1800 W figure for real power consumption of servers and switches; the 2000 VA rating reflects apparent power for sizing wiring and breakers. Stay under 1800 W total draw.

What does the 20.2 minute runtime at 900 W mean for my actual rack equipment?

At half the rated load (900 W) the internal VRLA batteries provide about 20.2 minutes of backup, enough for graceful shutdown of typical 2U rack gear. Runtime drops to 7.7 minutes at the full 1800 W.
