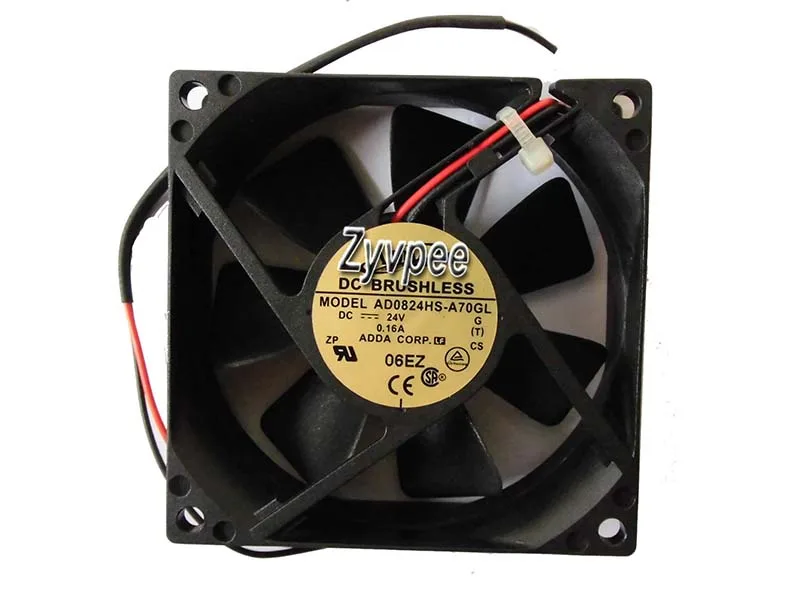

Black 80mm square case fan 25mm thick with two wires

Zyvpee

Zyvpee AD0824HS-A70GL 8025 24V .16A 2-pin 80mm case fan

SKU CH-CG3Z-W6GCR

24 V sleeve-bearing fan cools CPU heatsinks and server inverters in an 80 × 25 mm frame

  • TypeCPU Cooler Fan
  • CompatibilityCPU Cooler
  • Bearing Typesleeve
  • Power Connector2 Pin
  • ColorBlack
  • LEDNon-LED
  • 24 V DC power suits industrial and server chassis
  • 16 A draw keeps energy use low
  • 80 mm by 25 mm frame fits standard 8025 mounts
  • Sleeve bearing reduces mechanical noise
  • Two-pin connector enables simple installation

24 V 80 mm sleeve-bearing case fan

This 24 V DC fan fits 80 mm mounts with a 25 mm thickness. It draws 0.16 A through a two-pin connector and uses a sleeve bearing for quiet operation. The black frame carries no LEDs and targets server or inverter cooling duties.

Two-pin power limits speed control

The two-pin interface supplies constant voltage only, so the fan runs at a fixed rate unless an external controller varies the 24 V rail. No PWM signal or tachometer feedback is provided, preventing motherboard-based curve adjustments or monitoring.

Simple screw mounting with polarity care

Four corner holes accept standard 80 mm screws for direct chassis or heatsink attachment. The only common error is reversing the two wires, which stops the motor; confirming polarity before power-on avoids a non-spinning install.

Punti di forza

  • 24 V DC power suits industrial and server chassis
  • 16 A draw keeps energy use low
  • 80 mm by 25 mm frame fits standard 8025 mounts
  • Sleeve bearing reduces mechanical noise
  • Two-pin connector enables simple installation

Caratteristiche tecniche

Brand3ccooler.com
SeriesAD0824HS-A70GL
ModelAD0824HS-A70GL
TypeCPU Cooler Fan
CompatibilityCPU Cooler
Bearing Typesleeve
Power Connector2 Pin
ColorBlack
LEDNon-LED
FeaturesInverter Cooling
Dimensions80*25mm

Domande su questo articolo

How do I pick between the AD0824HS-A70GL and other 8025 fans?

Choose the AD0824HS-A70GL when your system supplies 24 V and can deliver .16 A; its 2-pin connector fits headers that do not need PWM control.

What does the 24 V .16 A rating mean once the fan is installed?

The fan draws .16 A from a 24 V rail, so the motherboard or fan controller must provide that voltage and current without exceeding the header limit.

What does the 2-pin interface cap in practice?

The 2-pin connection supplies fixed voltage only, so speed is set by the voltage level and cannot be modulated by a PWM signal.
