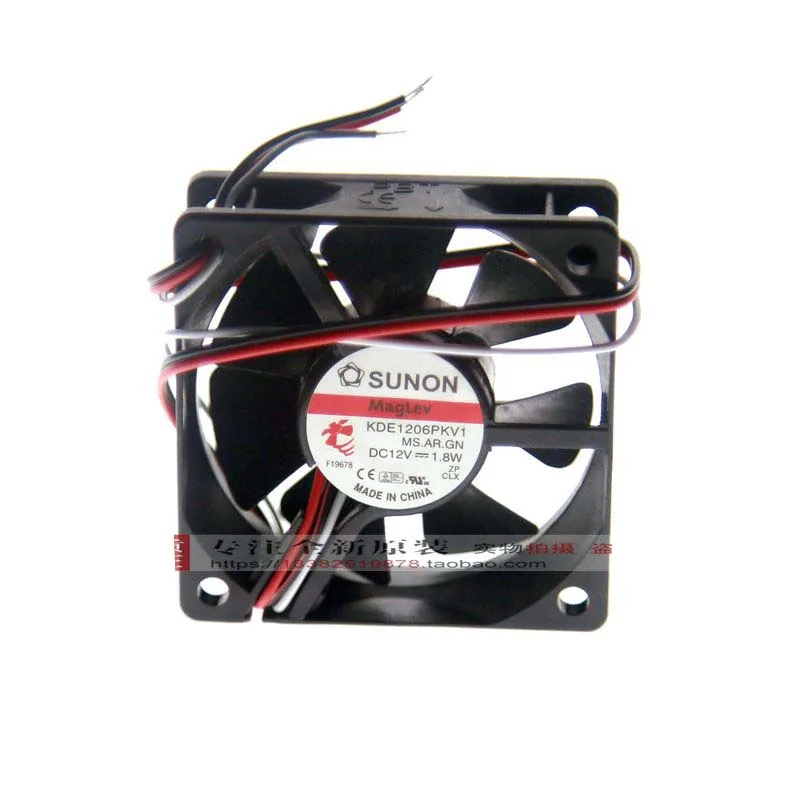

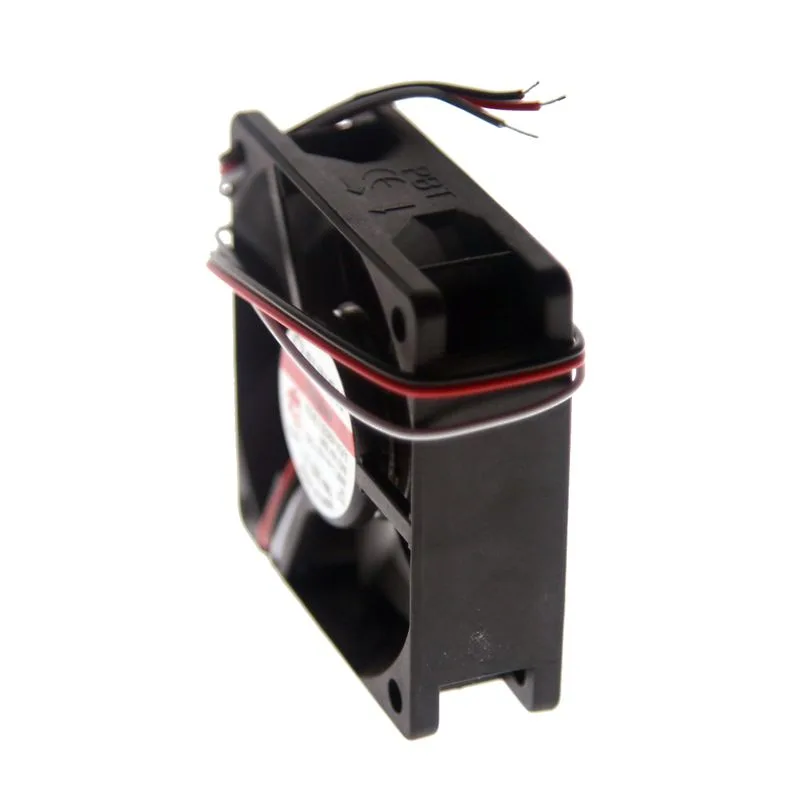

Black 60 by 20 millimetre DC axial case fan with three wires

Zyvpee

Zyvpee KDE1206PKV1 60mm 12V 1.8W 3-wire case fan

SKU CH-RMEN-TVJAH

60 mm maglev case fan moves air at 12 V and 1.8 W through a three-wire connection

  • TypeCase Fan
  • CompatibilityCase
  • Bearing TypeMaglev
  • Power Connector3 Wires
  • ColorBlack
  • LEDNon-LED
  • Compact 60×20 mm footprint fits tight builds
  • Maglev bearing cuts friction for quieter operation
  • 12 V DC motor draws only 1.8 W
  • Three-wire connector enables speed monitoring
  • Non-LED black design keeps aesthetics clean

Compact 60 mm DC axial fan

The Zyvpee KDE1206PKV1 is a 60 by 20 mm case fan that runs on 12 V and draws 1.8 W. Its maglev bearing and three-wire power connector suit small-form-factor builds that need directed airflow in tight spaces.

Replacing noisy sleeve-bearing 60 mm fans

Swap this unit in when an existing 60 mm cooler has become loud or unreliable; the maglev design reduces friction so the upgrade pays off most in systems that run continuously or in noise-sensitive environments.

Limited to 3-wire voltage control

The three-wire connector allows speed regulation only through voltage changes, so automatic PWM curves and software fan curves are not supported. Builders who need motherboard PWM headers or addressable lighting should look elsewhere.

Punti di forza

  • Compact 60×20 mm footprint fits tight builds
  • Maglev bearing cuts friction for quieter operation
  • 12 V DC motor draws only 1.8 W
  • Three-wire connector enables speed monitoring
  • Non-LED black design keeps aesthetics clean

Caratteristiche tecniche

BrandZyvpee
SeriesKDE1206PKV1
ModelKDE1206PKV1
TypeCase Fan
CompatibilityCase
Bearing TypeMaglev
Power Connector3 Wires
ColorBlack
LEDNon-LED
FeaturesDC axial fan
Dimensions60 *20mm

Domande su questo articolo

What mounting holes does the 60 mm by 20 mm frame use?

The 60 by 20 mm frame follows the standard 60 mm square mounting pattern used for 60 mm case fans.

How do I connect the three-wire lead correctly?

Plug the 3-wire connector into a 12 V three-pin fan header on the motherboard or fan controller, matching the keyed notch.

Does the Maglev bearing need lubrication or periodic replacement?

The Maglev bearing is contact-free and requires no lubrication; it is rated for continuous operation without scheduled replacement.
