Black rectangular fan controller hub with six 4-pin PWM ports, large rotary knob, SATA and DC 5525 power inputs

AJMRTC

AJMRTC AJ*FAN*CTL06 6 Port 4 Pin PWM Fan Controller Hub

SKU CH-NPPN-4PAP8

Controls up to six 12 V PWM fans with a manual rotary knob and dual SATA or DC 5525 power inputs delivering 60 W total

  • Fan SizeN/A
  • LEDN/A
  • TypeFan Speed Controller Hub
  • Bearing TypeN/A
  • Power ConnectorSATA Power, DC 5525 Barrel Jack
  • ColorBlack
  • Manual knob adjusts fan speed from 0 to 100%
  • Controls up to six 12V 4-pin PWM fans
  • Dual power input via SATA or DC 5525 jack
  • Delivers up to 60W total output for stable operation
  • No software required, plug-and-play hardware control

6-Port PWM Fan Controller Hub

The AJMRTC AJ*FAN*CTL06 is a manual fan controller hub that manages up to six 12V 4-pin PWM cooling fans inside a desktop computer case. A large rotary knob provides stepless speed adjustment from 0 to 100 percent without any software installation. It is built for PC builders who want direct hardware control over chassis airflow and noise levels.

Dual SATA and DC 5525 Power Input

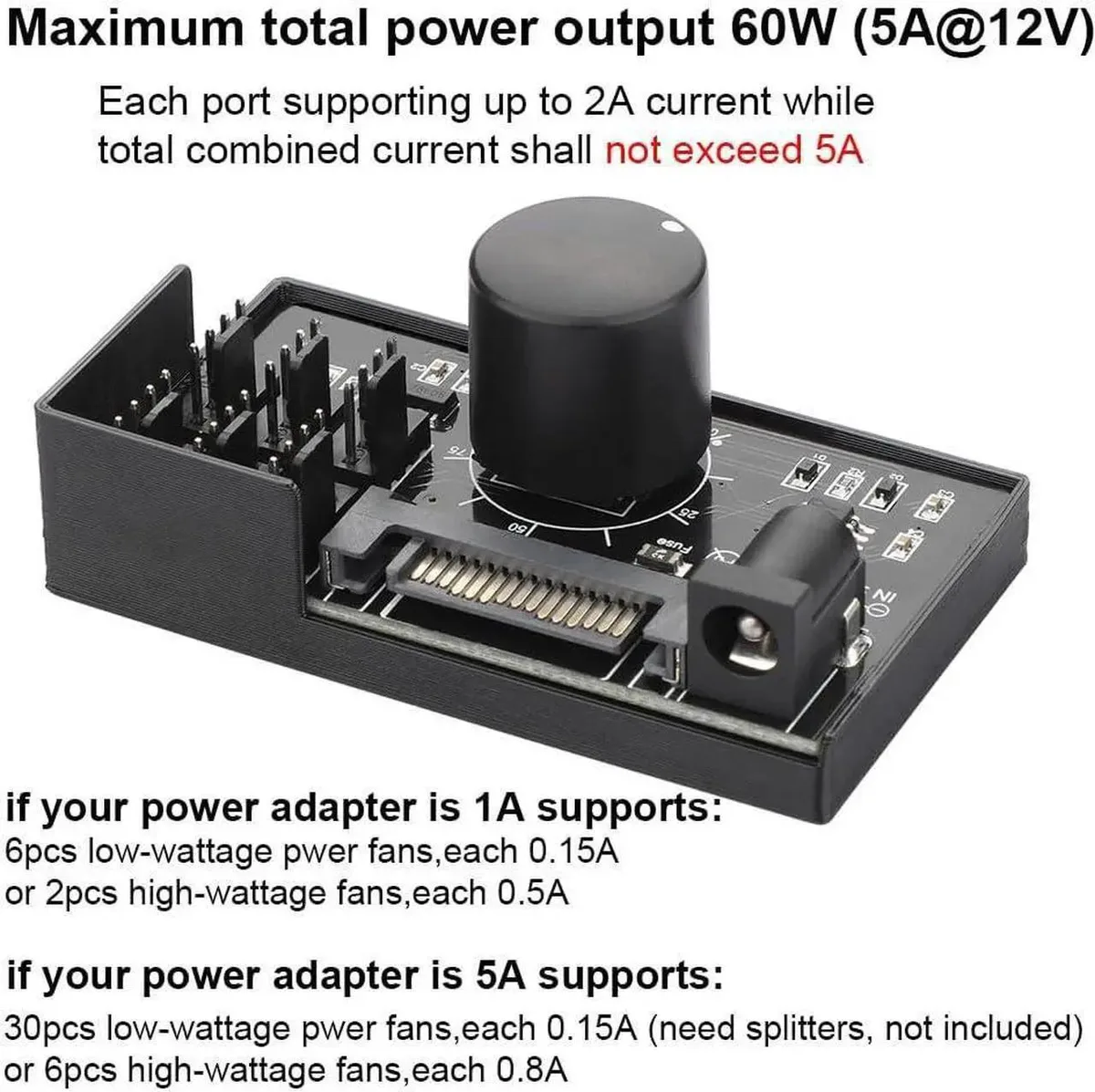

The hub accepts power from a standard SATA connector or an external DC 5525 barrel jack, delivering a maximum total output of 5A at 60W. This dual-input design removes the load from motherboard fan headers when running multiple fans. Upgrade from a basic splitter when you need higher combined current capacity and independent speed control for all connected fans.

DIY Builders Needing Manual Multi-Fan Control

This unit suits enthusiasts building gaming PCs, workstations or water-cooling loops who prefer a tactile knob over software curves. It is not for users who require motherboard-reported RPM feedback or automatic temperature-based fan curves, as the manual controller does not return speed signals to the system BIOS.

Pluspunten

  • Manual knob adjusts fan speed from 0 to 100%
  • Controls up to six 12V 4-pin PWM fans
  • Dual power input via SATA or DC 5525 jack
  • Delivers up to 60W total output for stable operation
  • No software required, plug-and-play hardware control

Specificaties

BrandAJMRTC
SeriesFan Controller Hub Series
ModelAJ*FAN*CTL06
Fan SizeN/A
LEDN/A
TypeFan Speed Controller Hub
Bearing TypeN/A
Power ConnectorSATA Power, DC 5525 Barrel Jack
ColorBlack

Vragen over dit artikel

Does the hub need a SATA cable from the power supply or can it run from the DC 5525 jack alone?

The unit accepts either a SATA power connector from the PSU or an external DC 5525 barrel jack, and either source can deliver the full 12 V 5 A 60 W budget.

How do I connect the PWM fans so the knob actually controls their speed?

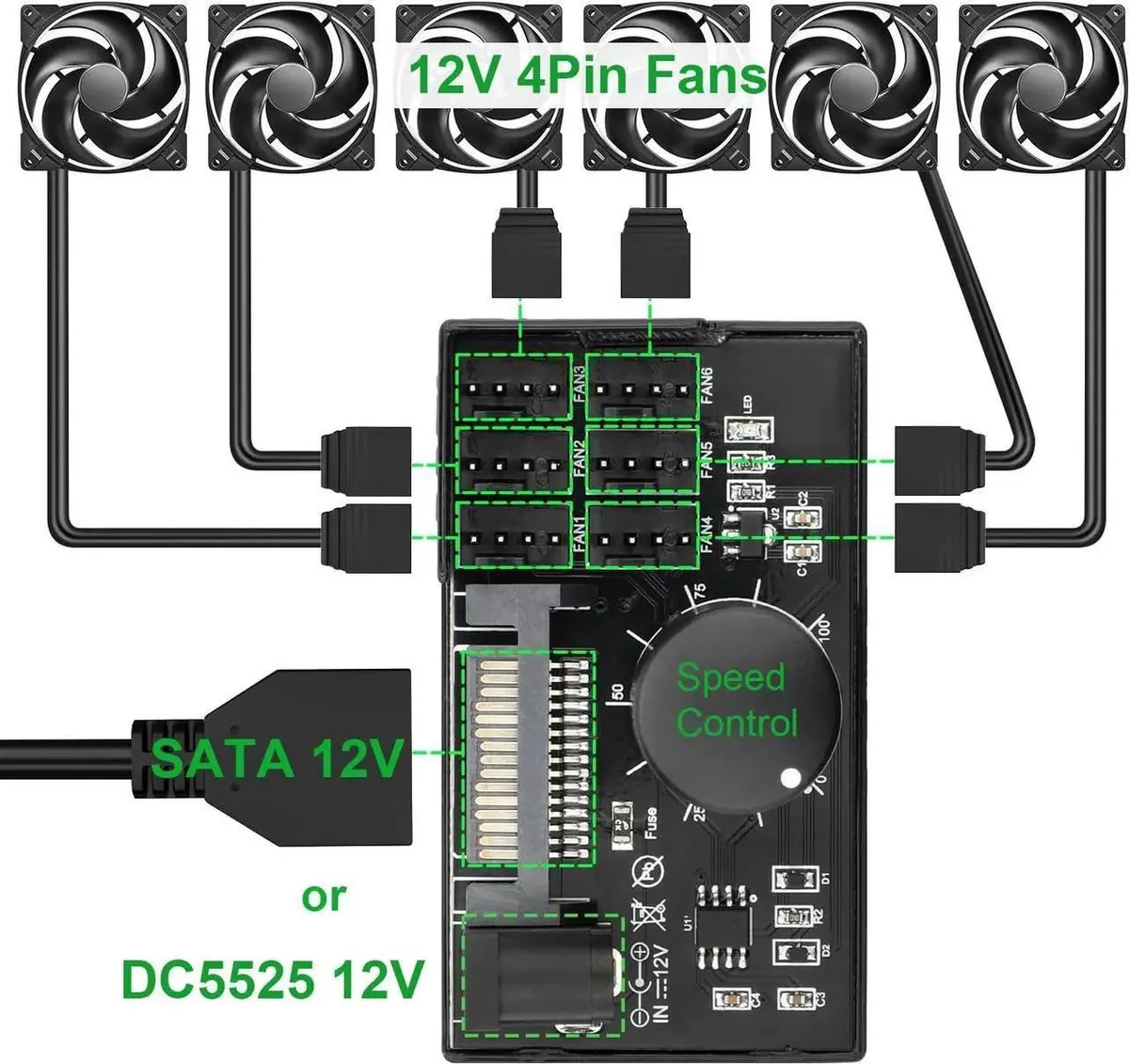

Plug each 4 pin PWM fan into one of the six 4 pin ports on the hub, then power the hub via SATA or DC 5525; the rotary knob then varies voltage to all connected fans from 0 to 100 %.

Will I need to replace the controller if a fan header stops working?

The hub has no user serviceable parts; if a port fails the whole unit would need to be swapped, but the solid PCB and protective housing are built for long term use inside the case.
