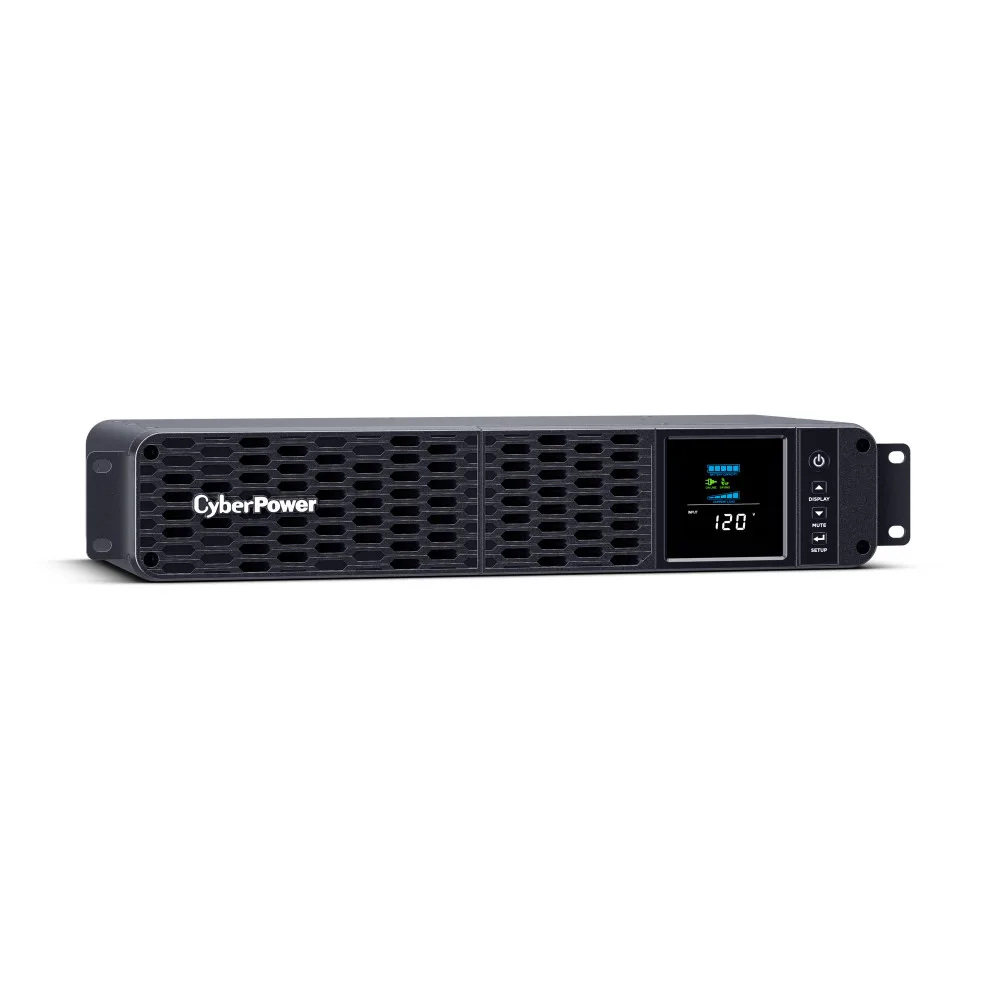

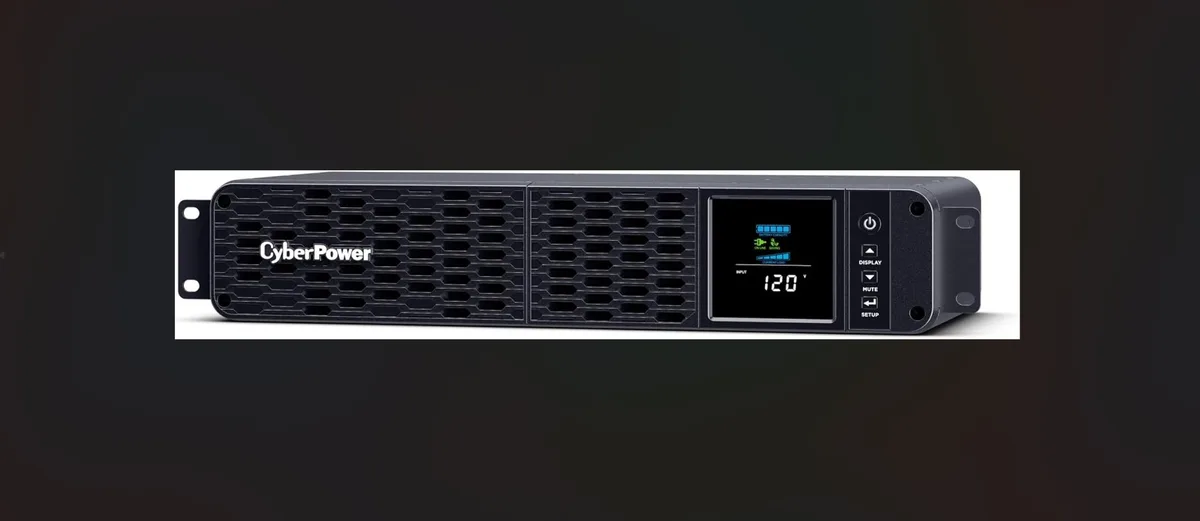

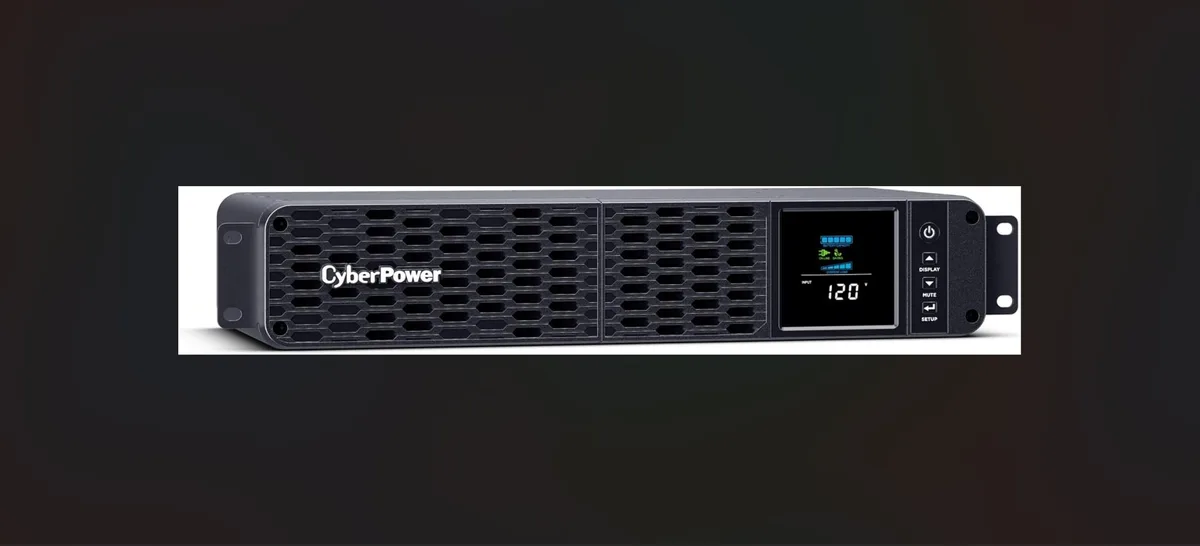

Black 2U rackmount UPS with front LCD panel and eight NEMA 5-20R outlets

CyberPower

CyberPower CP2000PFCRM2U 2000VA 1200W Sine Wave UPS 2U

SKU CH-BX1P-644JT MPN CP2000PFCRM2U

2U rack-mount UPS delivers 2000VA/1200W pure sine-wave power with eight NEMA 5-20R outlets and 2.2-minute full-load runtime

  • Outlets8
  • Output Frequency60 Hz +/- 1%
  • VA Rating2000VA
  • Watts1200W
  • Output Voltage120 VAC +/- 5%
  • Outlet Type8 x NEMA 5-20R
  • 2000VA 1200W sine wave output protects sensitive equipment
  • Line-interactive topology corrects voltage without battery drain

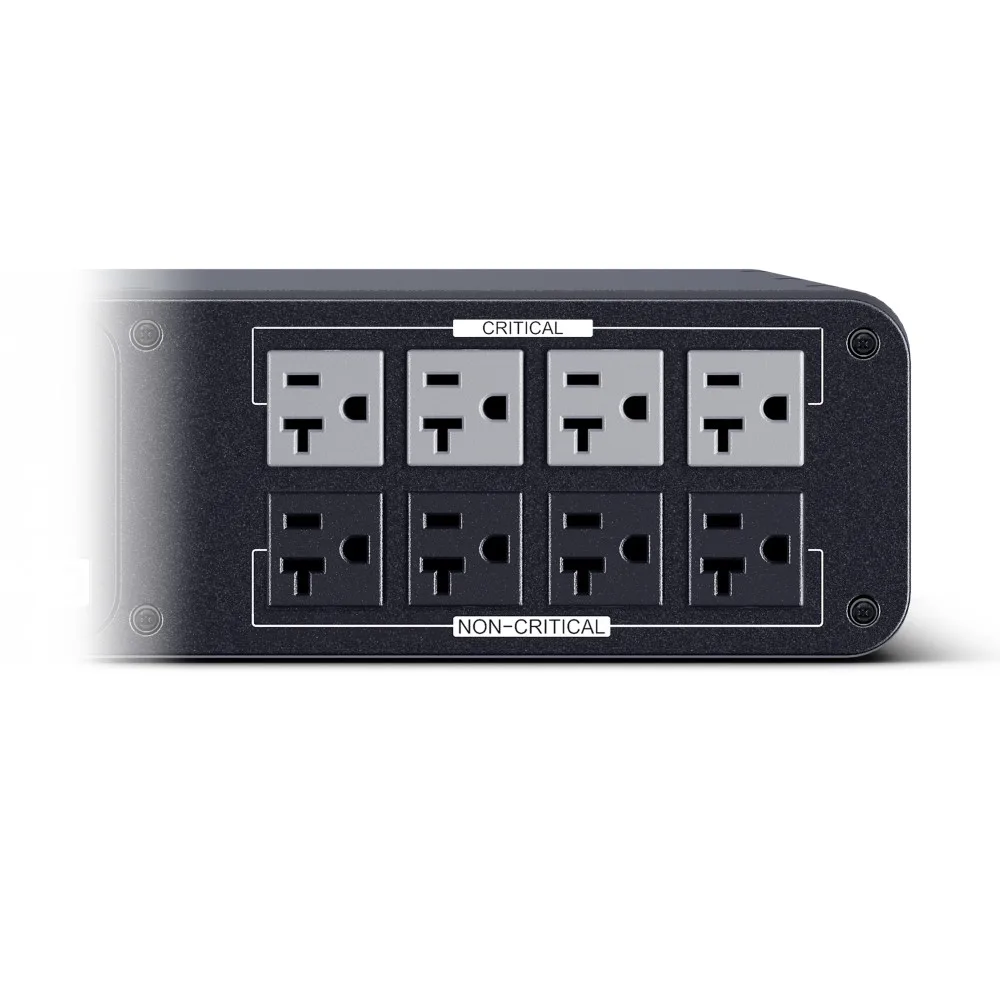

  • 8 NEMA 5-20R outlets supply battery-backed power to rack devices
  • User-replaceable sealed lead-acid batteries extend unit service life
  • 2U rackmount form factor fits standard server cabinets

CyberPower 2U Rackmount UPS for Critical Loads

The CP2000PFCRM2U delivers 2000VA and 1200W of pure sine-wave power in a two-unit rack form factor. It targets network closets and server racks that need clean output for active-PFC power supplies during utility disturbances.

Verify NEMA 5-20P Input

Your facility must provide a 20-amp branch circuit with a NEMA 5-20R receptacle to match the six-foot input cord. Each of the eight rear outlets is a NEMA 5-20R; connected equipment plugs must fit this pattern or use an appropriate adapter.

Sustained Operation Shows Rapid Battery Depletion

At full 1200W load the internal sealed lead-acid pack lasts only 2.2 minutes before shutdown. Half load extends runtime to nine minutes, while an eight-hour recharge follows any discharge event. The unit is therefore suited to orderly shutdown scripts rather than extended ride-through.

Pluspunten

  • 2000VA 1200W sine wave output protects sensitive equipment
  • Line-interactive topology corrects voltage without battery drain
  • 8 NEMA 5-20R outlets supply battery-backed power to rack devices
  • User-replaceable sealed lead-acid batteries extend unit service life
  • 2U rackmount form factor fits standard server cabinets

Specificaties

Outlets8
Output Frequency60 Hz +/- 1%
VA Rating2000VA
Watts1200W
Output Voltage120 VAC +/- 5%
Outlet Type8 x NEMA 5-20R
Battery Run Time2.2 min Runtime at Full Load
9.0 min Runtime at Full Load
Battery Recharge Time8 Hours
Battery TypeSealed Lead Acid
Battery ReplaceableYes
BrandCyberPower
ModelCP2000PFCRM2U
International Version120V
Input Voltage Range88 - 144V
Input Frequency57 - 63 Hz
Input ConnectionNEMA 5-20P
AlarmsBattery Mode
Low Battery
Overload
Fault
Interface Port1 Dry Contact
Management SoftwarePowerPanel Business
Rackmountable2U
Data Line Protection1-in / 1-Out (10/100/1000) RJ45
Surge Energy Rating1500 Joules
Surge ProtectionEMI/RFI Filtration
ProtectionInternal Circuitry Limiting
TemperatureOperating Temperature: 32 - 104 °F (0 - 40 °C)
Storage Temperature: 5 - 113 °F (-15 - 45 °C)
HumidityOperating Relative Humidity: 0 - 95 % (non-condensing)
Dimensions3.39" x 17.05" x 10.79"
Weight28.68 lbs.
Verzendgewicht14.24 kg
Pakketafmetingen523 × 381 × 190 mm

Vragen over dit artikel

What comes in the box with the CP2000PFCRM2U and what must be purchased separately?

The unit includes a 6 ft NEMA 5-20P input cord and eight NEMA 5-20R outlets providing surge protection and battery backup. The sealed lead-acid batteries are user-replaceable but spares are sold separately.

Which capacity version of the CP2000PFCRM2U should I choose for my load?

This model is rated 2000VA and 1200W. Select it when your connected equipment draws up to 1200W; the sine-wave output supports active PFC power supplies without derating.

What does the 2.2-minute full-load runtime mean once the UPS is installed?

At the maximum 1200W load the battery will last 2.2 minutes, giving time for graceful shutdown. At half load the runtime extends to 9.0 minutes.
