iStarUSA Inc.
iStarUSA Inc. D-200SE 2U server chassis
A 2U rackmount server chassis with two 5.25" bays, two 3.5" bays, three expansion slots, dual USB 2.0 ports and an 80mm cooling fan
- Chassis TypeRackmount
- Form Factor2U
- ColorBlack
- Case MaterialAluminum / Steel
- Motherboard CompatibilityMicro ATX / ATX
- External 5.25" Drive Bays2
- Compact 2U rackmount depth saves rack space
- Patented aluminium front panel with key lock secures hardware
- Front-access USB 2.0 ports simplify peripheral connection
- Single 80 mm fan plus washable filter maintains airflow
- Supports Micro-ATX and ATX motherboards for flexible builds
Compact 2U Rackmount Chassis

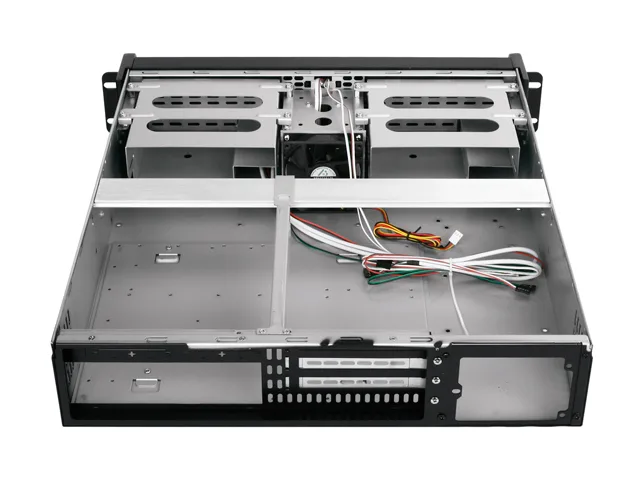

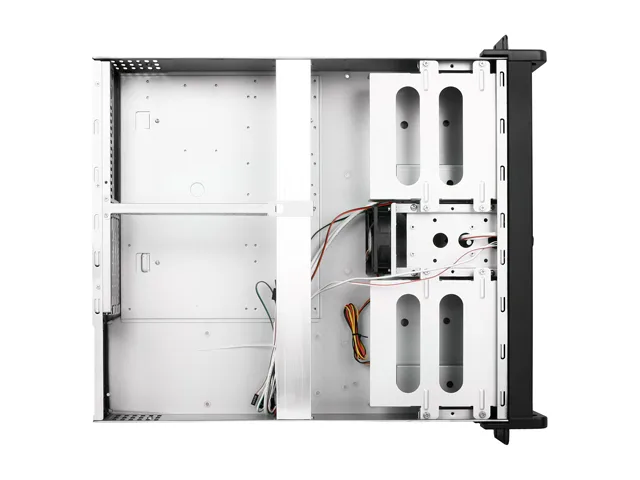

The iStarUSA D-200SE is a 2U rackmount server chassis built from aluminum and steel in black with a blue front bezel. It accepts Micro ATX and ATX motherboards and provides two external 5.25-inch and two external 3.5-inch drive bays. Three expansion slots support add-in cards and a lockable front bezel secures the interior.
Front-Panel Access and Cooling
Two front-mounted USB 2.0 ports give direct peripheral connectivity without reaching the rear. A single 80 mm fan handles airflow while a removable, washable air filter protects internal components from dust. Front LEDs indicate power, drive activity, temperature and fan status when the optional sensor board is installed.
Compatibility Check Before Ordering
Verify that your rack depth can accommodate the 20.80-inch chassis length and that the 3.50-inch height fits your 2U allocation. Confirm the motherboard mounting pattern matches Micro ATX or ATX and that three expansion slots satisfy your card requirements. Ensure you have the optional sensor board if temperature and fan monitoring are needed.
Pluspunten
- Compact 2U rackmount depth saves rack space
- Patented aluminium front panel with key lock secures hardware
- Front-access USB 2.0 ports simplify peripheral connection
- Single 80 mm fan plus washable filter maintains airflow
- Supports Micro-ATX and ATX motherboards for flexible builds
Specificaties
| Brand | iStarUSA |
|---|---|
| Model | D-200SE |
| Chassis Type | Rackmount |
| Form Factor | 2U |
| Color | Black |
| Case Material | Aluminum / Steel |
| Motherboard Compatibility | Micro ATX / ATX |
| External 5.25" Drive Bays | 2 |
| External 3.5" Drive Bays | 2 |
| Expansion Slots | 3 |
| Front Ports | 2 x USB 2.0 |
| 80mm Fans | 1 |
| Features | Color of Front Bezel: Blue Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08) Switches: Power, Reset Security: Front Bezel Key Lock Air Filter: Removable & Washable Material: Material of Front Bezel: Aluminum alloy Material of Handle: SECC Zinc-Coated Steel Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
| Dimensions | 19.00" x 3.50" x 20.80" |
| Verzendgewicht | 8.17 kg |
| Pakketafmetingen | 533 × 483 × 102 mm |
Vragen over dit artikel
How often should the removable air filter be cleaned to maintain airflow?
The washable air filter can be removed from the front and rinsed; cleaning frequency depends on dust levels in the rack environment.
Will the single 80 mm fan provide enough cooling for a full ATX board under continuous load?
Only one 80 mm fan is fitted, so sustained high-wattage components may hit thermal limits before the chassis itself becomes a bottleneck.
How loud is the chassis when the 80 mm fan runs 24/7 in a quiet office?
A single 80 mm fan at full speed produces noticeable airflow noise; actual decibel level varies with fan model and voltage control.
