Black 2U rackmount server chassis, 16.85 inch depth, front USB 2.0 ports, single 5.25 inch bay

iStarUSA Inc.

iStarUSA Inc. D-213-MATX 2U rackmount server chassis

SKU CH-ZES7-69X63 MPN D-213-MATX

A 2U rackmount chassis for microATX boards with two 3.5″ drives, one 5.25″ bay and four low-profile slots

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility9.6" x 9.6" (microATX, mini-ITX)
  • External 5.25" Drive Bays1

Model D-213-MATX

  • Compact 2U rackmount fits standard 19-inch racks
  • 16-inch depth saves space in dense server cabinets
  • Front-panel USB 2.0 ports give quick peripheral access
  • Four low-profile expansion slots support add-on cards
  • Standard ATX PS2 power supply simplifies integration

Compact 2U rackmount for microATX builds

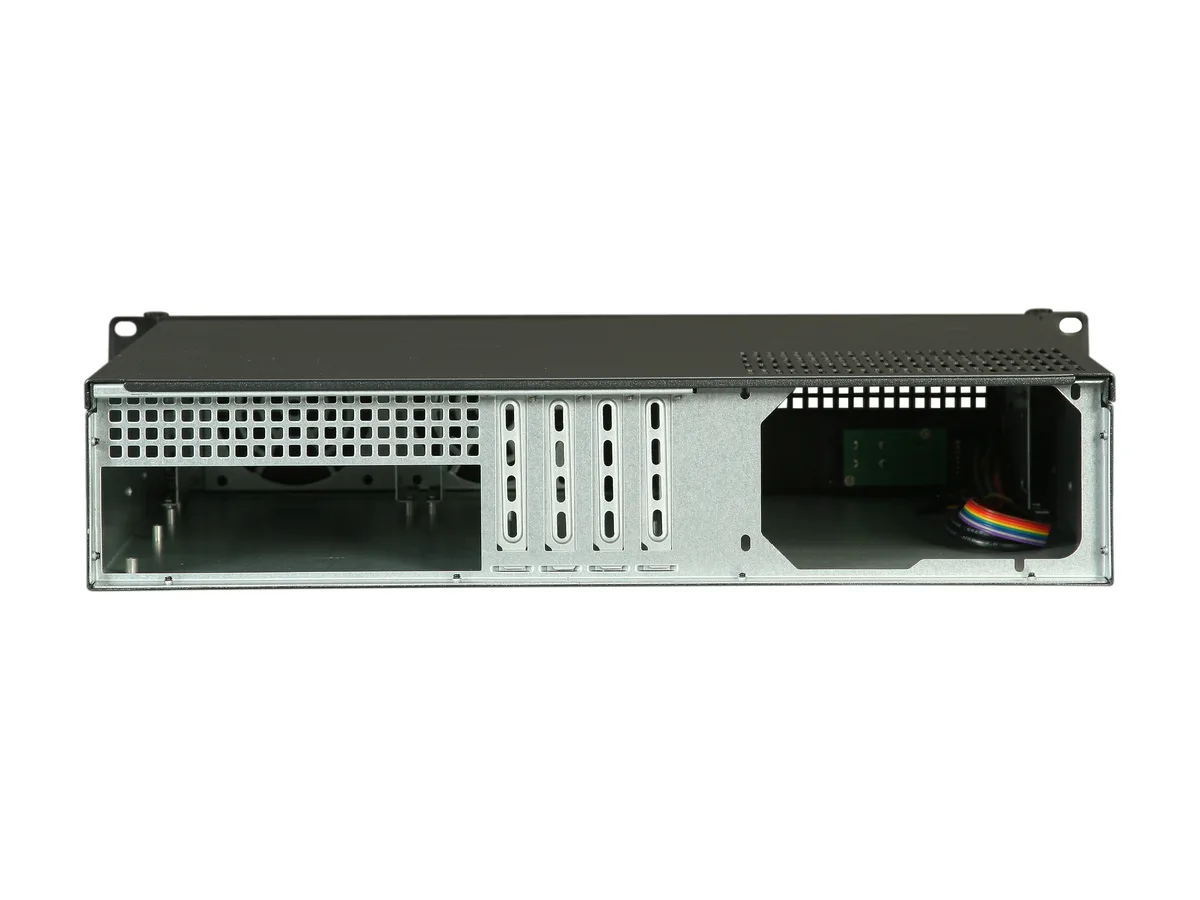

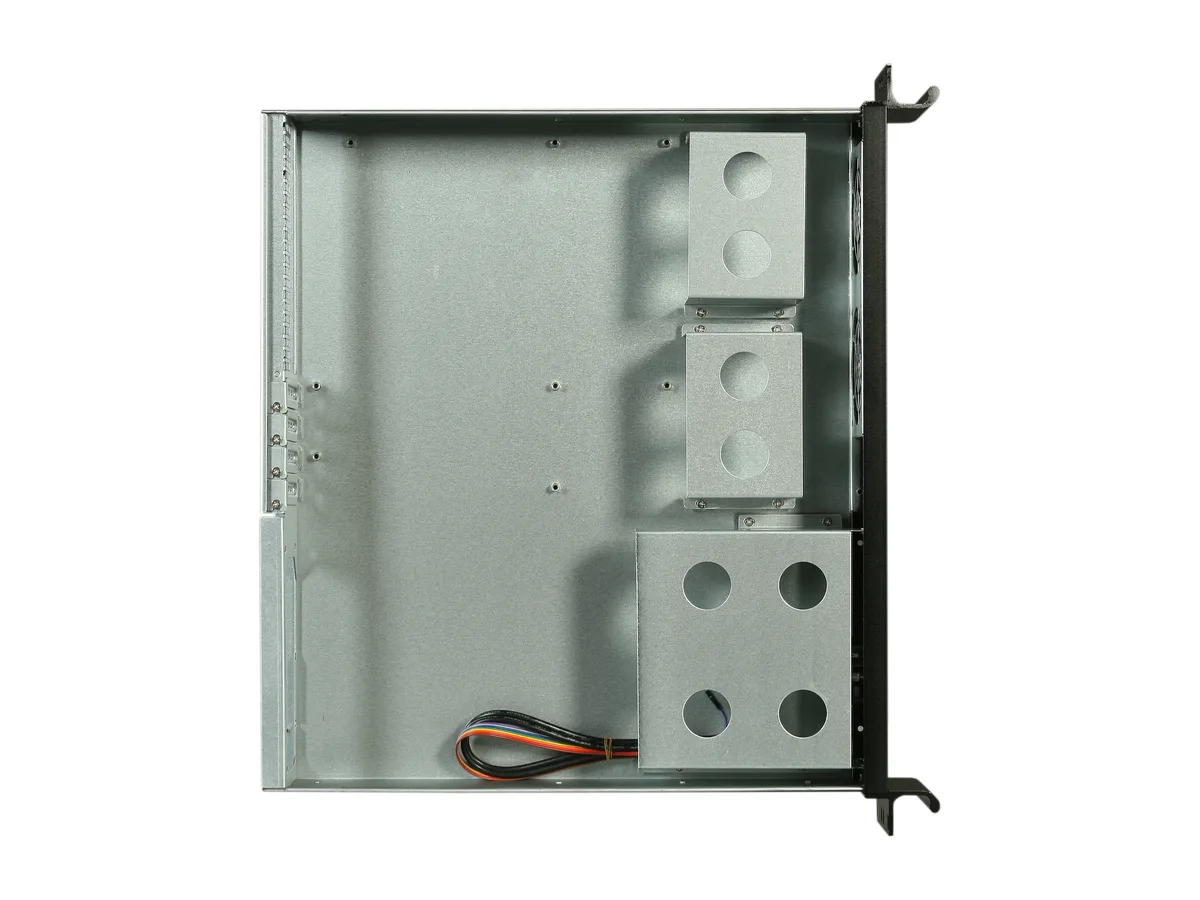

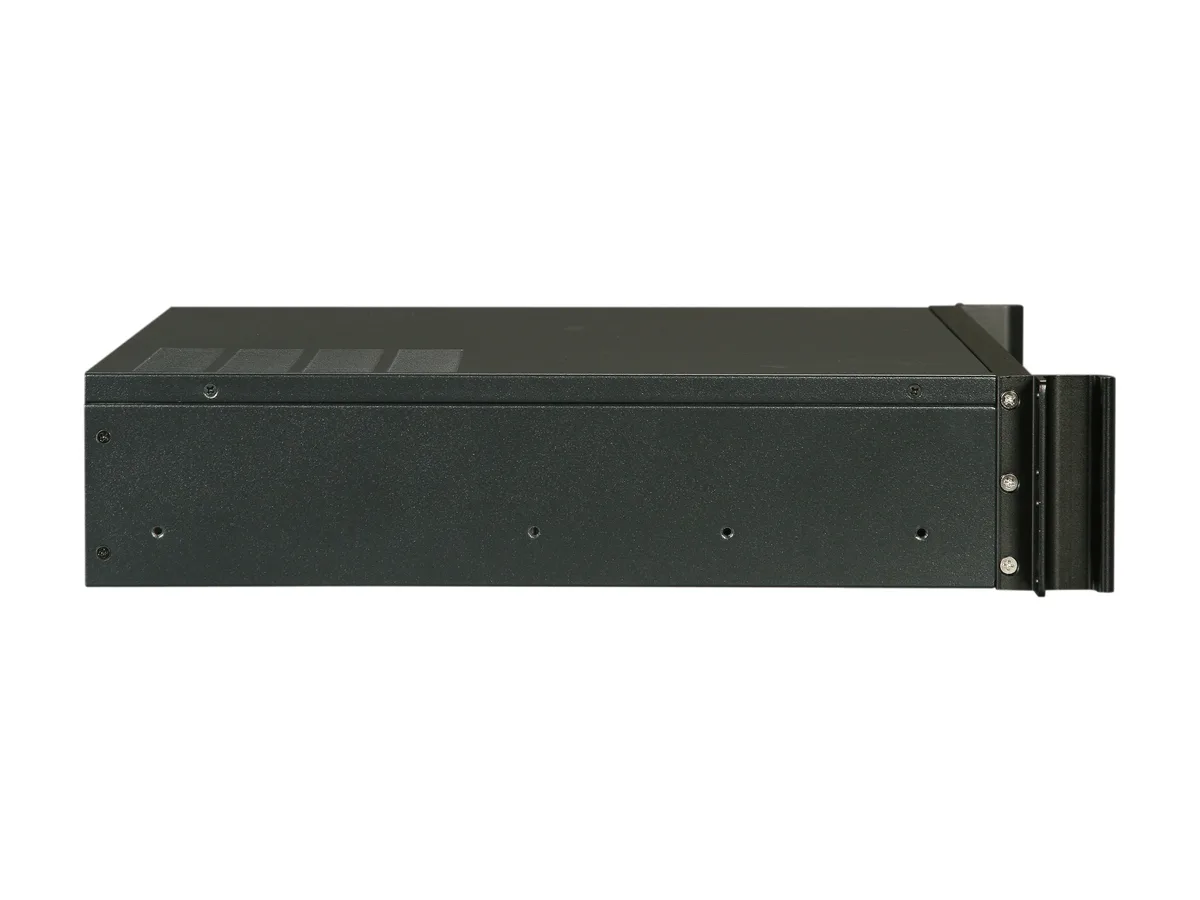

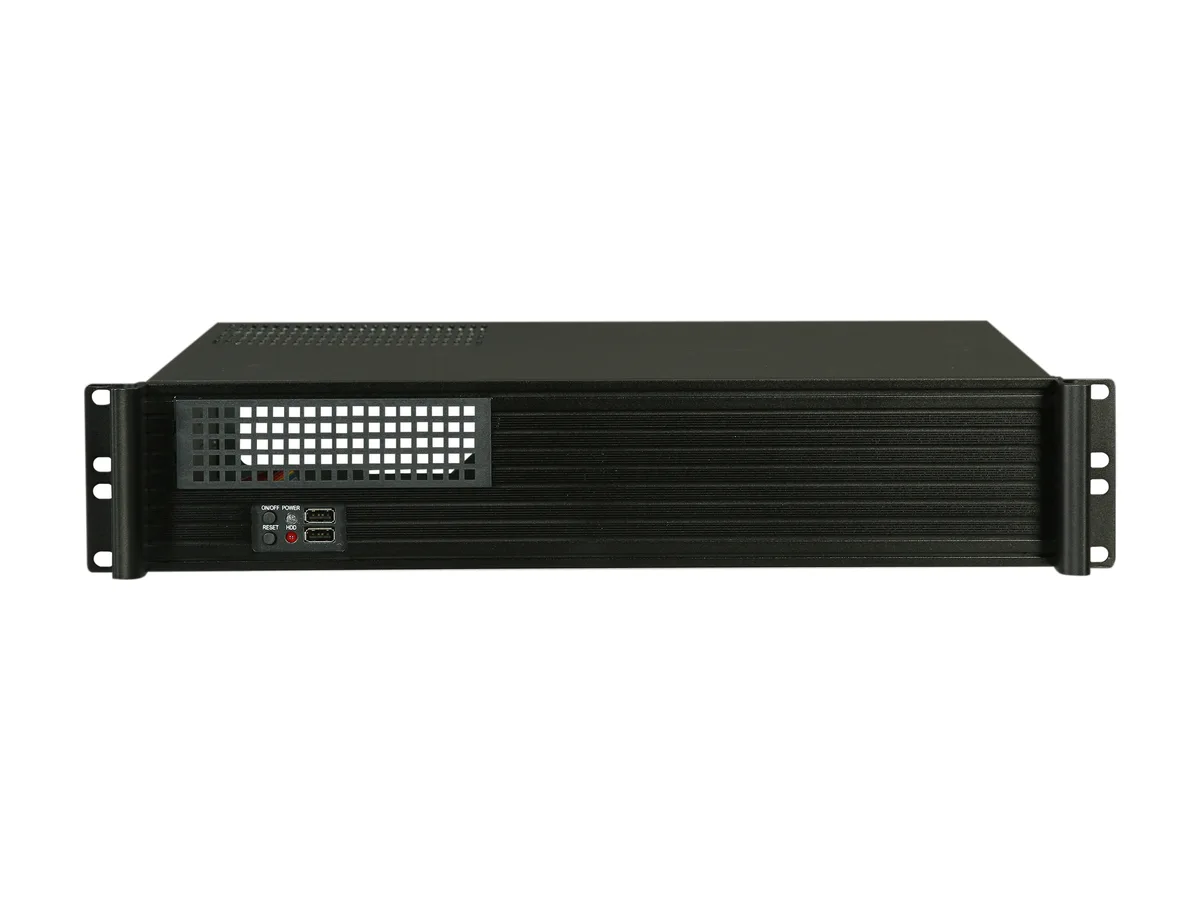

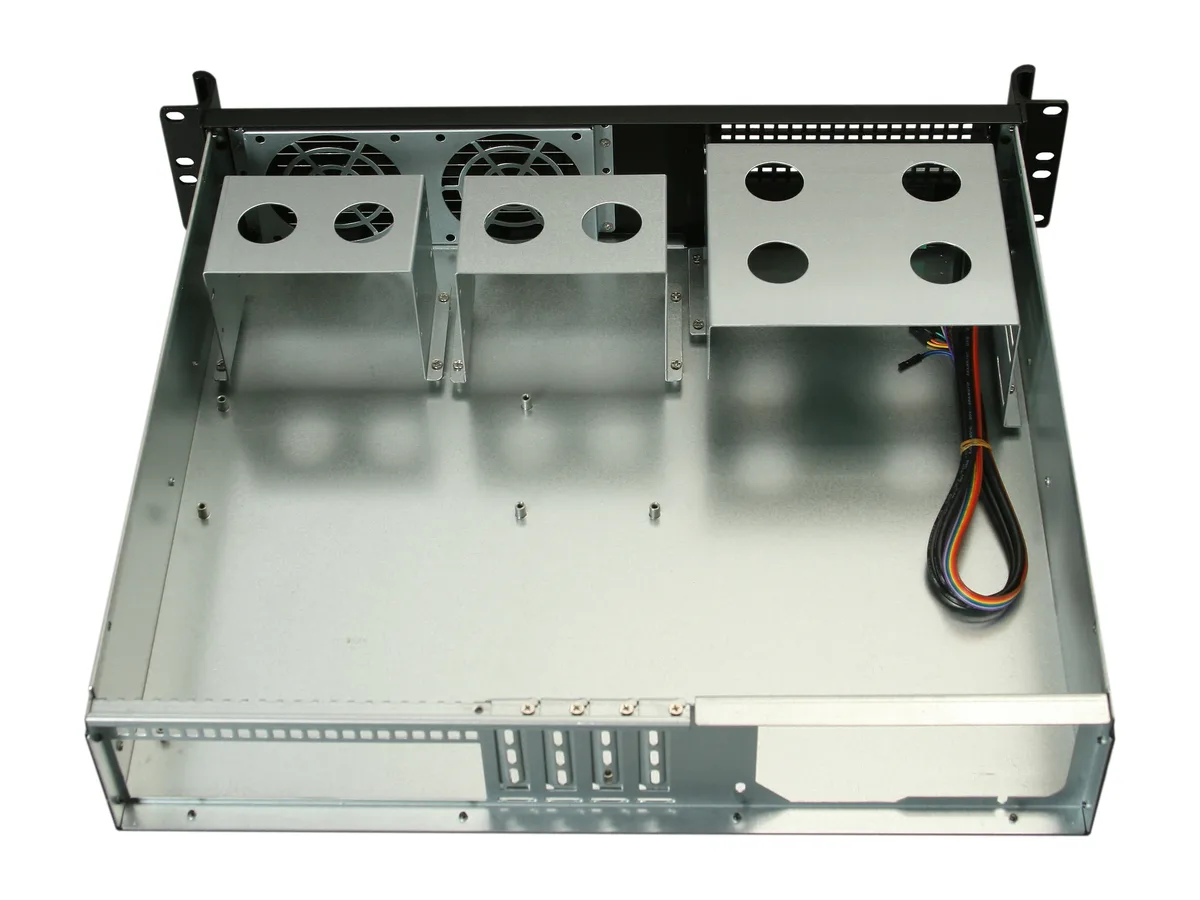

The iStarUSA D-213-MATX is a 2U rackmount server chassis designed for microATX and mini-ITX motherboards up to 9.6 by 9.6 inches. Its 16-inch depth fits shallow racks while providing space for two internal 3.5-inch drives and one external 5.25-inch bay. Four low-profile expansion slots support add-in cards for specialised workloads.

Straightforward assembly with low-profile limits

A standard ATX PS2 power supply mounts directly without adapters, and front-panel USB 2.0 ports connect to the motherboard header. The aluminium and steel frame keeps weight at 15 lbs for easier rack installation. Builders must select low-profile cards only; full-height cards will not fit the four-slot backplane.

Steady airflow for continuous operation

Optional dual 80 mm front intake fans pull air across drives and motherboard components during sustained loads. The compact 16-inch depth leaves minimal clearance for long cables, so routing should be planned before final mounting. Front-panel power and HDD LEDs plus reset switch allow basic monitoring without opening the rack.

Pluspunten

  • Compact 2U rackmount fits standard 19-inch racks
  • 16-inch depth saves space in dense server cabinets
  • Front-panel USB 2.0 ports give quick peripheral access
  • Four low-profile expansion slots support add-on cards
  • Standard ATX PS2 power supply simplifies integration

Specificaties

BrandiStarUSA
ModelD-213-MATX
Chassis TypeRackmount
Form Factor2U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility9.6" x 9.6" (microATX, mini-ITX)
External 5.25" Drive Bays1
Internal 3.5" Drive Bays2
Expansion Slots4 (Low profile)
Front Ports2 x USB 2.0
FeaturesIndustrial compact chassis with 16" depth
Supports standard ATX power supplies
2 x front access USB 2.0 ports
Supports 4 x low-profile add-on cards
The most economic 2U chassis with one 5.25" bay
Dimensions3.50" x 19.00" x 16.85"
Weight15.00 lbs.
Verzendgewicht6.99 kg
Pakketafmetingen549 × 541 × 213 mm

Andere versies van dit model

Nog 3 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

How do I confirm the chassis is running correctly after installation?

Check that the front power LED stays solid and the HDD LED flashes during drive activity; the power and reset switches should respond immediately when pressed.

What comes with the D-213-MATX and what must I supply myself?

The chassis includes the aluminum/steel case, front 2 x USB 2.0 ports, power and reset switches, and LED indicators; you must provide a standard ATX PS2 power supply, microATX or mini-ITX motherboard, drives, and low-profile add-on cards.

Which drive-bay configuration should I choose for this model?

This model is fixed with one external 5.25" bay and two internal 3.5" bays; select it when you need that exact combination in a 2U, 16.85" deep rackmount chassis.
