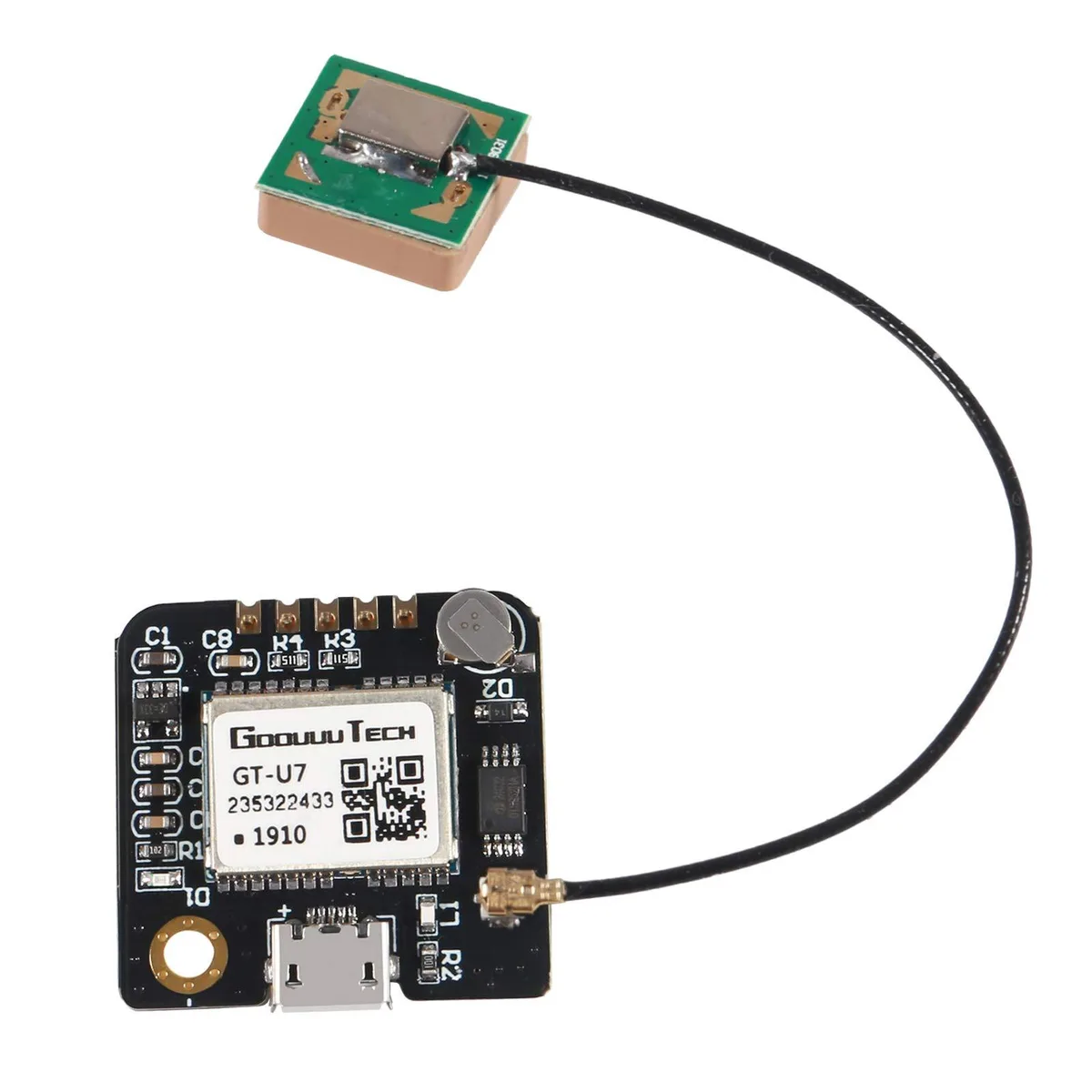

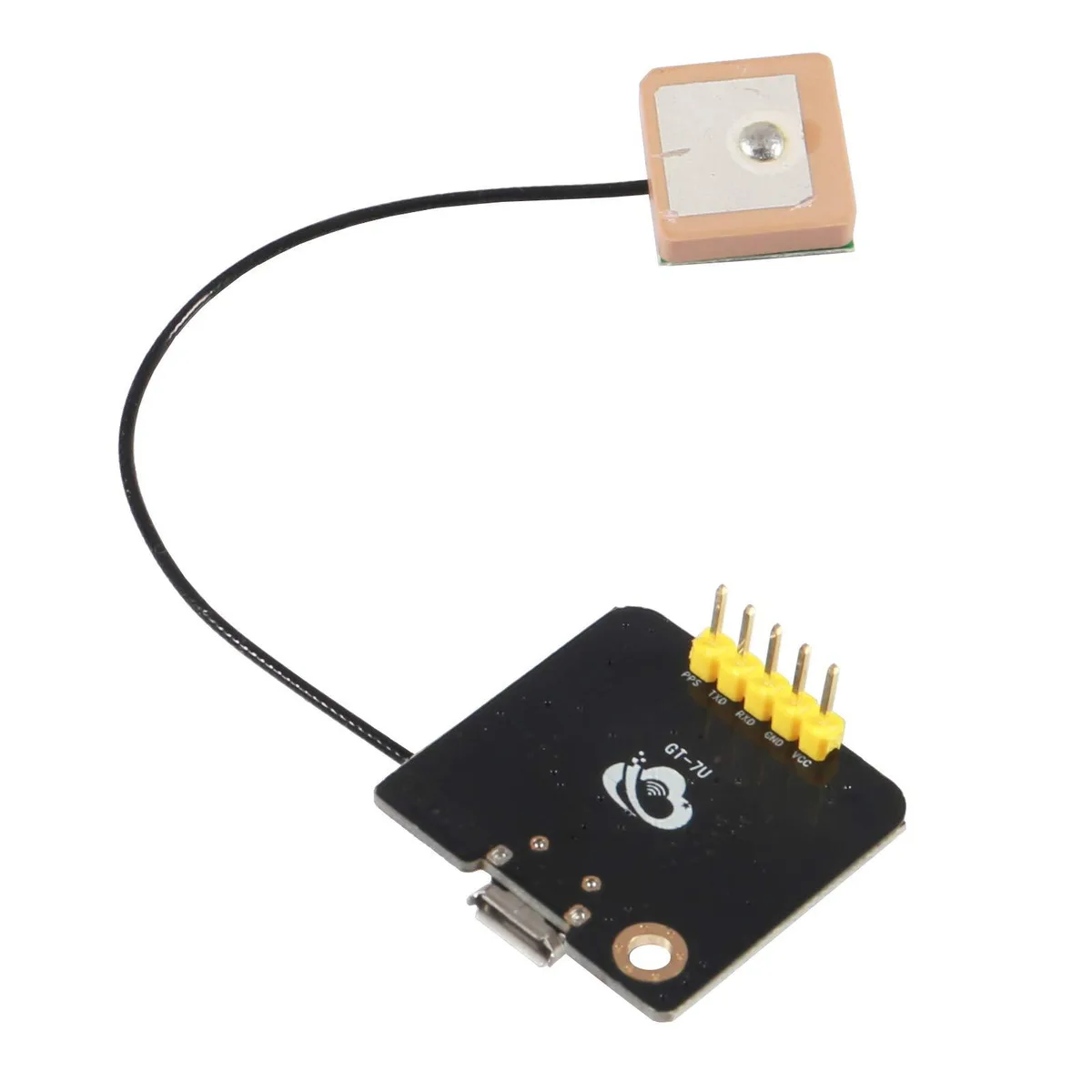

Small rectangular GPS board with USB plug, IPEX antenna connector, and button battery

KEHIPI

KEHIPI GT-U7 GPS Module USB IPEX Antenna 3.6-5V 9600 Baud

SKU CH-JENH-13XKB

USB-powered GPS module with IPEX antenna, 3.6-5V operation, 9600 baud NMEA output compatible with NEO-6M, and onboard battery for data retention

  • Direct USB connection eliminates external serial modules
  • 6–5 V operation or USB power for flexible deployment
  • 9600 baud default rate with software-adjustable speed
  • High-sensitivity GT-U7 chip tracks in urban canyons and dense foliage
  • On-board button cell and EEPROM retain data through power loss

Compact GPS Module for Embedded Projects

The KEHIPI GT-U7 is a small GPS receiver board with a USB interface and an IPEX antenna connector. It operates from 3.6 to 5 V and communicates at 9600 baud, making it suited for developers adding satellite positioning to microcontroller or single-board computer designs.

For Makers Integrating Position Data

This module suits hobbyists and engineers building vehicle trackers, handheld loggers or drone navigation aids who need a ready-to-use USB serial device. It is not for buyers who require multi-constellation support, higher update rates or a rugged enclosure for permanent outdoor mounting.

Check Power and Host Compatibility

Verify that your host can supply 3.6 to 5 V over USB and accepts a virtual COM port at 9600 baud. Confirm the IPEX antenna pigtail matches your enclosure cut-out and that your firmware can parse standard NMEA sentences.

Pluspunten

  • Direct USB connection eliminates external serial modules
  • 6–5 V operation or USB power for flexible deployment
  • 9600 baud default rate with software-adjustable speed
  • High-sensitivity GT-U7 chip tracks in urban canyons and dense foliage
  • On-board button cell and EEPROM retain data through power loss

Specificaties

BrandAITRIP

Vragen over dit artikel

What power source do I need to run the GT-U7 GPS module?

The module operates from 3.6 V to 5 V and can be powered directly from a USB port.

Can I use the GT-U7 GPS module with a 51 MCU or STM32 board?

Yes, the supplier highlights compatibility with 51 MCU and STM32 development boards.

How can I verify the module is outputting valid position data after connecting it?

Open a serial terminal at 9600 baud and look for standard NMEA sentences such as $GPGGA or $GPRMC.
