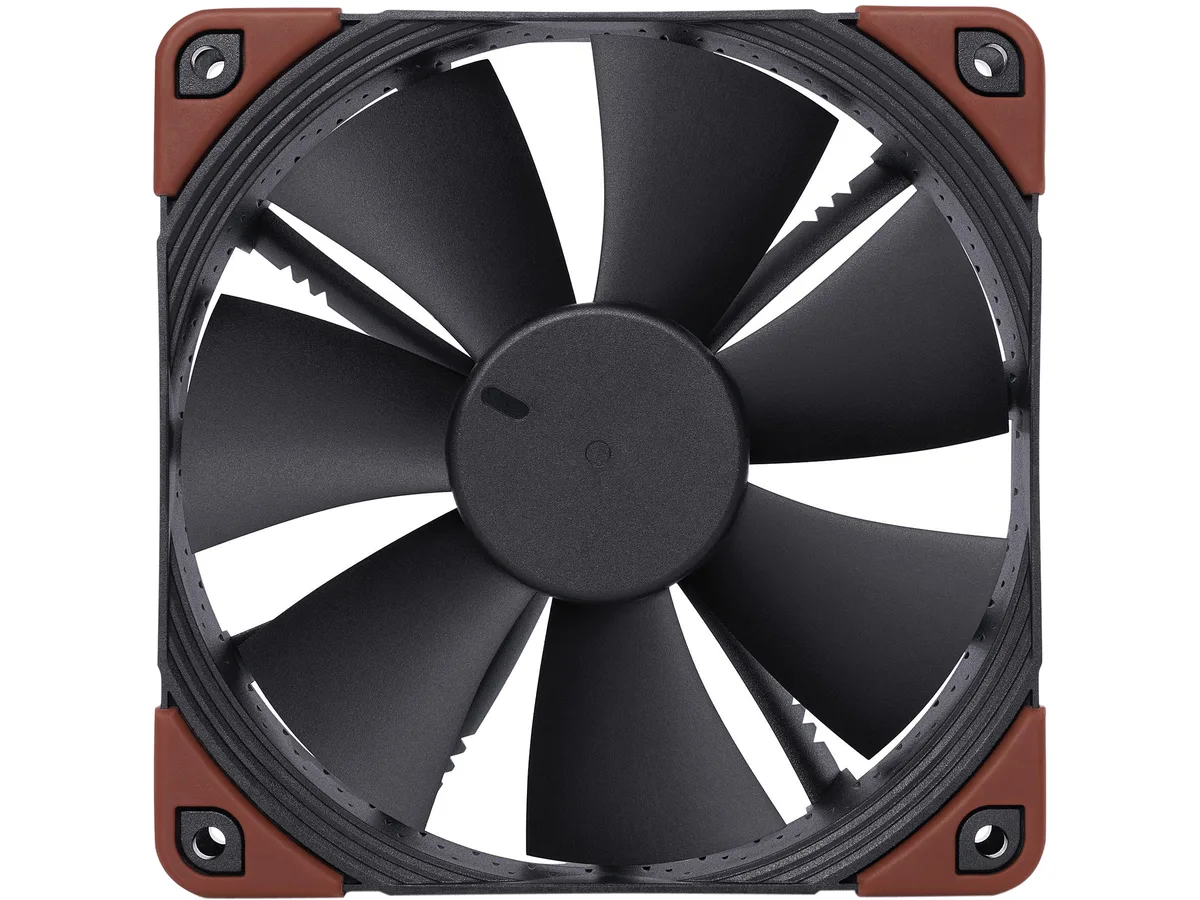

Black 120 mm square case fan with 25 mm thick frame and 4 pin PWM connector

Noctua

Noctua NF-F12 iPPC-2000 PWM 120 mm 2000 RPM case fan

SKU CH-X82J-9XCA9 MPN NF-F12 iPPC-2000 PWM

Industrial 120 mm PWM fan running at 2000 RPM with IP52 protection and 150000-hour MTBF

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120 x 120 x 25 mm
  • Fan Thickness25mm
  • Bearing TypeSSO2
  • High static pressure from FocusedFlow frame design
  • PWM speed control across 450 to 2000 RPM range

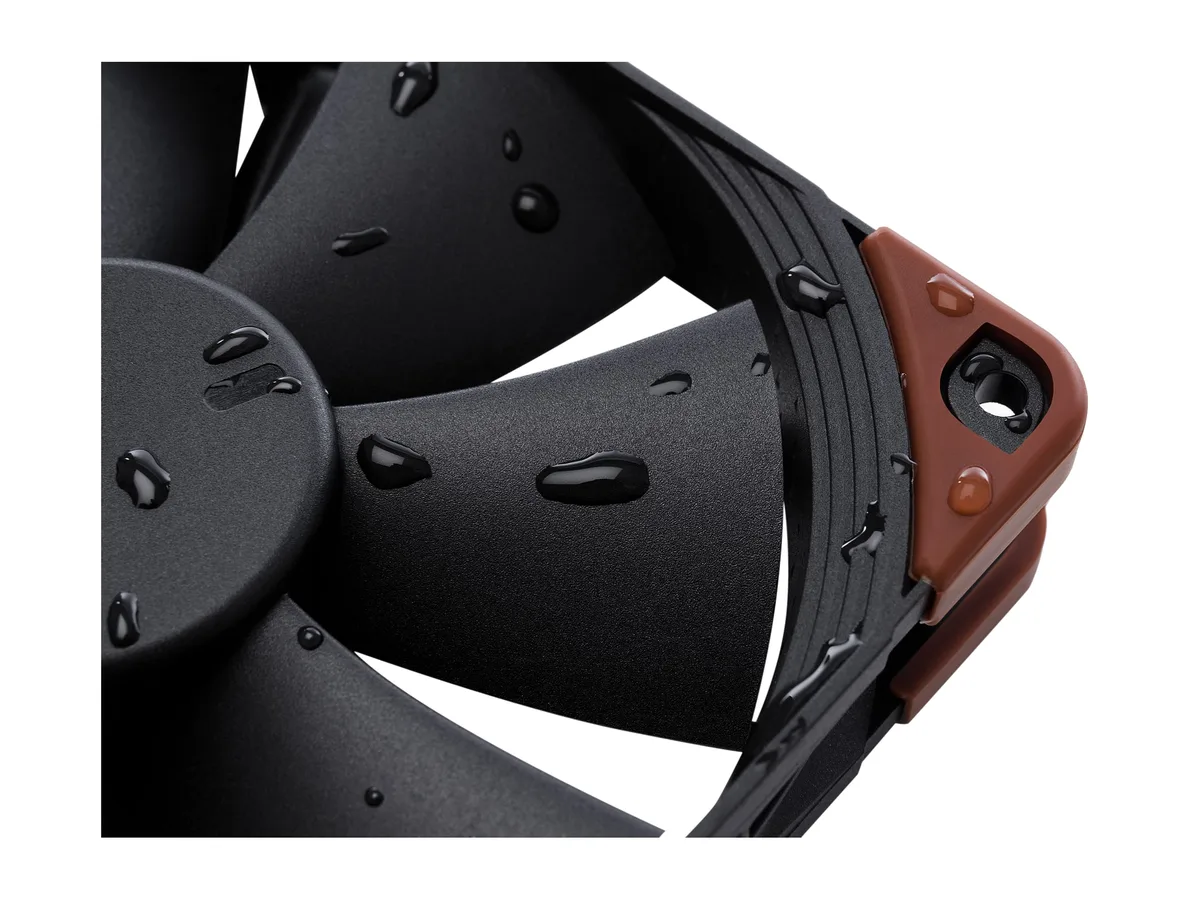

  • IP52 certified dust and water resistance
  • SSO2 bearing rated beyond 150000 hours MTTF
  • Fibre-glass reinforced polyamide frame for rugged durability

Industrial high-speed fan

The NF-F12 iPPC-2000 PWM is a 120 mm case fan built for industrial heavy-duty applications. Its fibre-glass reinforced polyamide frame and IP52 certified protection resist water and dust ingress. The FocusedFlow frame design delivers high static pressure for restrictive cooling setups. A 4-pin PWM connector allows automatic speed control via motherboard headers.

Suited for demanding cooling, not silent builds

This model targets users who need maximum airflow and pressure in challenging environments such as dense radiators or filtered enclosures. The 2000 RPM top speed produces 29.7 dB(A), so it is not suited for low-noise PC builds. Buyers who prioritise quiet operation over raw cooling capacity should look at lower-speed alternatives.

2000 RPM with IP52 protection

The single specification that decides fit is the 2000 RPM maximum speed combined with IP52 ingress protection. This pairing defines the fan as an industrial-grade component for high-performance cooling where dust or moisture exposure is a concern. Verify that your chassis and controller support 4-pin PWM control before installation.

Pluspunten

  • High static pressure from FocusedFlow frame design
  • PWM speed control across 450 to 2000 RPM range
  • IP52 certified dust and water resistance
  • SSO2 bearing rated beyond 150000 hours MTTF
  • Fibre-glass reinforced polyamide frame for rugged durability

Specificaties

BrandNoctua
ModelNF-F12 iPPC-2000 PWM
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size120 x 120 x 25 mm
Fan Thickness25mm
Bearing TypeSSO2
RPM2000 RPM
Air Flow121,8 m3/h
Noise Level29,7 dB(A)
Power Connector4 Pin
ColorBlack
FeaturesFrame Technology: FocusedFlow
Max. Input Power: 1,2 W
Max. Input Current: 0,1 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
Fan
4 Fan Screws
Ingress Protection: IP52
Material: Fibre-glass reinforced polyamide
Motor type: Three-phase
Verzendgewicht0.27 kg
Pakketafmetingen178 × 170 × 36 mm

Vragen over dit artikel

Does my motherboard need a 4-pin PWM header to run this fan?

Yes, the fan uses a 4-pin PWM connector that plugs into a standard 4-pin PWM fan header for automatic speed control between 450 and 2000 RPM.

Will the 25 mm thickness and 120 mm square frame fit alongside my existing 120 mm fans in a standard fan mount?

The frame measures 120 x 120 x 25 mm, matching the standard 120 mm mounting pattern, so it aligns with other 120 mm fans in typical case or radiator mounts.

How can I confirm the fan is spinning within its specified range after installation?

Monitor the RPM reading in BIOS or fan-control software; it should report speeds between 450 and 2000 RPM depending on the PWM duty cycle applied.
