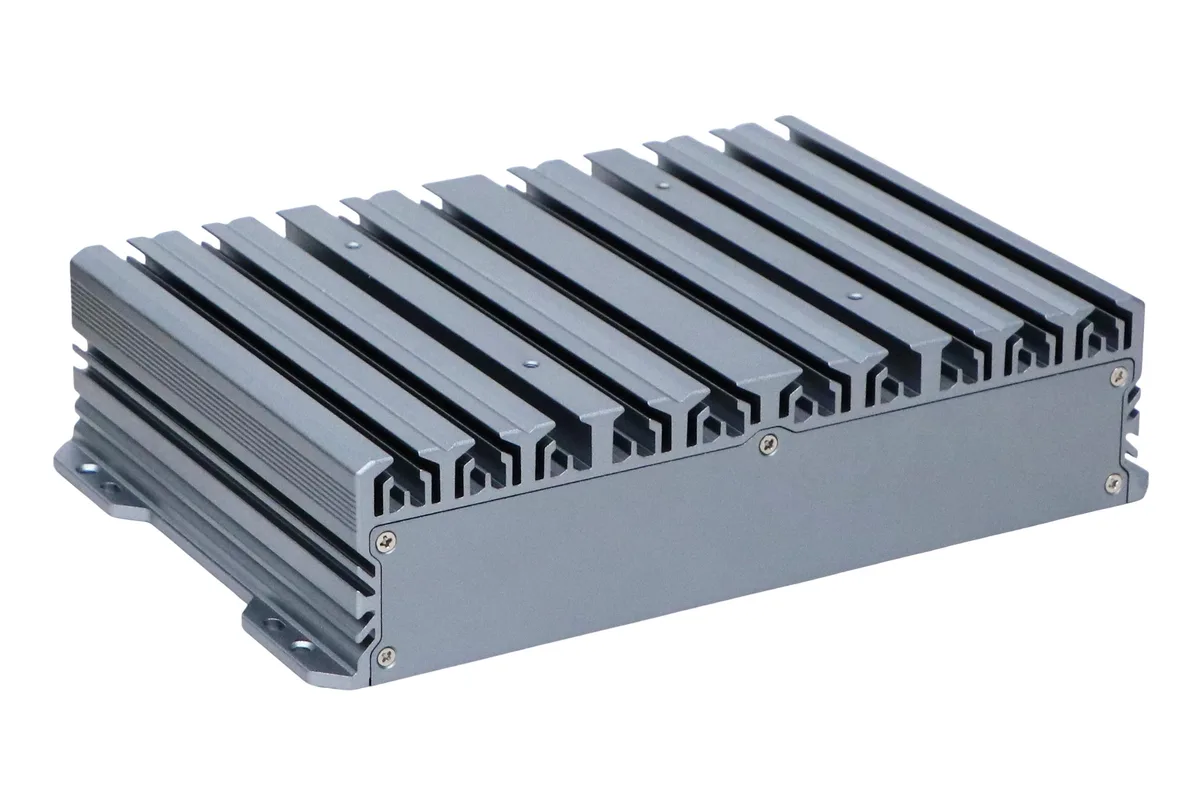

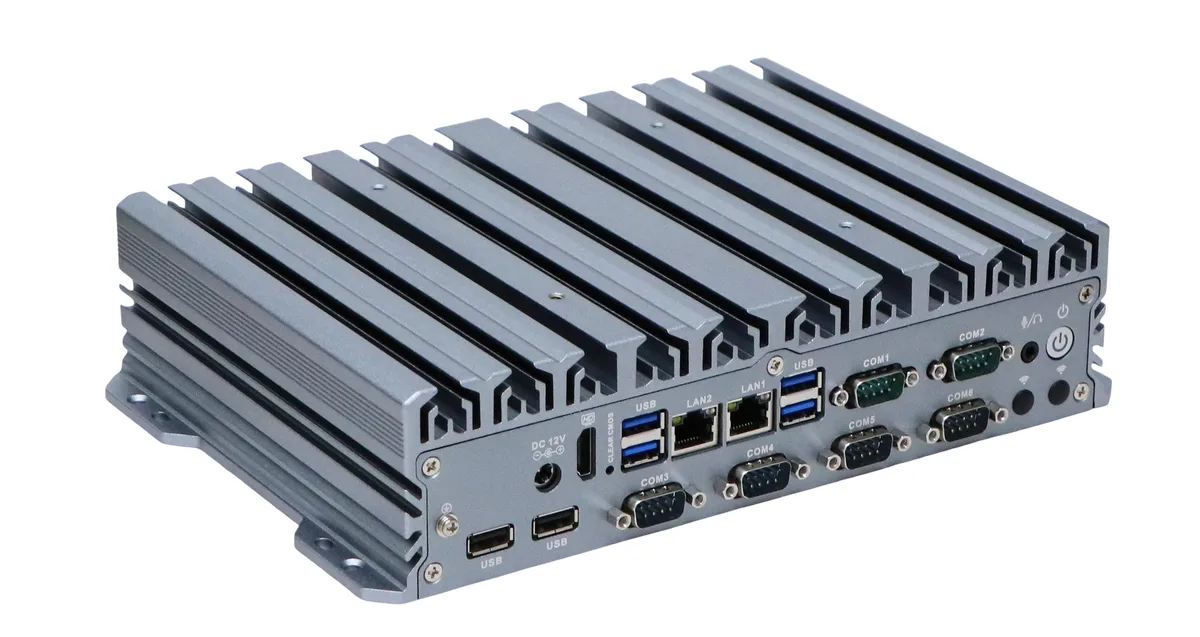

Compact gray fanless aluminum mini PC with front ports and rear I/O

partaker

partaker I34 barebone mini PC i5-7200U 8GB 512GB

SKU CH-HT2D-TJR88

Fanless industrial mini PC with Intel Core i5-7200U, 8 GB DDR4, 512 GB SATA storage, dual Gigabit LAN, six COM ports and six USB ports

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen

I34 I5 7200U 8GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • Dual Gigabit LAN ports enable Wake-on-LAN and PXE boot
  • Six configurable COM ports support RS232 and RS485 industrial devices
  • Two DDR4 slots accept up to 32 GB for multitasking headroom
  • mSATA plus 2.5" SATA bays give flexible storage expansion

Industrial-grade barebone for automation

The Partaker I34 is a fanless mini PC built around an Intel Core i5-7200U processor with 8 GB of DDR4 memory and a 512 GB SSD. Its aluminium chassis operates silently from -20 °C to 60 °C, making it suitable for factory floors, medical carts or embedded kiosks. The system ships with Windows 11 or Linux Ubuntu pre-installed and supports both operating systems officially.

Six serial ports plus dual Gigabit LAN

Connectivity is the decisive spec: six COM ports configurable for RS232 or RS485, four USB 3.0 ports, two USB 2.0 ports and two RTL8111H Gigabit Ethernet interfaces with Wake-on-LAN and PXE boot. An HDMI output drives a single display, while two mini-PCIe slots accept Wi-Fi, Bluetooth or cellular modules. Storage can be expanded via one mSATA slot and one 2.5-inch SATA bay.

Fanless chassis requires airflow planning

Installation is straightforward: mount the unit with the included brackets, connect DC 12 V power and attach peripherals. The passively cooled case relies on surface airflow, so enclosing it in a sealed cabinet without ventilation will cause thermal throttling. The CLEAR CMOS button and watchdog timer simplify recovery from configuration errors, but the single HDMI port limits multi-monitor setups.

Pluspunten

  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • Dual Gigabit LAN ports enable Wake-on-LAN and PXE boot
  • Six configurable COM ports support RS232 and RS485 industrial devices
  • Two DDR4 slots accept up to 32 GB for multitasking headroom
  • mSATA plus 2.5" SATA bays give flexible storage expansion

Specificaties

ColorGray
CPU TypeIntel Core i5 7th Gen

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

How does the i5-7200U perform inside this fanless chassis?

The 7200U runs at up to 3.10 GHz and is cooled passively by the aluminium alloy case, so it sustains its speed without fan noise while staying within the 0 to 50 °C range for hard-disk operation or -20 to 60 °C with solid-state storage.

What does the dual Gigabit Ethernet actually deliver?

Two RTL8111H controllers provide two independent 10/100/1000 Mbit ports with Wake-on-LAN and PXE boot support, so you can separate management traffic from production traffic or build a small router appliance.

What mounting clearance does the 260 × 173 × 61 mm case need?

The unit measures 260 mm wide, 173 mm deep and 61 mm high and weighs 2.5 kg; it sits flat or can be wall-mounted using the integrated flanges, so allow at least those dimensions plus cable bend radius for the DC jack, HDMI and six COM connectors.
