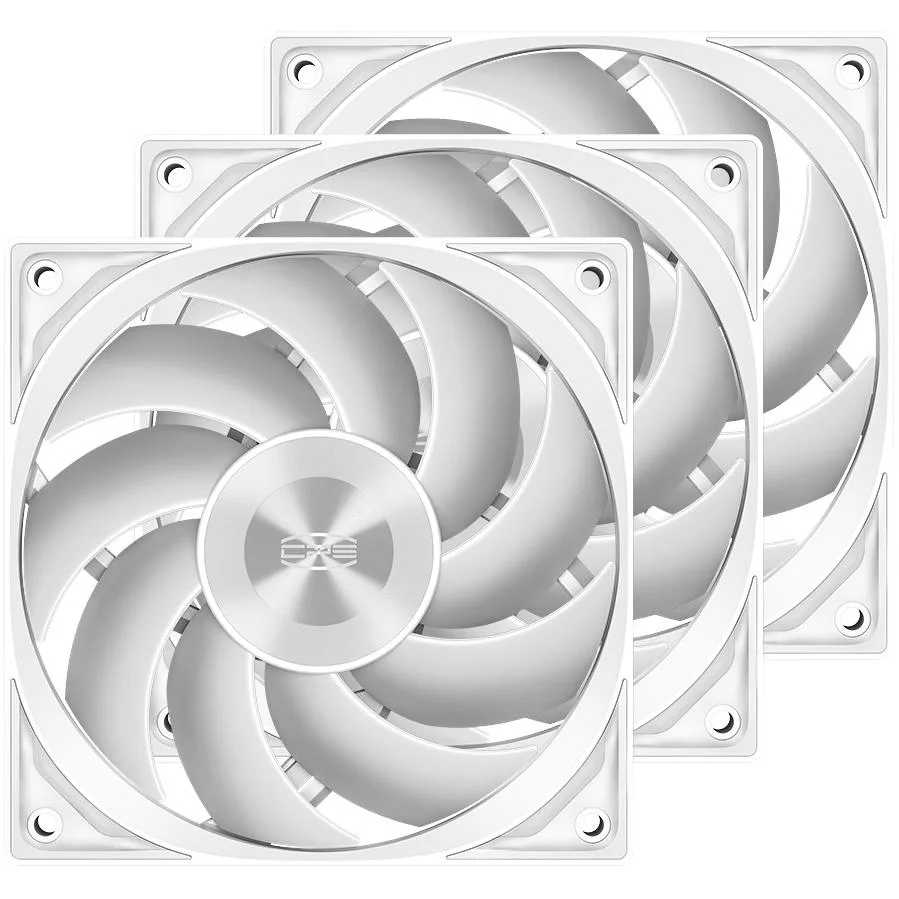

Three white 120mm case fans in a pack, square frames with nine blades each, no LEDs visible

PCCOOLER

PCCOOLER F5R120 WH 3IN1 120mm case fan 3-pack white

SKU CH-B770-4ZRNB

Three 120 mm PWM case fans with fluid-dynamic bearings offer silent, performance and turbo modes up to 2200 RPM and 86.73 CFM

  • Fan Counts3 Fans
  • Fan ControllerController
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness25mm

Option 3in1 Pack

  • Three selectable modes cover silent work to high-performance gaming
  • Silent mode runs at 1800 RPM with 28 dBA noise
  • Turbo mode reaches 2200 RPM delivering 86.73 CFM airflow
  • Fluid dynamic bearing and 39° blade angle give 3.2 mmH2O pressure
  • Daisy-chain 4-pin PWM lets three fans share one motherboard header

Three white 120 mm fans in one pack

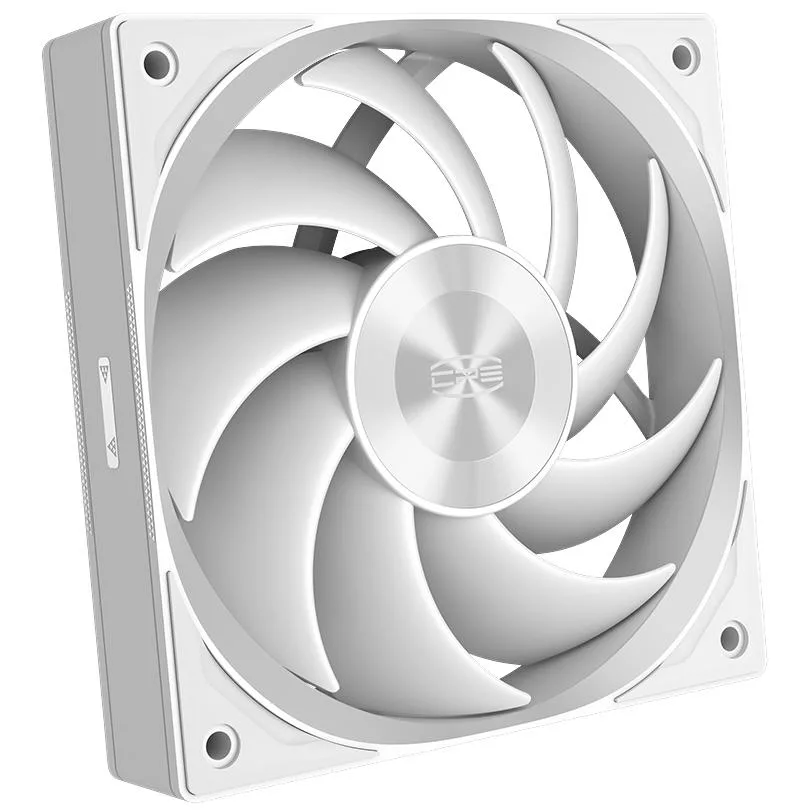

The PCCOOLER F5R120 WH 3IN1 kit contains three 120 mm case fans finished in white. Each unit uses a fluid dynamic bearing and a 4-pin PWM connector for speed control. The nine blades are angled at 39° and the frame measures 120×120×25 mm. The pack is aimed at builders who want matching intake or exhaust fans for a clean, uniform look.

Check 4-pin headers and daisy-chain limit

Verify that your motherboard or fan controller provides enough 4-pin PWM headers for the number of fans you plan to install. Each fan draws power through the same connector used for speed signalling, so the header’s current rating must cover the combined load if you daisy-chain multiple units. The fans have no LED lighting, so no separate RGB or ARGB header is required.

Three speed modes with published noise and airflow

Silent mode runs at 1800 RPM ±10%, delivering 68.64 CFM airflow and 2.1 mmH₂O static pressure at 28 dBA. Performance mode spans 500 to 2000 RPM ±10%, reaching 78.10 CFM and 2.6 mmH₂O at 30 dBA maximum. Turbo mode pushes 2200 RPM ±10% for 86.73 CFM and 3.2 mmH₂O at 32 dBA. Anti-vibration pads are pre-installed to reduce transmitted noise.

Pluspunten

  • Three selectable modes cover silent work to high-performance gaming
  • Silent mode runs at 1800 RPM with 28 dBA noise
  • Turbo mode reaches 2200 RPM delivering 86.73 CFM airflow
  • Fluid dynamic bearing and 39° blade angle give 3.2 mmH2O pressure
  • Daisy-chain 4-pin PWM lets three fans share one motherboard header

Specificaties

BrandPCCOOLER
ModelF5R120 WH 3IN1
Part NumberF5R120-WHNT3-GL
Fan Counts3 Fans
Fan ControllerController
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness25mm
Bearing TypeFluid Dynamic Bearing
RPMSilent Mode: 1800 RPM ±10%
Performance Mode: 500 ~ 2000 RPM ±10%
Turbo Mode: 2200 RPM ±10%
Air FlowSilent Mode: 68.64 CFM
Performance Mode: 78.10 CFM Max
Turbo Mode: 86.73 CFM
Air PressureSilent Mode: 2.1 mmH2O
Performance Mode: 2.6 mmH2O Max
Turbo Mode: 3.2 mmH2O
Noise LevelSilent Mode: 28 dBA
Performance Mode: 30 dBA Max
Turbo Mode: 32 dBA
Power Connector4-pin PWM
ColorWhite
LEDNon-LED
Dimensions120×120×25mm

Andere versies van dit model

Nog 2 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

What comes in the 3-in-1 pack and do I need extra cables?

The pack contains three 120 mm white fans with pre-installed vibration-damping pads and a fan controller. Each fan has a 4-pin PWM connector that supports daisy-chaining so no extra cables are required.

Which of the three modes should I pick for my build?

Choose Silent mode at 1800 RPM for 28 dBA noise, Performance mode for automatic 500-2000 RPM control up to 30 dBA, or Turbo mode at 2200 RPM for maximum 86.73 CFM airflow at 32 dBA.

What does the 86.73 CFM figure mean once the fans are installed?

At Turbo mode the three fans together deliver 86.73 CFM each with 3.2 mmH₂O static pressure, giving strong airflow through dense radiators or restrictive case meshes while running at 32 dBA.
