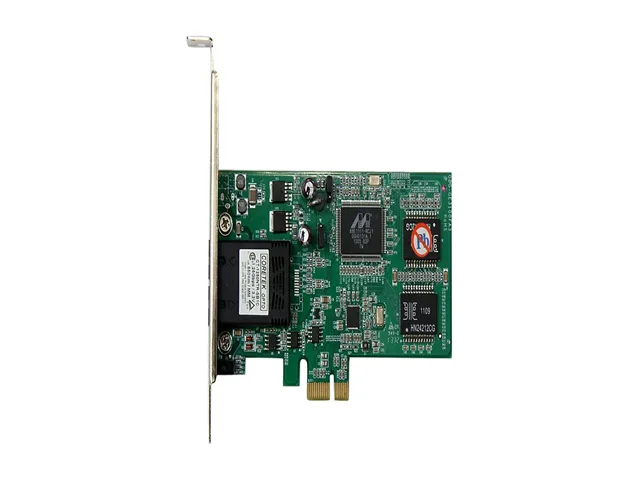

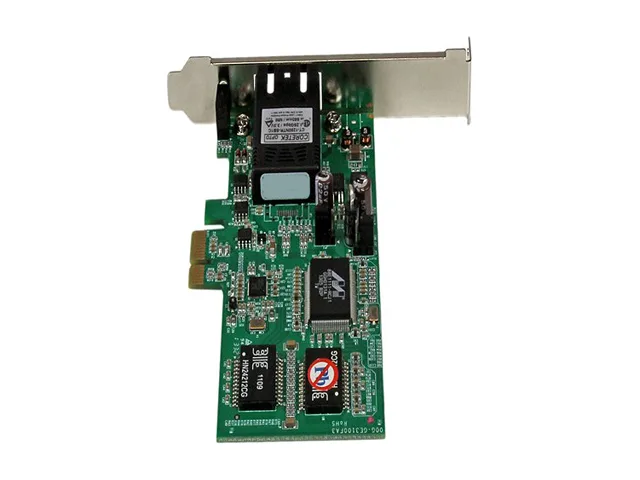

Green PCIe card with silver SC fiber port and low-profile bracket included

STARTECH

STARTECH PEX1000MMSC2 PCIe Gigabit SC Fiber Network Card 550m

SKU CH-08S4-XPYX6 MPN PEX1000MMSC2

Adds a 1000 Mbps SC multimode fiber port to a PCIe desktop or server with 550 m reach and a low-profile bracket included

  • Speed1000Mbps
  • InterfacePCI-Express
  • FeaturesInterfaces/Ports Host Interface: PCI Express x1 Total Number
  • DimensionsHeight: 4.6" Width: 0.7" Length: 4.7"
  • WeightWeight (Approximate): 2.30 oz
  • Package Contents1 Port PCI Express Gigabit Fiber Network Card 1 x Low Profil

Option PCIe 1 Gbps - 1 Port Fiber SC

  • PCIe 1 Gbps - 1 Port Fiber SC
  • PCIe 1 Gbps - 1 Port Open SFP

Doorgestreepte varianten bestaan wel, maar zijn hier niet op voorraad.

  • Connect up to 550 m over multimode SC fiber
  • 1000 Mbps Gigabit throughput on a single PCIe x1 lane
  • Low-profile bracket included for slim chassis installs
  • IEEE 802.3z, 802.1Q, 802.1P and 802.3x compliant
  • PXE 2.1 and SNMP v1 support remote boot and management

Gigabit PCIe fiber adapter for desktop

This single-port PCI Express x1 card adds a Gigabit multimode SC fiber connection to a desktop or rackmount PC. It ships with both a standard bracket and a low-profile half-height bracket for flexible installation. The adapter complies with IEEE 802.3z 1000Base-SX and supports VLAN tagging, Layer 2 priority encoding and full-duplex flow control.

Sustained throughput at 256 MB/s over 550 m fiber

Under continuous load the card maintains line-rate Gigabit performance across multimode fiber links up to 550 m. Full/half-duplex auto-negotiation and IEEE 802.3x flow control prevent packet loss during prolonged transfers. Jumbo frame support and PCI Message Signaled Interrupts reduce CPU overhead in long-running workloads.

550 m multimode SC reach decides fit

The maximum fiber distance of 550 m on multimode SC duplex cable is the specification that determines whether this adapter matches your link budget. Buyers who need longer single-mode runs or a different connector type cannot use this card.

Pluspunten

  • Connect up to 550 m over multimode SC fiber
  • 1000 Mbps Gigabit throughput on a single PCIe x1 lane
  • Low-profile bracket included for slim chassis installs
  • IEEE 802.3z, 802.1Q, 802.1P and 802.3x compliant
  • PXE 2.1 and SNMP v1 support remote boot and management

Specificaties

BrandStarTech.com
ModelPEX1000MMSC2
Speed1000Mbps
InterfacePCI-Express
FeaturesInterfaces/Ports
Host Interface:
PCI Express x1
Total Number of Ports:
1
Number of SC Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Data Transfer Rate:
256 MB/s
Network & Communication
Network Technology:
1000Base-SX
DimensionsHeight:
4.6"
Width:
0.7"
Length:
4.7"
WeightWeight (Approximate):
2.30 oz
Package Contents1 Port PCI Express Gigabit Fiber Network Card
1 x Low Profile Bracket
1 x Driver CD
1 x Instruction Manual
Verzendgewicht0.20 kg
Pakketafmetingen216 × 170 × 51 mm

Vragen over dit artikel

Does the PEX1000MMSC2 generate noticeable heat or fan noise when running continuously?

The card is a passive PCIe x1 adapter with no fan, so it produces no fan noise and minimal heat during all-day operation.

What cabling and switch port must I already have to use the SC duplex connector?

You need a multimode duplex SC patch cord and a switch or media converter with a matching 1000Base-SX SC port.

Will this card negotiate correctly with an older 100 Mbps fiber link I still use?

The adapter complies with IEEE 802.3z 1000Base-SX and supports full/half-duplex auto-negotiation, so it will not link at 100 Mbps.
