Syba
Syba SD-PEX20185 2-port USB 3.1 Type-A PCIe 3.0 x4 expansion card
Adds two USB 3.1 Type-A ports via a PCIe 3.0 x4 slot using an ASMedia ASM1142 controller
- TypePCI Express to USB Card
- External USB Ports2x USB Ports
- External Ports2 port USB 3.0
- Operating Systems SupportedAll Windows OS
- SpecificationsIncludes: User Manual + Driver CD
- FeaturesASMedia ASM1142 USB3.1 Host Controller Compliant with Intel
- Adds two USB 3.1 Type-A ports via PCIe 3.0 x4
- ASMedia ASM1142 controller delivers 10 Gbps throughput
- xHCI 1.1 support enables native OS driver handling
- Low-profile bracket included for slim chassis builds
- Driver CD and manual supplied for Windows 10/8.1/8/7

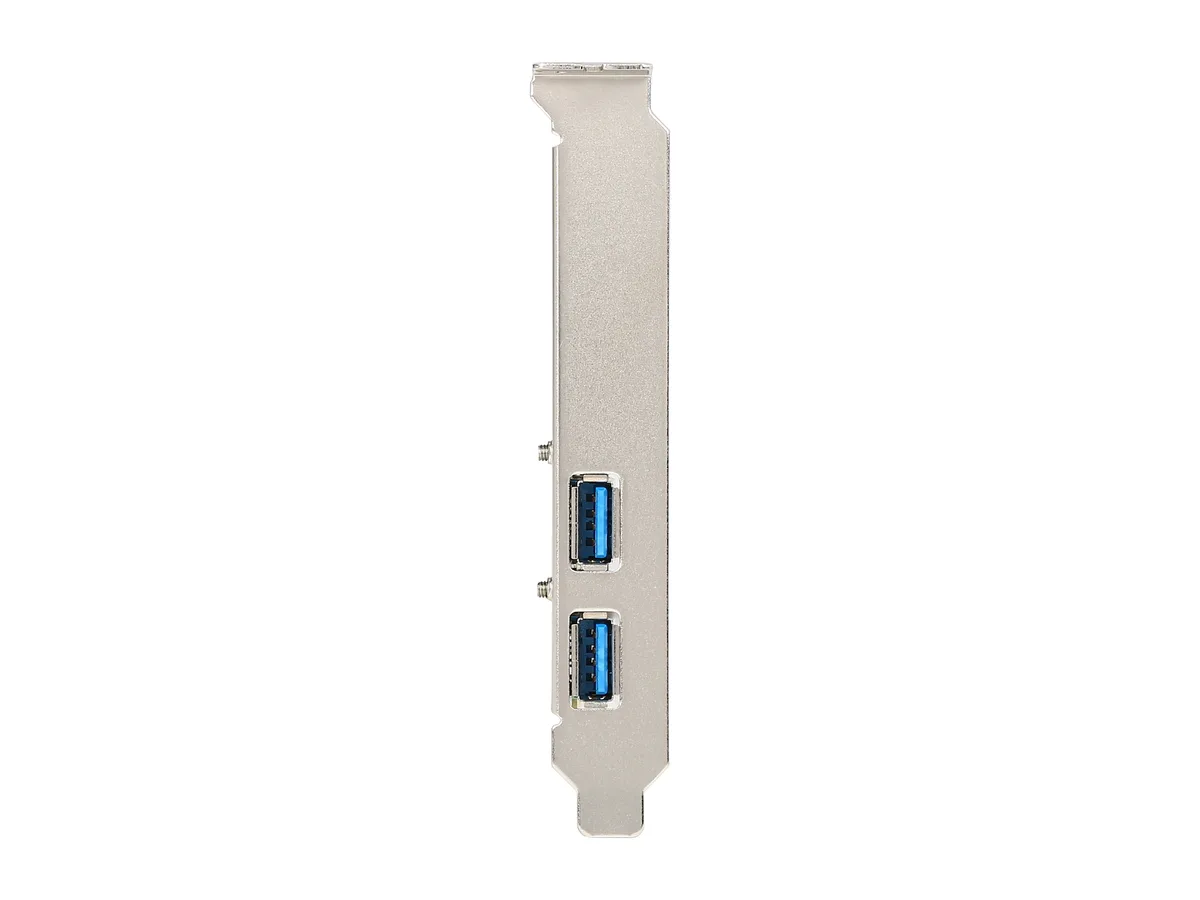

Two USB 3.1 Type-A ports on a PCIe 3.0 x4 card

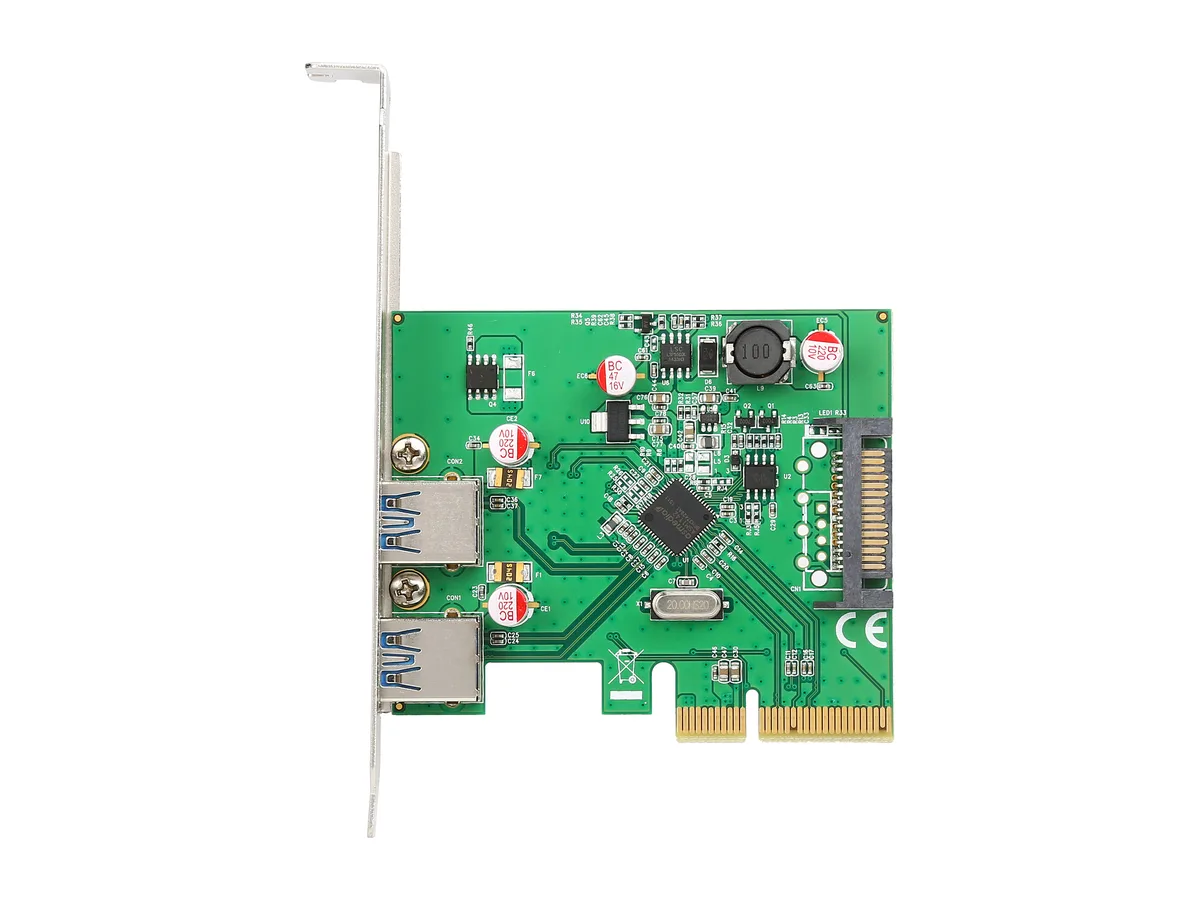

The Syba SD-PEX20185 adds two USB 3.1 Type-A connectors to a desktop through a single PCI Express 3.0 x4 slot. An ASMedia ASM1142 host controller drives the ports at up to 10 Gbps and follows the xHCI 1.1 and USB 3.1 revision 1.0 specifications. A low-profile bracket is included for small-form-factor cases. Windows 10, 8.1, 8 and 7 are supported with the supplied driver CD.
Builders adding front-panel
This card suits anyone who needs exactly two additional USB 3.1 Type-A ports on a system with a free PCIe 3.0 x4 slot. It does not help buyers who want USB Type-C connectors, more than two ports, or internal USB headers. Systems without a compatible PCIe slot or running a non-Windows operating system should look elsewhere.
ASMedia ASM1142 controller with xHCI 1.1 compliance
The ASM1142 host controller implements the Intel eXtensible Host Controller Interface revision 1.1 and USB 3.1 revision 1.0, delivering 10 Gbps signalling on each Type-A port. That controller choice determines driver compatibility and the maximum throughput the card can sustain.
Pluspunten
- Adds two USB 3.1 Type-A ports via PCIe 3.0 x4
- ASMedia ASM1142 controller delivers 10 Gbps throughput
- xHCI 1.1 support enables native OS driver handling
- Low-profile bracket included for slim chassis builds
- Driver CD and manual supplied for Windows 10/8.1/8/7
Specificaties
| Brand | SYBA |
|---|---|
| Model | SD-PEX20185 |
| Type | PCI Express to USB Card |
| External USB Ports | 2x USB Ports |
| External Ports | 2 port USB 3.0 |
| Operating Systems Supported | All Windows OS |
| Specifications | Includes: User Manual + Driver CD |
| Features | ASMedia ASM1142 USB3.1 Host Controller Compliant with Intel eXtensible Host Controller Interface specification revision 1.1 Supports Windows 10/8.1/8/7 Compliant with USB3.1 Specifications Revision 1.0 Supported Speeds: USB3.1(10 Gbps), USB3.0(5Gbps), USB2.0(480Mbps), Full(12Mbps), Low(1.5Mbps) Supported transfer types: Control, Bulk, Interrupt, Isochronous Internal SATA power connector for supplying +5V power |

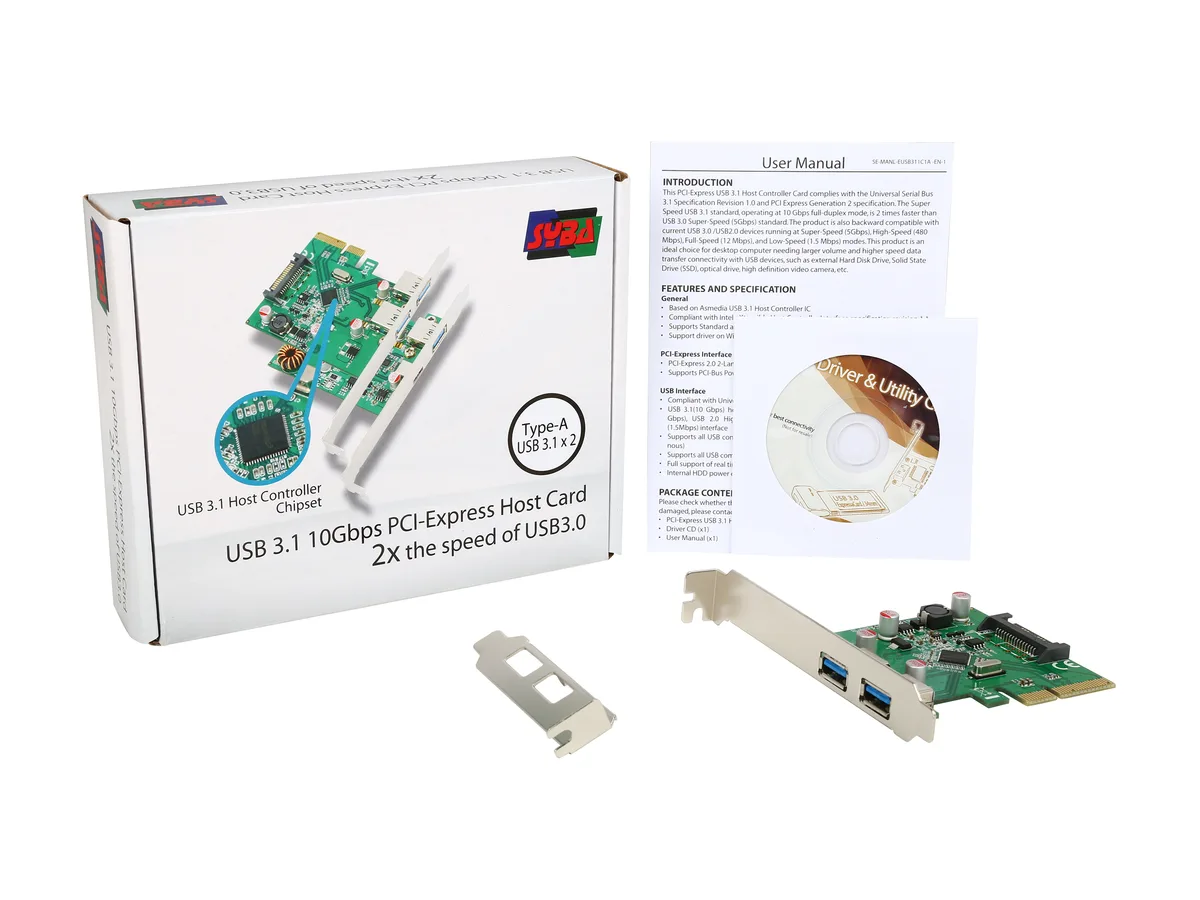

| Package Contents | 1x USB3.1 Type-A Controller Card 1x Driver CD 1x User Manual 1x Low Profile Bracket |
| Verzendgewicht | 0.14 kg |
| Pakketafmetingen | 175 × 145 × 41 mm |
Vragen over dit artikel
How do I confirm the ASMedia ASM1142 controller is active after installing the card?
Open Device Manager in Windows and look for the ASMedia USB 3.1 eXtensible Host Controller under Universal Serial Bus controllers.
What comes in the package and what must I supply myself?
The box includes the controller card, driver CD, user manual and low-profile bracket. You provide the PCIe x4 slot and a USB 3.1 Type-A cable for each device.
Which version of the card should I choose for a PCIe 3.0 x4 slot?
The SD-PEX20185 is a single model designed for PCIe 3.0 x4; no alternative versions or capacities are offered.
