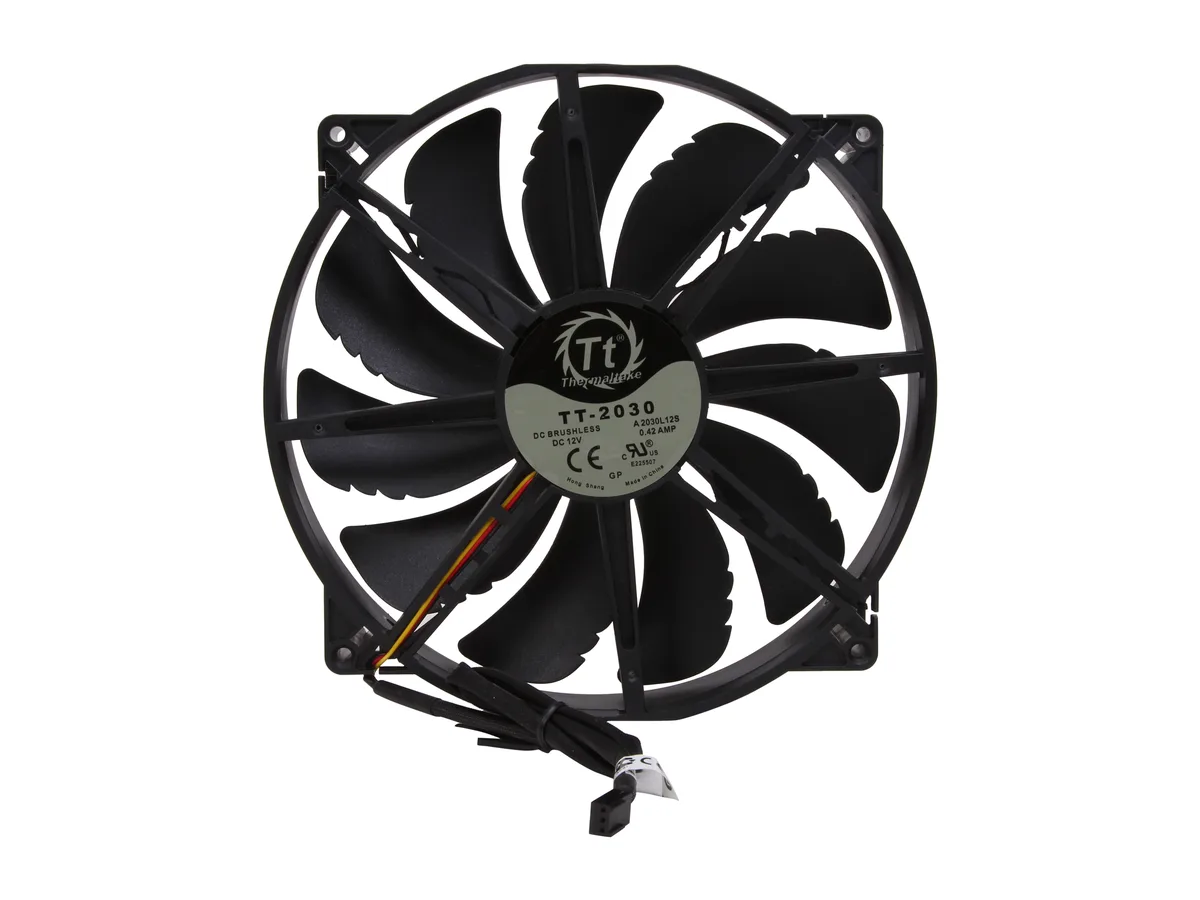

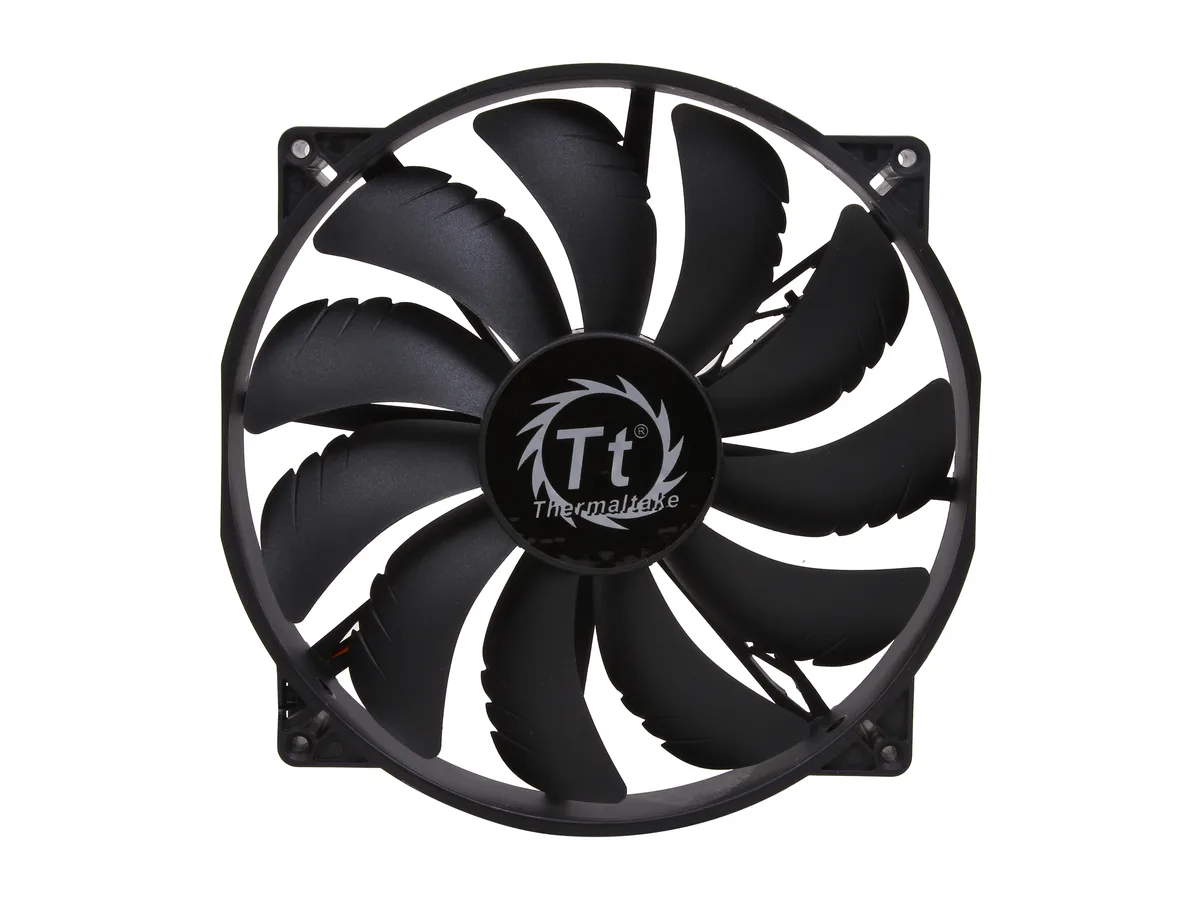

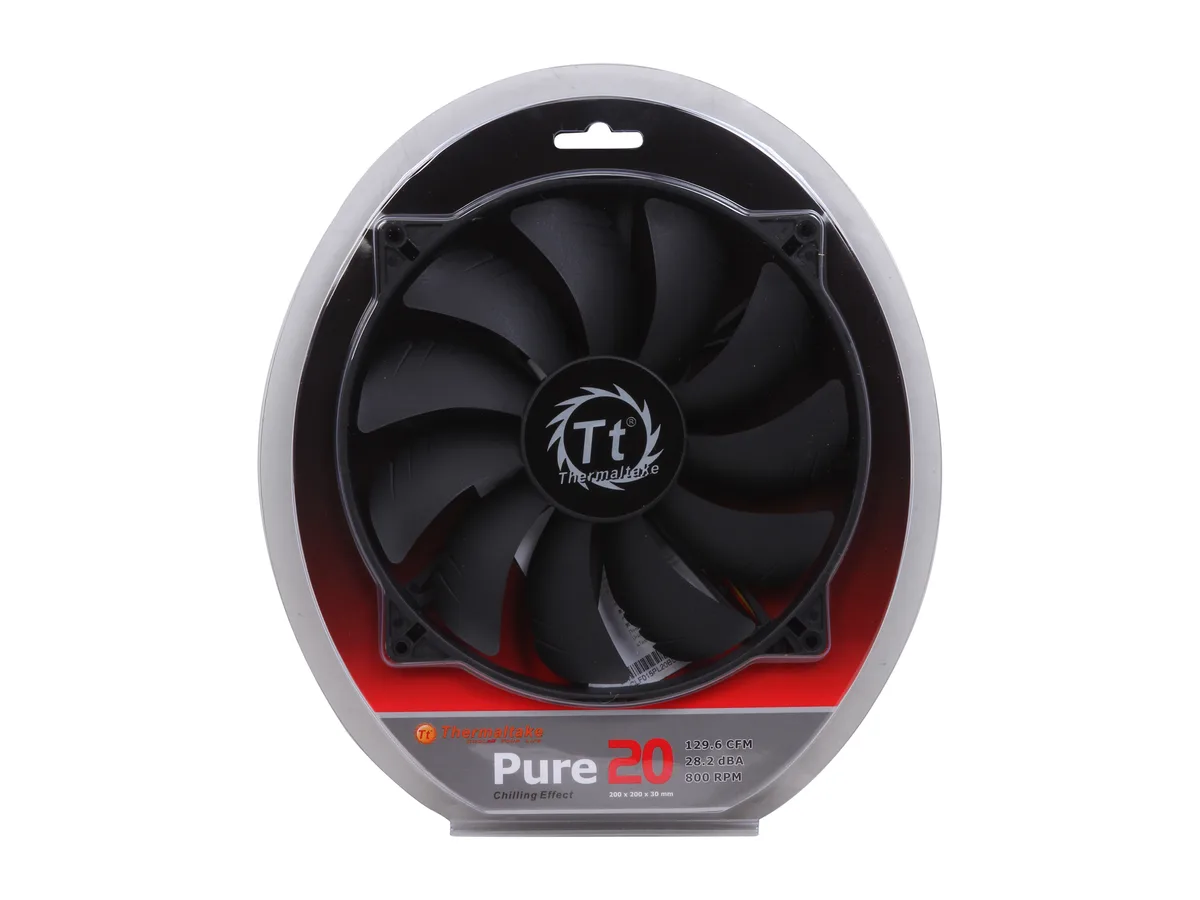

Black 200mm square case fan with 30mm thick frame and black LED lighting

Thermaltake

Thermaltake Pure 20 CL-F015-PL20BL-A 200mm case fan

SKU CH-RY69-8ZVDY MPN CL-F015-PL20BL-A

A 200mm case fan delivering 129.639 CFM airflow at 800 RPM with 28.2 dBA noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size200mm
  • Fan Thickness30mm
  • High airflow of 129.639 CFM from 200mm frame
  • Quiet operation at 28.2 dBA with 800 R.P.M speed
  • Low power draw of 2.4 W at 12 V rated voltage
  • Sleeve bearing rated for long service life
  • Shaved frame design eases installation in tight cases

Pure 20 200mm case fan

The Pure 20 is a single 200mm case fan designed for chassis that accept large-diameter cooling. It delivers 129.639 CFM at 800 RPM with a noise level of 28.2 dBA, suited for builders who want high airflow without adding a controller. The 3-pin power connector draws 2.4 W at a rated 12 V and a start voltage of 9.0 V.

Sustained-load behaviour

At its fixed 800 RPM the fan maintains 129.639 CFM and a static pressure of 0.996 mm-H2O continuously. The sleeve bearing is rated for long life under steady operation, and the 30mm thick frame keeps output stable without ramping. Because there is no onboard controller, speed and noise stay constant as long as the motherboard header supplies 12 V.

Pre-install checks

Verify your case has a 200 x 200 mm mounting area with 30mm clearance for the frame. Ensure a free 3-pin fan header is available on the motherboard or a compatible hub. The shaved frame eases fitment in tight Thermaltake chassis, but other brands may need extra screw room. No controller is included, so plan for BIOS or software fan-curve management.

Pluspunten

  • High airflow of 129.639 CFM from 200mm frame
  • Quiet operation at 28.2 dBA with 800 R.P.M speed
  • Low power draw of 2.4 W at 12 V rated voltage
  • Sleeve bearing rated for long service life
  • Shaved frame design eases installation in tight cases

Specificaties

BrandThermaltake
SeriesPure 20
ModelCL-F015-PL20BL-A
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size200mm
Fan Thickness30mm
Bearing TypeSleeve
RPM800 R.P.M
Air Flow129.639 CFM
Noise Level28.2 dBA
Power Connector3 Pin
ColorBlack
LEDBlack
FeaturesStarted Voltage: 9.0 V
Rated Voltage: 12 V
Rated Current: 0.2 A
Power Input: 2.4 W
Max. Air Pressure: 0.996 mm-H2O
Bearing Type: Sleeve
Dimensions200 x 200 x 30 mm
Verzendgewicht0.43 kg
Pakketafmetingen282 × 250 × 44 mm

Vragen over dit artikel

How loud is the 200 mm Pure 20 fan at its rated 800 RPM?

It runs at 28.2 dBA while delivering 129.639 CFM, so it stays quiet even during all-day operation.

What power connector does this 200 mm Pure 20 fan need on the motherboard or controller?

It uses a standard 3-pin connector rated at 12 V and 0.2 A, drawing 2.4 W.

Will the 200 mm Pure 20 fit the same mounting points as smaller fans I already have?

The frame measures 200 x 200 x 30 mm, so it only fits cases with dedicated 200 mm mounting holes.
