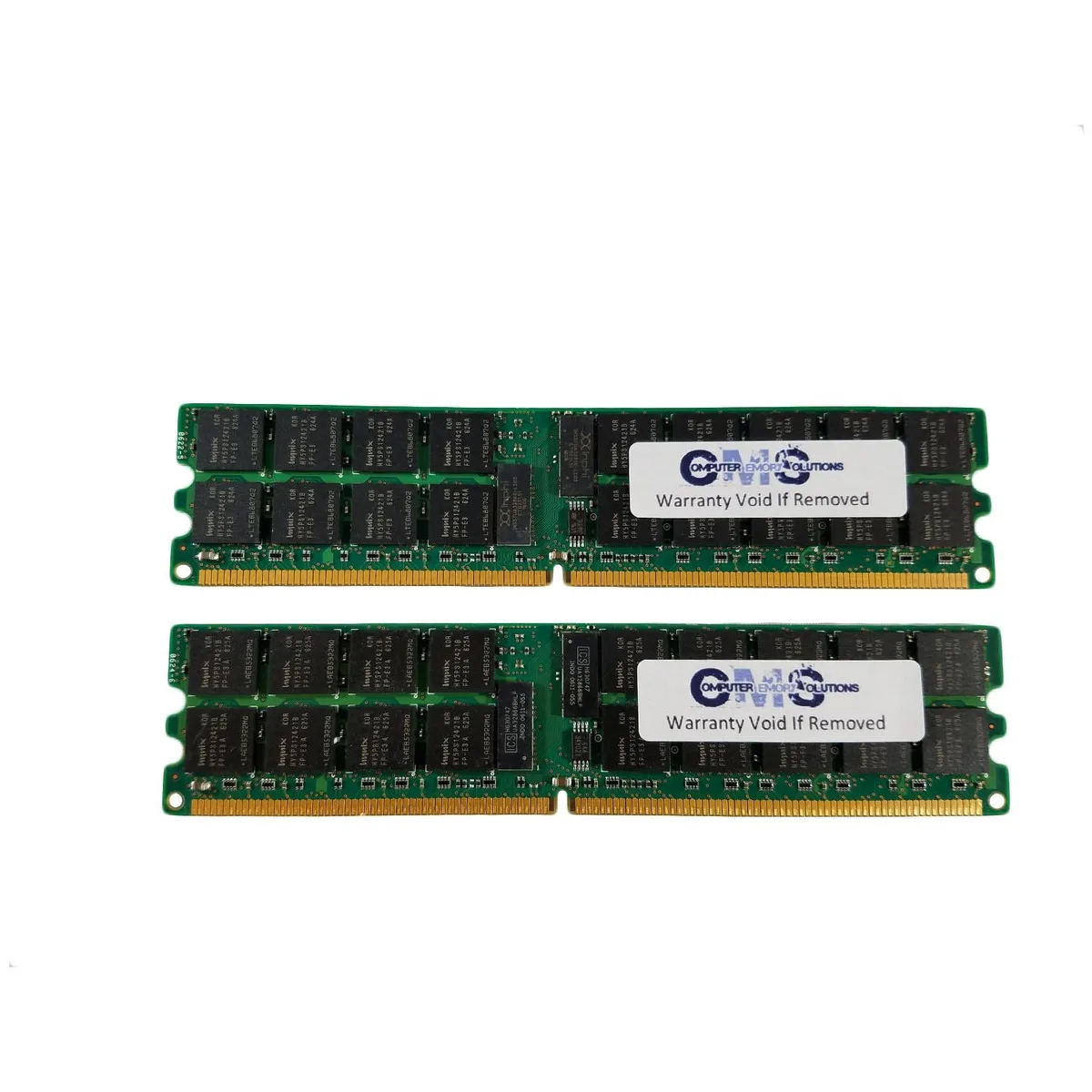

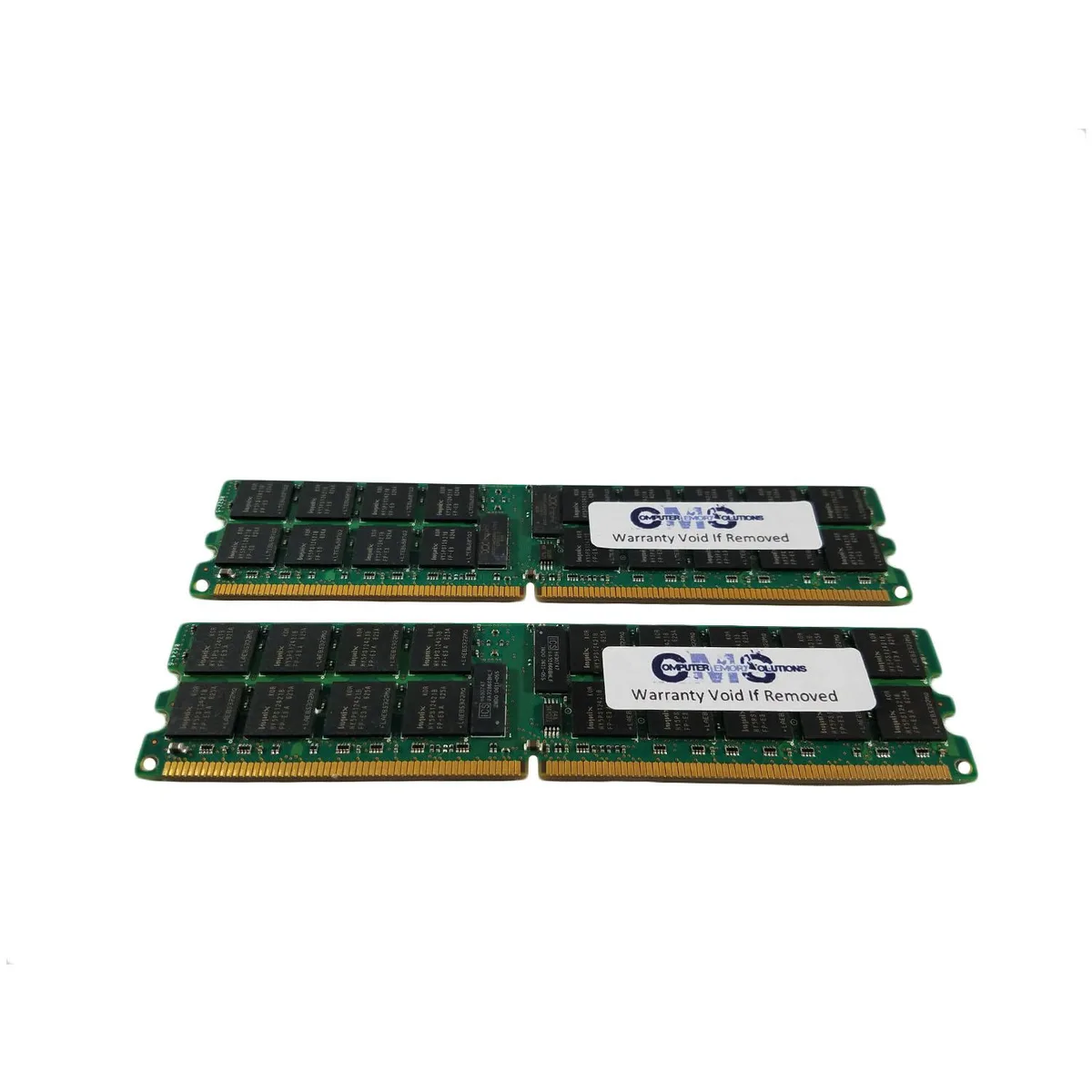

Two green DDR2 DIMM sticks with gold edge connectors

Computer Memory Solutions

Computer Memory Solutions 16GB (2x8GB) DDR2 667MHz ECC Registered DIMM memory upgrade

SKU CH-KTVC-EJY0D

16 GB kit of two 8 GB DDR2-667 ECC registered DIMMs for Supermicro X7DCL-i and X7DCT servers

  • Capacity16GB (2 x 8GB)
  • Type240-Pin DDR2 SDRAM
  • SpeedDDR2 667 (PC2 5300)
  • CAS LatencyCL5
  • Timing5-5-5
  • Voltage1.8V
  • ECC protection prevents data corruption in critical server workloads
  • Registered signal buffering enables stable operation at full 16GB capacity
  • Dual-channel kit delivers 16GB across matched 8GB modules
  • Guaranteed compatibility with listed Supermicro X7DCL-i and X7DCT server models
  • DDR2-667 PC2-5300 speed matches original system specifications

Targeted server upgrade

This 16GB kit contains two 8GB registered ECC DIMMs built to the DDR2 667MHz PC2-5300 standard. It is designed exclusively for the Supermicro X7DCL-i, X7DCT, X7DCT-10G, X7DCT-3 and X7DCT-3F server platforms listed by the supplier. The modules install in matched pairs to enable dual-channel operation on those boards.

Suited for maintainers of these specific

It suits administrators restoring or expanding memory in the exact models named above. It does not suit systems that take unbuffered DDR2, nor boards that cannot accept registered DIMMs or require single-rank modules. Builders working with any other platform should look elsewhere because compatibility is guaranteed only for the listed part numbers.

Registered ECC DDR2 667MHz

The single specification that decides fit is the registered ECC DDR2 667MHz (PC2-5300) interface in a 240-pin DIMM form factor. The target motherboard must support registered error-correcting modules at this speed and voltage. If the board requires unbuffered memory, a different DDR generation, or a non-ECC configuration, these modules will not work.

Prednosti

  • ECC protection prevents data corruption in critical server workloads
  • Registered signal buffering enables stable operation at full 16GB capacity
  • Dual-channel kit delivers 16GB across matched 8GB modules
  • Guaranteed compatibility with listed Supermicro X7DCL-i and X7DCT server models
  • DDR2-667 PC2-5300 speed matches original system specifications

Špecifikácie

BrandComputer Memory Solutions
ModelCM1024725300ECCREG2R4
Capacity16GB (2 x 8GB)
Type240-Pin DDR2 SDRAM
SpeedDDR2 667 (PC2 5300)
CAS LatencyCL5
Timing5-5-5
Voltage1.8V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemSupermicro X7DCL-i X7DCT, X7DCT-10G, X7DCT-3, X7DCT-3F Servers
Package Content2 Memory RAM Sticks

Otázky k tomuto produktu

Does this kit fit the 240-pin DDR2 slots on a Supermicro X7DCL-i server board?

Yes, the modules are 240-pin DDR2 SDRAM DIMMs designed for the X7DCL-i, X7DCT, X7DCT-10G, X7DCT-3 and X7DCT-3F server boards listed in the compatibility data.

What is the correct way to install the two 8 GB sticks so the server runs in dual-channel mode?

Install the pair into the same memory bank — the X7DCL-i has three banks of two sockets each — and always populate both sockets of a bank with identical modules; mixing x4 and x8 chips inside one bank is not supported.

When should the registered ECC DIMMs be replaced if the server starts logging corrected memory errors?

Replace the modules when the system management log shows a rising count of correctable ECC events, indicating the chips are degrading; the kit carries a limited lifetime warranty for exchange when purchased directly from the manufacturer.
