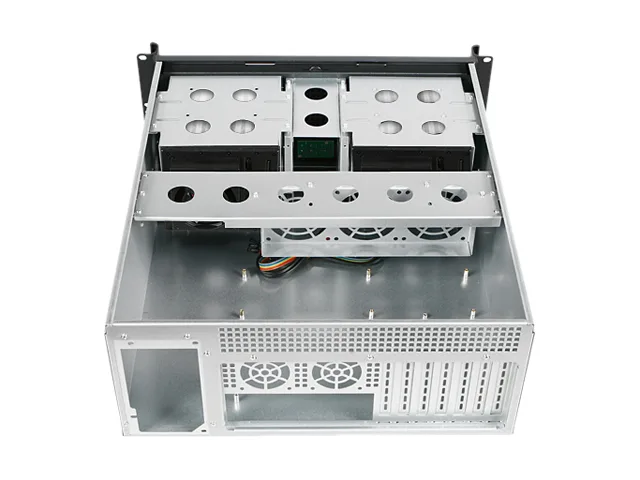

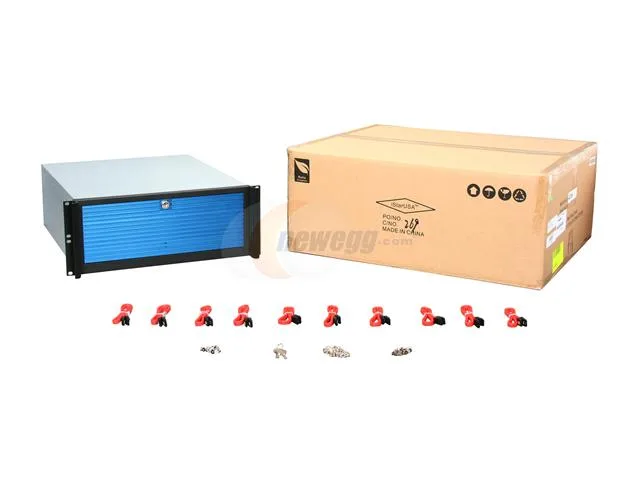

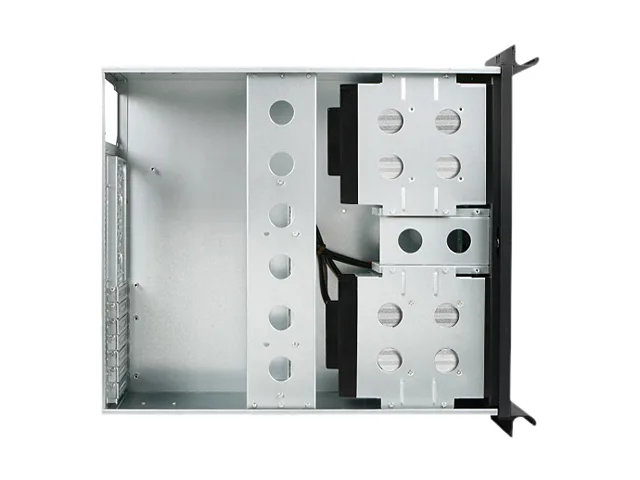

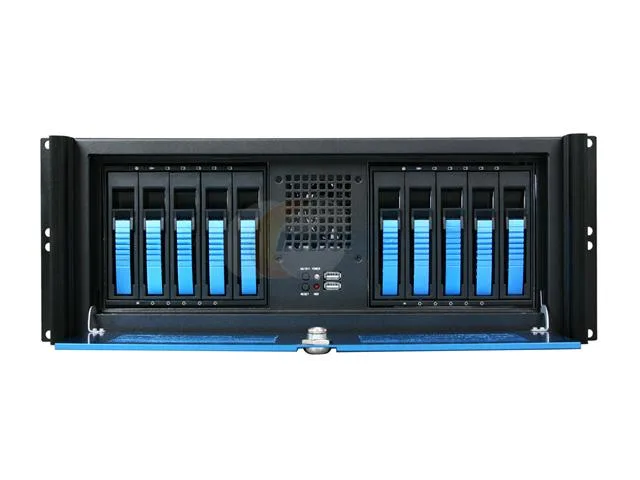

Blue 4U rackmount server chassis with ten 3.5 inch hot-swap drive bays

iStarUSA Inc.

iStarUSA Inc. D-416-B10SA-BL-BLUE 4U server chassis 10 x 3.5" bays

SKU CH-6G9R-16WEN MPN D-416-B10SA-BL-BLUE

A 4U rackmount chassis with ten hot-swap 3.5-inch drive bays, ATX motherboard support and front USB 2.0 ports

  • Chassis TypeRackmount
  • Form Factor4U
  • Case MaterialMetal/ Aluminum
  • Motherboard CompatibilityATX
  • Hot-Swap Drive Bays10 x 3.5"
  • Expansion Slots7

Model D-416-B10SA-BL-BLUE

  • Ten hot-swap 3.5" bays maximise storage density
  • Rackmount 4U form factor fits standard server racks
  • Metal and aluminium construction adds rigidity and heat dissipation
  • ATX motherboard support enables broad component choice
  • Seven expansion slots provide room for add-in cards

4U Rackmount Chassis with Ten Hot-Swap Bays

This 4U rackmount chassis supports ATX motherboards and provides ten 3.5" hot-swap drive bays. It is built from metal and aluminium for deployment in storage-heavy server roles. Seven expansion slots allow additional controller or networking cards. The unit includes front USB 2.0 ports and standard power and reset switches.

Sustained Operation in Dense Storage Arrays

Ten hot-swap bays enable drive replacement without powering down the system during continuous operation. Metal and aluminium construction helps dissipate heat across a fully populated backplane. ATX PS2 power supply support delivers consistent power to all installed drives and expansion cards. Front LEDs give immediate visual feedback on drive activity and system power status.

Practical Limits of the ATX Form Factor

ATX motherboard compatibility restricts the board layout to standard mounting points and I/O shield dimensions. Seven expansion slots set the maximum number of full-height add-in cards that can be installed simultaneously. Front USB 2.0 connectors operate at 2.0 speeds and do not support newer USB revisions. The chassis accepts only ATX PS2 power supplies, excluding redundant or hot-swap power supply form factors.

Prednosti

  • Ten hot-swap 3.5" bays maximise storage density
  • Rackmount 4U form factor fits standard server racks
  • Metal and aluminium construction adds rigidity and heat dissipation
  • ATX motherboard support enables broad component choice
  • Seven expansion slots provide room for add-in cards

Špecifikácie

BrandiStarUSA
ModelD-416-B10SA-BL-BLUE
Chassis TypeRackmount
Form Factor4U
Case MaterialMetal/ Aluminum
Motherboard CompatibilityATX
Hot-Swap Drive Bays10 x 3.5"
Expansion Slots7
Front PortsFront USB 2.0 x 2 Connector
FeaturesPower and HDD LED
Power and Reset Switch
Support ATX PS2 Power Supply
Dimensions21.0" x 19.0" x 5.25"
Prepravná hmotnosť16.78 kg
Rozmery balenia667 × 552 × 286 mm

Ďalšie verzie tohto modelu

Ďalších 2 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How much power does the chassis draw when the 10 hot-swap bays are fully populated and running continuously?

The chassis itself does not draw power; total consumption depends on the ATX PS2 supply you install and the drives you choose.

Which ATX PS2 power supply and ATX motherboard must I already have to make this 4U rackmount work?

You need a standard ATX PS2 power supply and an ATX motherboard; the chassis provides 7 expansion slots and front USB 2.0 connectors.

Will my existing PCI cards fit in the 7 expansion slots alongside the 10 drive bays in this 21.0 by 19.0 by 5.25 inch case?

Yes, the 7 full-height slots align with ATX motherboards, so legacy PCI or PCIe cards install normally beside the hot-swap backplane.
