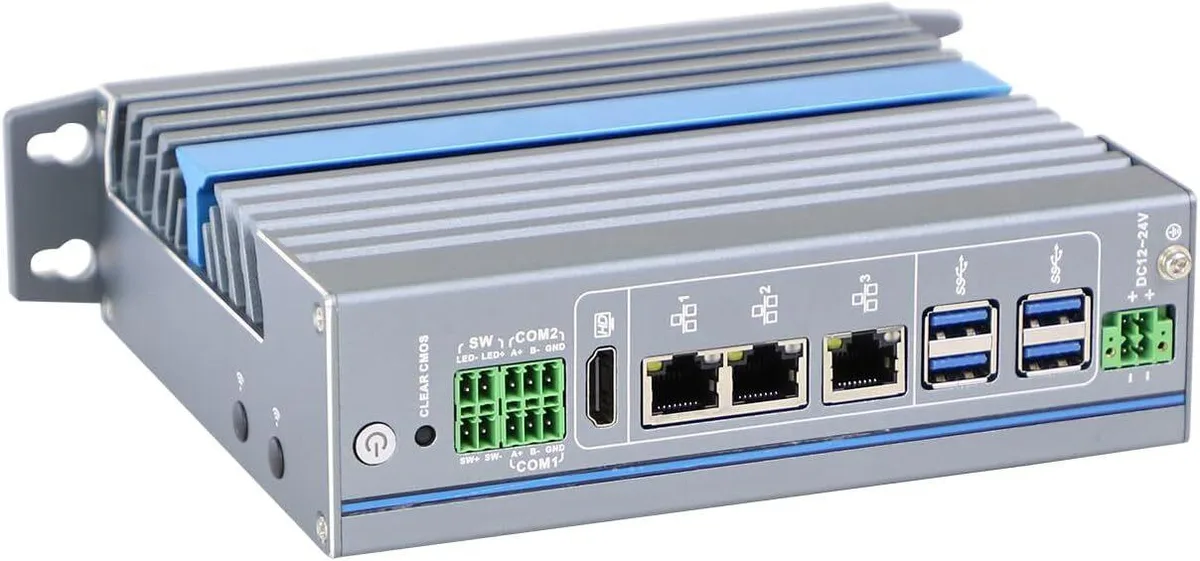

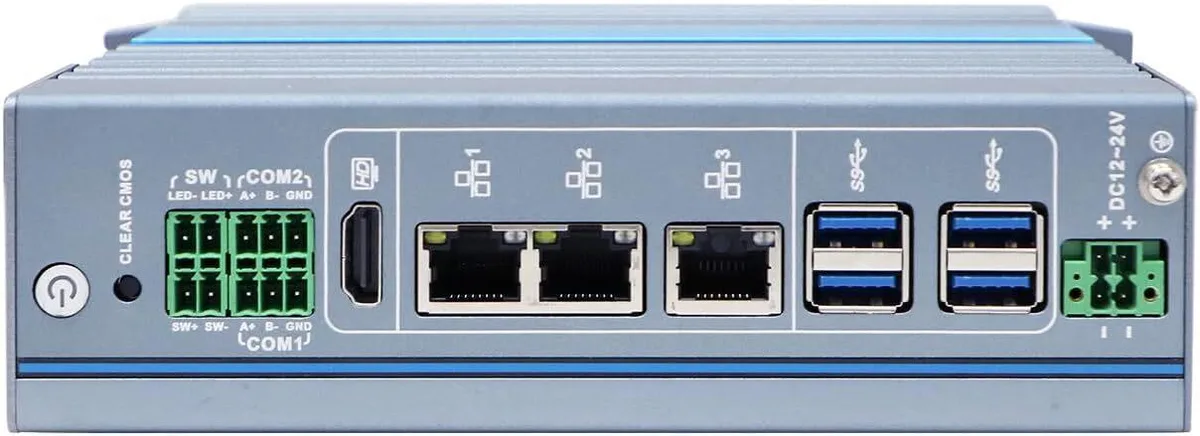

Gray fanless aluminum mini PC, book-style, three LAN ports, Phoenix power terminal

partaker

Partaker I30 N97 barebone mini PC 16G 256G

SKU CH-CK1S-20JSK

Fanless industrial mini PC with Intel N97 quad-core processor, 16 GB DDR4 memory, 256 GB SATA SSD, triple Gigabit LAN, dual RS485 ports, and 12–24 V Phoenix terminal power for harsh environments

  • ColorGray
  • CPU TypeIntel Processor N97

I30 CPU N97 16GB RAM / 256GB SSD

  • Silent operation from fanless aluminium cooling at up to 50°C
  • Triple Gigabit LAN ports plus four USB 3.0 for industrial networking
  • Flexible 12V to 24V DC input via Phoenix terminal with watchdog timer
  • Expandable storage with M.2 2280 SATA, mSATA and Mini PCIe slots
  • Compact 205x146x50mm book-style mount with TPM 2.0 security

Industrial barebone with N97 processor

The Partaker I30 is a fanless mini PC built around an Intel N97 quad-core processor reaching 3.6 GHz. It ships with 16 GB of DDR4 3200 memory and a 256 GB SATA SSD installed. Three Gigabit LAN ports, two isolated RS485 ports and a 12-24 V Phoenix terminal target automation, gateway and edge deployments.

Silent fanless cooling across wide temperatures

An all-aluminium chassis dissipates the 12 W TDP without moving parts, yielding completely silent operation. The unit is rated for continuous use from -20 °C to +50 °C with surface airflow, and the sealed design resists dust ingress. Power draw stays within the 12 W envelope during typical workloads.

Sustained load stability in harsh environments

Passive cooling maintains clock speeds during extended compute tasks without thermal throttling. The watchdog timer (0-255 level), TPM 2.0 and wake-on-LAN support unattended 24/7 operation. Expansion via full-size Mini PCIe with Nano SIM slot allows simultaneous 4G or Wi-Fi connectivity alongside storage.

Prednosti

  • Silent operation from fanless aluminium cooling at up to 50°C
  • Triple Gigabit LAN ports plus four USB 3.0 for industrial networking
  • Flexible 12V to 24V DC input via Phoenix terminal with watchdog timer
  • Expandable storage with M.2 2280 SATA, mSATA and Mini PCIe slots
  • Compact 205x146x50mm book-style mount with TPM 2.0 security

Špecifikácie

ColorGray
CPU TypeIntel Processor N97

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How do I mount the I30 on a wall, and which step do people often skip?

Use the included book-style bracket and four screws to fix the unit vertically; the step often missed is tightening the bracket to the wall before sliding the PC onto it, otherwise the 1.53 kg chassis can shift.

Which internal components may need replacement after years of continuous operation?

The SODIMM DDR4 module and the M.2 2280 SATA SSD are the only field-replaceable parts; the fanless aluminium chassis and soldered N97 processor have no moving parts to wear out.

What thermal limit appears first when the I30 runs at full load in a sealed cabinet?

The operating ceiling is 50 °C ambient with surface airflow; in a sealed space the case temperature rises until the CPU throttles at its 12 W TDP limit, so ventilation or a larger enclosure is required.
