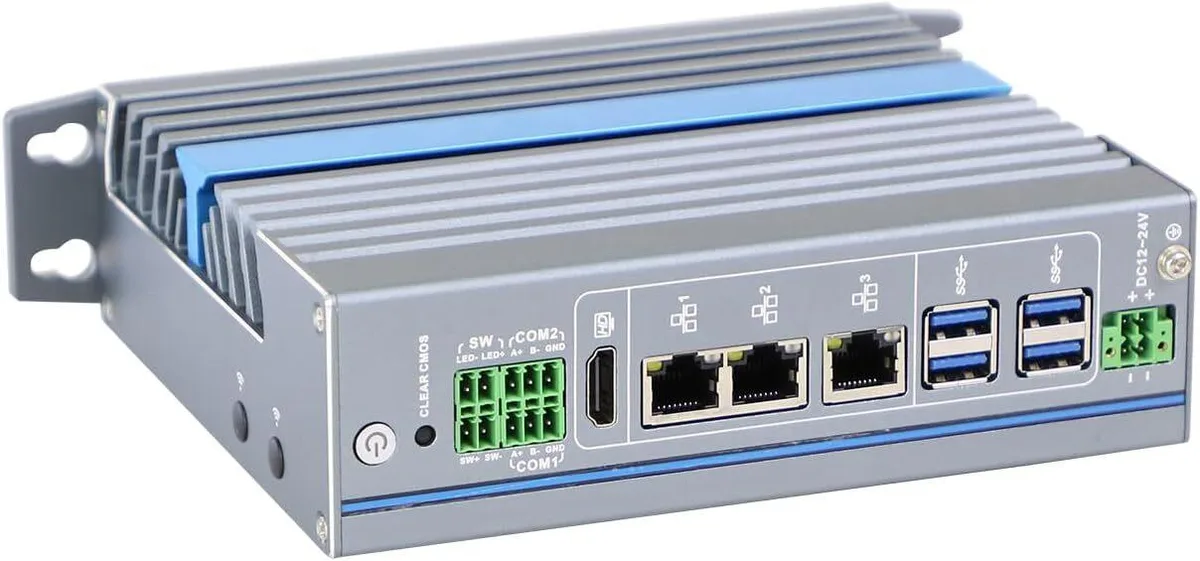

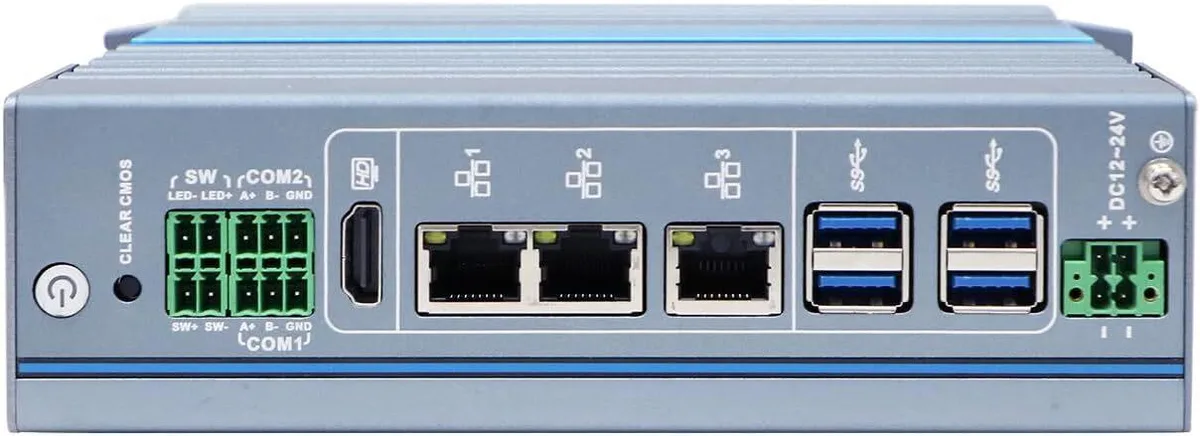

Gray fanless aluminum book-style mini PC with Phoenix terminal and three LAN ports

partaker

partaker I30 N97 barebone mini PC 16G 512G 3 LAN RS485 Phoenix

SKU CH-Q603-HZRDH

Fanless industrial mini PC with Intel N97, 16 GB DDR4, 512 GB SATA SSD, triple Gigabit LAN, dual RS-485 and 12–24 V Phoenix power input

  • ColorGray
  • CPU TypeIntel Processor N97

I30 CPU N97 16GB RAM / 512GB SSD

  • Silent fanless aluminium chassis runs -20°C to +50°C
  • Intel N97 quad-core up to 3.6 GHz with UHD graphics 4K 60 Hz
  • Triple I210-AT Gigabit LAN plus 4 USB 3.0 and 2 RS485
  • M.2 2280 SATA plus mSATA plus Mini PCIe with Nano SIM slot
  • 12-24 V DC Phoenix terminal with watchdog 0-255 and TPM 2.0

Industrial barebone with three LAN ports

The Partaker I30 is a fanless mini PC built around an Intel N97 quad-core processor that reaches 3.6 GHz. It ships with 16 GB of DDR4 memory and a 512 GB SATA SSD installed in the M.2 2280 slot. Three Gigabit Ethernet ports, two RS485 interfaces with optical isolation and a 12-24 V Phoenix terminal target automation, gateway and edge deployments.

Suited for silent 24/7 edge nodes.

The aluminum chassis dissipates 12 W TDP without moving parts and operates from -20 °C to +50 °C, making it reliable in dusty or vibration-prone cabinets. Builders who need more than four CPU threads, discrete graphics or additional internal drive bays should look at a different platform.

Three independent Gigabit LAN controllers

Each I210-AT port provides a dedicated MAC and PHY, allowing true multi-homed routing, firewall segmentation or parallel camera streams without sharing a single controller. This hardware separation is the decisive factor when the network topology demands isolated physical interfaces.

Prednosti

  • Silent fanless aluminium chassis runs -20°C to +50°C
  • Intel N97 quad-core up to 3.6 GHz with UHD graphics 4K 60 Hz
  • Triple I210-AT Gigabit LAN plus 4 USB 3.0 and 2 RS485
  • M.2 2280 SATA plus mSATA plus Mini PCIe with Nano SIM slot
  • 12-24 V DC Phoenix terminal with watchdog 0-255 and TPM 2.0

Špecifikácie

ColorGray
CPU TypeIntel Processor N97

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

Will the three I210-AT Gigabit LAN ports work with my existing 100 Mbps switch?

Yes, the three I210-AT ports auto-negotiate down to 100 Mbps full-duplex, so they connect to older Fast Ethernet switches without configuration.

How can I verify the N97 is running at its 3.6 GHz turbo after installation?

Open Task Manager or a hardware monitor; the CPU frequency should show up to 3.6 GHz on all four cores under load while the fanless aluminium chassis stays within the -20 to +50 °C operating range.

Does the box include a Wi-Fi or 4G module for the Mini PCIe slot and Nano SIM holder?

The packing list provides the I30 unit, a 12 V 5 A power supply with Phoenix terminal, power cord, book-style wall mount and warranty card; wireless or 4G modules are optional extras.
