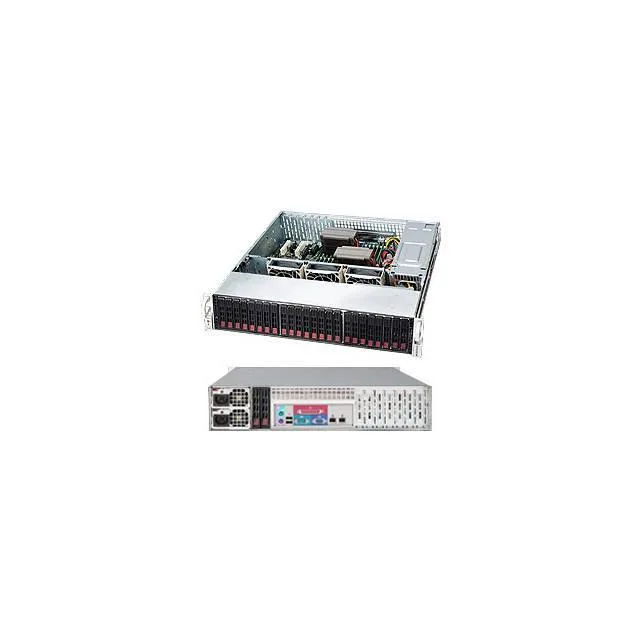

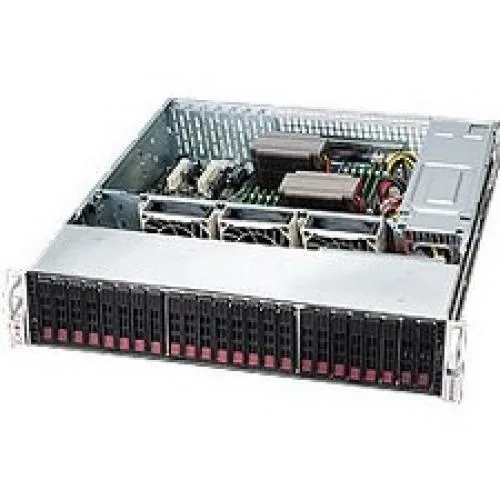

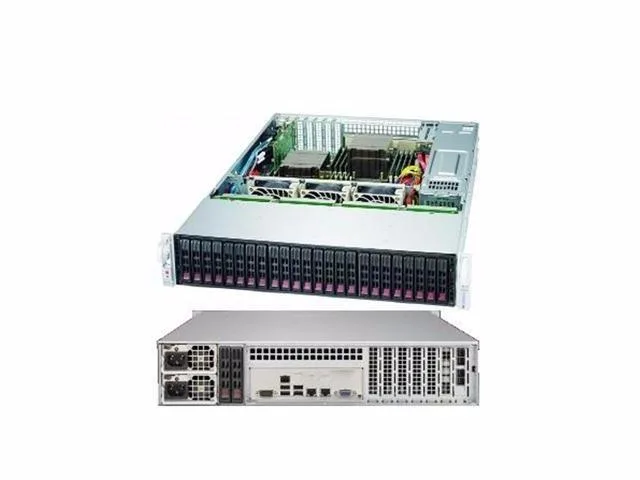

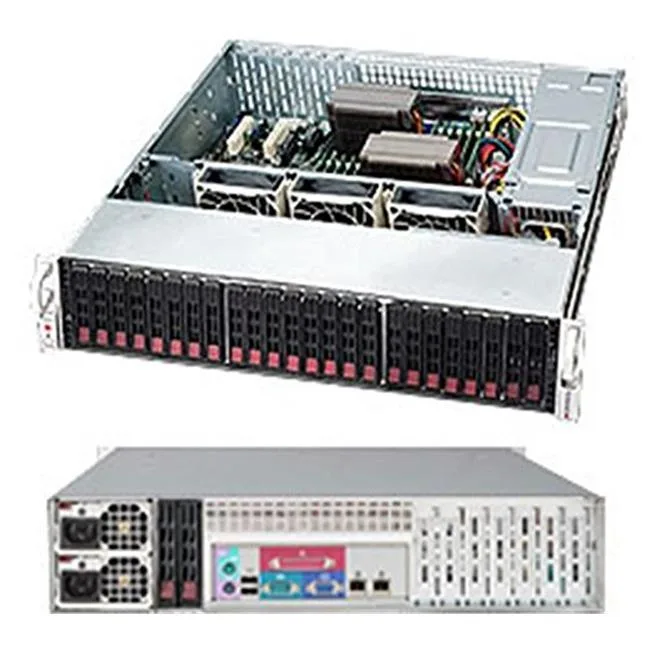

Black 2U rackmount chassis with 24 front 2.5 inch hot-swap bays

Supermicro

Supermicro CSE-216BE1C-R920LPB 2U server chassis 24×2.5″ 920W redundant

SKU CH-D0YR-SA00D MPN CSE-216BE1C-R920LPB

2U rackmount chassis holding 24 hot-swap 2.5″ SAS/SATA drives with dual 920 W redundant platinum power supplies

  • Chassis TypeRackmount
  • Form FactorRack-mountable
  • ColorBlack
  • Motherboard CompatibilityATX
  • SAS3 12Gb/s expander backplane accelerates storage throughput
  • 920W redundant platinum power supplies maintain uptime during failures
  • 24 hot-swap 2.5″ SAS/SATA bays maximise drive density
  • 2U rack height fits standard cabinets easily
  • Supports ATX and E-ATX boards up to 13.68″

2U Rack Chassis with 24 Hot-swap Bays

The Supermicro CSE-216BE1C-R920LPB is a 2U rackmount server chassis finished in black. It accepts ATX and E-ATX motherboards up to 13.68 inches deep. Twenty-four 2.5-inch hot-swap bays support SAS and SATA drives through a 12Gb/s SAS3 expander backplane. Two 920W redundant platinum power supplies are installed.

Suited for High-density Storage Builds

This chassis fits users who need maximum 2.5-inch drive density in a 2U space with redundant power. Builds requiring 3.5-inch drives, front-access 5.25-inch optical bays, or more than seven expansion slots should consider a different platform. The three pre-installed 80 mm fans provide baseline airflow for typical configurations.

SAS3 12Gb/s Expander Backplane

The integrated SAS3 expander connects all twenty-four drive bays at 12Gb/s, allowing a single HBA or RAID controller to manage the full array. This backplane architecture is the deciding factor for deployments that need simplified cabling and full SAS/SATA bandwidth across every bay.

Prednosti

  • SAS3 12Gb/s expander backplane accelerates storage throughput
  • 920W redundant platinum power supplies maintain uptime during failures
  • 24 hot-swap 2.5″ SAS/SATA bays maximise drive density
  • 2U rack height fits standard cabinets easily
  • Supports ATX and E-ATX boards up to 13.68″

Špecifikácie

BrandSUPERMICRO
SeriesSuperChassis
ModelCSE-216BE1C-R920LPB
Chassis TypeRackmount
Form FactorRack-mountable
ColorBlack
Motherboard CompatibilityATX
Prepravná hmotnosť29.94 kg
Rozmery balenia984 × 749 × 286 mm

Otázky k tomuto produktu

What motherboard sizes does this 2U chassis accept?

The chassis supports ATX and E-ATX boards up to 13" x 13.68".

Will my existing 2.5" SAS and SATA drives fit the 24 hot-swap bays?

Yes, all 24 bays accept 2.5" SAS or SATA drives and connect through the 12Gb/s SAS3 expander backplane.

How can I confirm the redundant 920 W power supplies are both active after installation?

Each supply has its own status LED; both should show green when the system powers up and the redundant pair is operating normally.
