Green circuit board with silver bracket and two SFP+ cages

C&N

C&N ST7315 10Gb SFP+ network card Intel 82599EN PCIe 2.0 x4

SKU CH-SE1D-14P52

Adds 10 Gb Ethernet via SFP+ using an Intel 82599EN controller on a PCIe 2.0 x4 slot with dual brackets included

  • StandardsEthernet
  • Speed10 gigabits_per_second
  • ConnectorsEthernet
  • Interfacepci_express_x4
  • BUSpci_express_x4
  • FeaturesPC/Server
  • 10 Gbps SFP+ throughput via Intel 82599EN controller
  • PCIe 2.0 x4 interface fits standard and low-profile slots
  • Auto-negotiation between 10 Gbps and 1 Gbps link speeds
  • SR-IOV, VMDq and Flexible Port Partitioning for virtualised workloads
  • Broad OS support including Windows 11, Server 2022, RHEL 9.4, Ubuntu 22.04

10Gb SFP+ Ethernet adapter for servers

The C&N ST7315 uses an Intel 82599EN controller to provide a single 10Gb SFP+ port over a PCIe 2.0 x4 slot. It targets administrators upgrading rack or tower servers that need deterministic 10Gb throughput and broad operating-system support.

Dual brackets and virtualization offloads

A 12cm standard bracket ships installed and an 8cm low-profile bracket is included, letting the card fit both full-height and slim chassis without extra parts. Hardware assists such as Flexible Port Partitioning, VMDq and PCI-SIG SR-IOV reduce CPU overhead when the adapter serves multiple virtual machines.

PCIe 2.0 x4 bandwidth and missing optics

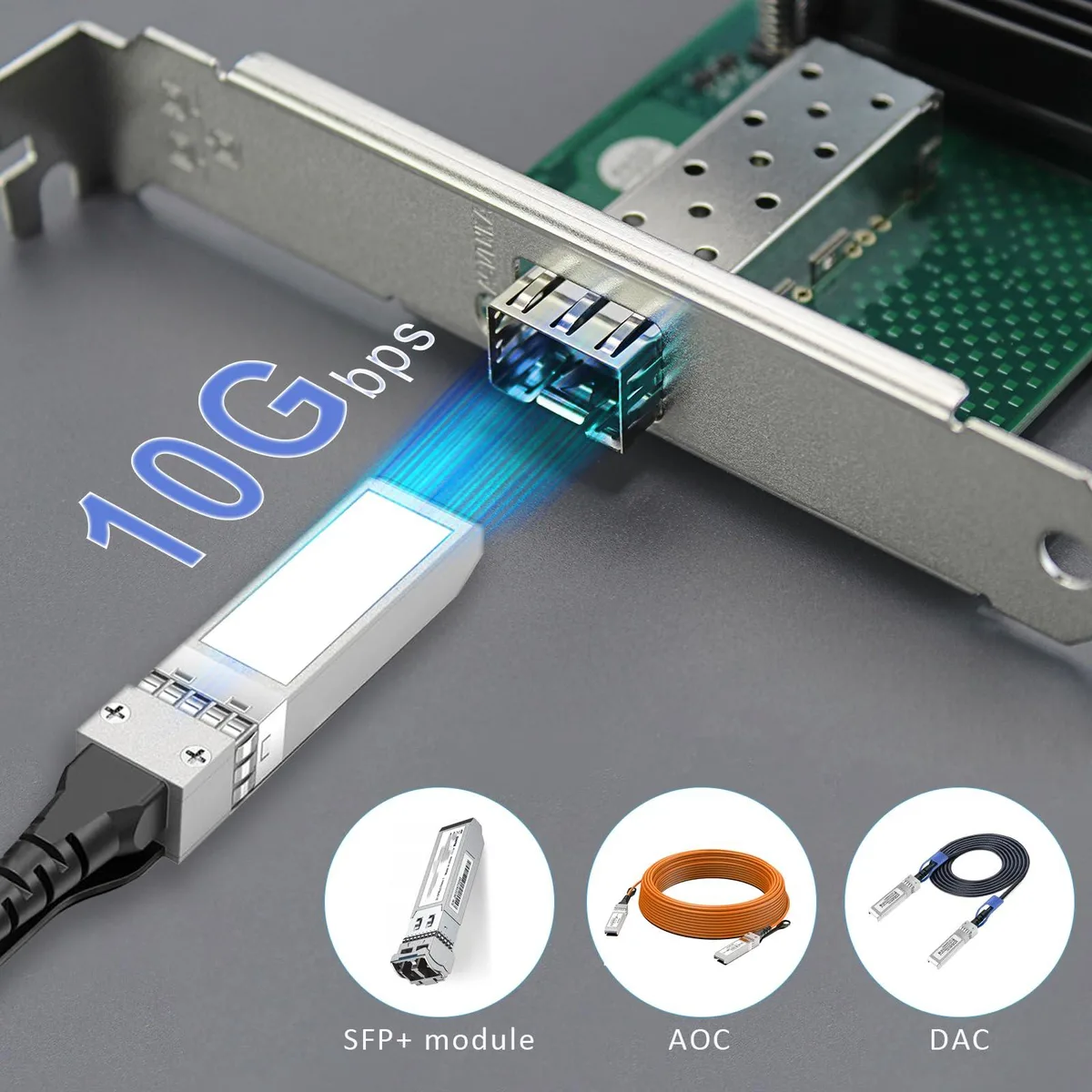

The x4 Gen 2 link caps theoretical throughput at roughly 20Gb/s, so the 10Gb line rate is sustainable but leaves no headroom for a second 10Gb port on the same slot. No SFP+ transceiver, direct-attach or active-optical cable is bundled; those must be sourced separately. Mac OS is not supported.

I korthet

  • 10 Gbps SFP+ throughput via Intel 82599EN controller
  • PCIe 2.0 x4 interface fits standard and low-profile slots
  • Auto-negotiation between 10 Gbps and 1 Gbps link speeds
  • SR-IOV, VMDq and Flexible Port Partitioning for virtualised workloads
  • Broad OS support including Windows 11, Server 2022, RHEL 9.4, Ubuntu 22.04

Specifikationer

BrandGLOTRENDS
ModelST7315
StandardsEthernet
Speed10 gigabits_per_second
ConnectorsEthernet
Interfacepci_express_x4
BUSpci_express_x4
FeaturesPC/Server
Weight0.2 kilograms
Package ContentsST7315

Frågor om den här produkten

Will the SFP+ transceiver need replacing as the network grows?

The card accepts any SFP+ module, so you can swap transceivers for different reach or fibre type without changing the adapter.

Does the PCIe 2.0 x4 link cap sustained 10 Gbps throughput?

PCIe 2.0 x4 provides roughly 16 Gbps raw bandwidth, leaving headroom above the 10 Gbps line rate.

How much heat does the Intel 82599EN generate during all-day operation?

The controller is a passively cooled, low-power design; typical server airflow keeps it within thermal limits.
