ESTONE PCIE24SATA 4-Port SATA RAID Controller with Low-Profile Bracket
Adds four SATA 6 Gbps ports through a PCIe 3.0 ×1 slot, includes low-profile bracket and cables
- TypePCI to SATA Card
- External USB Ports4x SATA III
- StandardUSB 3.2
- Data Transfer RateUp to 6 Gbps
- Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
- CompatibilityConnect 4 large capacity storage devices at the same time. C
- Add four SATA 3.0 drives with one PCIe x1 card

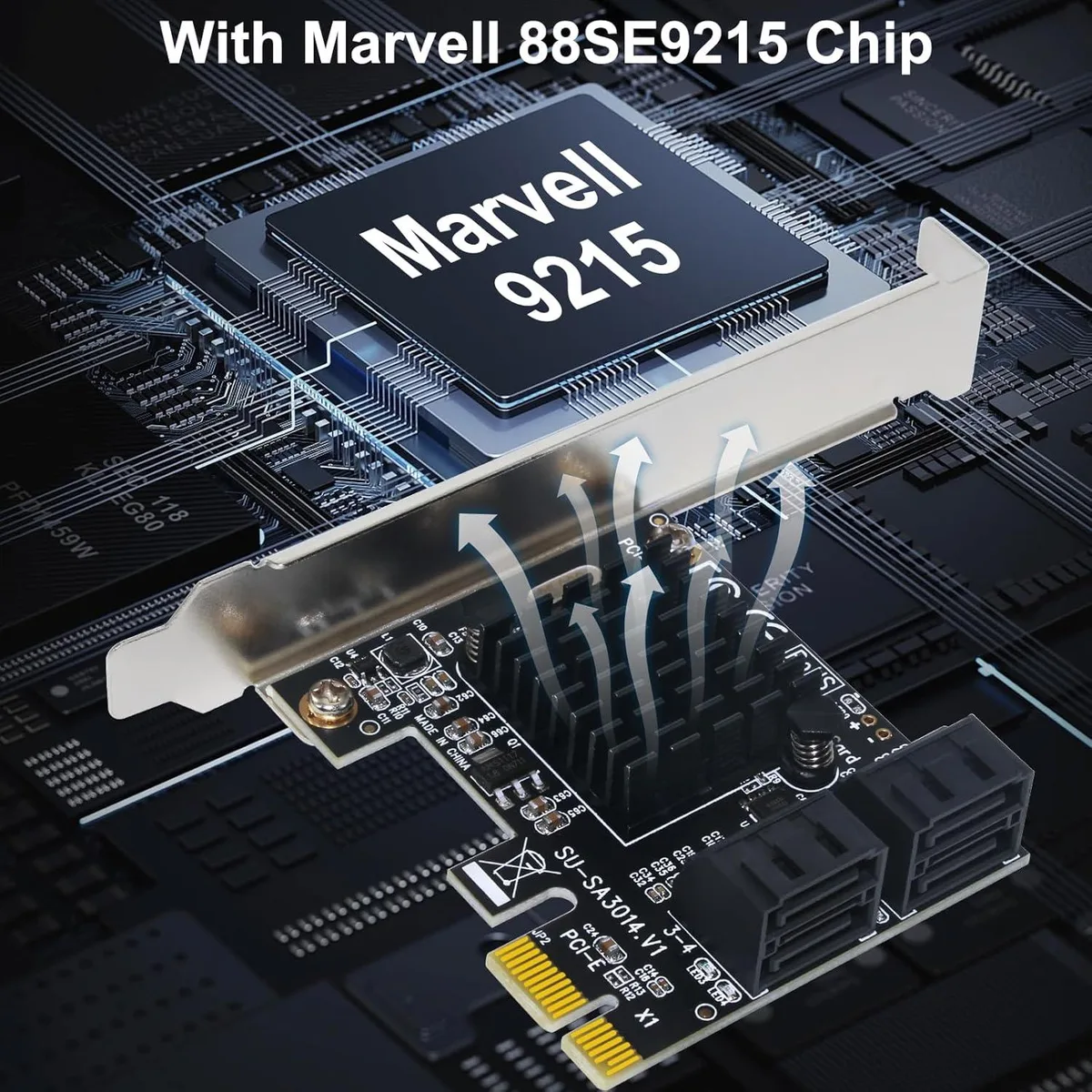

- Marvell 88SE9215 chipset delivers stable 6 Gbps transfers
- Heatsink keeps controller cool during heavy I/O workloads
- Low-profile bracket fits 99 % of chassis sizes
- Includes four 40 cm cables, screwdriver and screws
Four-Port SATA 3.0 Expansion

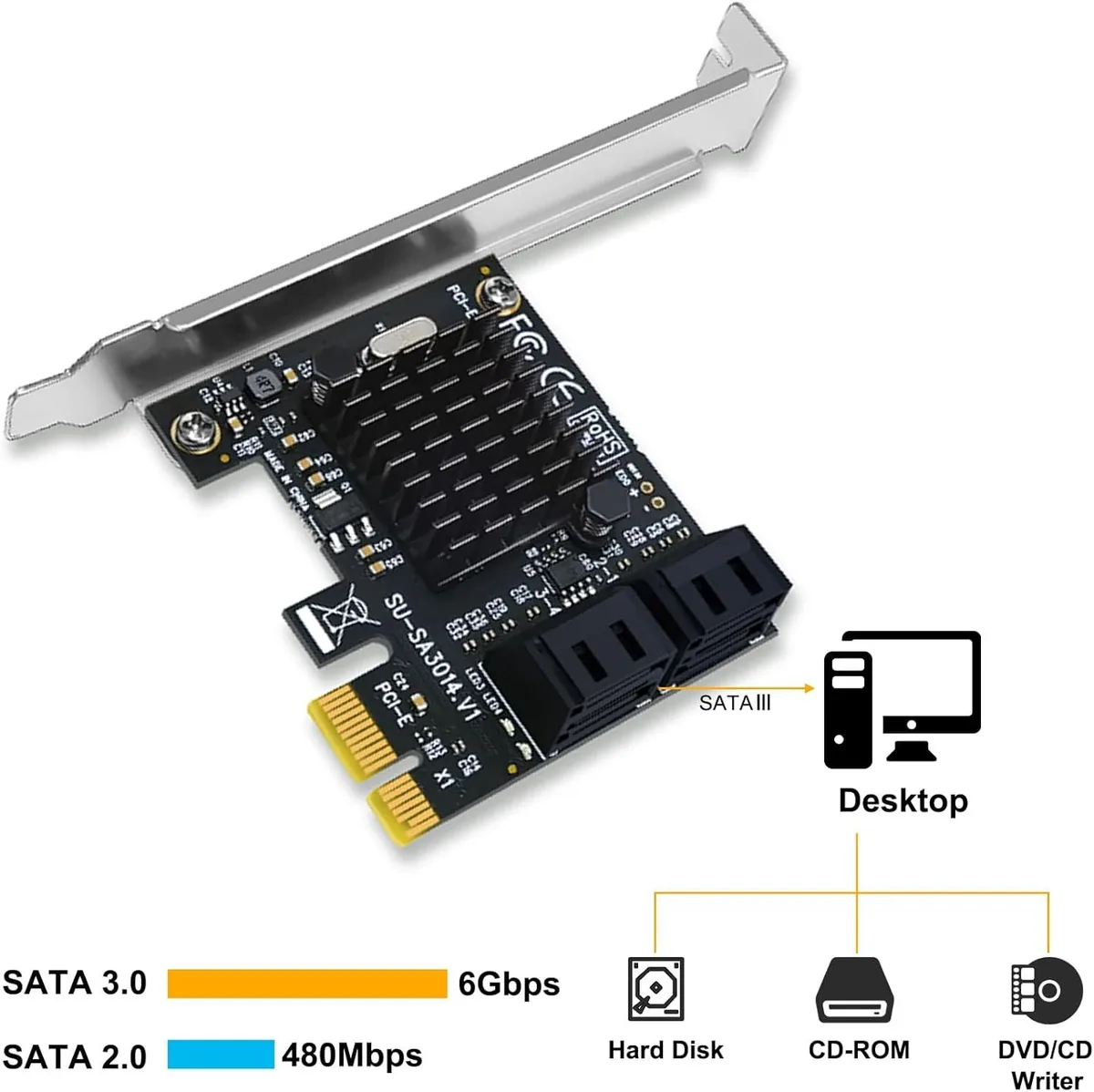

The ESTONE PCIE24SATA adds four SATA 3.0 6 Gbps ports through a single PCIe x1 slot that also fits x4, x8 and x16 sockets. It is aimed at builders who need extra internal drive connections for storage arrays or backup volumes. The Marvell 88SE9215 chipset handles Port Multiplier FIS-based and Command-based switching. A low-profile bracket is included for compact chassis.
Passive Heatsink Cooling
An integrated heatsink draws heat away from the controller without a fan, so the card adds no audible noise to the system. Power is supplied entirely through the PCIe slot, keeping cabling simple and total draw low. The board complies with PCI Express 2.0 and 3.0 and is backward compatible with 1.0. SATA 3.0 ports also accept SATA 2.0 and 1.0 drives.
Sustained Multi-Drive Operation
Under continuous read or write loads across four drives the heatsink maintains stable temperatures without throttling. The controller supports booting from attached drives in non-RAID mode and can participate in software RAID when the operating system or motherboard provides it. Hardware RAID is not supported. Compatibility spans Windows XP through 11, macOS, Linux and NAS platforms.
I korthet
- Add four SATA 3.0 drives with one PCIe x1 card
- Marvell 88SE9215 chipset delivers stable 6 Gbps transfers
- Heatsink keeps controller cool during heavy I/O workloads
- Low-profile bracket fits 99 % of chassis sizes
- Includes four 40 cm cables, screwdriver and screws
Specifikationer
| Brand | ESTONE |
|---|---|
| Series | PCIE24SATA |
| Model | PCIE24SATA |
| Type | PCI to SATA Card |
| External USB Ports | 4x SATA III |
| Standard | USB 3.2 |
| Data Transfer Rate | Up to 6 Gbps |
| Operating Systems Supported | Windows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS. |
| Compatibility | Connect 4 large capacity storage devices at the same time. Compatible with Windows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS. SATA controller PCI-E X1 interface compatible with 1X/4X/8X/16 slots |
| Specifications | Chipset: Marvell 88SE9215 Support 4 SATA 3.0 6Gbps devices Compliant with PCI-Express Specification v2.0 ,v3.0, backwards compatible with PCIe1.0 Compliant with Serial ATA Specification 3.0, backwards compliant with Serial ATA2.0,Serial ATA1.0 Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps Supports Port Multiplier FIS-based and Command-based switching Plug and play, supports Hot Plug and Hot Swa |
| Features | 4 PORTS SATA CARD - This PCIE SATA card allows you to add 4 SATA 3.0 6Gbps devices to your computer. You could make the system to boot from this SATA controller but non RAID. If your motherboard has RAID function, you could make a RAID with this SATA card. POWERFUL CHIPSET - SATA controller with using Marvell 88SE9215 chip,more stable and compatible.Port Multiplier FIS-based and Command-based switching supported. enhances heat dissipation, long-lasting high temperature resistance and more stable operation. WORKS WITH ALL COMPUTERS - 4 Ports SATA Card with a low profile Bracket and 4 |
| Weight | 3.2 ounces |

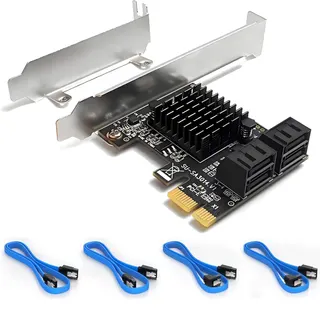

| Package Contents | Kit includes: 1 X 4-port SATA expansion card, 4 X SATA cable(40cm/15.8in), 1 X low-profile bracket, 1 X screwdriver, 2 X screw kit, 1 X anti-static bag. |
Frågor om den här produkten
How do I install the ESTONE PCIE24SATA in a low-profile chassis and what step is often missed?
Insert the card into any PCIe x1, x4, x8 or x16 slot, swap the full-height bracket for the included low-profile bracket using the supplied screwdriver and screws, then connect the four 40 cm SATA cables; the step often missed is moving the bracket before seating the card.
What maintenance or replacement will the Marvell 88SE9215 controller need over time?
The on-board heatsink handles passive cooling, so no fan replacement is required; only the four included SATA cables may need swapping if they become damaged or if longer runs are needed.
What throughput limit appears first when all four SATA 3.0 ports run sustained transfers?
The PCIe 2.0 x1 host link caps aggregate bandwidth at roughly 5 Gbps, so combined throughput hits that ceiling before any individual SATA 6 Gbps port saturates.
