Green PCB expansion card with four blue USB 3.0 ports and a PCIe x1 edge connector

ESTONE

ESTONE PCIE24USBA 4-port USB 3.0 PCIe card Super Speed 5Gbps Windows 11/10/8.1/8/7/Vista/XP/Server

SKU CH-WABY-ADFYQ

Adds four USB 3.0 ports via a PCIe x1 slot with 5.0 Gbps total bandwidth and per-port 2 A power, no extra power cable required

  • TypePCI to USB Card
  • External USB Ports4-port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds four USB 3.0 ports through a single PCIe x1 slot
  • Delivers up to 5.0 Gbps total bandwidth for fast file transfers
  • Each port supplies 2 A individually, 8 A combined for power-hungry devices
  • Built-in circuit protection and voltage-stable capacitors safeguard connected hardware
  • Plug-and-play on Windows 11, 10, 8.1, 8 and Server 2012 through 2019

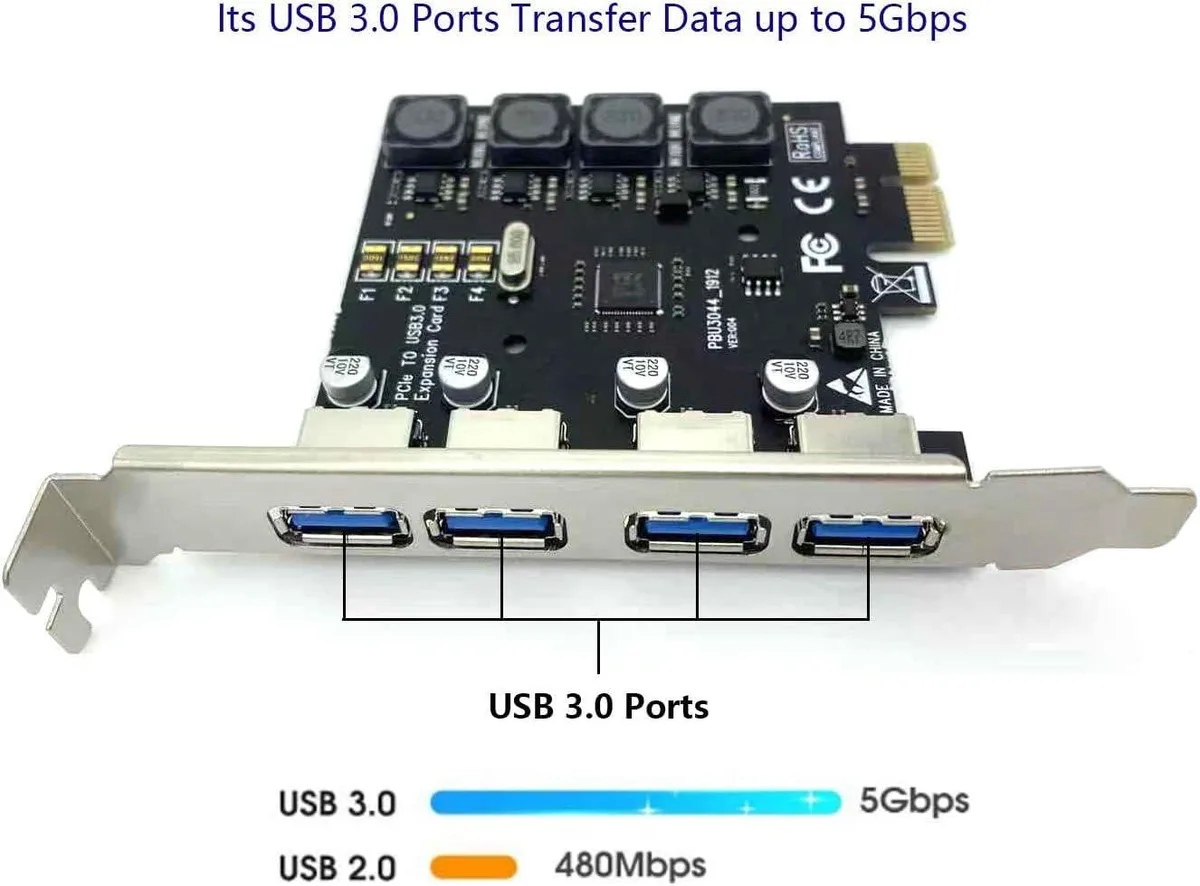

Four USB 3.0 ports on a PCIe x1 slot

The ESTONE PCIE24USBA adds four USB 3.0 ports to a desktop through a single PCI Express x1 lane. It uses a NEC chipset to deliver up to 5.0 Gbps total bandwidth for video, audio, photos or files. Each port supplies up to 2 A, giving 8 A combined for high-draw devices. The card fits x1, x4, x8 or x16 slots and does not need an external power cable.

Driver install on Windows 7 or older.

Windows 11, 10, 8.1 and 8 (32-bit and 64-bit) plus Windows Server 2012, 2012 R2, 2016 and 2019 recognise the card without extra steps. For Windows 7, Vista, XP and older releases the supplied mini-CD holds the RENESAS/VLI USB 3.0 driver that must be installed first. The product does not support Mac OS, Linux or GPU passthrough, so builders needing those platforms should look elsewhere.

Sustained transfers share 5.0 Gbps across all four

Under continuous load the 5.0 Gbps ceiling is divided between active ports, so simultaneous heavy copies will run slower than a single-stream burst. On-board circuit protectors and voltage-stabilising capacitors guard against drops during long sessions. The card draws all power from the slot, so the motherboard must supply enough current for the full 8 A rating.

I korthet

  • Adds four USB 3.0 ports through a single PCIe x1 slot
  • Delivers up to 5.0 Gbps total bandwidth for fast file transfers
  • Each port supplies 2 A individually, 8 A combined for power-hungry devices
  • Built-in circuit protection and voltage-stable capacitors safeguard connected hardware
  • Plug-and-play on Windows 11, 10, 8.1, 8 and Server 2012 through 2019

Specifikationer

BrandESTONE
SeriesPCIE24USBA
ModelPCIE24USBA
TypePCI to USB Card
External USB Ports4-port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications4 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
Supports USB 3.0 specification type A connector X 4 ports.,Backward compatible with USB 1.1/USB 2.0.
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
FeaturesAdding 4 USB 3.0 ports on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.

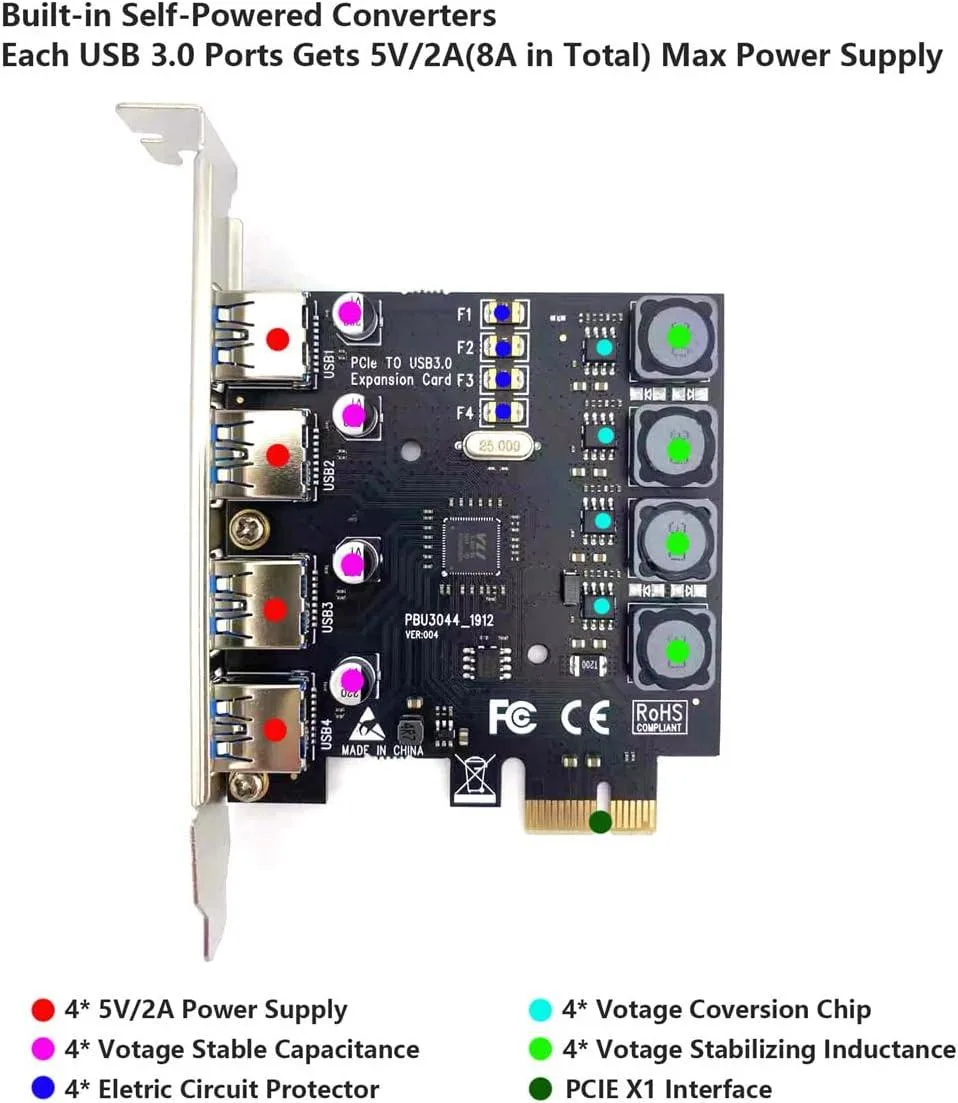

Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device safety than ever.
NOT supp
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Frågor om den här produkten

How can I confirm the ESTONE PCIE24USBA card is running at 5.0 Gbps after installation?

Check Device Manager under Universal Serial Bus controllers; the card should appear as a USB 3.0 Root Hub with SuperSpeed listed, and connected devices will show a 5.0 Gbps link speed in their properties.

What comes in the box and what must I supply myself for the ESTONE PCIE24USBA?

The package includes the PCIe expansion card, a driver CD, mounting screws and a user manual; you only need an available PCI Express x1, x4, x8 or x16 slot on your motherboard.

Which version of the ESTONE PCIE24USBA should I choose for Windows 11 plug-and-play versus older Windows?

The same card works for both; Windows 11, 10, 8.1 and 8 install the driver automatically, while Windows 7, Vista and XP require the supplied CD driver.
