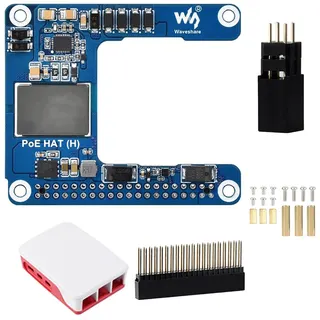

Small rectangular board with 40-pin GPIO header and Ethernet socket

LORDWORLD

LORDWORLD PoE HAT (H) for Raspberry Pi 5/CM5 5V 5A 40-PIN

SKU CH-NF3R-F29C8

Powers Raspberry Pi 5 or CM5 through a single Ethernet cable using IEEE 802.3 af/at PoE, delivering 5 V 5 A via an isolated SMPS and a 40-pin GPIO header that fits the official case and active cooler

  • Power via single Ethernet cable using IEEE 802.3af/at PoE
  • Reliable 5V 5A output from isolated switched-mode supply
  • Fits official Pi 5 case and active cooler
  • Standard 40-pin GPIO header for plug-and-play setup
  • Combines power and data for IoT and robotics projects

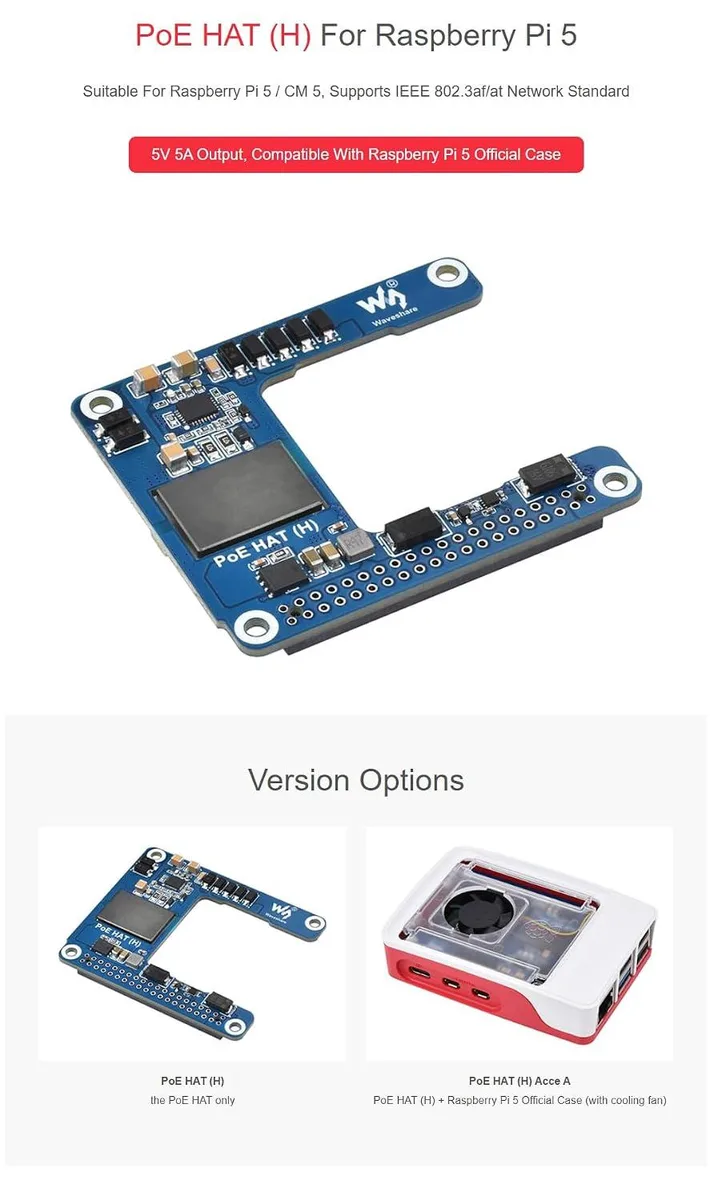

IEEE 802.3 PoE HAT for Raspberry Pi 5 and CM5

This PoE HAT powers a Raspberry Pi 5 or Compute Module 5 through a single Ethernet cable connected to a PoE-enabled switch or router. It draws power and data over IEEE 802.3 af/at compliant infrastructure. The board suits makers, robotics hobbyists and IoT developers who want a tidy, cable-free deployment. It plugs directly onto the 40-pin GPIO header for immediate use.

5 V 5 A isolated SMPS output

The isolated switched-mode supply delivers a steady 5 V at up to 5 A, giving the Pi 5 enough current for its own operation plus attached HATs, cameras or USB devices. Headroom exists for typical sensor arrays and small actuators in robotics or edge-computing nodes. Very high-draw peripherals such as large touchscreen displays or multiple spinning drives may exceed the available budget.

Replaces separate power supply

The HAT removes the need for a dedicated USB-C power adapter and its mains lead when a PoE switch is already present. It also fits inside the official Pi 5 case and clears the Active Cooler, so existing enclosures need no modification. The upgrade is worthwhile wherever Ethernet cabling reaches the device location; it adds no benefit in purely Wi-Fi or battery-powered installations.

I korthet

  • Power via single Ethernet cable using IEEE 802.3af/at PoE
  • Reliable 5V 5A output from isolated switched-mode supply
  • Fits official Pi 5 case and active cooler
  • Standard 40-pin GPIO header for plug-and-play setup
  • Combines power and data for IoT and robotics projects

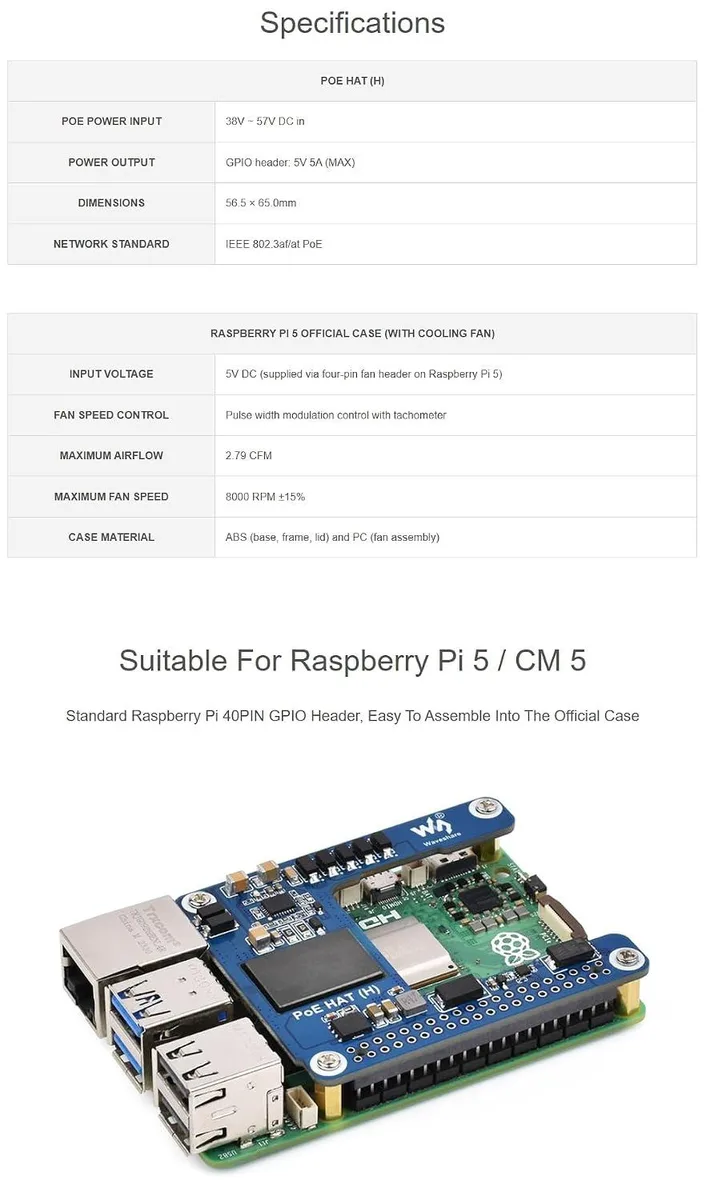

Specifikationer

BrandLORDWORLD

Frågor om den här produkten

Will this 40-PIN HAT fit inside the official Raspberry Pi 5 case I already own?

Yes, the HAT is designed to fit perfectly into the official Raspberry Pi 5 case without modification.

How can I verify the 5V 5A output is working correctly after I connect the Ethernet cable?

The Pi 5 should boot reliably under load and report stable voltage via software monitoring tools when powered through the HAT.

Does the box include the Raspberry Pi 5 board or the official case, or must I buy them separately?

The HAT is supplied alone; the Raspberry Pi 5 or CM5 board and the official case are separate purchases.
