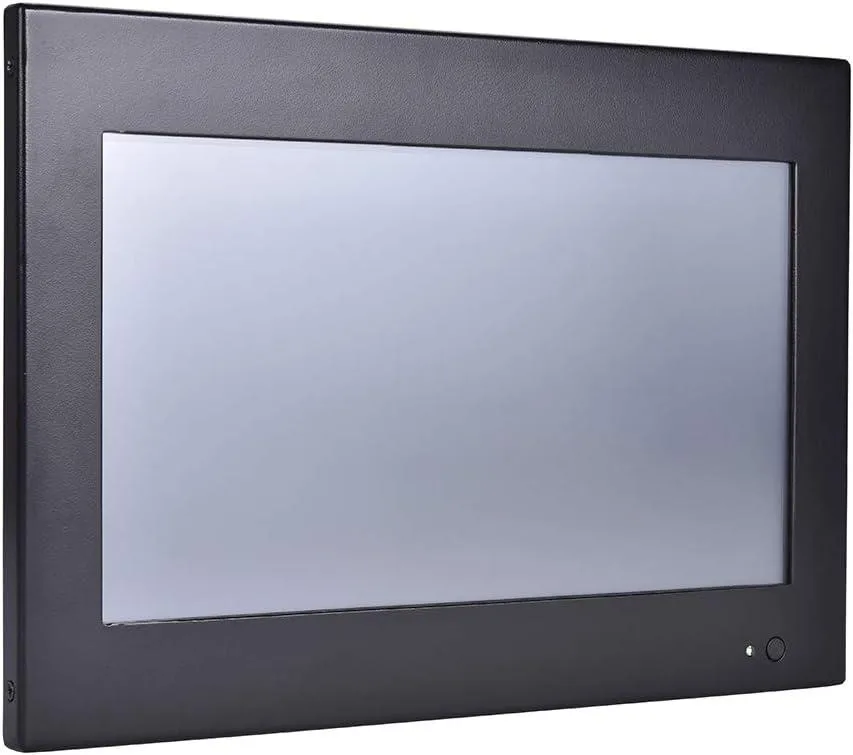

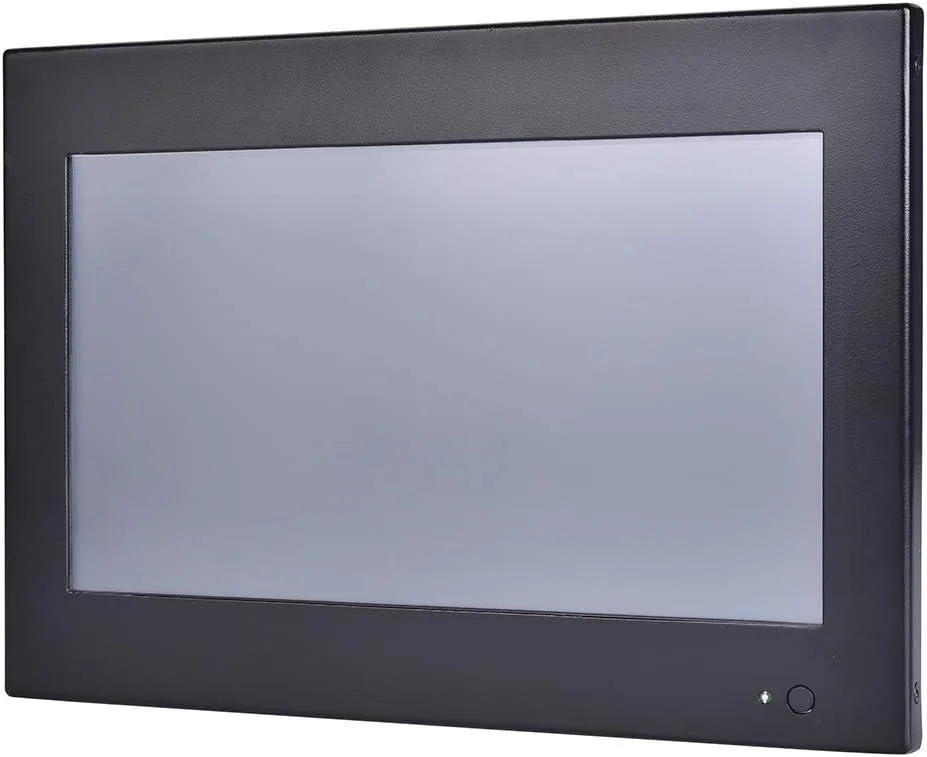

Compact black 10.1 inch all-in-one panel PC with resistive touchscreen and fanless aluminium alloy chassis

partaker

Partaker Z6 10.1" i5-4200U 8GB 128GB all-in-one PC

SKU CH-4WXP-0AJ3P

A 10.1" fanless industrial panel PC with resistive touchscreen, Intel Core i5-4200U, 8GB DDR3, 128GB mSATA SSD, Windows 11 Pro, HDMI, VGA, dual USB 3.0, dual COM, LAN, Mini PCIe expansion.

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U
  • GPU/VGA TypeIntel HD Graphics 4000

CPU Type Intel Core i5 4th Gen

CPU Name Intel Core i5-4200U

GPU Intel HD Graphics 4000

Memory 8GB DDR3

SSD 128GB

  • Silent operation with fanless aluminium alloy cooling
  • 1" resistive touchscreen rated for 5 million touches
  • Intel Core i5-4200U quad-core processor with 8GB DDR3L memory
  • 128GB mSATA SSD storage running Windows 11 Pro
  • Wide connectivity including HDMI, VGA, 2×USB 3.0, 2×COM and Mini PCIe expansion

Industrial Panel PC for Embedded Control

The Partaker Z6 is a 10.1 inch all-in-one computer built around an Intel Core i5-4200U processor with 8GB of DDR3L memory and a 128GB mSATA SSD. It ships with Windows 11 Pro installed and targets industrial automation, kiosk or digital signage deployments that need a compact, fanless unit with a resistive touchscreen. Its operating range of 0 to 50°C suits factory floors and outdoor cabinets.

Fanless Aluminium Chassis with Panel Mount

A black aluminium alloy body acts as a heatsink, eliminating moving parts and allowing silent operation in dusty or vibration-prone settings. The front panel measures 270 by 192 millimetres with a 227 by 183 millimetre cut-out for embedded installation, while supplied brackets also support wall or desktop mounting. Connectivity includes HDMI, VGA, two USB 3.0 ports, two USB 2.0 ports, two COM ports, LAN, audio in and out, and a 12V DC jack, plus a Mini PCIe slot with a SIM holder for 4G or Wi-Fi expansion.

Passive Cooling and 12V DC Power

The fanless design keeps acoustic output at zero while the CPU runs within its 0 to 50°C envelope using the installed SSD. Power is supplied by an external 100 to 240V AC adapter delivering 12V DC, so the unit itself has no internal PSU heat. The resistive touch panel is rated for five million touches at 200cd/m² brightness and 1024 by 600 resolution, with a backlight life of 10,000 hours minimum.

I korthet

  • Silent operation with fanless aluminium alloy cooling
  • 1" resistive touchscreen rated for 5 million touches
  • Intel Core i5-4200U quad-core processor with 8GB DDR3L memory
  • 128GB mSATA SSD storage running Windows 11 Pro
  • Wide connectivity including HDMI, VGA, 2×USB 3.0, 2×COM and Mini PCIe expansion

Specifikationer

ModelZ6-I5 4200U-N-8G128G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
GPU/VGA TypeIntel HD Graphics 4000
Memory Capacity8GB DDR3
SSD128GB
HDDNo
Screen Size10.1"
TouchscreenYes

Andra versioner av den här modellen

5 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

What does the HDMI port on this panel PC actually output?

The HDMI port supports external display output at up to 1024 x 600 resolution, mirroring or extending the built-in 10.1-inch panel for secondary monitors.

What cut-out size is needed for embedded mounting?

The embedded installation requires an opening hole of 227 x 183 mm to fit the 270 x 192 x 47 mm chassis with the supplied buckle kits.

How do I install the Mini PCIe 4G or WiFi module and SIM card?

Open the chassis, insert the Mini PCIe card into the slot, secure it with the screw, then place the nano-SIM into the adjacent SIM slot before reassembling.
