ARCTIC COOLING

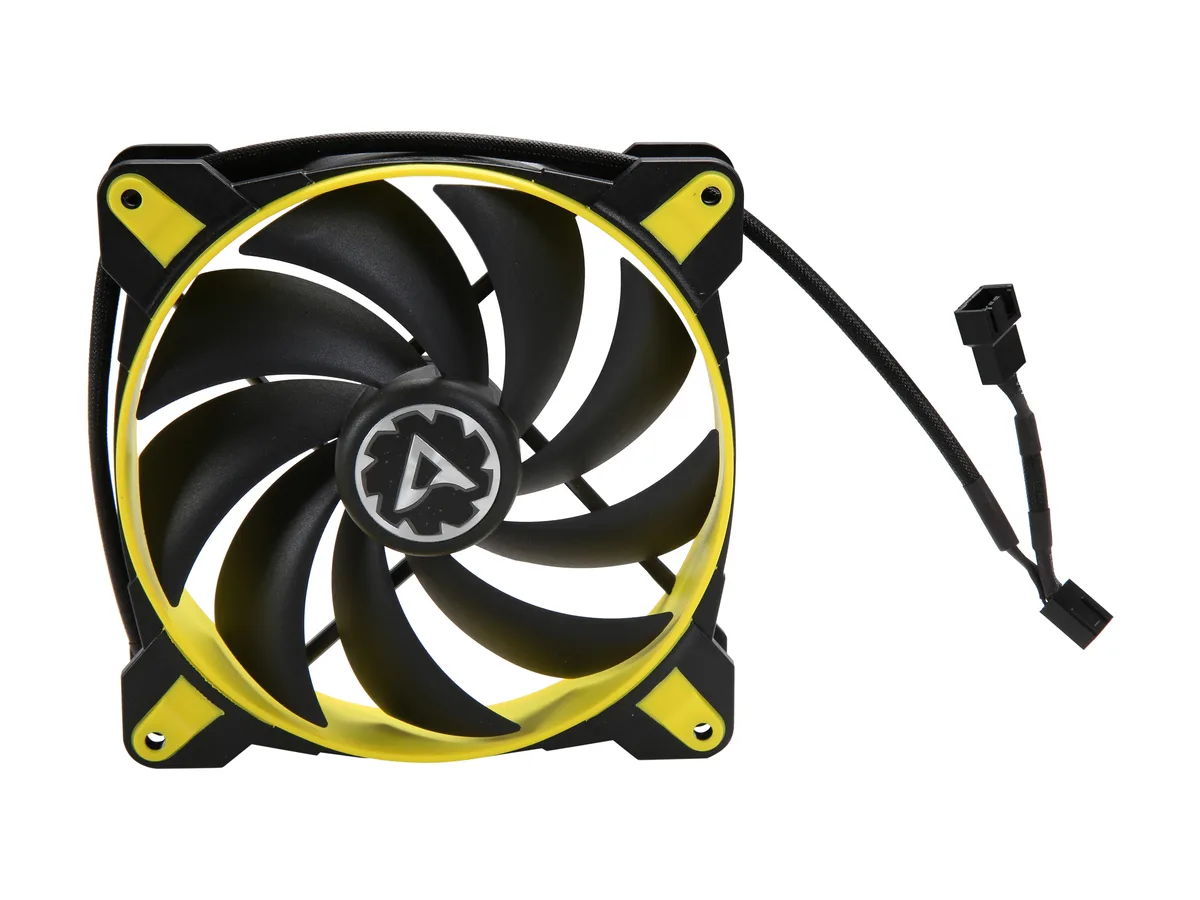

ARCTIC COOLING BioniX F140 ACFAN00097A 140mm case fan Yellow
A 140mm case fan with fluid-dynamic bearing, 200-1800 RPM range and 104 CFM airflow in yellow
- TypeCase Fan
- CompatibilityCase
- Fan Size140mm
- Bearing TypeFluid Dynamic
- RPM200 - 1800 RPM
- Air Flow104 CFM @ 1,800 RPM
- Quiet gaming with 0.6 Sone at 1800 RPM
- High airflow of 104 CFM at maximum speed
- Wide speed range from 200 to 1800 RPM
- PWM Sharing Technology synchronises multiple fans together
- Fluid Dynamic bearing reduces friction for longer life
140 mm PWM case fan
The ARCTIC COOLING BioniX F140 is a 140 mm case fan built for system builders who want strong airflow with low noise. Its fluid-dynamic bearing and 3-phase motor keep acoustic output to .6 sone at maximum speed. Yellow blades add a distinctive look inside any chassis.
Airflow and speed range
The fan spins between 200 and 1800 RPM, delivering up to 104 CFM at the top end. PWM Sharing Technology lets the motherboard control several fans together so they ramp up only when thermal load demands it. At lower loads the wide speed range keeps the system nearly silent.
Installation and common issues
A standard 4-pin connector fits any modern fan header and the 140.00 x 140.00 x 28.00 mm frame matches common 140 mm mounting points. Builders must verify case clearance for the 28 mm thickness before fitting. The daisy-chain PST cable can be missed if not routed carefully during assembly.
จุดเด่น
- Quiet gaming with 0.6 Sone at 1800 RPM
- High airflow of 104 CFM at maximum speed
- Wide speed range from 200 to 1800 RPM
- PWM Sharing Technology synchronises multiple fans together
- Fluid Dynamic bearing reduces friction for longer life
ข้อมูลจำเพาะ
| Brand | ARCTIC COOLING |
|---|---|
| Series | BioniX F140 |
| Model | ACFAN00097A |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 140mm |
| Bearing Type | Fluid Dynamic |
| RPM | 200 - 1800 RPM |
| Air Flow | 104 CFM @ 1,800 RPM |
| Noise Level | 0.6 Sone (@ 1,800 RPM) |
| Power Connector | 4 Pin |
| Color | Yellow |
| Features | Silent 3-Phase Motor: Extremely silent operation through 3-phase motor guarantees long gaming sessions without annoying noise. 200 to 1800 RPM: With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX F140 fan speed can be controlled synchronously with all your other fans together and thus keep the noise at a minimum while guaranteeing maximum cooling performance when needed. Optimised Fan Design: We further optimised the fan blade design to get a higher airflow at lower noise generation. This guarantees high pressure and highly efficient ventilation for your |
| Dimensions | 140.00 x 140.00 x 28.00 mm |
| น้ำหนักในการจัดส่ง | 0.24 kg |
| ขนาดบรรจุภัณฑ์ | 147 × 147 × 36 mm |
รุ่นอื่นในตระกูลเดียวกัน
อีก 1 รุ่นในตระกูลเดียวกัน
ตระกูลเดียวกัน แต่หน่วยความจำ คูลเลอร์ หรือสัญญาณนาฬิกาต่างกัน — เปรียบเทียบก่อนตัดสินใจ
คำถามเกี่ยวกับสินค้านี้
Should I pick the 140mm yellow BioniX F140 or another size for my case?
Choose the 140mm version when your chassis has 140mm mounting points; the 140.00 x 140.00 x 28.00 mm frame fits those slots directly.
What does the 104 CFM airflow figure deliver inside a real build?
At 1800 RPM the fan moves 104 CFM, providing strong case ventilation for GPU and CPU coolers while the fluid-dynamic bearing keeps friction low.
How does the 4-pin PWM connector and PST affect speed control?
The 4-pin PWM header lets the motherboard regulate 200–1800 RPM, and PWM Sharing Technology synchronises multiple fans from one header.
