Micro Connectors RAS-VE03 VESA Mount Adapter 75 x 75mm 100 x 100mm

VESA 75 and 100 Mount Adapter

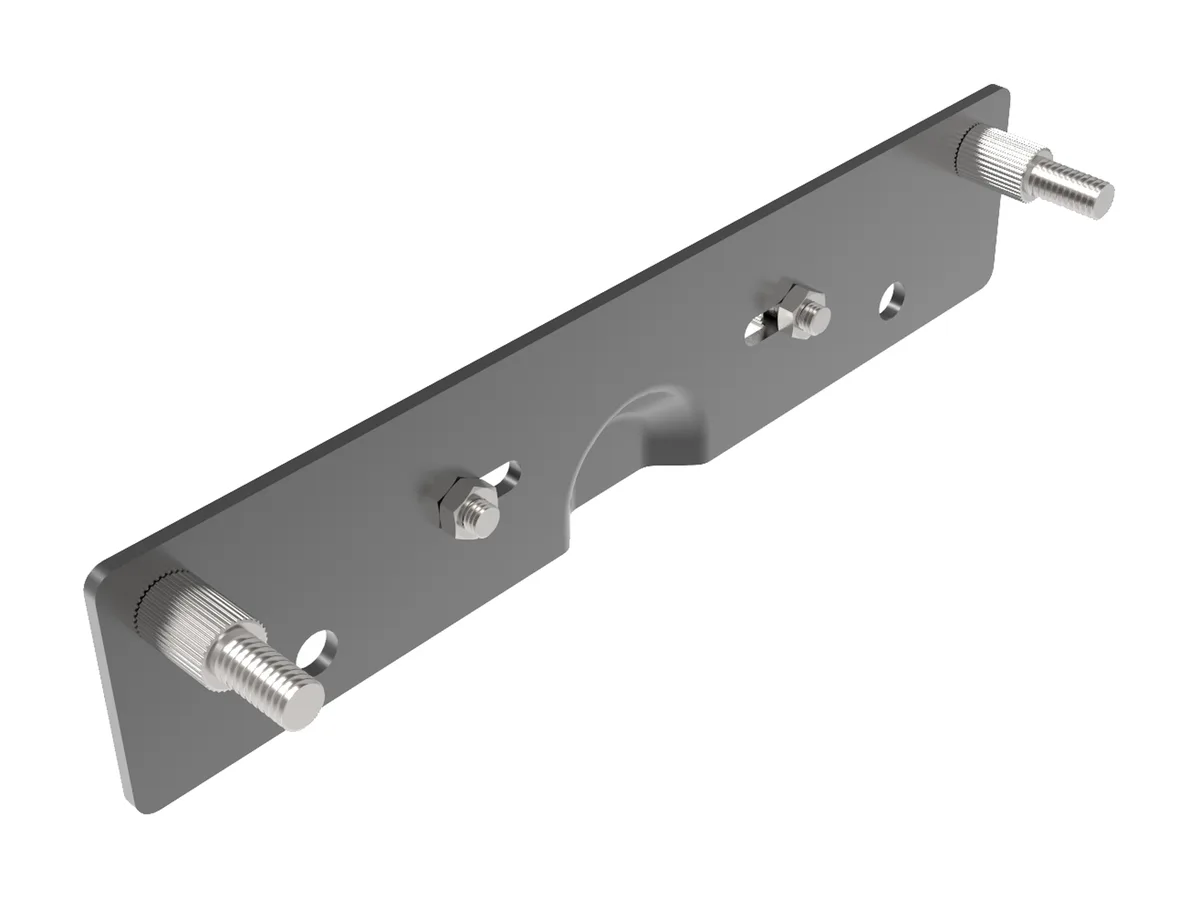

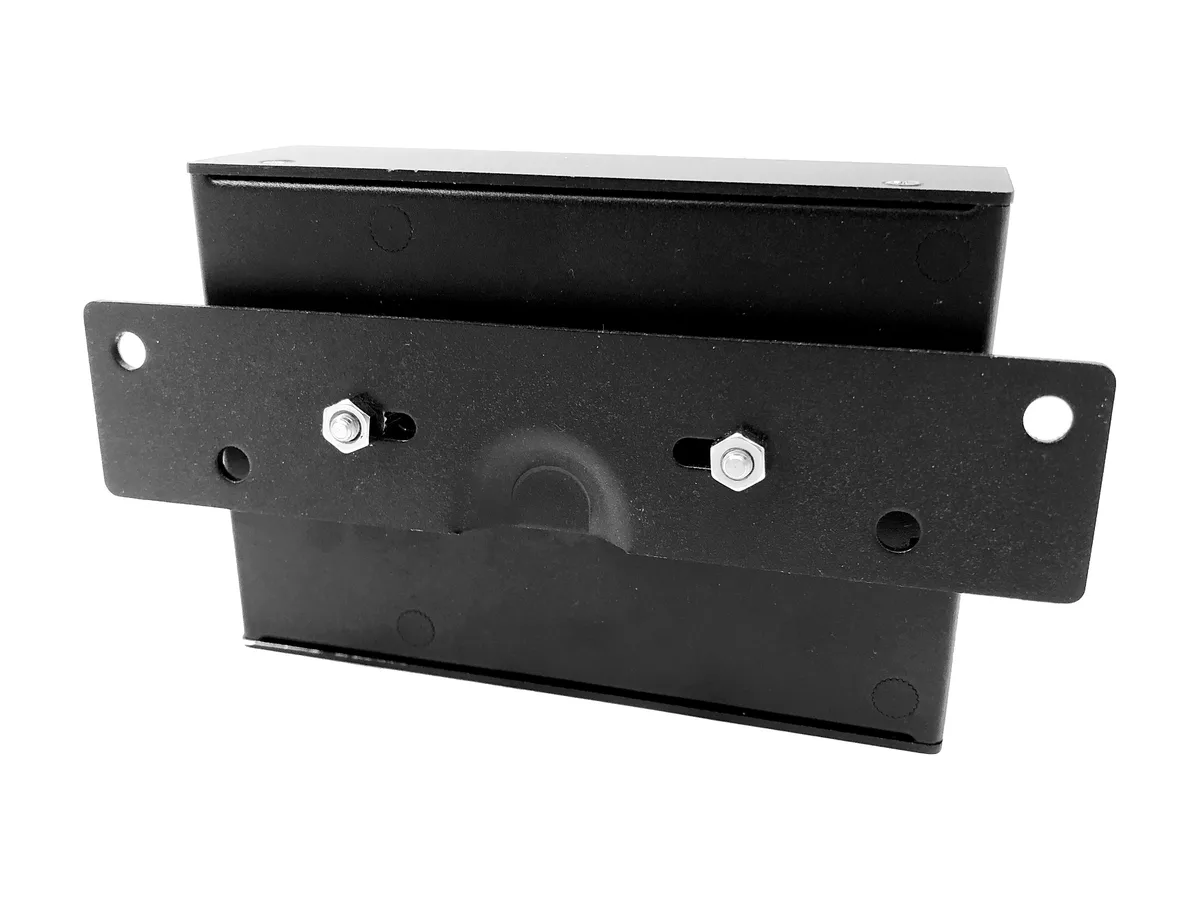

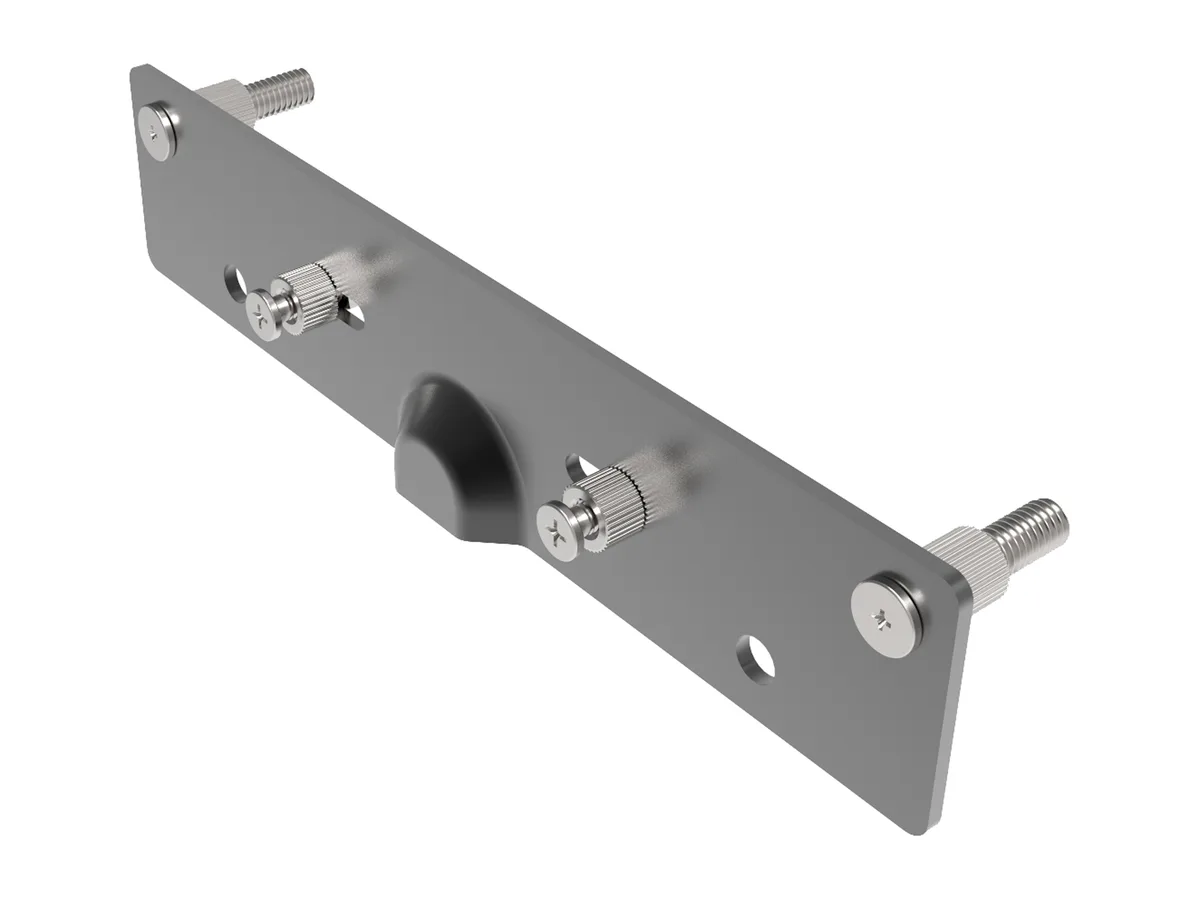

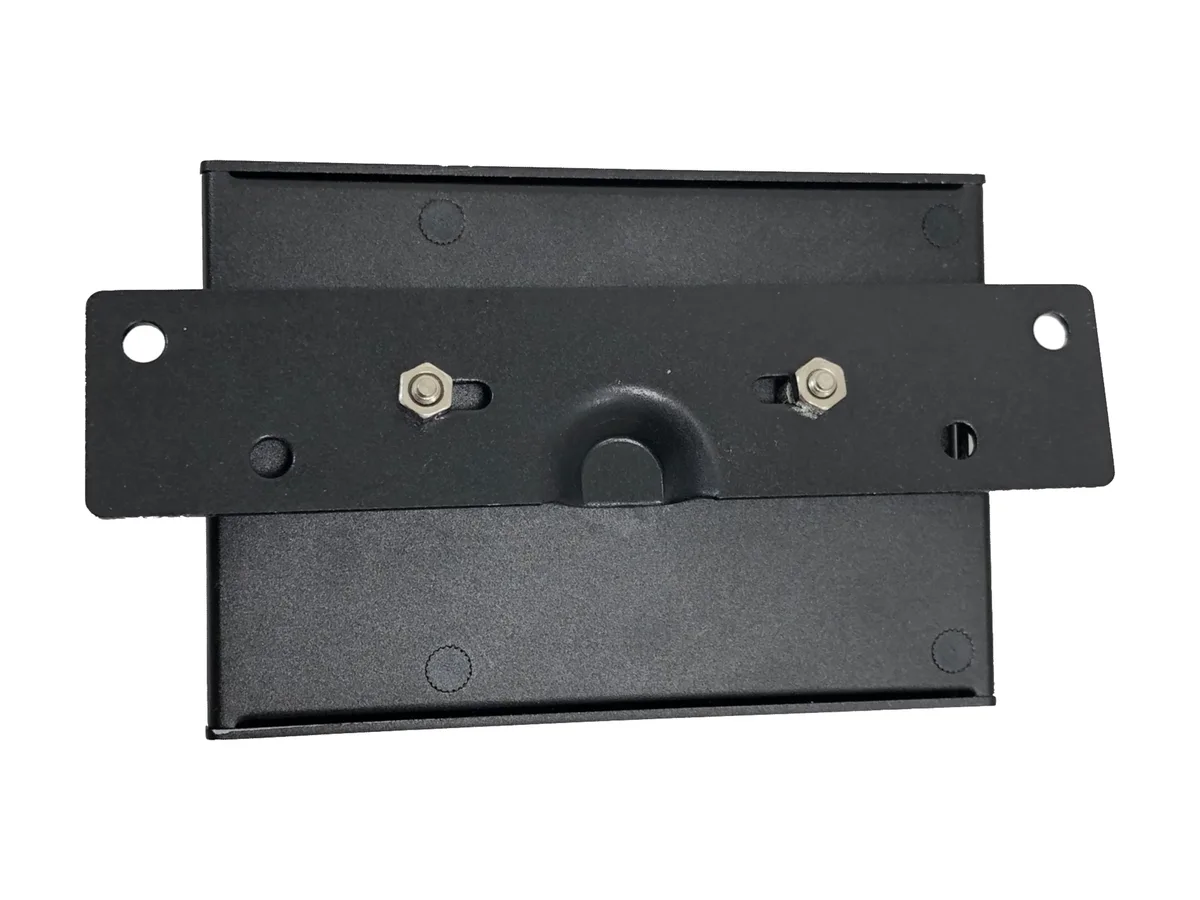

The Micro Connectors RAS-VE03 is a VESA mount adapter built for Raspberry Pi wall-mount cases. It fits the standard 75 x 75mm and 100 x 100mm hole patterns found on monitors and mounting arms. Adjustable standoffs allow alignment with the majority of compatible case designs. The kit includes the adapter, standoffs, screw nuts and screws for a complete installation.

Fixed Hole Spacing and Steel Thickness

The adapter only works with the two VESA pitches listed; it cannot accommodate non-standard or proprietary mounting grids. Its 1.5mm SECC steel construction sets the physical thickness at 5.2mm, which adds a fixed offset between the case and the mounting surface. The 114.4mm length and 23.9mm width define the maximum footprint, so the mounting surface must provide at least that much flat area.

Replaces Improvised Brackets and Tape

This adapter replaces makeshift brackets, double-sided tape or zip-tie arrangements that fail under vibration or heat. The jump is worth it when the Raspberry Pi case has VESA mounting holes but no dedicated hardware to attach them to a 75mm or 100mm grid. It is not for cases lacking VESA holes, for mounting patterns outside the two supported standards, or for installations that require a thinner stand-off than the fixed 5.2mm profile.
