Black pump top reservoir combo, 60 by 40 by 40 mm, five G1/4 ports, Velcro mat included

Alphacool

Alphacool Eisstation 40 DC-LT Pump Top Reservoir 1016193

SKU CH-0K4V-5JQB6

Compact pump-top reservoir combo with five G1/4 ports, 1.5 bar pressure rating and 60 °C max temperature

  • ColorBlack
  • FeaturesThe Ice Station 40 DC-LT The Enterprise Solutions series is
  • Combines pump top and reservoir in one compact unit
  • Operates safely up to 60 °C maximum working temperature
  • Five G1/4" ports provide flexible loop routing
  • Pressure tested to 1.5 Bar for leak-free reliability
  • Mounts at 30 or 90 degrees with optional feet

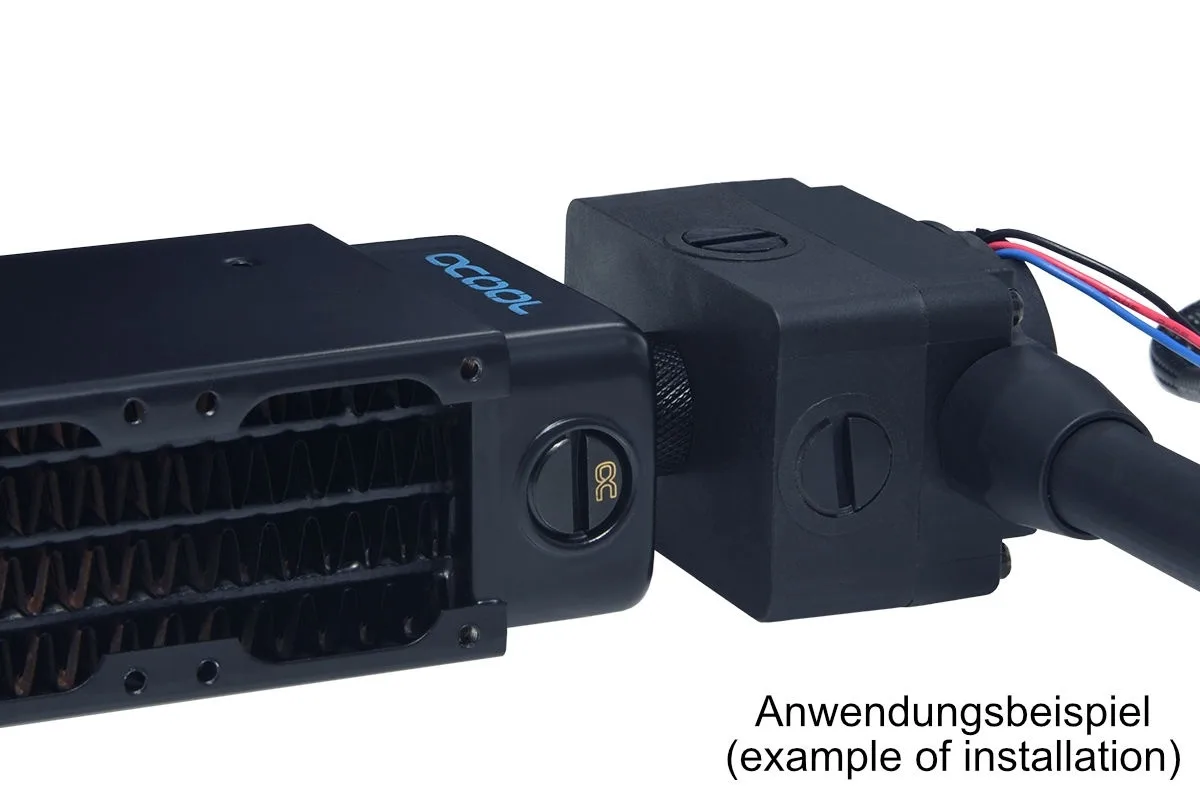

Compact pump-top reservoir for tight builds

The Alphacool Eisstation 40 DC-LT combines a pump top and reservoir in a 60 x 40 x 40,48 mm body. It is designed for small water-cooling loops and fits inside 1U server racks. Builders working with restricted chassis space will appreciate the minimal footprint.

Tested to 1.5 Bar with a 60 °C limit

The unit is pressure tested at 1.5 Bar and rated for a maximum working temperature of 60 °C. Five G1/4" ports provide flexible routing for coolant flow. The DC-LT pump sits fully enclosed beneath the top plate for protection.

Velcro mat included for tool-free mounting

A supplied Velcro mat secures the reservoir anywhere in the case without screws. Optional mounting feet allow 30 or 90 degree angled installation. Removing the upper plate enables a surge-tank extension and reveals a bubble-down filter insert.

أبرز المميزات

  • Combines pump top and reservoir in one compact unit
  • Operates safely up to 60 °C maximum working temperature
  • Five G1/4" ports provide flexible loop routing
  • Pressure tested to 1.5 Bar for leak-free reliability
  • Mounts at 30 or 90 degrees with optional feet

المواصفات

BrandAlphacool
Model1016193
Part Number1016193
ColorBlack
FeaturesThe Ice Station 40 DC-LT The Enterprise Solutions series is similar to the Solo Top and is therefore also extremely compact.

أسئلة حول هذا المنتج

How do I install the Eisstation 40 DC-LT pump top, and what step is often missed?

Remove the bottom plate, insert the O-ring, screw the DC-LT pump down, then reattach the plate so the pump is fully covered; the O-ring step is the one most often forgotten.

What maintenance or replacement will the reservoir need later?

The O-ring under the bottom plate should be inspected periodically and replaced if it shows wear, since it seals the pump inside the top.

What limit appears first under sustained use?

The maximum working temperature is 60 °C, so coolant temperature will reach that limit before the 1.5 bar pressure rating becomes a concern.
