Silver 1U rackmount barebone with ten front NVMe bays and redundant power supply units

ASRock Rack

ASRock Rack 1U10E-ALTRA/1L2T barebone server, 650W 1+1 PSU, 10 NVMe bays

SKU CH-QVMV-Q7Y7Y MPN 1U10E-ALTRA/1L2T

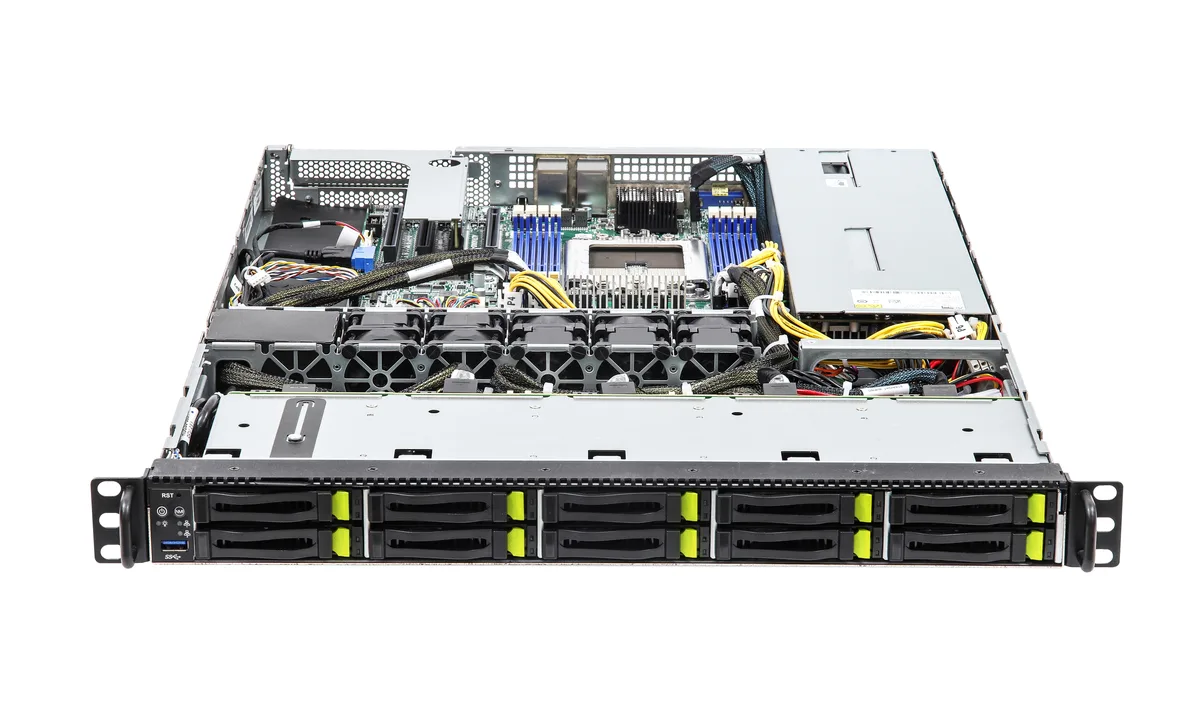

A 1U barebone with redundant 650 W platinum PSUs, ten hot-swap NVMe bays, dual 10GbE and single-socket Ampere Altra support

  • 10 hot-swap NVMe bays for dense PCIe 4.0 storage
  • Redundant 650 W 80-PLUS Platinum power supplies
  • Single LGA 4926 socket supports Ampere Altra processors
  • Eight DDR4 RDIMM or LRDIMM slots for high memory capacity
  • Dual 10GbE and single 1GbE network ports included

Single-socket Ampere Altra platform

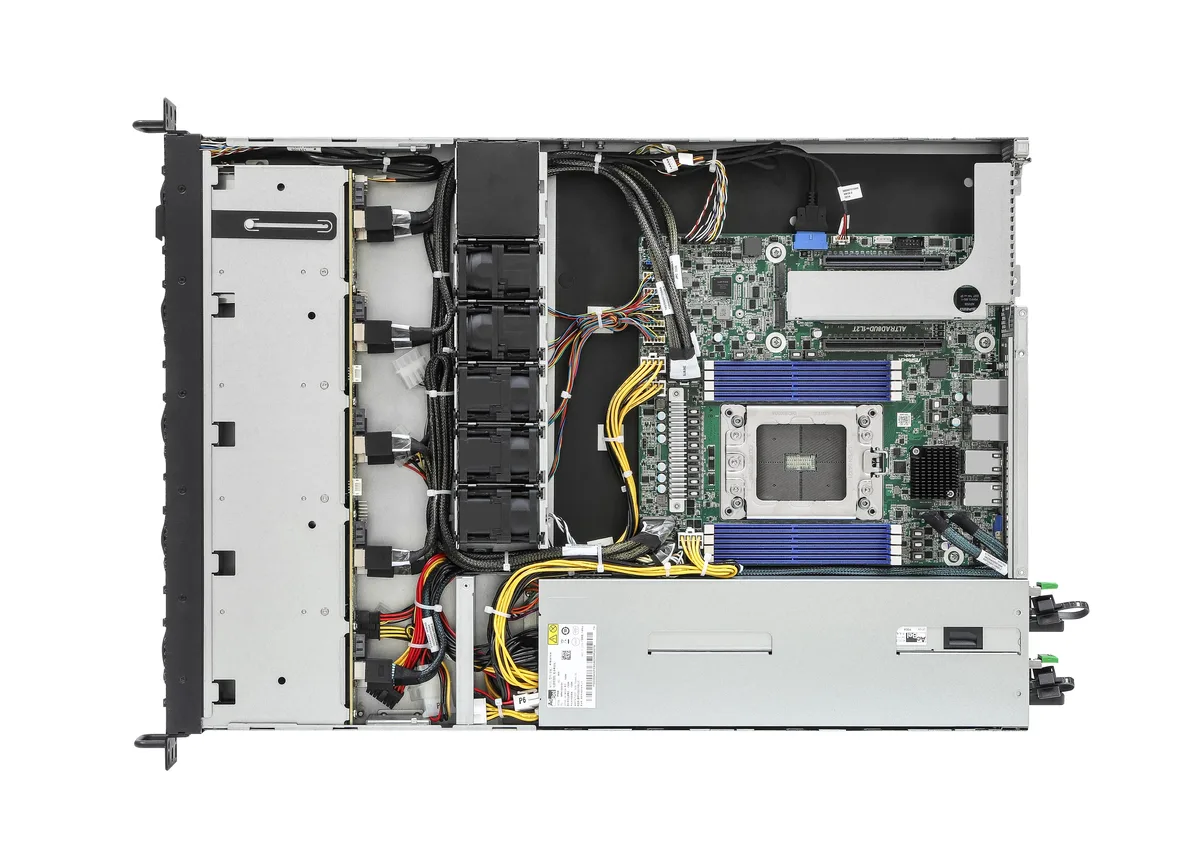

The 1U10E-ALTRA/1L2T is a 1U rackmount barebones server built around a single LGA 4926 socket for Ampere Altra and Altra Max processors. It targets deployments that need high core counts in a shallow chassis with integrated redundancy.

Redundant 80-PLUS Platinum power

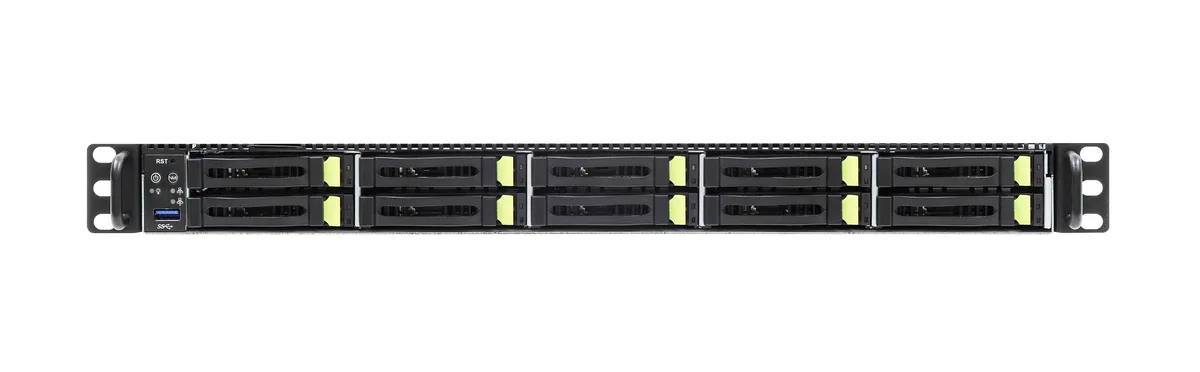

A 1+1 650 W power supply pair provides fail-over without shutting down. Ten front-facing 2.5-inch bays accept hot-swap NVMe drives over PCIe 4.0 x4, while two internal M.2 slots add boot or cache capacity on the same interface.

Eight-channel DDR4 memory and dual 10 GbE

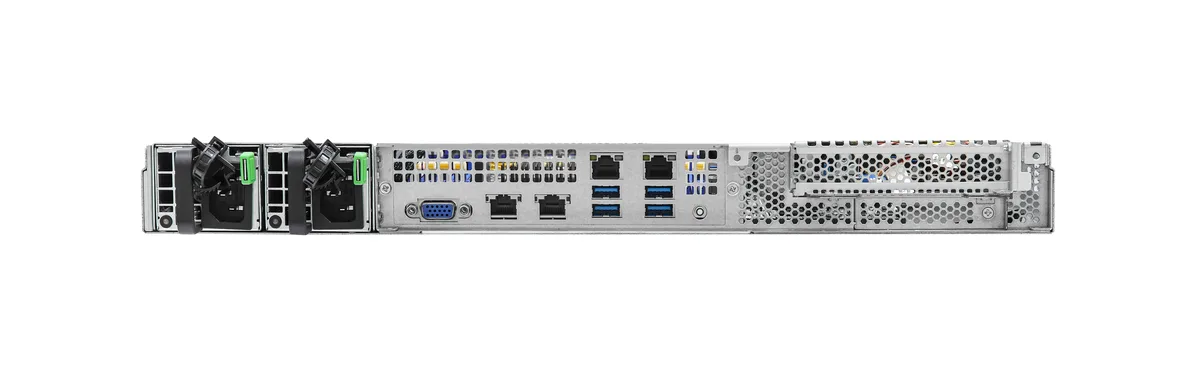

Eight DIMM slots support DDR4 RDIMM and LRDIMM in a one-DIMM-per-channel layout for maximum bandwidth. Networking includes two 10 GbE RJ45 ports from an Intel X550 controller plus a dedicated 1 GbE management port. A single full-height PCIe 4.0 x16 slot accommodates one accelerator or NIC, limiting expansion to a single add-in card.

أبرز المميزات

  • 10 hot-swap NVMe bays for dense PCIe 4.0 storage
  • Redundant 650 W 80-PLUS Platinum power supplies
  • Single LGA 4926 socket supports Ampere Altra processors
  • Eight DDR4 RDIMM or LRDIMM slots for high memory capacity
  • Dual 10GbE and single 1GbE network ports included

المواصفات

لا توجد مواصفات منشورة لهذا المنتج بعد.

أسئلة حول هذا المنتج

How often do the hot-swap drive trays or backplane need replacement under continuous operation?

The chassis provides 10 hot-swap NVMe bays; tray and backplane service intervals depend on workload and environment, so follow ASRock Rack's maintenance guide for your specific duty cycle.

Which resource saturates first when all ten NVMe bays and the PCIe 4.0 x16 slot run sustained I/O?

The platform links 10 NVMe bays and one FHFL PCIe 4.0 x16 slot to the CPU; sustained throughput will be limited by the processor's total PCIe 4.0 lane budget and thermal envelope.

What is the typical fan behaviour and power draw when the dual 650 W PSUs and all drive bays are active around the clock?

Dual 80-PLUS Platinum 650 W units share the load; fan speed ramps with inlet temperature and total power draw, so acoustics and heat output scale with the configured CPU and drive population.
