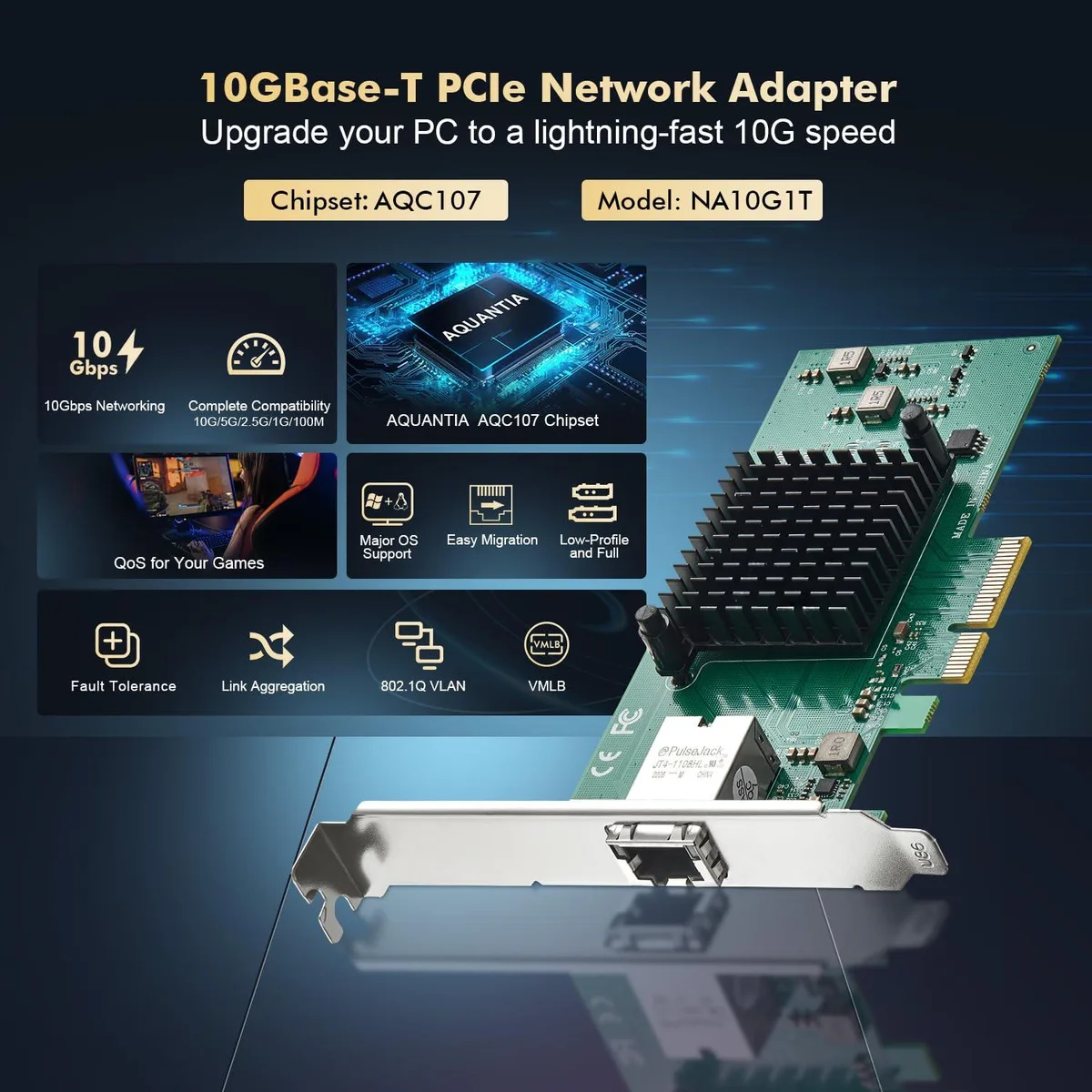

Green circuit board with silver RJ45 port and gold PCIe x4 edge connector

C&N

C&N 10G PCIe x4 Network Adapter AQC107

SKU CH-3RTA-KV7YC

Adds a 10 Gbps RJ45 Ethernet port over a PCIe 3.0 x4 slot with the AQC107 controller, auto-negotiating down to 100 Mbps and supporting PXE boot on Windows and Linux

  • Speed10 gigabits_per_second
  • Interfacepci_express_x4
  • BUSpci_express_x4
  • FeaturesDesktop
  • Weight0.2 kilograms
  • 10 Gbps Ethernet with AQC107 controller
  • PCIe 3.0 x4 fits x4 x8 x16 slots
  • Works at 10G 5G 2.5G 1G 100 Mbps
  • Windows Linux VMware PXE boot supported
  • Standard and low-profile brackets included

10Gbps PCIe x4 Network Adapter

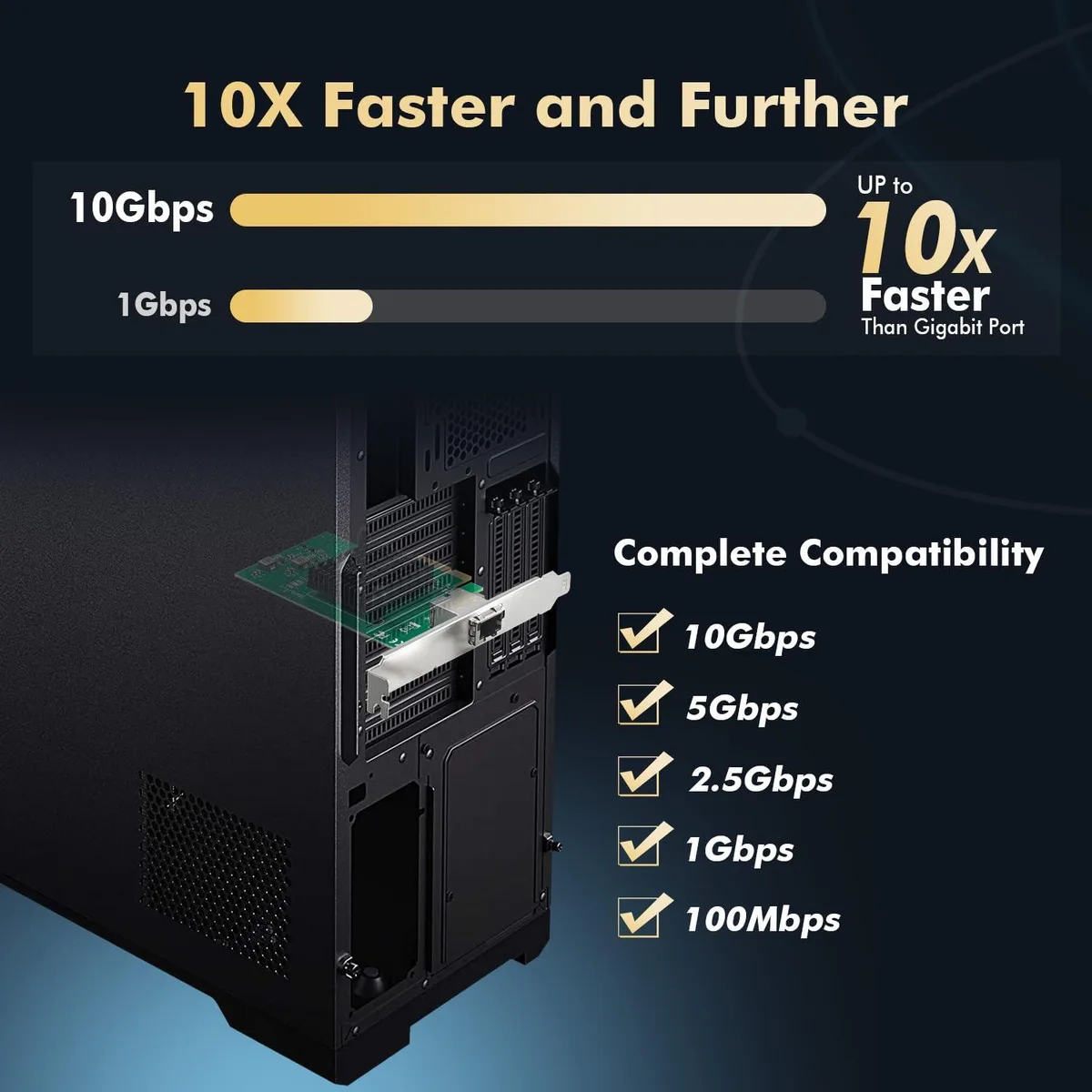

The C&N add-on card uses the AQUANTIA AQC107 controller to deliver 10Gbps Ethernet over a single RJ45 port. It auto-negotiates down to 5G, 2.5G, 1G and 100Mbps speeds using Cat5e or Cat6a cabling. The board fits PCIe 3.0 x4, x8 or x16 slots and ships with both standard and low-profile brackets for desktop, server or NAS chassis.

Sustained throughput on PCIe 3.0 x4

The PCIe 3.0 interface provides 8.0GT/s per lane across four lanes, giving enough bandwidth to keep the 10Gbps link saturated during prolonged transfers. Auto MDIX, full-duplex flow control and IEEE 802.3x pause frames prevent packet loss when the link runs continuously at line rate. PXE boot and IEEE 802.1Q VLAN tagging remain active under load without driver intervention.

Cable distance and slot constraints

Cat6a cable supports the full 10Gbps rate at 100m, while Cat5e or Cat6 is limited to 100m at 1Gbps or 2.5Gbps. The card requires a PCIe slot; legacy PCI slots are not supported. Drivers are available for Windows 7 through 10, Server 2008 to 2016, Linux and VMware, but the adapter cannot operate without an available PCIe x4 or wider slot.

أبرز المميزات

  • 10 Gbps Ethernet with AQC107 controller
  • PCIe 3.0 x4 fits x4 x8 x16 slots
  • Works at 10G 5G 2.5G 1G 100 Mbps
  • Windows Linux VMware PXE boot supported
  • Standard and low-profile brackets included

المواصفات

BrandC&N
Speed10 gigabits_per_second
Interfacepci_express_x4
BUSpci_express_x4
FeaturesDesktop
Weight0.2 kilograms

أسئلة حول هذا المنتج

How much power does the AQC107 adapter draw when running at 10 Gbps all day?

The card uses a PCIe 3.0 x4 interface rated at 8.0 GT/s; typical power draw for this controller at full line rate is under 10 W.

What slot and bracket do I need on my motherboard to install this card?

It requires a PCIe 3.0 x4, x8 or x16 slot and ships with both a standard-height and a low-profile bracket.

Will this 10 GbE card negotiate down to my existing 1 GbE switch and Cat 5e cabling?

Yes, the AQC107 auto-negotiates 10G, 5G, 2.5G, 1G and 100 Mbps over Cat 5e or better up to 100 m.
