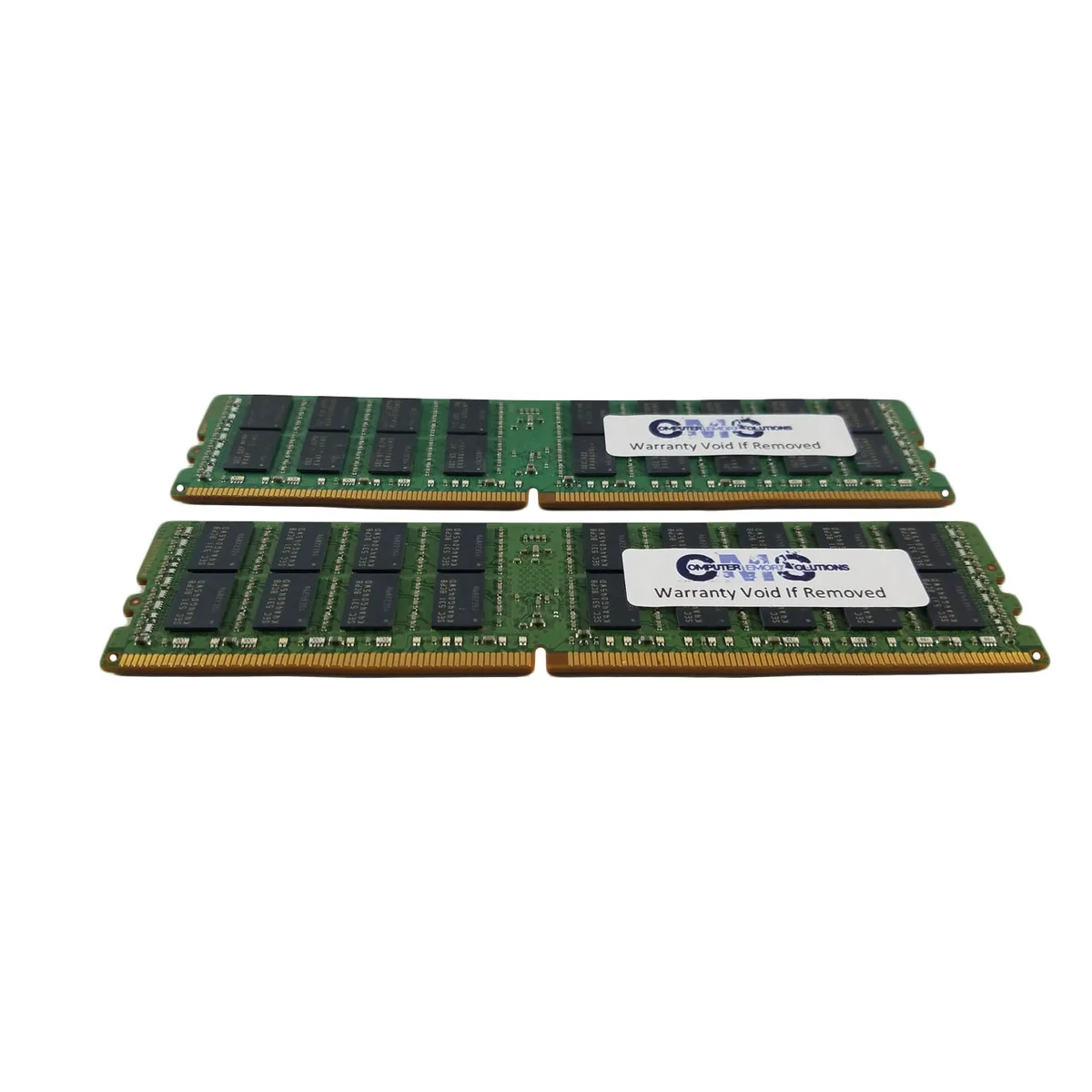

Two green DDR4 DIMM sticks, no heat spreaders

Computer Memory Solutions

Computer Memory Solutions CM2048722400ECCR 32GB (2x16GB) DDR4 2400 ECC Registered DIMM C124

SKU CH-CB3X-4PYB3

32 GB dual-channel DDR4 ECC registered kit (2 × 16 GB, 2400 MHz, CL17, 1.2 V) validated for ASRock EPC612D8, EPC612D8A, EPC612D8A-TB and EPC621D8A server boards

  • Capacity32GB (2 x 16GB)
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 32GB dual-channel capacity from two 16GB modules
  • ECC registered design protects server data integrity
  • DDR4 2400 speed with CL17 timing
  • 2V operation reduces power draw
  • Validated for ASRock EPC612D8, EPC612D8A, EPC612D8A-TB, EPC621D8A

Compatible Server Boards

This 32 GB kit is built for ASRock EPC612D8, EPC612D8A, EPC612D8A-TB and EPC621D8A server boards. It delivers two 16 GB DDR4 2400 registered ECC modules that the vendor validates for those platforms only.

Upgrade Path

The kit adds 32 GB of registered ECC memory to a supported board, replacing non-ECC or unbuffered DIMMs that the platform cannot use. The jump is worthwhile when the workload demands error correction and the board accepts RDIMMs up to 256 GB total capacity.

Pre-Installation Checks

Verify the board model matches one of the four listed part numbers and that all populated slots will use registered ECC DIMMs. Mixing RDIMM and LRDIMM modules is not supported, and the memory will clock down to the speed allowed by the installed processor.

أبرز المميزات

  • 32GB dual-channel capacity from two 16GB modules
  • ECC registered design protects server data integrity
  • DDR4 2400 speed with CL17 timing
  • 2V operation reduces power draw
  • Validated for ASRock EPC612D8, EPC612D8A, EPC612D8A-TB, EPC621D8A

المواصفات

BrandComputer Memory Solutions
ModelCM2048722400ECCR
Capacity32GB (2 x 16GB)
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemASRock Server Board EPC612D8, EPC612D8A, EPC612D8A-TB, EPC621D8A
Package Content2 Memory RAM Sticks

أسئلة حول هذا المنتج

Will these 288-pin DDR4 DIMMs fit the eight memory sockets on my ASRock EPC612D8A board?

Yes, the kit provides two 288-pin DDR4 registered DIMMs designed for the eight sockets on the EPC612D8, EPC612D8A, EPC612D8A-TB and EPC621D8A server boards.

What is the correct way to install this 2Rx8 registered kit so the system recognises all 32 GB?

Populate identical 2Rx8 modules in the same channel pair and follow the board's slot order; mixing registered and load-reduced DIMMs is not supported and will prevent boot.

If I later expand to the board's 256 GB registered-DIMM limit, do these 16 GB sticks stay compatible?

Yes, each 16 GB module runs at 1.2 V and DDR4-2400, so additional matched registered DIMMs of the same speed and voltage can be added up to the 256 GB maximum.
