White rectangular outdoor Wi-Fi 6 access point with external antennas and pole mounting bracket

Cudy

Cudy AP3000 Outdoor access point Wi-Fi 6 320 m PoE+

SKU CH-9W7E-WSEXN MPN AP3000 Outdoor

Dual-band Wi-Fi 6 outdoor access point with IP65 weatherproofing, PoE+ power and up to 320 m range

  • StandardsIEEE 802.11ax
  • WiFi GenerationWi-Fi 6
  • Wireless Data RatesUp to 2402Mbps
  • Frequency Band2.4 GHz / 5 GHz
  • AntennaInternal and External Antenna
  • Mounting LocationIndoor / Outdoor
  • Wi-Fi 6 delivers up to 2402 Mbps on the 5 GHz band
  • IP65-rated enclosure withstands dust, water jets and temperatures from -40 °C to 65 °C
  • PoE+ input powers the unit through a single shielded Gigabit cable
  • Internal and external antennas extend outdoor coverage up to 320 m
  • Wall or pole mounting suits parks, farms and parking lots

Outdoor Wi-Fi 6 access point

The Cudy AP3000 Outdoor is a pole or wall mounted wireless access point built for parks, farms and parking lots. Its IP65 enclosure withstands temperatures from -40°C to 65°C and 6 kV surge protection. The unit includes internal and external antennas and is powered by PoE+ or a power adapter.

Gigabit Ethernet and PoE+ limits

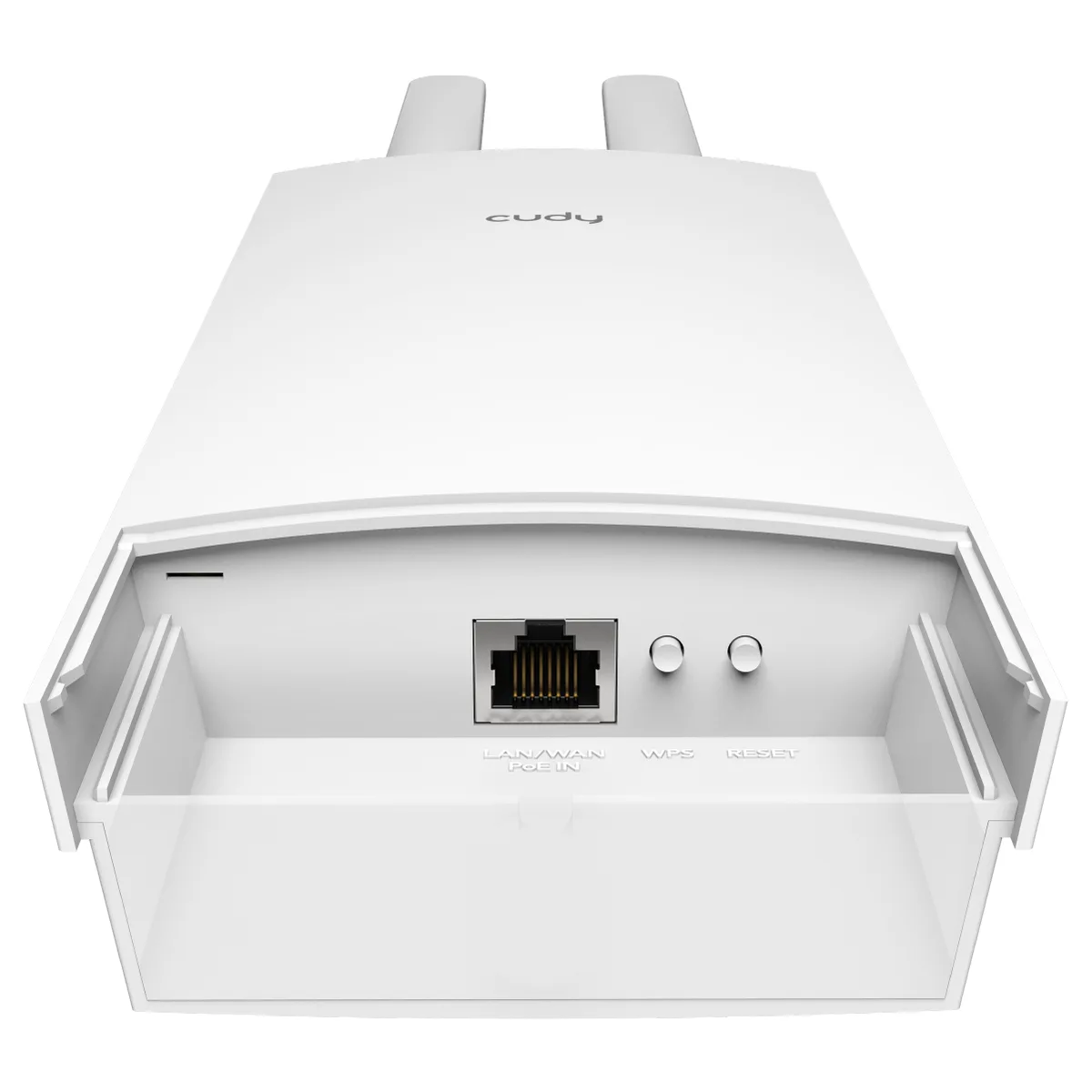

A single shielded Gigabit RJ45 port handles both WAN and LAN traffic at up to 1000 Mbps and accepts 802.3at PoE+ input between 48 V and 57 V. The wired link caps wireless throughput at one gigabit per second regardless of the radio rate. Passive PoE on the same voltage range is also supported.

AX3000 dual band capacity

The 4 stream radio delivers 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for a combined 2976 Mbps. In open outdoor conditions the signal reaches up to 320 m. High density client loads will reduce per user speed and effective range well below the peak figures.

أبرز المميزات

  • Wi-Fi 6 delivers up to 2402 Mbps on the 5 GHz band
  • IP65-rated enclosure withstands dust, water jets and temperatures from -40 °C to 65 °C
  • PoE+ input powers the unit through a single shielded Gigabit cable
  • Internal and external antennas extend outdoor coverage up to 320 m
  • Wall or pole mounting suits parks, farms and parking lots

المواصفات

BrandCudy
SeriesAP3000
ModelAP3000 Outdoor
Part NumberAP3000 Outdoor
StandardsIEEE 802.11ax
WiFi GenerationWi-Fi 6
Wireless Data RatesUp to 2402Mbps
Frequency Band2.4 GHz / 5 GHz
AntennaInternal and External Antenna
Mounting LocationIndoor / Outdoor
Operating RangeOutdoor: Up to 320 m
InterfaceGigabit RJ45
LEDsSystem
ButtonsWPS, Reset
WAN Ports1 x 10/100/1000M
LAN Ports1 x 10/100/1000M
Power SupplyPoE+ / Power Adapter
Sports TeamNO
Temperature-40°C - 65°C (-40°F - 149°F)
Humidity0% - 100%, Non-Condensing
Dimensions197.5mm
Weight455 g
وزن الشحنة0.85 kg
أبعاد الطرد324 × 107 × 85 mm

أسئلة حول هذا المنتج

Should I pick the 2.4 GHz or 5 GHz band for my outdoor deployment?

The AP3000 Outdoor runs both bands simultaneously — 2.4 GHz reaches farther through obstacles while 5 GHz delivers the higher 2402 Mbps link rate for nearby devices.

What does the 2402 Mbps figure mean once the unit is mounted outside?

That is the maximum 5 GHz PHY rate under Wi-Fi 6; real-world throughput will be lower and depends on client capability, channel width and interference.

What does the PoE+ port actually power and what voltage does it accept?

The single shielded Gigabit RJ45 accepts 48–57 V passive PoE or 802.3at PoE+ and powers the whole access point without a separate adapter.
