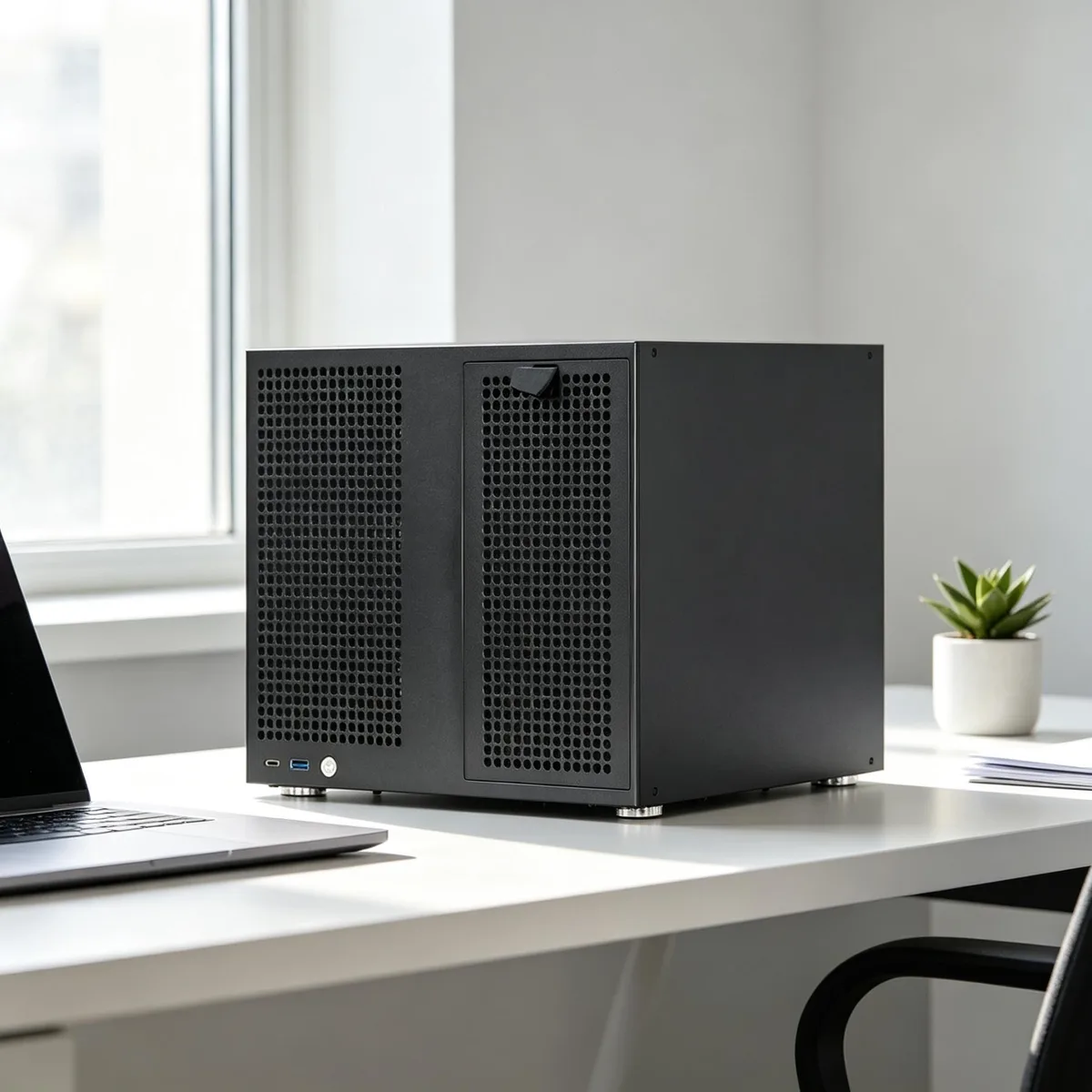

Black metal NAS enclosure, cube shape, eight front drive trays visible

Gintol

Gintol Sagittarius 8-bay NAS Case Accessory Black

SKU CH-99TA-RG1J1

A compact black case shell holding eight hot-swap 3.5-inch drives, supporting MATX or ITX boards with four full-height PCIe slots and an ATX power supply up to 170 mm

  • TypesSide Panel & Accessories
  • ColorsBlack
  • SpecificationsProduct dimensions:300*270*270mm
  • Sports Leagueno
  • FeaturesNO
  • Eight hot-swap 3.5-inch drive bays for dense storage
  • Compact 300*270*270 mm footprint fits tight spaces
  • Four full-height PCIe slots up to 220 mm for expansion
  • Dual 12025 fan mounts in drive bay and mainboard areas
  • ATX PSU support up to 170 mm with SFX/FLEX adapter option

Compact NAS enclosure for eight drives

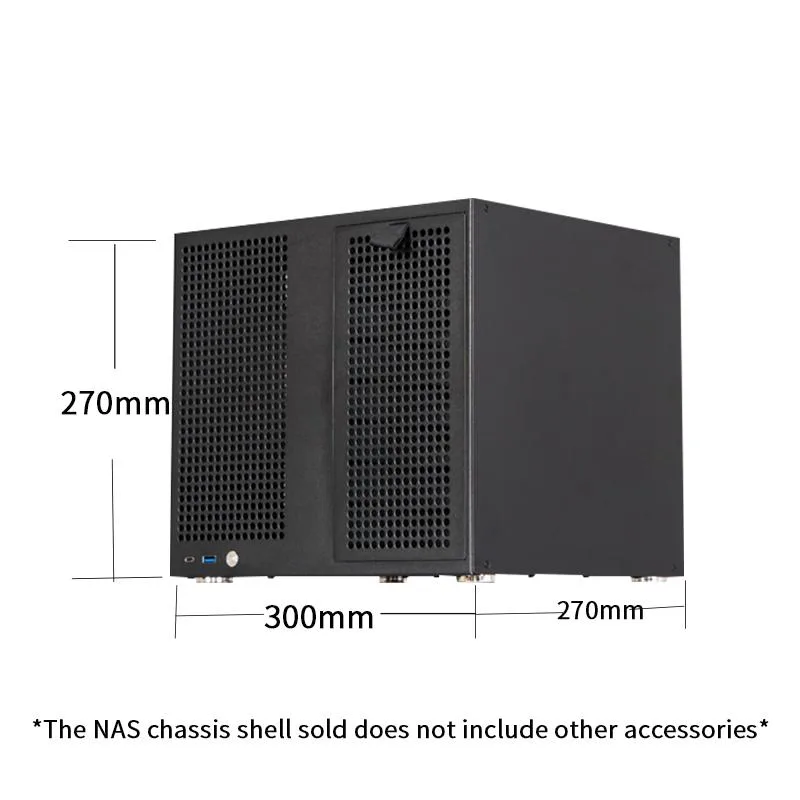

The Gintol Sagittarius case holds eight hot-swappable 3.5-inch bays and two 2.5-inch bays behind a 300*270*270mm shell. It accepts MATX or ITX motherboards up to 245*245mm and includes dual SATA backplanes with 4D and standard connectors. The bare chassis ships without fans or other accessories.

Verify motherboard, power and cooling limits

Confirm your board fits the 245*245mm maximum and that your ATX supply is no longer than 170mm; SFX and FLEX units work with an adapter plate. CPU coolers must stay under 55mm tall. Only two 12025 fan mounts serve the drive bay and two more serve the mainboard area.

Four full-height PCIe slots up to 220mm long

Expansion cards plug directly into the board and sit inside the same compact volume. The eight drive bays free internal space by removing separate cages, while the short power-supply limit keeps cable routing tight. Builders needing more than four slots or taller coolers should choose a larger chassis.

أبرز المميزات

  • Eight hot-swap 3.5-inch drive bays for dense storage
  • Compact 300*270*270 mm footprint fits tight spaces
  • Four full-height PCIe slots up to 220 mm for expansion
  • Dual 12025 fan mounts in drive bay and mainboard areas
  • ATX PSU support up to 170 mm with SFX/FLEX adapter option

المواصفات

ModelGintol
TypesSide Panel & Accessories
ColorsBlack
SpecificationsProduct dimensions:300*270*270mm
Sports Leagueno
FeaturesNO

أسئلة حول هذا المنتج

Does the Gintol Sagittarius case ship with fans or a power supply, or do I need to buy them separately?

The case shell is sold alone; you must add up to four 12025 fans and an ATX power supply no longer than 170 mm (SFX or FLEX units fit with an adapter plate).

Should I choose a MATX or ITX motherboard for this 8-bay NAS case?

Both MATX (245×245 mm) and ITX (170×170 mm) boards are supported; pick MATX if you need more expansion slots, ITX for a tighter build.

What does the 55 mm radiator height limit mean for my CPU cooler choice?

Only low-profile air coolers or all-in-one radiators 55 mm tall or less will clear the motherboard area.
