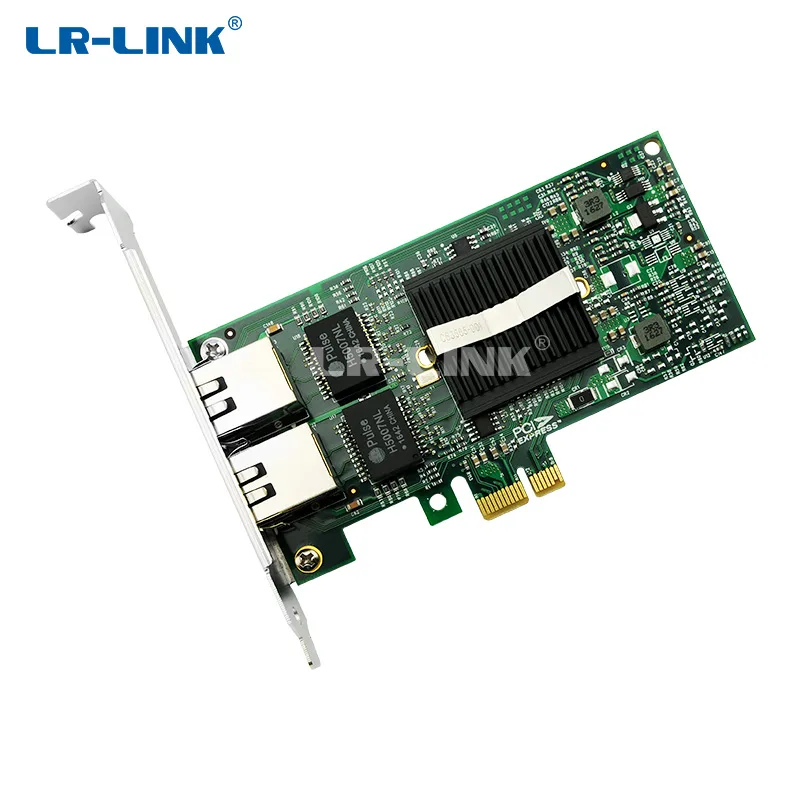

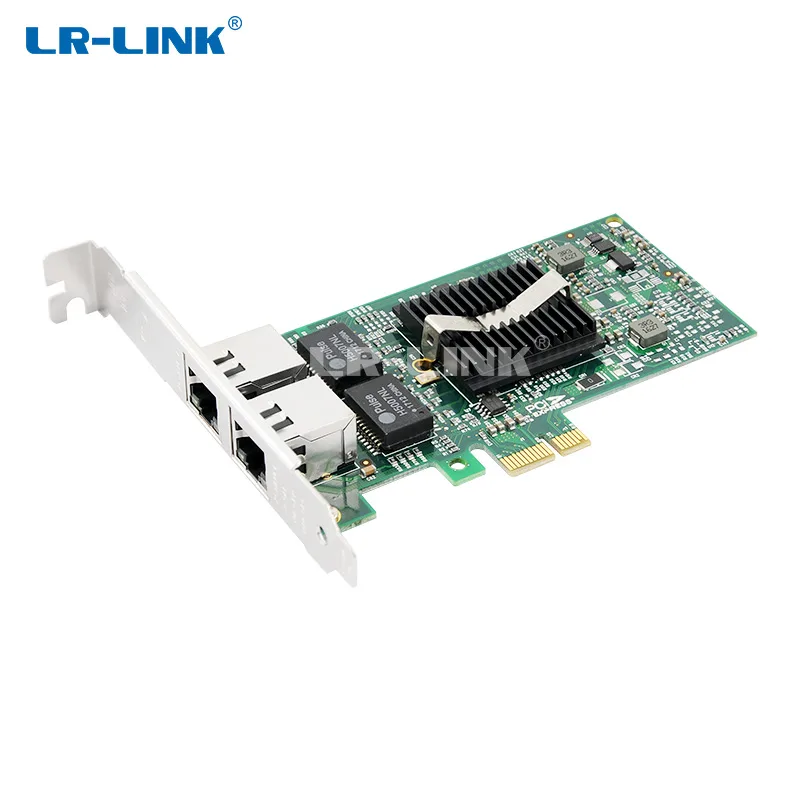

LR-LINK LREC9212PT dual-port Gigabit network card, PCIe x1, two RJ45 ports, full-height bracket

LR-LINK

LR-LINK LREC9212PT dual-port Gigabit network card

SKU CH-SED9-1ZZ9H

Adds two Gigabit RJ45 ports via a PCIe x1 slot using an Intel 82576 controller with Wake-on-LAN

  • Speed1000Mbps
  • Connectors2 x RJ45
  • InterfacePCI-Express
  • Wake On LANYes
  • Temperature0°C ~ 55°C
  • Humidity5 % ~ 95 % (Non-condensing)
  • Dual RJ45 ports deliver 1000Mbps wired throughput
  • Intel 82576 controller provides proven Gigabit Ethernet reliability
  • PCI Express 2.1 x1 interface scales to x4 x8 x16 slots
  • Multi-core optimisation balances interrupts across processor queues
  • Broad OS support covers Windows Linux FreeBSD VMware Solaris

Dual-port Gigabit server adapter

The LR-LINK LREC9212PT adds two RJ45 copper ports to a server or workstation through a PCI Express x1 slot. It is built on the Intel 82576 controller for reliable 10/100/1000 connectivity in virtualised or iSCSI boot environments.

Sustained multi-core throughput

Multiple transmit and receive queues spread interrupts across processor cores, lowering per-core load during continuous traffic. The PCIe 2.1 x1 link delivers dedicated bandwidth that does not saturate under typical Gigabit line-rate conditions.

Single-slot PCIe x1 form factor

The card fits any x1, x4, x8 or x16 slot and ships with both low-profile and full-height brackets. It operates from 0 °C to 55 °C and supports Windows, Linux, FreeBSD, VMware ESX and Solaris without extra drivers.

أبرز المميزات

  • Dual RJ45 ports deliver 1000Mbps wired throughput
  • Intel 82576 controller provides proven Gigabit Ethernet reliability
  • PCI Express 2.1 x1 interface scales to x4 x8 x16 slots
  • Multi-core optimisation balances interrupts across processor queues
  • Broad OS support covers Windows Linux FreeBSD VMware Solaris

المواصفات

BrandLR-LINK
ModelLREC9212PT
Speed1000Mbps
Connectors2 x RJ45
InterfacePCI-Express
Wake On LANYes
Temperature0°C ~ 55°C
Humidity5 % ~ 95 % (Non-condensing)
Class1000M, PCIE

أسئلة حول هذا المنتج

How much heat does the LREC9212PT generate when running all day at 1000Mbps?

The card is rated for an operating temperature range of 0°C to 55°C, so it stays within normal limits during continuous Gigabit traffic.

What slot and bracket does the LREC9212PT need to work?

It requires a PCI Express x1 slot (version 2.1, 2.5 GT/s) and fits both low-profile and full-height brackets; the slot can also be x4, x8 or x16.

Will the LREC9212PT work in a Windows Server 2008 R2 box I still run?

Yes — the driver list explicitly includes Windows Server 2008 R2, so the dual-port Intel 82576 adapter will function on that older OS.
