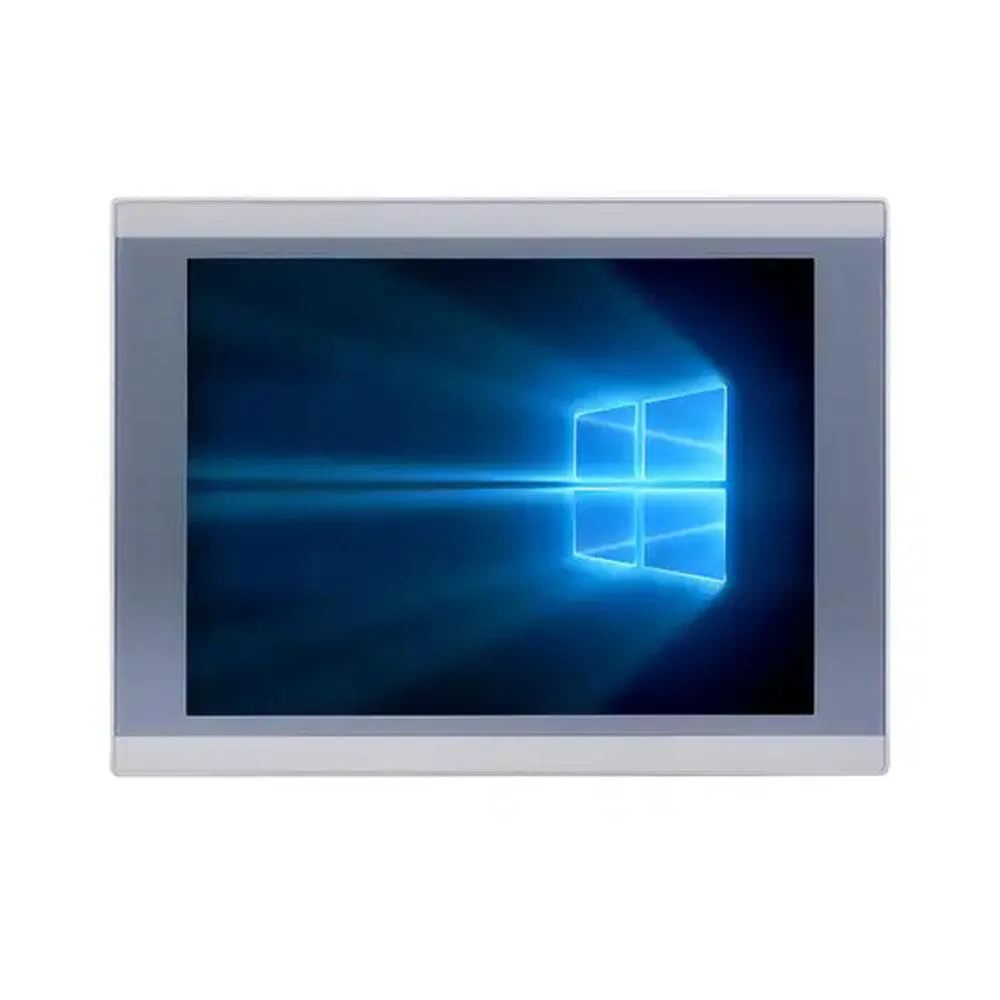

Silver 12.1 inch industrial all-in-one panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

partaker A1-PA-121TPC-CE6B(I78)-8G256G all-in-one PC

SKU CH-XV0T-R6WNA

12.1-inch IP65 industrial all-in-one with 10-point capacitive touch, Intel Core i7-8565U, 8GB DDR4, 256GB SSD, Windows 11 Pro, fanless aluminium design

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD None

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • IP65 front panel resists dust and water jets in harsh environments
  • 10-point capacitive touch screen enables precise multi-finger control
  • Fanless aluminium alloy chassis runs silently with zero moving parts
  • Intel Core i7-8565U up to 4.60 GHz delivers responsive performance for industrial workloads
  • Expandable to 64 GB DDR4 via two SODIMM slots for future memory upgrades

Industrial Panel PC for Embedded Use

This 12.1 inch all-in-one computer combines an Intel Core i7-8565U processor with a projected capacitive touchscreen rated IP65 at the front. It ships with Windows 11 Pro installed and 8 GB of DDR4 memory alongside a 256 GB SSD. The fanless aluminium chassis is built for continuous 7 x 24 hour operation in industrial environments.

Sustained Load Behaviour

Passive cooling across the aluminium alloy body keeps the system silent while dissipating heat during long shifts. The processor runs at up to 4.60 GHz with 8 MB cache, supported by two SODIMM slots that accept up to 64 GB of DDR4-2400 memory. Operating temperature ranges from 0 to 50 °C with the installed SSD, ensuring stability in demanding settings.

Build Quality and Connectivity

The front panel meets IP65 protection and withstands 200 million touch events with 86 % light transmittance. Mounting options include embedded, wall, desktop or cantilever installations using the supplied buckle kits and a 301 x 229 mm cut-out. I/O covers 12 V DC, HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio in and out, two COM ports and a power switch, plus a Mini PCIe slot with SIM holder for wireless expansion.

أبرز المميزات

  • IP65 front panel resists dust and water jets in harsh environments
  • 10-point capacitive touch screen enables precise multi-finger control
  • Fanless aluminium alloy chassis runs silently with zero moving parts
  • Intel Core i7-8565U up to 4.60 GHz delivers responsive performance for industrial workloads
  • Expandable to 64 GB DDR4 via two SODIMM slots for future memory upgrades

المواصفات

ModelA1-PA-121TPC-CE6B(I78)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How does the fanless aluminium chassis handle heat when the Core i7-8565U runs at 4.60 GHz continuously?

The aluminium alloy body acts as a passive heatsink; with no fans there is no acoustic noise and the unit is rated for 0–50 °C ambient with the installed SSD.

Which peripherals and cables must I already have to commission this panel PC?

You need a 12 V DC supply (the 100–240 V AC adapter and cord are included), plus any USB, HDMI, VGA, LAN, COM or audio devices you plan to connect.

Can I keep my existing DDR4-2400 SODIMM modules when upgrading the 8 GB fitted memory?

Yes, the board accepts two DDR4-2400 SODIMMs up to 64 GB total, so compatible modules can be retained or added.
