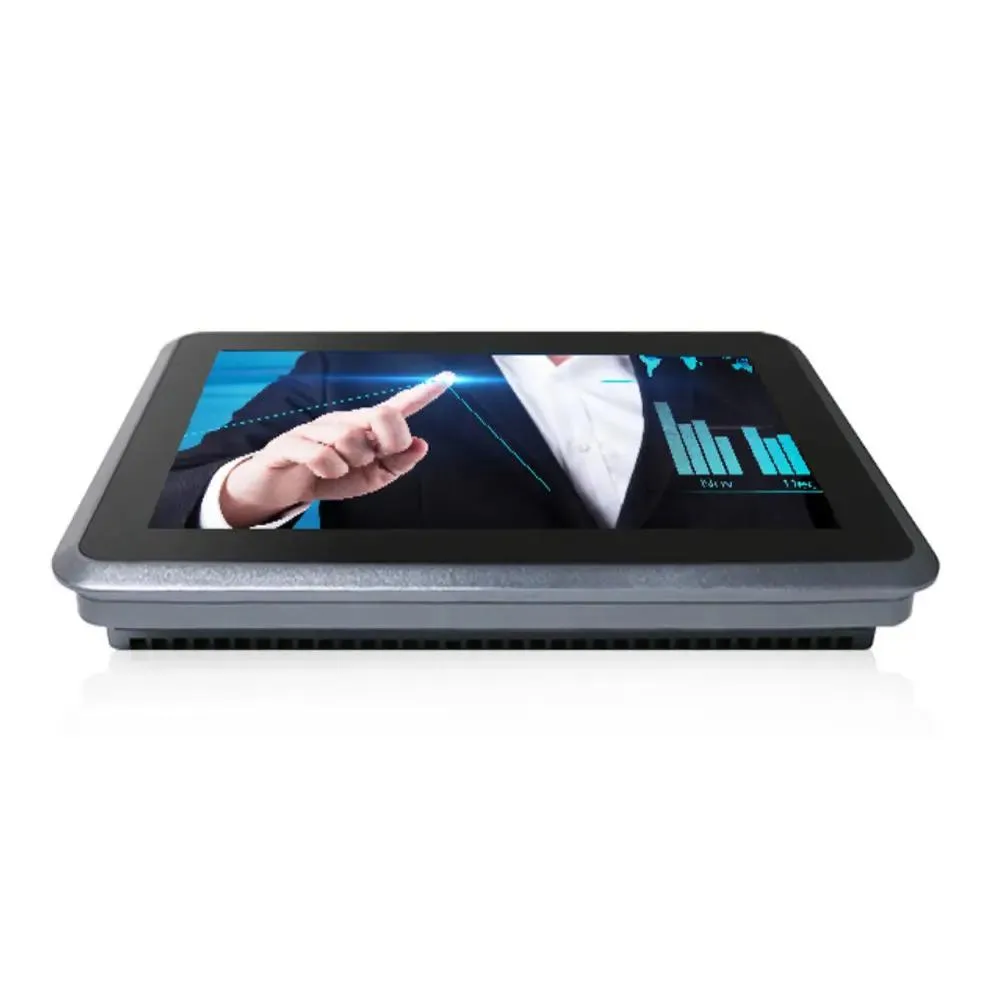

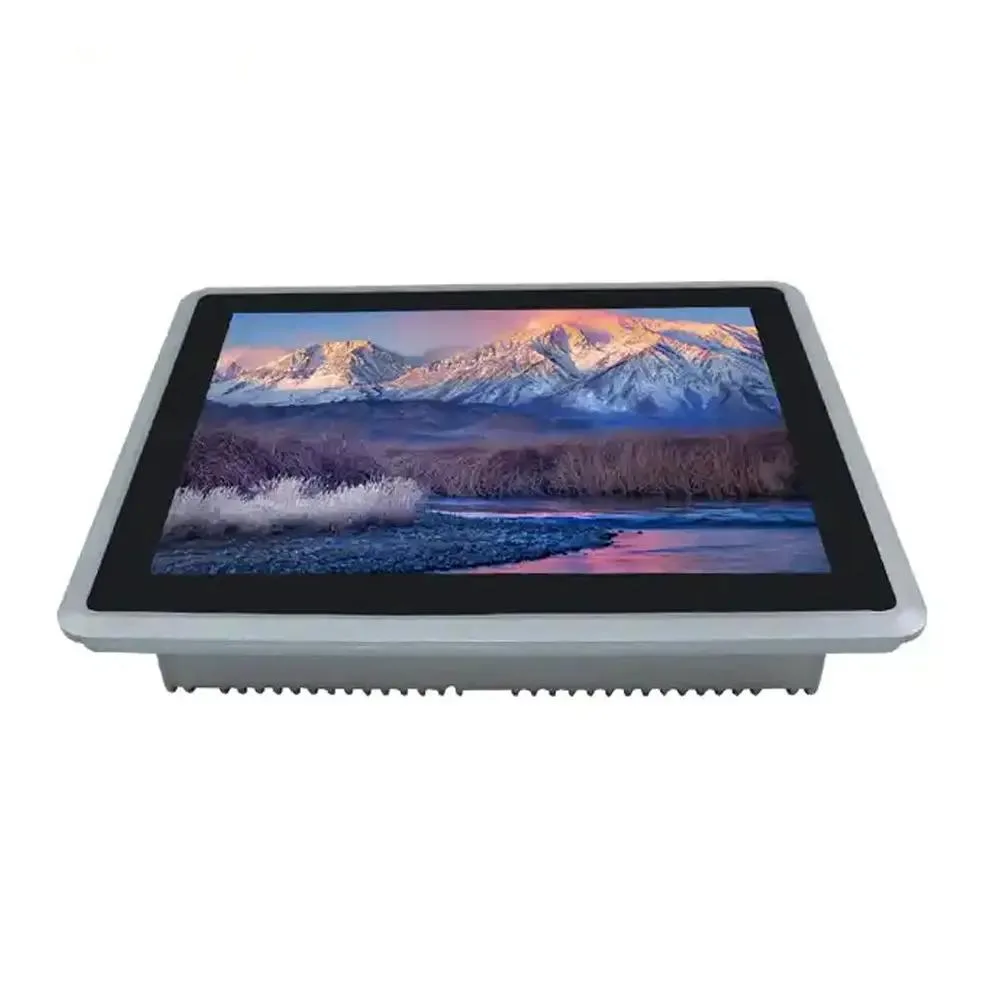

Compact 12.1 inch industrial all-in-one PC with flat IP65 front panel and resistive multi-touch screen

partaker

partaker A19 12.1" all-in-one PC i7-10510U 16GB 256GB

SKU CH-HY9Z-8SSYJ

Compact 12.1-inch industrial all-in-one with IP65 front panel, multi-touch resistive screen, Core i7-10510U, 16GB DDR4, 256GB SSD, Windows 11 Pro, fanless aluminium chassis and wide 9-36V DC input

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i7 10th Gen

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • Core i7-10510U with 16 GB DDR4 handles multi-tasking workloads
  • Windows 11 Pro pre-installed for immediate deployment
  • 9–36 V wide-range DC input suits industrial power environments

Industrial All-in-One for Embedded Deployment

The Partaker A19 is a 12.1-inch fanless panel PC built for continuous industrial operation. Its IP65-rated front panel resists dust and water ingress while the aluminium chassis dissipates heat silently. Windows 11 Pro comes pre-installed for immediate deployment in machine automation, kiosk or process-control environments.

IP65 Front Panel with Resistive Multi-Touch

The decisive specification is the 1024 x 768 resistive touchscreen sealed to IP65 across the full flat front surface. This rating guarantees protection against jets of water and fine particulates, allowing the unit to be mounted directly on production equipment or outdoor enclosures without additional sealing.

Fanless Cooling Across Wide Temperature Range

Passive aluminium alloy cooling eliminates moving parts and acoustic noise while supporting ambient temperatures from minus 20 to plus 60 degrees Celsius with an industrial SSD. The 9 to 36 volt DC Phoenix input tolerates unstable supply voltages common in factory and vehicle installations.

أبرز المميزات

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • Core i7-10510U with 16 GB DDR4 handles multi-tasking workloads
  • Windows 11 Pro pre-installed for immediate deployment
  • 9–36 V wide-range DC input suits industrial power environments

المواصفات

ModelA19-New-I7-10810U-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How does the 4.90 GHz boost speed of the i7-10510U perform inside this fanless chassis?

The aluminium-alloy body acts as a heatsink, so the CPU can reach its 4.90 GHz boost for short bursts before thermal limits throttle it back to a sustainable clock that still handles typical industrial workloads.

What does the 9-36 V Phoenix connector actually power, and what voltage range is safe?

The 2-pin Phoenix input accepts any DC source between 9 V and 36 V, feeding the whole system — motherboard, 12.1" panel, and I/O — so a 12 V or 24 V industrial supply works without an extra adapter.

What are the exact cut-out dimensions for embedded mounting this 12.1" unit?

The front bezel needs a 298.5 mm by 237 mm rectangular opening; the 60 mm depth and four VESA points then let you secure the 2.9 kg chassis from behind.
