15-inch industrial all-in-one with flat IP65 front panel, aluminium fanless chassis, resistive multi-touch screen

partaker

Partaker A20 all-in-one PC, 15" IP65, i7-10510U, 8GB DDR4, 128GB SATA

SKU CH-WFSC-B7XP4

15-inch IP65 touchscreen all-in-one with Intel Core i7-10510U, 8GB DDR4 and 128GB SATA storage

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • Maximum Memory Supported32 GB
  • IP65 front panel resists dust and water ingress
  • Intel Core i7-10510U delivers up to 4.90 GHz performance
  • Fanless aluminium alloy chassis runs silently 24/7
  • Windows 11 Pro 64-bit ready for immediate deployment
  • 9-36 V DC input suits industrial power environments

Industrial touch panel

The Partaker A20 is a 15-inch all-in-one computer with an IP65-rated front panel and a resistive multi-touch screen. It runs on an Intel Core i7-10510U processor with Intel UHD Graphics and comes with Windows 11 Pro pre-installed. The fanless aluminium chassis is built for continuous 7x24 operation in industrial environments.

8 GB DDR4 and 128 GB SATA

The system ships with 8 GB of DDR4-2666 memory in a single SODIMM slot, expandable to 32 GB. Storage uses a 128 GB M.2 2280 SATA SSD, with an additional 2.5-inch SATA bay that supports RAID 0 or 1. This capacity handles typical HMI, SCADA and edge-gateway workloads; heavier local databases or image buffers will require the extra drive bay.

Fanless cooling, 9-36 V input

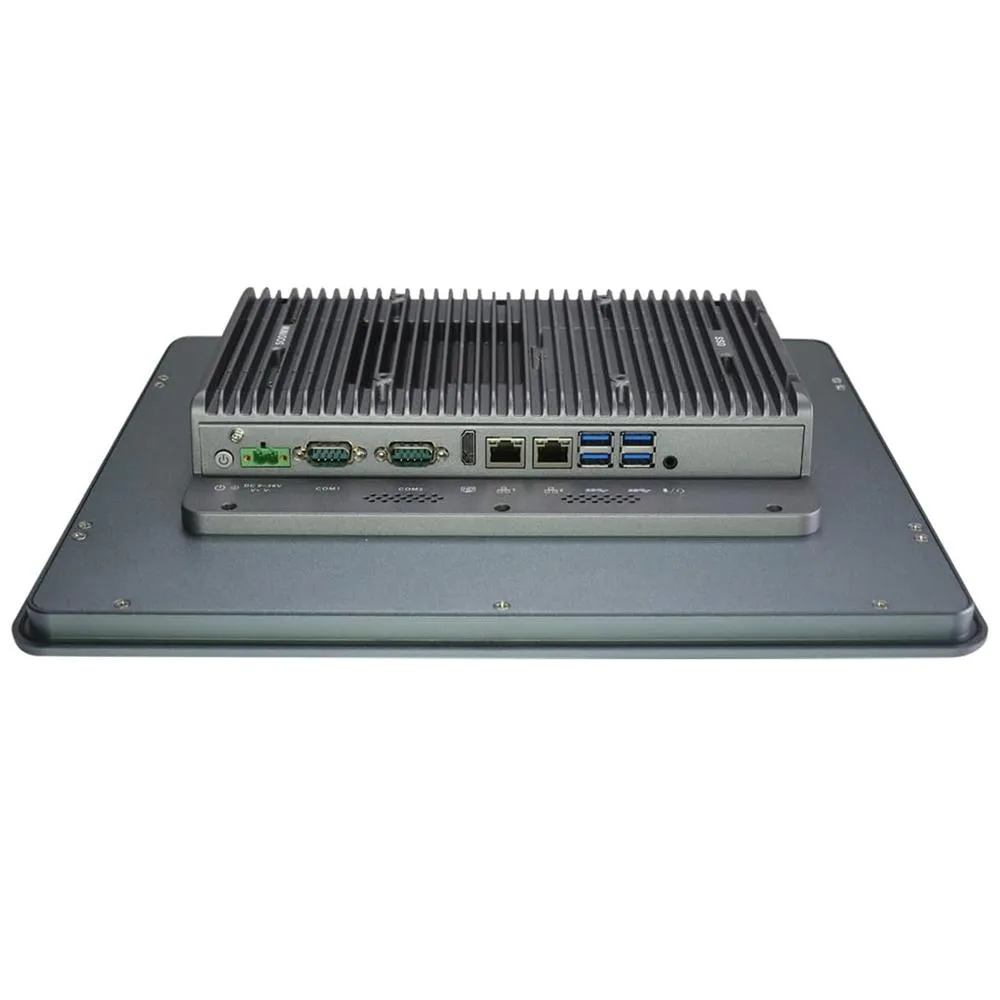

Passive aluminium cooling keeps the unit silent and eliminates moving-part failures. The wide-range 9-36 V DC Phoenix connector suits unstable industrial power, while dual Intel gigabit LAN ports provide redundant networking. Operating temperature spans 0 to 50 °C for commercial drives and -20 to 60 °C with an industrial SSD.

أبرز المميزات

  • IP65 front panel resists dust and water ingress
  • Intel Core i7-10510U delivers up to 4.90 GHz performance
  • Fanless aluminium alloy chassis runs silently 24/7
  • Windows 11 Pro 64-bit ready for immediate deployment
  • 9-36 V DC input suits industrial power environments

المواصفات

ModelA20-New-I7-10810U-8G128G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
HDDNo
Screen Size15"
TouchscreenYes

أسئلة حول هذا المنتج

Will the 9–36 V Phoenix connector power the A20 from my existing 24 V industrial supply?

Yes, the 2-pin Phoenix input accepts 9–36 V DC, so a 24 V source is within range.

How can I confirm the IP65 front panel seal is intact after installation?

Inspect the full-flat bezel for gaps, then run the multi-touch resistance screen across its 1024×768 area; consistent response indicates the seal holds.

Does the box include the 12 V 5 A AC adapter or must I order it separately?

The 12 V 5 A adapter is supplied; the 9–36 V Phoenix connector is also fitted for direct DC wiring if preferred.
