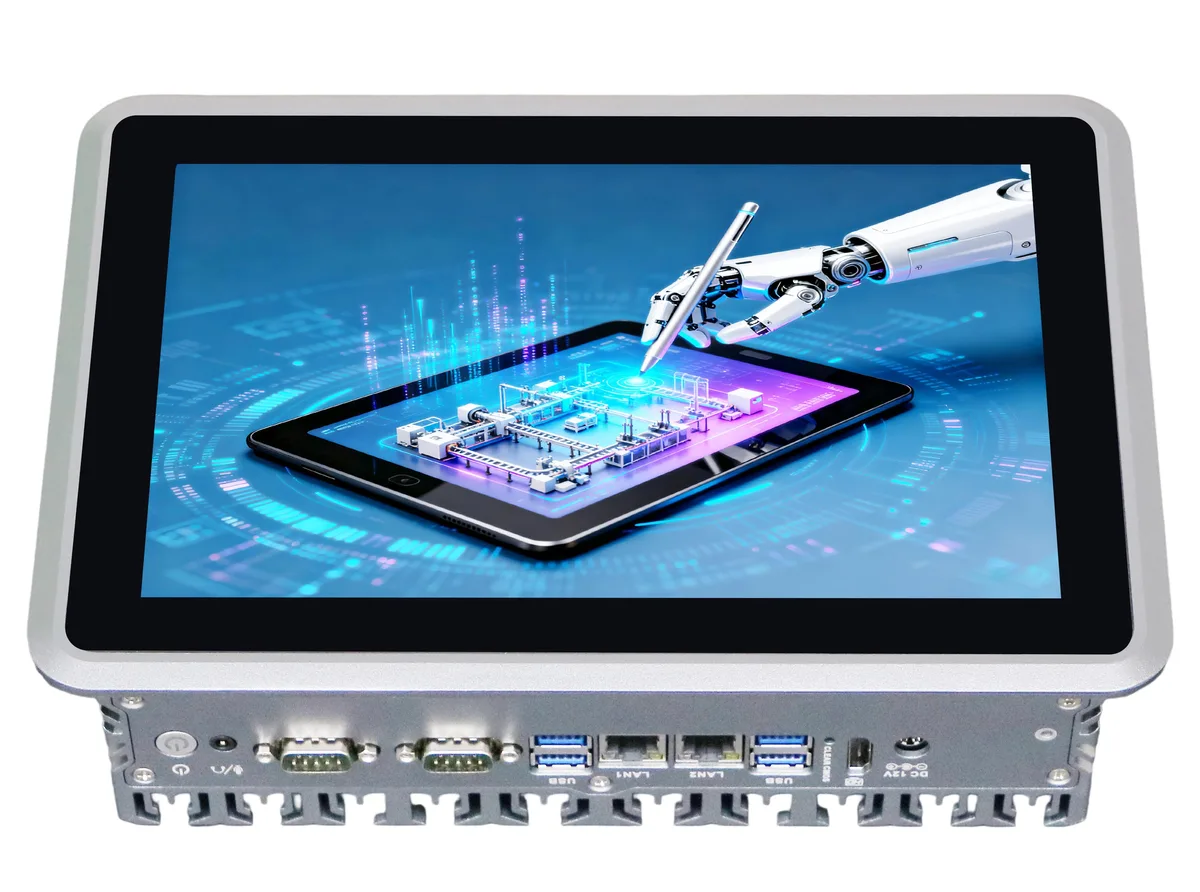

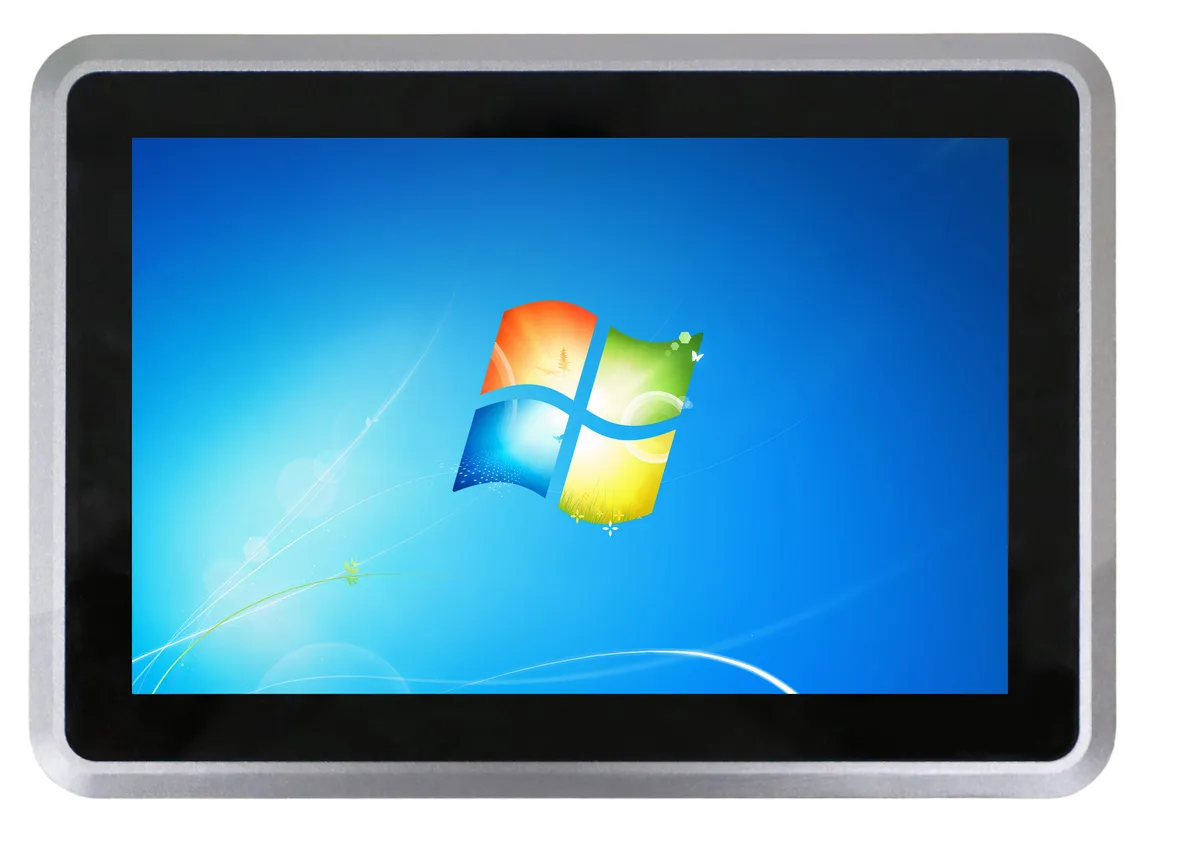

Gray fanless all-in-one with 10.1 inch flat touchscreen and aluminum shell

partaker

Partaker A25 10.1" all-in-one PC J1900 8GB 128GB

SKU CH-Y0PT-5BR94

A 10.1-inch industrial all-in-one PC with an IP65-rated capacitive touchscreen, fanless aluminium chassis, Intel Celeron J1900 processor, 8GB DDR3 RAM and 128GB storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU NameIntel Celeron J1900

Option 8GB RAM / 128GB SSD

  • Fanless aluminium alloy chassis runs silently in industrial settings
  • IP65-rated flat front panel resists dust and water ingress
  • 1-inch capacitive multi-touch IPS display enables direct control without peripherals
  • Dual Gigabit LAN plus two RS232/485 COM ports connect diverse equipment
  • Windows 10 Pro on 8 GB DDR3 and 128 GB mSATA SSD ready for deployment

Industrial all-in-one with IP65 front

The Partaker A25 is a 10.1 inch fanless panel PC built around an Intel Celeron J1900 processor with 8 GB DDR3 memory and a 128 GB mSATA drive. Its flat aluminium alloy chassis carries a multi-touch IPS display at 1280 by 800 resolution and ships with Windows 10 Pro pre-installed. Dual Gigabit LAN ports and two RS232/485 serial ports provide industrial connectivity out of the box.

Suited for cabinet-mounted HMIs and CNC consoles

This unit targets integrators who need a compact, waterproof-front terminal that can be VESA or embedded mounted without active cooling. Buyers who require more than 8 GB of memory or internal storage beyond the single mSATA slot should look elsewhere. The DC 12 V input with optional 9 to 36 V wide range also limits use to sites that can supply that voltage.

VESA or embedded mounting with minimal cabling

Installation consists of securing the panel to a VESA arm or cutting a cutout for embedded fit, then connecting power and the required I/O cables. The front panel meets IP65 so sealing the bezel correctly is the only common pitfall; an incomplete gasket seat lets dust or water past the rating. The fanless design removes filter maintenance but demands adequate airflow around the aluminium shell to stay within the minus 20 to plus 60 Celsius operating window.

أبرز المميزات

  • Fanless aluminium alloy chassis runs silently in industrial settings
  • IP65-rated flat front panel resists dust and water ingress
  • 1-inch capacitive multi-touch IPS display enables direct control without peripherals
  • Dual Gigabit LAN plus two RS232/485 COM ports connect diverse equipment
  • Windows 10 Pro on 8 GB DDR3 and 128 GB mSATA SSD ready for deployment

المواصفات

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU NameIntel Celeron J1900
Screen Size10.1"
Screen TypeMulti-Touch Screen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Does the Partaker A25 need an external power brick, or does it run directly from a 12 V DC source?

The unit accepts DC 12 V input and can be configured for a 9–36 V wide-range supply, so it connects straight to an industrial DC rail without a separate brick.

Will the dual RS-232/485 serial ports on the A25 work with legacy PLCs that only speak RS-232?

Yes, COM1 and COM2 are selectable between RS-232 and RS-485, letting you keep older RS-232 PLCs while adding RS-485 devices on the same ports.

How can I verify the capacitive touch layer is registering every tap after installation?

Open the Windows calibration utility; the panel is rated for over 50 million touches, so each press should appear instantly on the 1280 × 800 display.
