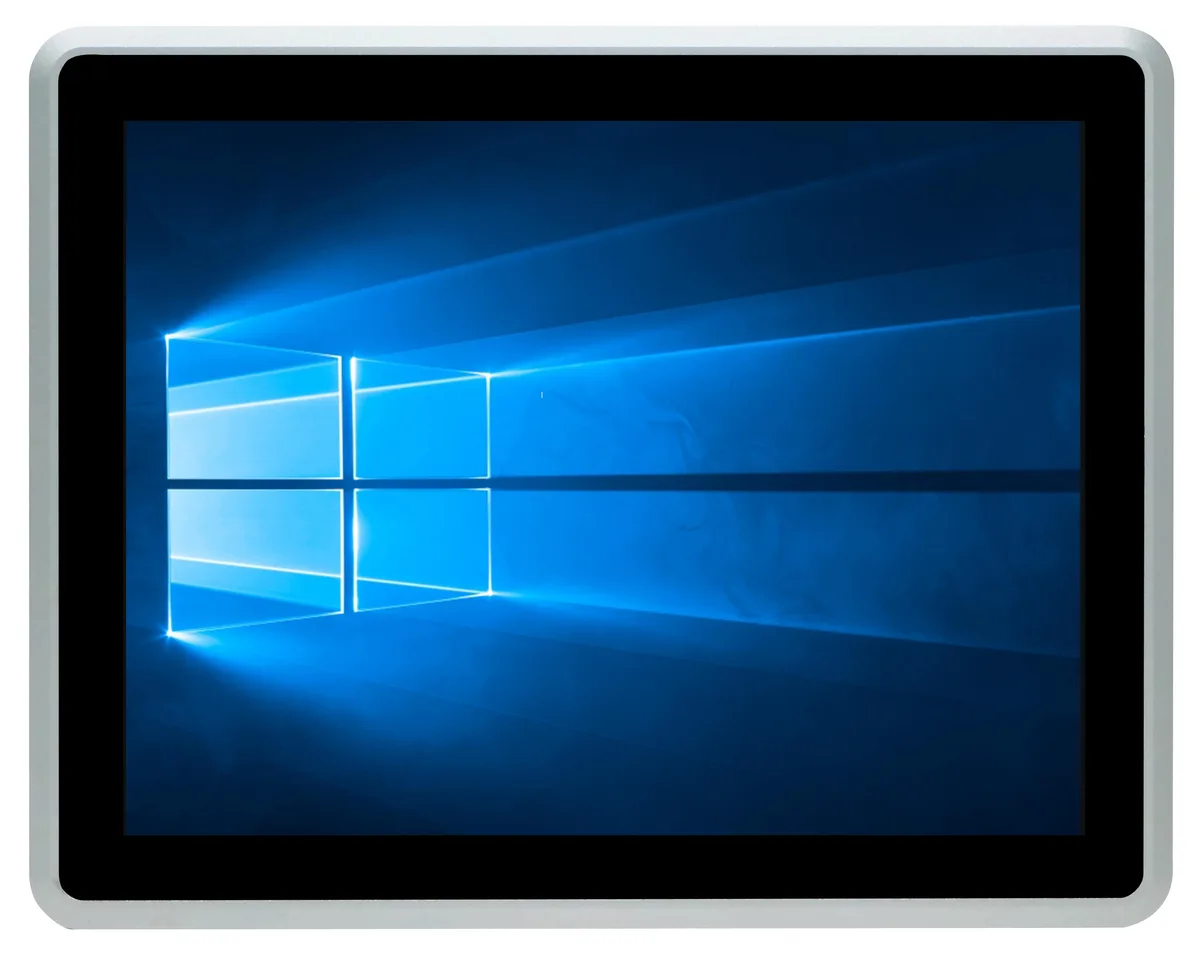

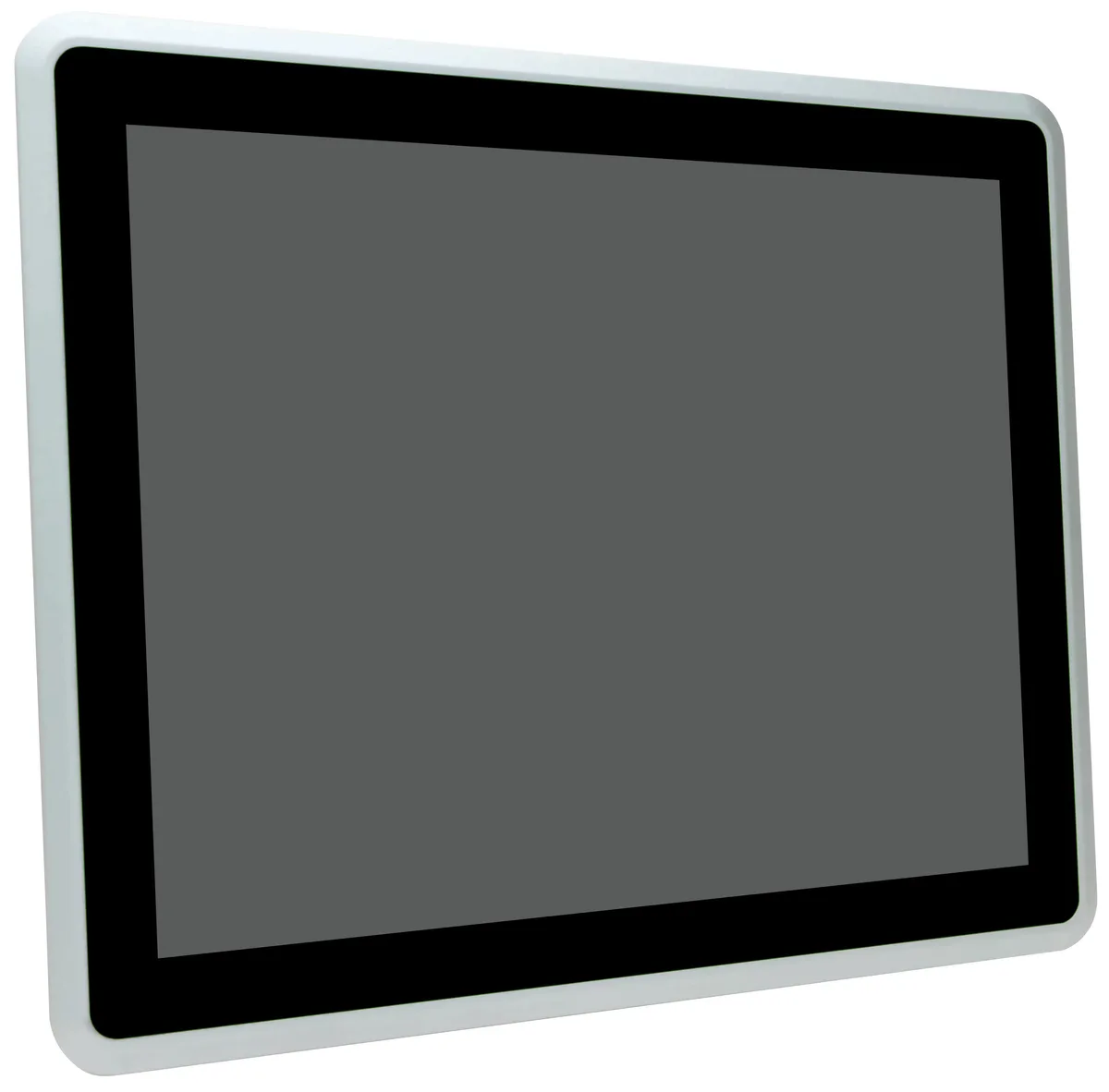

Gray 15-inch all-in-one panel PC with IP65 capacitive touchscreen and aluminum alloy shell

partaker

partaker A27 15" IP65 all-in-one PC i5-7200U 16GB 256GB

SKU CH-2ZH1-Y3217

A 15-inch IP65-rated fanless panel PC with capacitive touchscreen, Intel Core i5-7200U, 16GB DDR4 and 256GB storage for industrial automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 7th Gen
  • CPU NameIntel Core i5-7200U

A27 15" Capacitive I5 7200U 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Dual Gigabit LAN ports plus two serial ports for industrial connectivity
  • Intel Core i5-7200U with 16 GB DDR4 handles automation workloads
  • 15" capacitive touchscreen at 1024×768 gives clear multi-touch control

Industrial 15-inch all-in-one

The Partaker A27 is a 15 inch fanless panel PC with an IP65-rated front panel and a capacitive multi-touch display. It ships with Windows 10 Pro, an Intel Core i5-7200U processor, 16 GB of DDR4 memory and a 256 GB mSATA drive. The aluminium alloy chassis is built for embedded mounting in automation, logistics, medical and monitoring environments.

Memory and storage headroom

The board provides two DDR4 slots supporting up to 32 GB, so the installed 16 GB leaves room for expansion when workloads grow. The single mSATA slot holds the supplied 256 GB drive; adding more internal capacity requires using the mini PCIe slots for additional storage modules. The dual-core CPU reaches 3.10 GHz, which suits typical HMI and edge tasks but limits heavy multi-threaded workloads.

Build, connectors and daily use

The sealed front panel resists dust and water jets, while the fanless design eliminates moving parts for silent, maintenance-free operation across -20 to +60 °C. A 355×279 mm cutout enables flush panel mounting. Dual Gigabit Ethernet, two configurable RS232/485 serial ports, four USB ports, HDMI and audio provide extensive industrial I/O. Two mini PCIe slots accept Wi-Fi, Bluetooth or cellular cards, and an optional 9–36 V DC input widens power-supply choices.

أبرز المميزات

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Dual Gigabit LAN ports plus two serial ports for industrial connectivity
  • Intel Core i5-7200U with 16 GB DDR4 handles automation workloads
  • 15" capacitive touchscreen at 1024×768 gives clear multi-touch control

المواصفات

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 7th Gen
CPU NameIntel Core i5-7200U
Screen Size15"
Screen TypeMulti-Touch Screen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Will the 1024×768 15" panel and dual Gigabit Ethernet ports integrate with my existing RS-232/485 equipment?

The unit provides two configurable COM ports for RS-232/485 plus dual Realtek Gigabit LAN, so legacy serial gear and modern networked devices connect simultaneously.

How can I verify the fanless i5-7200U is running within its -20 to +60 °C range after installation?

The AMI EFI BIOS exposes a hardware-monitor page showing live CPU temperature; watchdog levels 0-255 can also log thermal events for remote review.

Does the box contain the 12 V DC power adapter and panel-mount brackets for the 355×279 mm cutout?

The standard shipment includes the 12 V DC adapter; panel-mount brackets and optional GPIO or extra COM/USB cables are sold separately.
