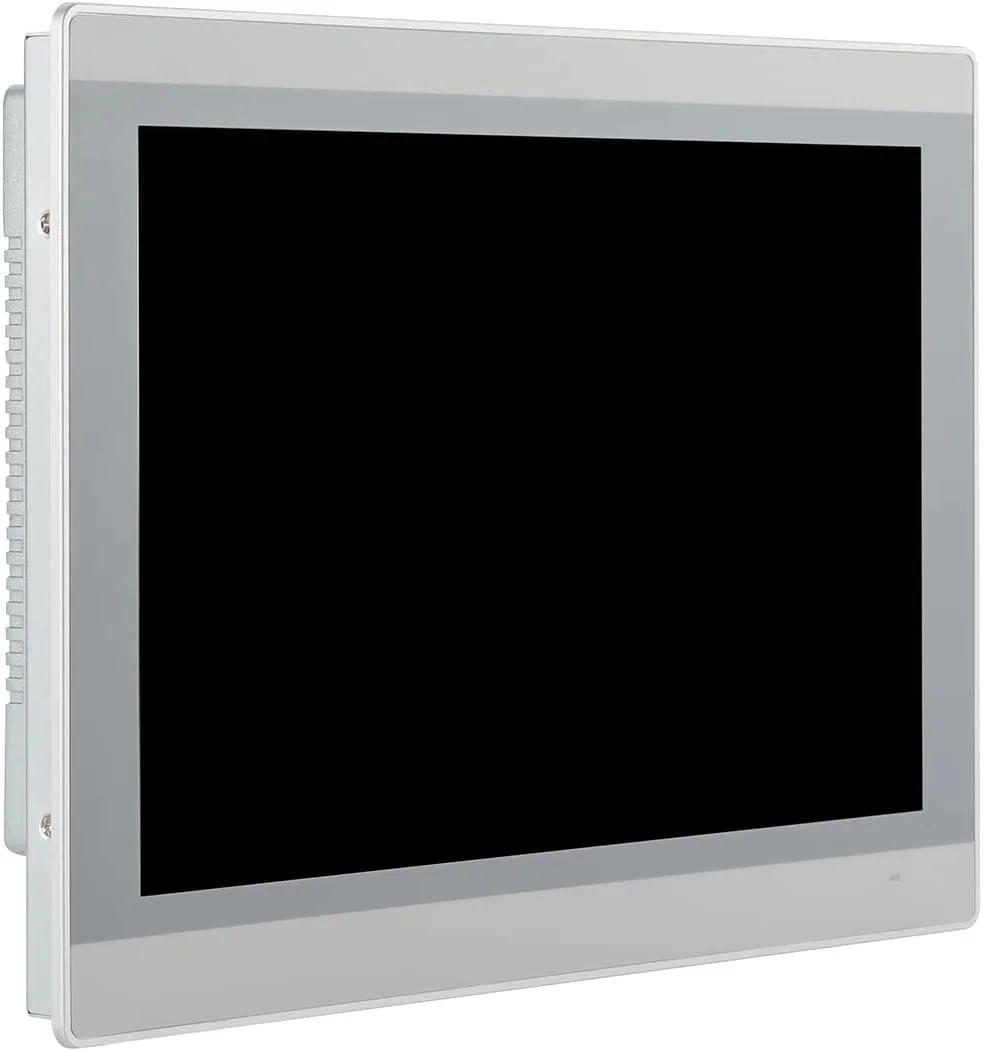

Compact 13.3 inch industrial panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A3 13.3" all-in-one PC i7-8565U 8GB DDR4 256GB

SKU CH-BWMJ-51GZW

A 13.3" industrial panel PC with IP65 front protection, resistive touchscreen, fanless aluminium cooling, i7-8565U processor, 8GB DDR4, 256GB SSD and Windows 11 Pro

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • SSD256GB

Memory Capacity 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD None

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • IP65 front panel resists dust and water jets in harsh environments
  • Intel Core i7-8565U up to 4.60 GHz handles 24/7 industrial workloads
  • Fanless aluminium alloy cooling runs silently with no moving parts to fail
  • 3″ 5-wire resistive touch rated for 35 million touches
  • Windows 11 Pro pre-installed for immediate deployment

Industrial 13.3″ panel PC

The Partaker A3 combines a 13.3″ TFT LED display with an Intel Core i7-8565U processor, 8 GB DDR4 memory and a 256 GB SSD in a fanless aluminium chassis rated IP65 on the front. It targets automation, kiosk and embedded deployments that need silent 24/7 operation and resistive touch input.

Check power, mounts and OS

Verify that a 12 V DC supply (100–240 V AC adapter included) is available at the install site and that the 326 × 232 mm cut-out matches your panel opening. The unit ships with Windows 11 Pro; if your application requires Linux Ubuntu, plan a clean install. Confirm that the two COM ports and dual LAN interfaces satisfy your legacy and networking needs before ordering.

Fanless thermals and power

Passive aluminium cooling keeps the system silent while maintaining an operating range of 0–50 °C with the fitted SSD. The resistive touch layer transmits 80 ± 5 % at 550 nm and is rated for 35 million touches. Typical draw comes from the 12 V DC input; the 300 cd/m² backlight is rated for 20 000 hours minimum.

أبرز المميزات

  • IP65 front panel resists dust and water jets in harsh environments
  • Intel Core i7-8565U up to 4.60 GHz handles 24/7 industrial workloads
  • Fanless aluminium alloy cooling runs silently with no moving parts to fail
  • 3″ 5-wire resistive touch rated for 35 million touches
  • Windows 11 Pro pre-installed for immediate deployment

المواصفات

ModelA3-PA-133TPC-CE5A(I78)-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
SSD256GB
HDDNo
Screen Size13.3"
TouchscreenYes

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

What comes in the box and do I need to buy a power supply or mounting hardware separately?

The package includes the Partaker A3 panel PC, a 12 V power supply and a power cord. Mounting kits are also supplied, so no extra hardware is required for embedded, wall, desktop or cantilever installation.

Which memory and storage configuration should I choose if I need more than the standard 8 GB DDR4 and 256 GB SSD?

The board has two SODIMM slots supporting DDR4-2400 up to 64 GB, plus one mSATA, one M.2 2280 NVME PCIE X4/SATA and one 2.5" SATA bay for additional drives.

What does the 4.60 GHz turbo figure mean for continuous fanless operation in a 50 °C industrial cabinet?

The i7-8565U can reach 4.60 GHz on short bursts, but the aluminum-alloy fanless chassis is rated for 0–50 °C with an SSD, so sustained loads will throttle to stay within that thermal envelope.
