Black fanless aluminium mini PC, compact rectangular shape with front ports and rear I/O

partaker

Partaker B6 i5-6300U 16GB 256GB barebone mini PC

SKU CH-1XF0-E9Z1G

Fanless industrial mini PC with a 2.4 GHz dual-core i5-6300U, 16 GB DDR4, 256 GB SSD, dual Gigabit LAN, VGA and HDMI, plus two COM ports

  • ColorBlack
  • CPU TypeIntel Core i5 6th Gen

B6 CPU I5 6300U DDR4 16GB RAM / 256GB SSD

  • Fanless aluminium body runs silently in dusty industrial sites
  • Dual-core i5-6300U reaches 3.0 GHz turbo for responsive multitasking
  • 16 GB DDR4 and 256 GB M.2 2280 storage ready for embedded workloads

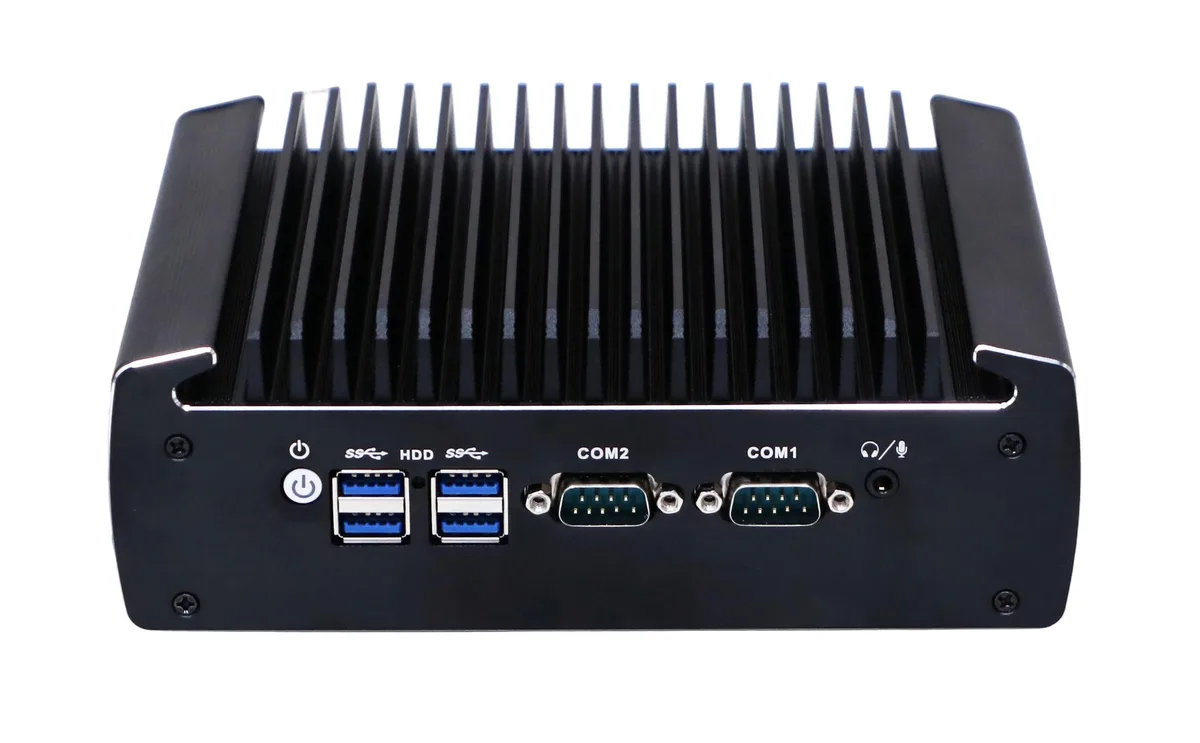

  • Six USB, two COM, dual Gigabit LAN plus Mini PCIe with SIM slot
  • Operates from -20 °C to +50 °C with TPM 2.0 and auto power-on

Fanless industrial mini PC

The Partaker B6 is a compact barebone system built around an Intel Core i5-6300U processor with two cores and four threads. It ships with 16 GB of DDR4 memory and a 256 GB M.2 2280 SSD installed. The aluminium alloy chassis operates silently without fans, making it suitable for dust-prone or noise-sensitive industrial deployments.

Sustained thermal performance

Passive cooling relies on the full metal case to dissipate heat across a wide temperature range. The supplier rates continuous operation from -20 °C to +50 °C when an industrial-grade SSD is fitted, and 0 °C to +40 °C with a commercial drive. This design avoids throttling caused by moving parts while maintaining stability during long duty cycles.

Interface and expansion limits

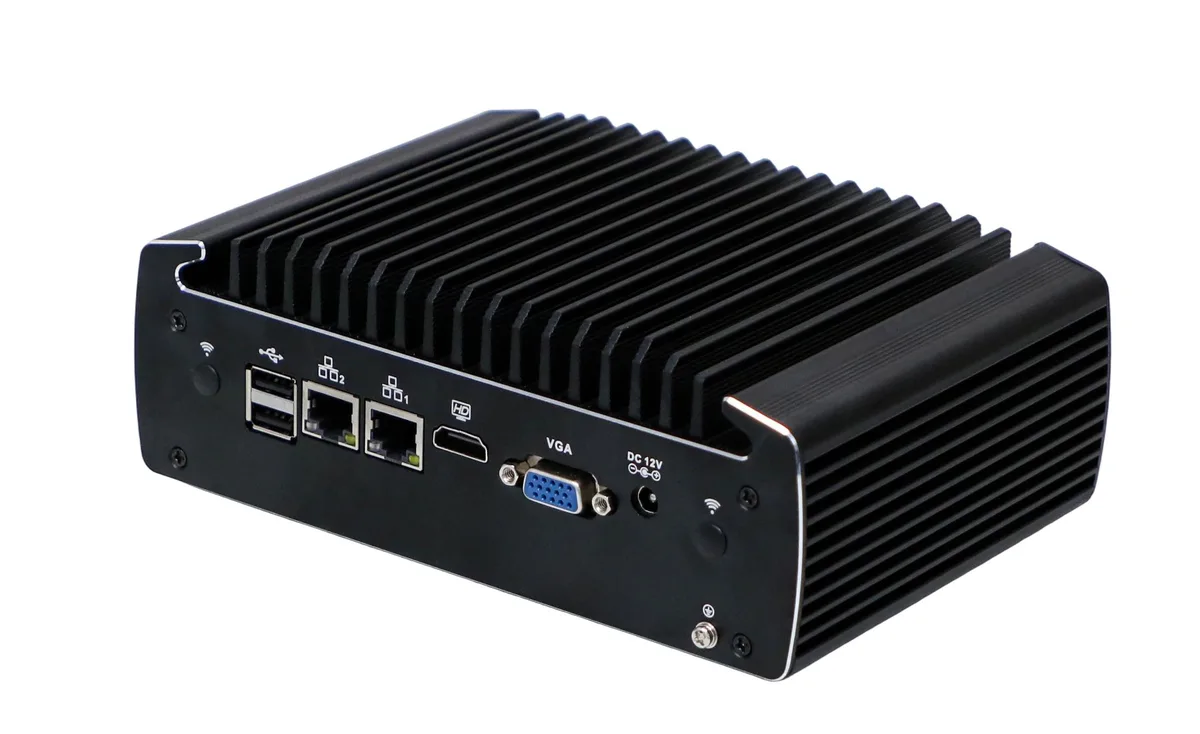

Dual Gigabit Ethernet ports use RTL8111H controllers for wired networking redundancy. Video output reaches 3280x2000 at 60 Hz over HDMI, with a second VGA port for legacy displays. Storage expansion is provided by one M.2 2280 slot supporting both SATA and NVMe protocols at PCIe 3.0 x1, plus a 2.5-inch bay. A Mini PCIe slot with a SIM holder allows cellular or wireless add-on cards.

أبرز المميزات

  • Fanless aluminium body runs silently in dusty industrial sites
  • Dual-core i5-6300U reaches 3.0 GHz turbo for responsive multitasking
  • 16 GB DDR4 and 256 GB M.2 2280 storage ready for embedded workloads
  • Six USB, two COM, dual Gigabit LAN plus Mini PCIe with SIM slot
  • Operates from -20 °C to +50 °C with TPM 2.0 and auto power-on

المواصفات

ColorBlack
CPU TypeIntel Core i5 6th Gen

إصدارات أخرى من هذا الطراز

4 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How quiet is the fanless aluminum chassis when the i5-6300U runs continuously at 3.0 GHz turbo?

The fanless aluminum alloy body has no moving parts, so it remains completely silent even when the dual-core processor sustains its 3.0 GHz turbo frequency all day.

Does the 256 GB M.2 2280 SSD use the NVMe protocol or SATA, and can I add a 2.5-inch drive without buying extra cables?

The installed 256 GB M.2 2280 drive works with either SATA or NVMe PCIe 3.0 x1, and the empty 2.5-inch bay is ready for a second drive using the internal connectors already present.

Will the HDMI port drive a 3280x2000@60 Hz monitor while the VGA port runs a legacy 1080p display at the same time?

Yes, Intel HD Graphics 520 supports simultaneous dual display — HDMI up to 3280x2000@60 Hz and VGA for the older screen — without extra adapters.
