Black fanless mini PC with aluminum alloy case, compact rectangular form factor

partaker

partaker I20 Fanless Mini PC i5-6500T 8G RAM 128G SSD

SKU CH-S838-VCWKJ

Fanless industrial mini PC with an Intel Core i5 6500T, 8 GB DDR4 RAM, 128 GB SSD, dual LAN, HDMI, VGA, six COM ports, ten USB ports and a CAN interface

  • ColorBlack
  • CPU TypeIntel Core i5 6th Gen

CPU Type Intel Core i5

Group 8GB / 128GB SSD

  • Fanless aluminium chassis runs silently in noise-sensitive sites
  • Intel Core i5-6500T quad-core processor reaches 3.1 GHz turbo for responsive workloads
  • 8 GB DDR4 memory installed with single slot expandable to 16 GB
  • 128 GB SSD provides solid-state speed and wide-temperature reliability

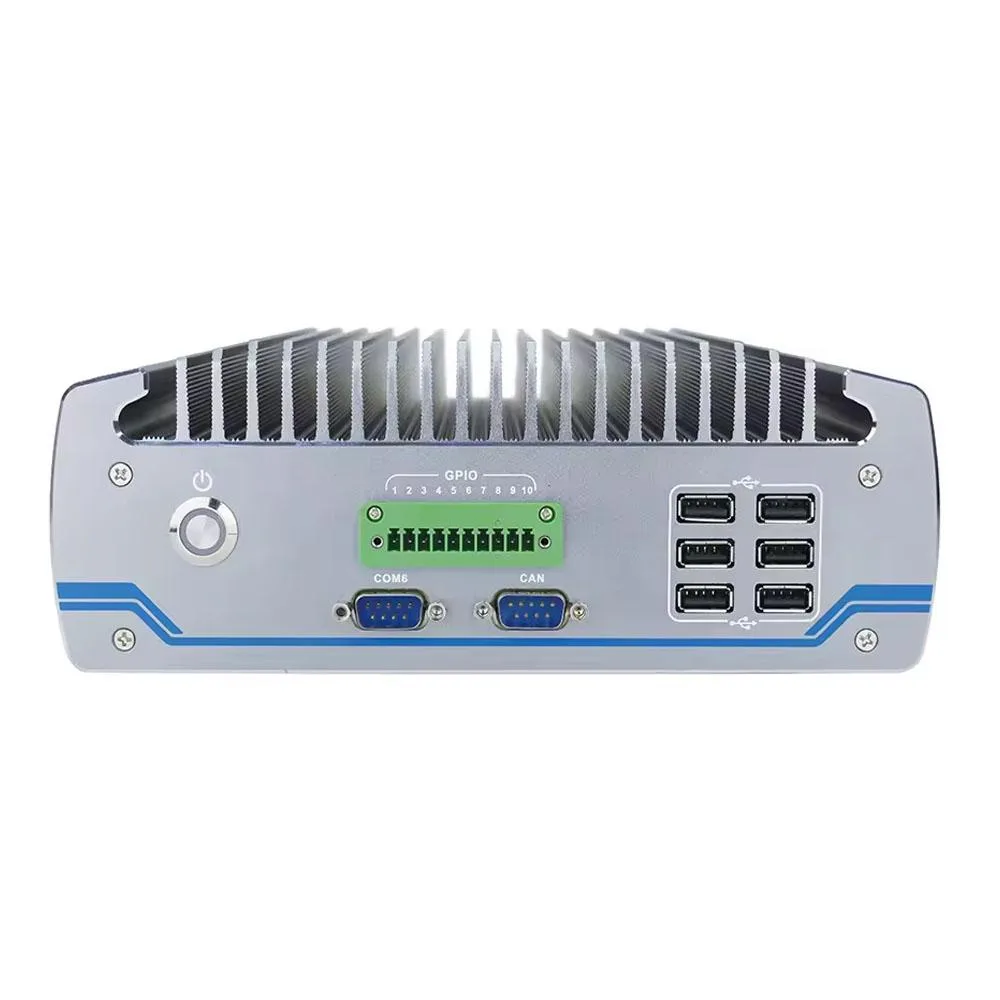

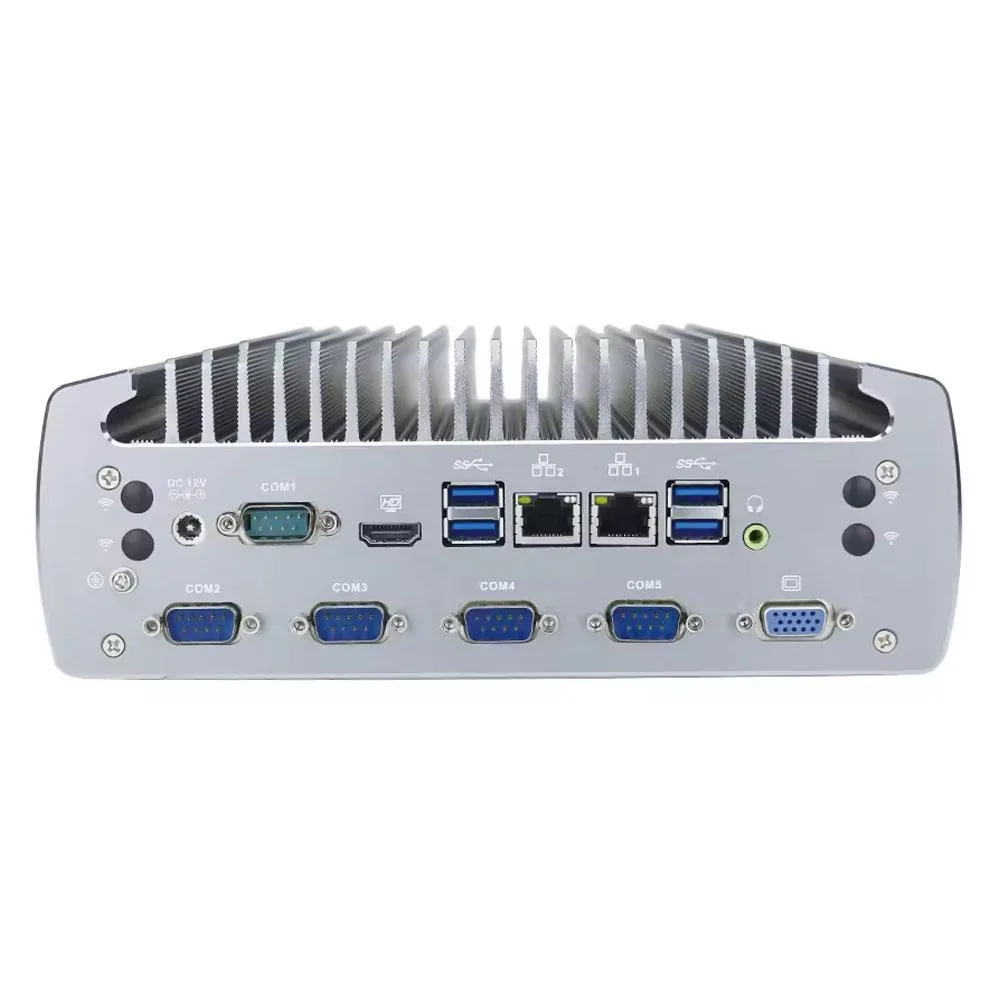

  • Dual Intel LAN plus 10 USB and 6 COM ports connect diverse industrial peripherals

Industrial mini PC with i5-6500T

The Partaker I20 is a fanless mini PC built around an Intel Core i5-6500T processor with 8 GB of DDR4 memory and a 128 GB SSD. Its aluminium chassis dissipates heat silently, making it suitable for noise-sensitive industrial sites or embedded deployments. The system ships with Windows 11 Pro or Ubuntu Linux pre-installed. Dual-display output via HDMI and VGA supports synchronous or asynchronous operation.

Upgrade from older fanless units

This unit replaces legacy fanless boxes that rely on lower-power Celeron or Atom-class CPUs and limited I/O. The jump is worthwhile when an application needs four cores at up to 3.1 GHz turbo, dual Intel gigabit LAN ports, six COM ports with RS-232/422/485 options, and a CAN bus interface. It also adds ten USB ports and a GPIO header for broader peripheral integration.

Fits DIN-rail, wall or desktop mounts

The compact aluminium case accepts DC 12 V input with an optional 9–36 V wide-range supply, simplifying power planning in cabinets or vehicles. Expansion is provided by one M.2 slot, two mini-PCIe sockets (one shared with mSATA) and an external SIM slot for cellular modules. Two 2.5-inch drive bays are available for additional storage. Operating temperature spans 0 to 50 °C with commercial drives or -20 to 60 °C with industrial SSDs.

أبرز المميزات

  • Fanless aluminium chassis runs silently in noise-sensitive sites
  • Intel Core i5-6500T quad-core processor reaches 3.1 GHz turbo for responsive workloads
  • 8 GB DDR4 memory installed with single slot expandable to 16 GB
  • 128 GB SSD provides solid-state speed and wide-temperature reliability
  • Dual Intel LAN plus 10 USB and 6 COM ports connect diverse industrial peripherals

المواصفات

ColorBlack
CPU TypeIntel Core i5 6th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

What are the physical mounting options for the aluminum alloy chassis?

The all-aluminum alloy chassis supports desktop, embedded and wall-mount installations for flexible industrial deployment.

How is the 12 V DC power connected, and what mistake should be avoided?

Connect the DC-IN 12 V jack using the supplied adapter; do not apply 9–36 V wide-range power unless the optional wide-voltage module is factory-fitted.

When will the 128 GB mSATA SSD need replacement, and what are the upgrade limits?

The mSATA SSD can be swapped for a larger mSATA drive; the single DDR4 slot accepts up to 16 GB at 2133/2400 MHz, and one 2.5-inch bay (optionally two) is available for additional storage.
